tcedisasm.cc File Reference

#include <iostream>
#include <fstream>
#include <map>
#include "CmdLineOptions.hh"
#include "BinaryReader.hh"
#include "Binary.hh"
#include "TPEFProgramFactory.hh"
#include "ADFSerializer.hh"
#include "POMDisassembler.hh"
#include "DisassemblyInstruction.hh"
#include "BinaryStream.hh"
#include "DataMemory.hh"
#include "DataDefinition.hh"
#include "FileSystem.hh"
#include "UniversalMachine.hh"
#include "tce_config.h"
#include "Program.hh"

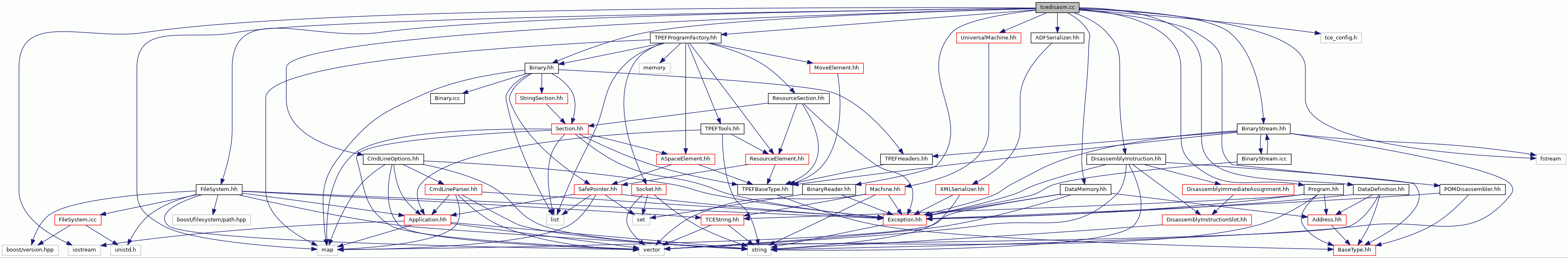

Include dependency graph for tcedisasm.cc:

Go to the source code of this file.

Classes
class	DisasmCmdLineOptions

Functions
int	main (int argc, char *argv[])

Detailed Description

TCE parallel disassembler.

Author

Veli-Pekka Jääskeläinen 2006 (vjaaskel-no.spam-cs.tut.fi)

Pekka Jääskeläinen 2009,2011 (pjaaskel-no.spam-cs.tut.fi)

Note

rating: red

Definition in file tcedisasm.cc.

Function Documentation

main()

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 118 of file tcedisasm.cc.

                                 {

    DisasmCmdLineOptions options;

    try {
        options.parse(argv, argc);
    } catch (ParserStopRequest const&) {
        return 0;
    } catch (IllegalCommandLine& e) {
        std::cerr << "Error: Illegal commandline: "
                  << e.errorMessage() << endl << endl;

        options.printHelp();
        return 1;
    }

    if (options.numberOfArguments() != 2) {
        std::cerr << "Error: Illegal number of parameters." << endl << endl;
        options.printHelp();
        return 1;
    }

    std::string inputFileName = options.argument(2);
    // Load TPEF.
    TPEF::BinaryStream stream(inputFileName);
    TPEF::Binary* tpef = NULL;
    try {
        tpef = TPEF::BinaryReader::readBinary(stream);
    } catch (Exception& e) {
        cerr << "Can't read TPEF binary file: " << options.argument(2) << endl
             << e.errorMessage() << endl;
        return 1;
    }

    // Load machine.
    TTAMachine::Machine* machine = NULL;
    ADFSerializer machineReader;
    machineReader.setSourceFile(options.argument(1));
    try {
        machine = machineReader.readMachine();
    } catch (Exception& e) {
        cerr << "Error: " << options.argument(1) << " is not a valid ADF File"
             << endl << e.errorMessage() << endl;

        delete tpef;
        return 1;
    }

    // Create POM.
    TTAProgram::Program* program = NULL;

    try {
        TTAProgram::TPEFProgramFactory factory(*tpef, *machine);
        program = factory.build();
    } catch (Exception& e) {

        // Try if mixed code
        try {
            TTAProgram::TPEFProgramFactory factory(
                *tpef, *machine, &UniversalMachine::instance());
            program = factory.build();
        } catch (Exception& e1) {
            cerr << "Error: " << e.errorMessage() << " and "
                 << e1.errorMessage() << endl;
            delete tpef;
            delete machine;
            return 1;
        }
    }

    std::ostream* output = &std::cout;
    std::fstream file;
    std::string outputFileName =
        options.outputFileDefined() ?
        options.outputFile() : inputFileName + ".S";
    if (!options.printToStdout()) {
        if ((!FileSystem::fileExists(outputFileName) &&
             FileSystem::fileIsCreatable(outputFileName))) {
            FileSystem::createFile(outputFileName);
            file.open(
                outputFileName.c_str(),
                std::fstream::trunc | std::fstream::out);
            output = &file;
        } else if (FileSystem::fileIsWritable(outputFileName)) {
            file.open(
                outputFileName.c_str(),
                std::fstream::trunc | std::fstream::out);
            if (file.is_open()) {
                output = &file;
            }
        }
    }

    // Write code section disassembly.
    POMDisassembler disassembler(*program);
    Word first = disassembler.startAddress();
    if (!options.flatFile()) {
        *output << "CODE " << first << " ;" << endl << endl;
        try {
            *output << POMDisassembler::disassemble(
                *program, options.lineNumbers())
                    << endl << endl;

        } catch (Exception& e) {
            std::cerr << "Disassebly failed because of exception: " <<
                e.errorMessage() << std::endl;
        }

        // Write data memory initializations.
        for (int i = 0; i < program->dataMemoryCount(); i++) {

            const TTAProgram::DataMemory& mem = program->dataMemory(i);
            const TTAMachine::AddressSpace& aSpace = mem.addressSpace();

            if (mem.dataDefinitionCount() == 0) continue;

            *output << "DATA " << aSpace.name() << " "
                    << mem.dataDefinition(0).startAddress().location()
                    << " ;" << endl;

            // Definitions are put in a map to order them.
            // TODO: the indexing API of DataMemory could be used for this?
            // TODO: does this handle "holes" correctly or assume fully
            // "connected regions" always?
            // TODO: this does not handle UDATA at all!
            std::map<Word, const TTAProgram::DataDefinition*> definitions;
            for (int d = 0; d < mem.dataDefinitionCount(); d++) {
                const TTAProgram::DataDefinition& def = mem.dataDefinition(d);
                definitions[def.startAddress().location()] = &def;
            }

            std::map<Word, const TTAProgram::DataDefinition*>::iterator iter =
                definitions.begin();

            for (; iter != definitions.end(); iter++) {
                const TTAProgram::DataDefinition* def = (*iter).second;
                *output << endl << "DA " << std::dec << def->size();
                if (def->isInitialized())  {
                    for (int mau = 0; mau < def->size(); mau++) {
                        *output << endl << "1:0x" << std::hex << def->MAU(mau);
                    }
                }
                *output << " ;" << endl;
            }
        }
        *output << endl;
    } else {
        // assumes instruction addresses always start from 0
        TTAProgram::Program::InstructionVector instr =
            program->instructionVector();
        for (TTAProgram::Program::InstructionVector::const_iterator i =
                 instr.begin(); i != instr.end(); ++i) {
            *output
                << POMDisassembler::disassemble(**i, options.lineNumbers())
                << std::endl;
        }
    }

    return 0;
}

References TTAProgram::DataMemory::addressSpace(), CmdLineParser::argument(), TTAProgram::TPEFProgramFactory::build(), FileSystem::createFile(), TTAProgram::DataMemory::dataDefinition(), TTAProgram::DataMemory::dataDefinitionCount(), POMDisassembler::disassemble(), Exception::errorMessage(), FileSystem::fileExists(), FileSystem::fileIsCreatable(), FileSystem::fileIsWritable(), UniversalMachine::instance(), TTAProgram::DataDefinition::isInitialized(), TTAProgram::Address::location(), machine, TTAProgram::DataDefinition::MAU(), TTAMachine::Component::name(), CmdLineParser::numberOfArguments(), options, outputFileName(), CmdLineOptions::parse(), MachInfoCmdLineOptions::printHelp(), program, TPEF::BinaryReader::readBinary(), ADFSerializer::readMachine(), XMLSerializer::setSourceFile(), TTAProgram::DataDefinition::size(), TTAProgram::DataDefinition::startAddress(), and POMDisassembler::startAddress().

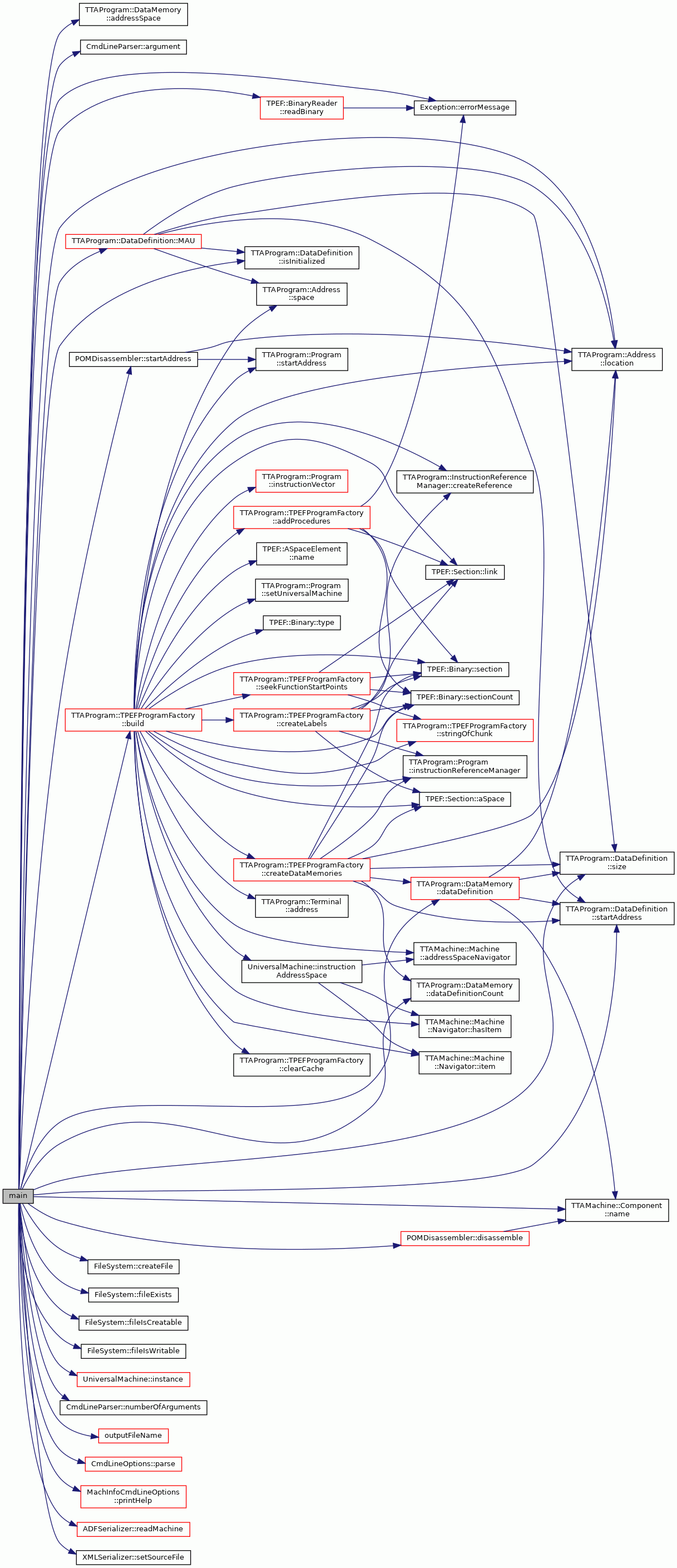

Here is the call graph for this function:
