#include <UniversalMachine.hh>

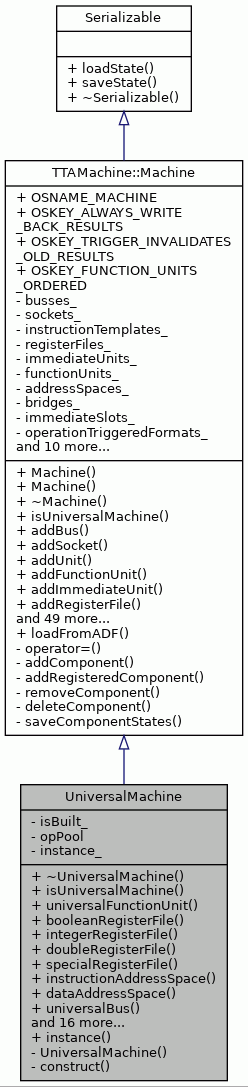

Inheritance diagram for UniversalMachine:

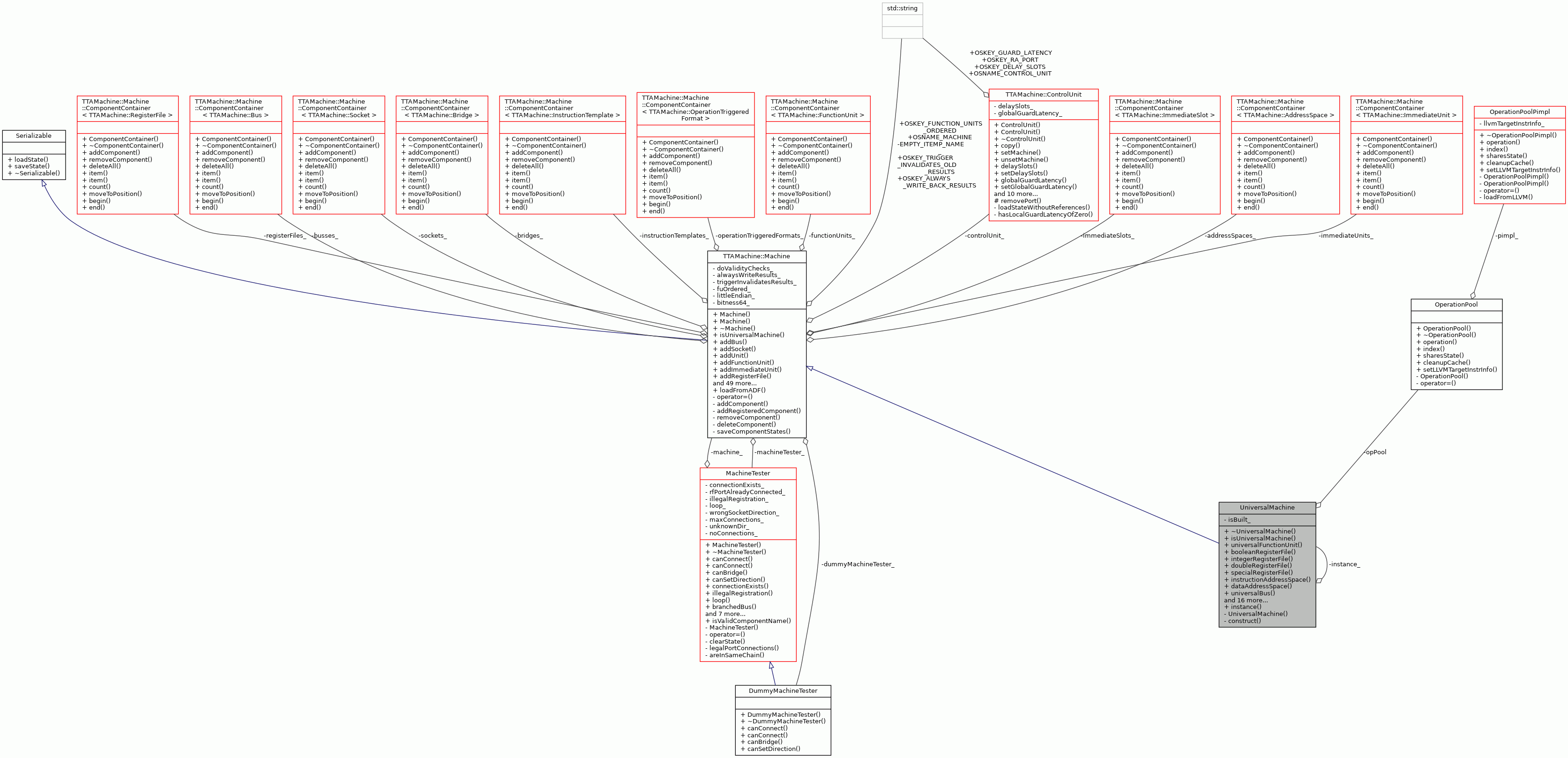

Collaboration diagram for UniversalMachine:

Public Member Functions
virtual	~UniversalMachine ()

virtual bool	isUniversalMachine () const

UniversalFunctionUnit &	universalFunctionUnit () const

TTAMachine::RegisterFile &	booleanRegisterFile () const

UnboundedRegisterFile &	integerRegisterFile () const

UnboundedRegisterFile &	doubleRegisterFile () const

TTAMachine::RegisterFile &	specialRegisterFile () const

TTAMachine::AddressSpace &	instructionAddressSpace () const

TTAMachine::AddressSpace &	dataAddressSpace () const

TTAMachine::Bus &	universalBus () const

virtual void	addBus (TTAMachine::Bus &bus)

virtual void	addSocket (TTAMachine::Socket &socket)

virtual void	addFunctionUnit (TTAMachine::FunctionUnit &unit)

virtual void	addImmediateUnit (TTAMachine::ImmediateUnit &unit)

virtual void	addRegisterFile (TTAMachine::RegisterFile &unit)

virtual void	addAddressSpace (TTAMachine::AddressSpace &as)

virtual void	addBridge (TTAMachine::Bridge &bridge)

virtual void	addInstructionTemplate (TTAMachine::InstructionTemplate &iTemp)

virtual void	setGlobalControl (TTAMachine::ControlUnit &unit)

virtual void	removeBus (TTAMachine::Bus &bus)

virtual void	removeSocket (TTAMachine::Socket &socket)

virtual void	removeFunctionUnit (TTAMachine::FunctionUnit &unit)

virtual void	removeRegisterFile (TTAMachine::RegisterFile &unit)

virtual void	deleteAddressSpace (TTAMachine::AddressSpace &as)

virtual void	unsetGlobalControl ()

virtual void	loadState (const ObjectState *state)

Public Member Functions inherited from TTAMachine::Machine
	Machine ()

	Machine (const Machine &old)

virtual	~Machine ()

void	addUnit (Unit &unit)

virtual void	addOperationTriggeredFormat (OperationTriggeredFormat &format)

virtual void	addImmediateSlot (ImmediateSlot &slot)

virtual ControlUnit *	controlUnit () const

virtual void	removeUnit (Unit &unit)

virtual void	removeImmediateUnit (ImmediateUnit &unit)

virtual void	deleteBridge (Bridge &bridge)

virtual void	deleteInstructionTemplate (InstructionTemplate &instrTempl)

virtual void	deleteOperationTriggeredFormat (OperationTriggeredFormat &format)

virtual void	deleteImmediateSlot (ImmediateSlot &slot)

void	setBusPosition (const Bus &bus, int newPosition)

MachineTester &	machineTester () const

bool	alwaysWriteResults () const

bool	triggerInvalidatesResults () const

bool	isFUOrdered () const

void	setAlwaysWriteResults (bool)

void	setTriggerInvalidatesResults (bool)

void	setFUOrdered (bool)

int	maximumLatency () const

virtual ObjectState *	saveState () const

virtual void	copyFromMachine (Machine &machine)

void	writeToADF (const std::string &adfFileName) const

TCEString	hash () const

bool	hasOperation (const TCEString &opName) const

bool	isRISCVMachine () const

virtual BusNavigator	busNavigator () const

virtual SocketNavigator	socketNavigator () const

virtual FunctionUnitNavigator	functionUnitNavigator () const

virtual AddressSpaceNavigator	addressSpaceNavigator () const

virtual BridgeNavigator	bridgeNavigator () const

virtual ImmediateUnitNavigator	immediateUnitNavigator () const

virtual InstructionTemplateNavigator	instructionTemplateNavigator () const

virtual RegisterFileNavigator	registerFileNavigator () const

virtual ImmediateSlotNavigator	immediateSlotNavigator () const

virtual OperationTriggeredFormatNavigator	operationTriggeredFormatNavigator () const

bool	isLittleEndian () const

void	setLittleEndian (bool flag)

bool	is64bit () const

void	set64bits (bool flag)

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Member Functions
static UniversalMachine &	instance ()

Static Public Member Functions inherited from TTAMachine::Machine
static Machine *	loadFromADF (const std::string &adfFileName)

Private Member Functions
	UniversalMachine ()

void	construct ()

Private Attributes
bool	isBuilt_
	Indicates whether the UniversalMachine is built completely.

OperationPool	opPool
	The operation pool instance to use for finding operations.

Static Private Attributes
static UniversalMachine *	instance_ = NULL
	The singleton instance. Use this instance everywhere. Creating multiple instances of UM is deprecated.

Additional Inherited Members
Public Types inherited from TTAMachine::Machine
enum	Extension { ZERO , SIGN }

typedef Navigator< Bus >	BusNavigator
	Navigator type for BusNavigator.

typedef Navigator< Socket >	SocketNavigator
	Navigator type for SocketNavigator.

typedef Navigator< FunctionUnit >	FunctionUnitNavigator
	Navigator type for FunctionUnitNavigator.

typedef Navigator< AddressSpace >	AddressSpaceNavigator
	Navigator type for AddressSpaceNavigator.

typedef Navigator< Bridge >	BridgeNavigator
	Navigator type for BridgeNavigator.

typedef Navigator< ImmediateUnit >	ImmediateUnitNavigator
	Navigator type for ImmediateUnitNavigator.

typedef Navigator< InstructionTemplate >	InstructionTemplateNavigator
	Navigator type for InstructionTemplateNavigator.

typedef Navigator< RegisterFile >	RegisterFileNavigator
	Navigator type for RegisterFileNavigator.

typedef Navigator< ImmediateSlot >	ImmediateSlotNavigator
	Navigator type for ImmediateSlotNavigator.

typedef Navigator< OperationTriggeredFormat >	OperationTriggeredFormatNavigator
	Navigator type for OperationTriggeredFormatNavigator.

Static Public Attributes inherited from TTAMachine::Machine
static const std::string	OSNAME_MACHINE = "machine"
	ObjectState name for Machine.

static const std::string	OSKEY_ALWAYS_WRITE_BACK_RESULTS = "always-write-back"
	ObjectState attribute key for always-write-back-results.

static const std::string	OSKEY_TRIGGER_INVALIDATES_OLD_RESULTS = "trigger-invalidates"
	ObjectState attribute key for trigger-invalidates-old-results.

static const std::string	OSKEY_FUNCTION_UNITS_ORDERED = "fu-ordered"
	ObjectState attribute key for function units ordered in order of their sequential presence in ADF.

Detailed Description

UniversalMachine is used to mark unassigned/unscheduled resources.

In the old versions of TCE, UniversalMachine represented a TTA processor which used to model an imaginary target for the old "sequential code", an intermediate format from the old gcc frontend. Previously, one UM instance per Program was created but from now one, the singleton object should be used everywhere because UM resources are just used to mark unscheduled parts of the program.

Definition at line 56 of file UniversalMachine.hh.

Constructor & Destructor Documentation

◆ ~UniversalMachine()

UniversalMachine::~UniversalMachine ( )

virtual

Destructor.

Definition at line 191 of file UniversalMachine.cc.

191 {

192}

◆ UniversalMachine()

UniversalMachine::UniversalMachine ( )

private

Constructor.

Creates a complete universal machine with all the required components. Only called by instance().

Definition at line 61 of file UniversalMachine.cc.

                                   :
    Machine(), isBuilt_(false) {
    construct();
}

References construct().

Referenced by instance().

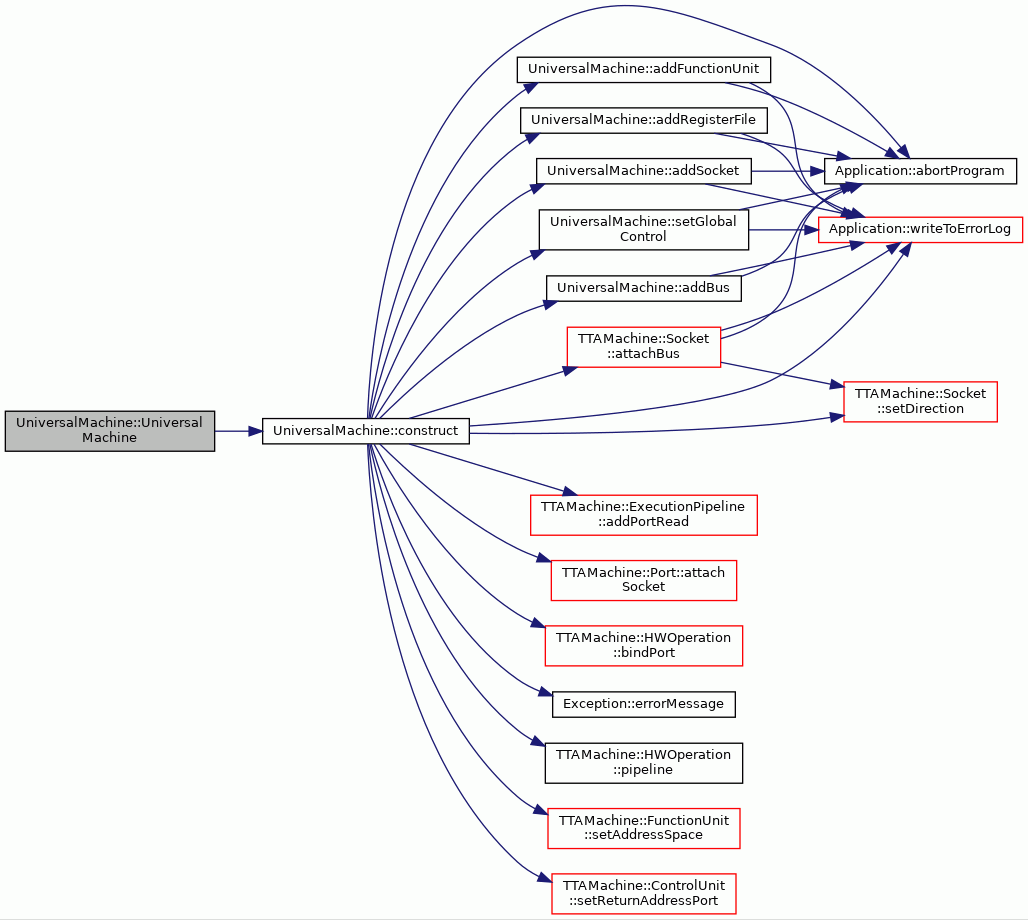

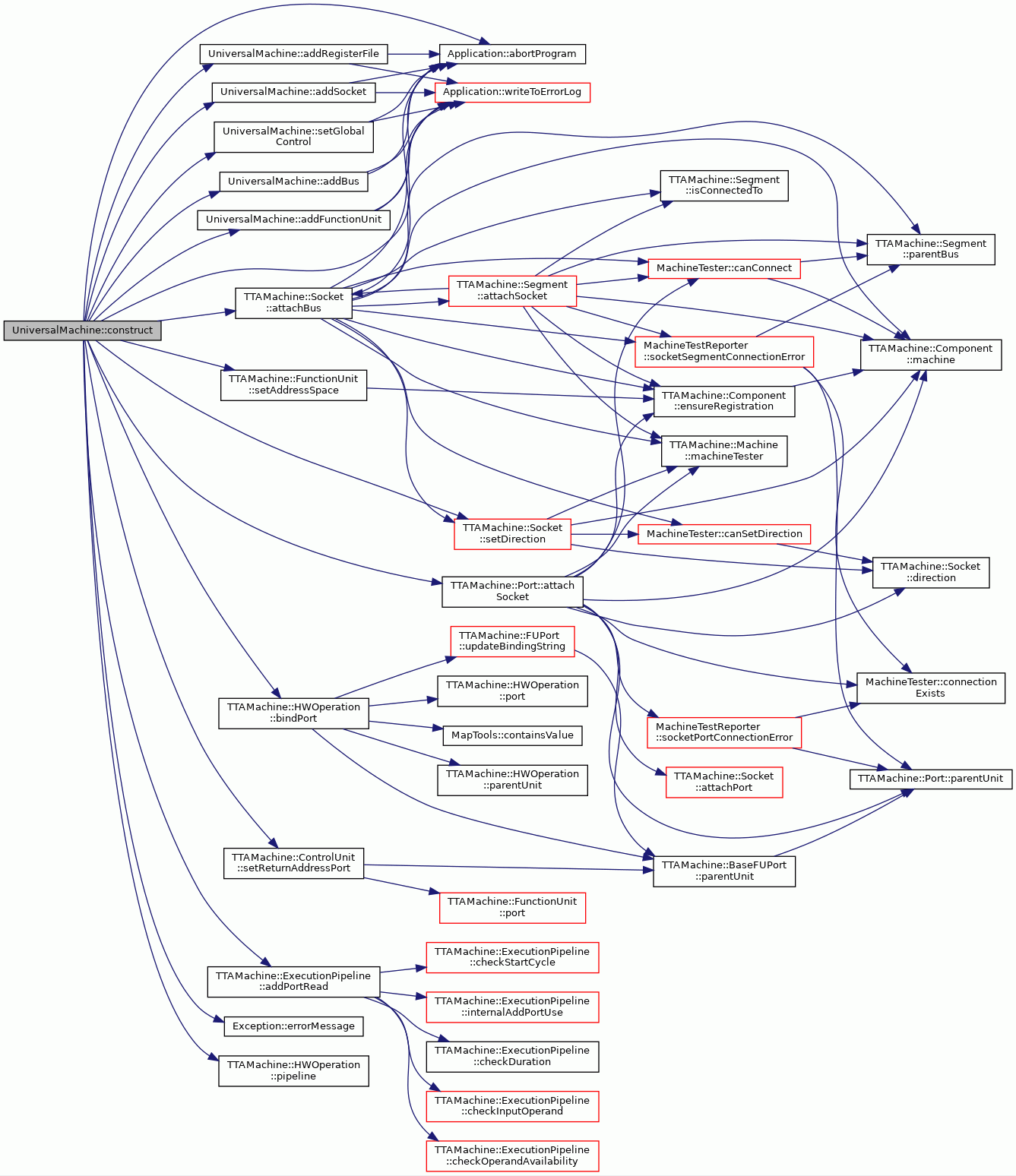

Here is the call graph for this function:

Member Function Documentation

◆ addAddressSpace()

void UniversalMachine::addAddressSpace ( TTAMachine::AddressSpace & as )

virtual

Adds an address space to the machine. Aborts the program if tried to add an address space after the UniversalMachine is constructed. DO NOT CALL THIS METHOD.

Parameters

as	The address space being added.

Exceptions

ComponentAlreadyExists If an address space by the same name already exists in the machine.

Reimplemented from TTAMachine::Machine.

Definition at line 427 of file UniversalMachine.cc.

                                                  {
    if (!isBuilt_) {
        Machine::addAddressSpace(as);
    } else {
        const string procName = "UniversalMachine::addAddressSpace";
        const string errorMsg =
            "Tried to add an address space to UniversalMachine!";
        Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
        Application::abortProgram();
    }
}

References Application::abortProgram(), TTAMachine::Machine::addAddressSpace(), isBuilt_, and Application::writeToErrorLog().

Here is the call graph for this function:

◆ addBridge()

void UniversalMachine::addBridge ( TTAMachine::Bridge & bridge )

virtual

Aborts the program. UniversalMachine can not contain bridges. DO NOT CALL THIS METHOD.

Parameters

bridge Never used.

Exceptions

ComponentAlreadyExists Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 447 of file UniversalMachine.cc.

                                   {
    const string procName = "UniversalMachine::addBridge";
    const string errorMsg = "Tried to add a bridge to UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ addBus()

void UniversalMachine::addBus ( TTAMachine::Bus & bus )

virtual

Adds a bus to the machine.

Aborts the program if tried to add a bus after the UniversalMachine is constructed. DO NOT CALL THIS METHOD.

Parameters

bus	Bus being added.

Exceptions

ComponentAlreadyExists If a bus by the same name already exists in the machine.

Reimplemented from TTAMachine::Machine.

Definition at line 324 of file UniversalMachine.cc.

                                 {
    if (!isBuilt_) {
        Machine::addBus(bus);
    } else {
        const string procName = "UniversalMachine::addBus";
        const string errorMsg = "Tried to add a bus to UniversalMachine!";
        Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
        Application::abortProgram();
    }
}

References Application::abortProgram(), TTAMachine::Machine::addBus(), isBuilt_, and Application::writeToErrorLog().

Referenced by construct().

Here is the call graph for this function:

◆ addFunctionUnit()

void UniversalMachine::addFunctionUnit ( TTAMachine::FunctionUnit & unit )

virtual

Adds a function unit to the machine. Aborts the program if tried to add a function unit after the UniversalMachine is constructed. DO NOT CALL THIS METHOD.

Parameters

unit	The function unit being added.

Exceptions

ComponentAlreadyExists If a function unit by the same name already exists in the machine.

Reimplemented from TTAMachine::Machine.

Definition at line 367 of file UniversalMachine.cc.

                                                    {
    if (!isBuilt_) {
        Machine::addFunctionUnit(unit);
    } else {
        const string procName = "UniversalMachine::addFunctionUnit";
        const string errorMsg =
            "Tried to add a function unit to UniversalMachine!";
        Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
        Application::abortProgram();
    }
}

References Application::abortProgram(), TTAMachine::Machine::addFunctionUnit(), isBuilt_, and Application::writeToErrorLog().

Referenced by construct().

Here is the call graph for this function:

◆ addImmediateUnit()

void UniversalMachine::addImmediateUnit ( TTAMachine::ImmediateUnit & unit )

virtual

Aborts the program. It is not allowed to add immediate units to UniversalMachine. DO NOT CALL THIS METHOD.

Parameters

unit	Never used.

Exceptions

ComponentAlreadyExists Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 387 of file UniversalMachine.cc.

                                                 {
    const string procName = "UniversalMachine::addImmediateUnit";
    const string errorMsg =
        "Tried to add an immediate unit to UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ addInstructionTemplate()

void UniversalMachine::addInstructionTemplate ( TTAMachine::InstructionTemplate & iTemp )

virtual

Aborts the program. UniversalMachine can not contain instruction templates. DO NOT CALL THIS METHOD!

Parameters

iTemp Never used.

Exceptions

ComponentAlreadyExists Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 462 of file UniversalMachine.cc.

                                                             {
    const string procName = "UniversalMachine::addInstructionTemplate";
    const string errorMsg =
        "Tried to add an instruction template to UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ addRegisterFile()

void UniversalMachine::addRegisterFile ( TTAMachine::RegisterFile & unit )

virtual

Adds a register file to the machine. Aborts the program if tried to add a register file after the UniversalMachine is constructed. DO NOT CALL THIS METHOD.

Parameters

unit	The register file being added.

Exceptions

ComponentAlreadyExists If a register file by the same name already exists in the machine.

Reimplemented from TTAMachine::Machine.

Definition at line 405 of file UniversalMachine.cc.

                                                    {
    if (!isBuilt_) {
        Machine::addRegisterFile(unit);
    } else {
        const string procName = "UniversalMachine::addRegisterFile";
        const string errorMsg =
            "Tried to add a register file to UniversalMachine!";
        Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
        Application::abortProgram();
    }
}

References Application::abortProgram(), TTAMachine::Machine::addRegisterFile(), isBuilt_, and Application::writeToErrorLog().

Referenced by construct().

Here is the call graph for this function:

◆ addSocket()

void UniversalMachine::addSocket ( TTAMachine::Socket & socket )

virtual

Adds a socket to the machine.

Aborts the program if tried to add a socket after the UniversalMachine is constructed. DO NOT CALL THIS METHOD.

Parameters

socket The socket being added.

Exceptions

ComponentAlreadyExists If a socket by the same name already exists in the machine.

Reimplemented from TTAMachine::Machine.

Definition at line 346 of file UniversalMachine.cc.

                                          {
    if (!isBuilt_) {
        Machine::addSocket(socket);
    } else {
        const string procName = "UniversalMachine::addSocket";
        const string errorMsg = "Tried to add a socket to UniversalMachine!";
        Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
        Application::abortProgram();
    }
}

References Application::abortProgram(), TTAMachine::Machine::addSocket(), isBuilt_, and Application::writeToErrorLog().

Referenced by construct().

Here is the call graph for this function:

◆ booleanRegisterFile()

RegisterFile & UniversalMachine::booleanRegisterFile ( ) const

Returns the boolean register file of the universal machine.

Returns: The boolean register file.

Definition at line 221 of file UniversalMachine.cc.

                                            {
    RegisterFileNavigator rfNav = registerFileNavigator();
    assert(rfNav.hasItem(UM_BOOLEAN_RF_NAME));
    return *rfNav.item(UM_BOOLEAN_RF_NAME);
}

References assert, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Machine::registerFileNavigator(), and UM_BOOLEAN_RF_NAME.

Referenced by TTAProgram::TPEFProgramFactory::findRegisterFile(), and TTAProgram::TPEFResourceUpdater::registerFile().

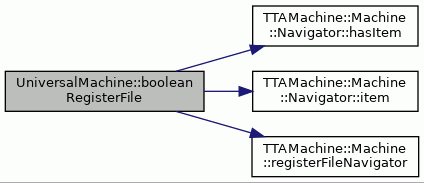

Here is the call graph for this function:

◆ construct()

void UniversalMachine::construct ( )

private

Actually constructs the resources in the universal machine.

Definition at line 83 of file UniversalMachine.cc.

                            {

    try {
        // add bus
        Bus* bus = new Bus(UM_BUS_NAME, 64, 32, Machine::ZERO);
        addBus(*bus);

        // add a segment to the bus
        Segment* segment = new Segment(UM_SEGMENT_NAME, *bus);

        // add sockets
        Socket* inputSocket = new Socket(UM_INPUT_SOCKET_NAME);
        Socket* outputSocket =  new Socket(UM_OUTPUT_SOCKET_NAME);
        addSocket(*inputSocket);
        addSocket(*outputSocket);
        inputSocket->attachBus(*segment);
        inputSocket->setDirection(Socket::INPUT);
        outputSocket->attachBus(*segment);
        outputSocket->setDirection(Socket::OUTPUT);

        // add a boolean register file
        RegisterFile* boolean = new RegisterFile(
            UM_BOOLEAN_RF_NAME, 1, 1, 1, 1, 0, RegisterFile::NORMAL);
        addRegisterFile(*boolean);
        (new RFPort(UM_BOOLEAN_RF_WRITE_PORT, *boolean))->
            attachSocket(*inputSocket);
        (new RFPort(UM_BOOLEAN_RF_READ_PORT, *boolean))->
            attachSocket(*outputSocket);

        // add boolean register guards
        new RegisterGuard(false, *boolean, 0, bus);
        new RegisterGuard(true, *boolean, 0, bus);

        // add universal register file for integers
        UnboundedRegisterFile* integerURF = new UnboundedRegisterFile(
            UM_INTEGER_URF_NAME, 32, RegisterFile::NORMAL);
        addRegisterFile(*integerURF);
        (new RFPort(UM_INTEGER_URF_WRITE_PORT, *integerURF))->
            attachSocket(*inputSocket);
        (new RFPort(UM_INTEGER_URF_READ_PORT, *integerURF))->
            attachSocket(*outputSocket);

        // add universal register file for doubles
        UnboundedRegisterFile* doubleURF = new UnboundedRegisterFile(
            UM_DOUBLE_URF_NAME, 64, RegisterFile::NORMAL);
        addRegisterFile(*doubleURF);
        (new RFPort(UM_DOUBLE_URF_WRITE_PORT, *doubleURF))->
            attachSocket(*inputSocket);
        (new RFPort(UM_DOUBLE_URF_READ_PORT, *doubleURF))->
            attachSocket(*outputSocket);

        // add a special register file for function return value
        RegisterFile* specialRF = new RegisterFile(
            UM_SPECIAL_RF_NAME, 1, 32, 1, 1, 0, RegisterFile::NORMAL);
        addRegisterFile(*specialRF);
        (new RFPort(UM_SPECIAL_RF_WRITE_PORT, *specialRF))->
            attachSocket(*inputSocket);
        (new RFPort(UM_SPECIAL_RF_READ_PORT, *specialRF))->
            attachSocket(*outputSocket);

        // add address space for instruction memory
        AddressSpace* iMem = new AddressSpace(
            UM_IMEM_NAME, 8, 0, 0xFFFFFF, *this);
        // add address space for data memory
        AddressSpace* dMem = new AddressSpace(
            UM_DMEM_NAME, 8, 0, DATA_MEM_SIZE_UINT - 1, *this);

        // add universal function unit
        UniversalFunctionUnit* uFU = new UniversalFunctionUnit(
            UM_UNIVERSAL_FU_NAME, opPool);
        addFunctionUnit(*uFU);
        uFU->setAddressSpace(dMem);

        // add control unit
        ControlUnit* cu = new ControlUnit(UM_GCU_NAME, 0, 1);
        setGlobalControl(*cu);
        cu->setAddressSpace(iMem);
        HWOperation* callOp = new HWOperation("CALL", *cu);
        HWOperation* jumpOp = new HWOperation("JUMP", *cu);

        FUPort* port1 = new FUPort("port1", 32, *cu, true, true);
        port1->attachSocket(*inputSocket);
        FUPort* port2 = new FUPort("port2", 32, *cu, false, false);
        port2->attachSocket(*inputSocket);
        SpecialRegisterPort* raPort = new SpecialRegisterPort("ra", 32, *cu);
        raPort->attachSocket(*inputSocket);
        raPort->attachSocket(*outputSocket);
        cu->setReturnAddressPort(*raPort);

        // create pipelines and operand bindings of GCU operations
        callOp->bindPort(1, *port1);
        callOp->pipeline()->addPortRead(1, 0, 1);
        jumpOp->bindPort(1, *port1);
        jumpOp->pipeline()->addPortRead(1, 0, 1);
    } catch (const Exception& exception) {
        const string procName = "UniversalMachine::UniversalMachine";
        Application::writeToErrorLog(
            __FILE__, __LINE__, procName, exception.errorMessage());
        Application::abortProgram();
    }

    isBuilt_ = true;
}

References Application::abortProgram(), addBus(), addFunctionUnit(), TTAMachine::ExecutionPipeline::addPortRead(), addRegisterFile(), addSocket(), TTAMachine::Socket::attachBus(), TTAMachine::Port::attachSocket(), TTAMachine::HWOperation::bindPort(), DATA_MEM_SIZE_UINT, Exception::errorMessage(), TTAMachine::Socket::INPUT, isBuilt_, TTAMachine::RegisterFile::NORMAL, opPool, TTAMachine::Socket::OUTPUT, TTAMachine::HWOperation::pipeline(), TTAMachine::FunctionUnit::setAddressSpace(), TTAMachine::Socket::setDirection(), setGlobalControl(), TTAMachine::ControlUnit::setReturnAddressPort(), UM_BOOLEAN_RF_NAME, UM_BOOLEAN_RF_READ_PORT, UM_BOOLEAN_RF_WRITE_PORT, UM_BUS_NAME, UM_DMEM_NAME, UM_DOUBLE_URF_NAME, UM_DOUBLE_URF_READ_PORT, UM_DOUBLE_URF_WRITE_PORT, UM_GCU_NAME, UM_IMEM_NAME, UM_INPUT_SOCKET_NAME, UM_INTEGER_URF_NAME, UM_INTEGER_URF_READ_PORT, UM_INTEGER_URF_WRITE_PORT, UM_OUTPUT_SOCKET_NAME, UM_SEGMENT_NAME, UM_SPECIAL_RF_NAME, UM_SPECIAL_RF_READ_PORT, UM_SPECIAL_RF_WRITE_PORT, UM_UNIVERSAL_FU_NAME, Application::writeToErrorLog(), and TTAMachine::Machine::ZERO.

Referenced by UniversalMachine().

Here is the call graph for this function:

◆ dataAddressSpace()

AddressSpace & UniversalMachine::dataAddressSpace ( ) const

Returns the address space of data memory.

Returns: The address space of data memory.

Definition at line 293 of file UniversalMachine.cc.

                                         {
    AddressSpaceNavigator asNav = addressSpaceNavigator();
    assert(asNav.hasItem(UM_DMEM_NAME));
    return *asNav.item(UM_DMEM_NAME);
}

References TTAMachine::Machine::addressSpaceNavigator(), assert, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), and UM_DMEM_NAME.

Referenced by TTAProgram::TPEFProgramFactory::findAddressSpace().

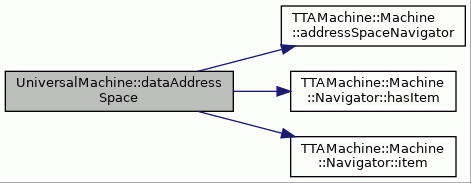

Here is the call graph for this function:

◆ deleteAddressSpace()

void UniversalMachine::deleteAddressSpace ( TTAMachine::AddressSpace & as )

virtual

Aborts the program. It is not allowed to delete address spaces from UniversalMachine. DO NOT CALL THIS METHOD!

Parameters

as	Never used.

Exceptions

InstanceNotFound Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 561 of file UniversalMachine.cc.

                                                  {
    const string procName = "UniversalMachine::deleteAddressSpace";
    const string errorMsg =
        "Tried to delete address space from UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ doubleRegisterFile()

UnboundedRegisterFile & UniversalMachine::doubleRegisterFile ( ) const

Returns the unbounded register file for double precision floating point numbers.

Returns: The unbounded register file for doubles.

Definition at line 251 of file UniversalMachine.cc.

                                           {
    RegisterFileNavigator rfNav = registerFileNavigator();
    assert(rfNav.hasItem(UM_DOUBLE_URF_NAME));
    RegisterFile* rf = rfNav.item(UM_DOUBLE_URF_NAME);
    UnboundedRegisterFile* urf = dynamic_cast<UnboundedRegisterFile*>(rf);
    assert(urf != NULL);
    return *urf;
}

References assert, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Machine::registerFileNavigator(), and UM_DOUBLE_URF_NAME.

Referenced by TTAProgram::TPEFProgramFactory::findRegisterFile(), and TTAProgram::TPEFResourceUpdater::registerFile().

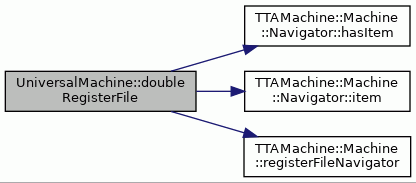

Here is the call graph for this function:

◆ instance()

UniversalMachine & UniversalMachine::instance ( )

static

Use this to get access to an UM.

Do not explicitly create new instances of UM anymore. It's deprecated and won't work in the future. *

Definition at line 73 of file UniversalMachine.cc.

                           {
    if (instance_ == NULL)
        instance_ = new UniversalMachine();
    return *instance_;
}

References instance_, and UniversalMachine().

Here is the call graph for this function:

◆ instructionAddressSpace()

AddressSpace & UniversalMachine::instructionAddressSpace ( ) const

Returns the address space of instruction memory.

Returns: The address space of instruction memory.

Definition at line 280 of file UniversalMachine.cc.

                                                {
    AddressSpaceNavigator asNav = addressSpaceNavigator();
    assert(asNav.hasItem(UM_IMEM_NAME));
    return *asNav.item(UM_IMEM_NAME);
}

References TTAMachine::Machine::addressSpaceNavigator(), assert, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), and UM_IMEM_NAME.

Referenced by TTAProgram::TPEFProgramFactory::build(), ProgramDependenceGraph::disassemble(), and TTAProgram::TPEFProgramFactory::findAddressSpace().

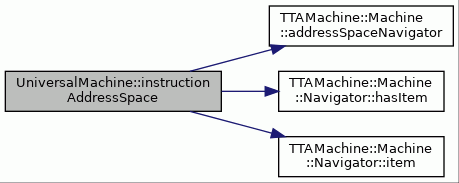

Here is the call graph for this function:

◆ integerRegisterFile()

UnboundedRegisterFile & UniversalMachine::integerRegisterFile ( ) const

Returns the unbounded register file for integers.

Returns: The unbounded register file for integers.

Definition at line 234 of file UniversalMachine.cc.

                                            {
    RegisterFileNavigator rfNav = registerFileNavigator();
    assert(rfNav.hasItem(UM_INTEGER_URF_NAME));
    RegisterFile* rf = rfNav.item(UM_INTEGER_URF_NAME);
    UnboundedRegisterFile* urf = dynamic_cast<UnboundedRegisterFile*>(rf);
    assert(urf != NULL);
    return *urf;
}

References assert, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Machine::registerFileNavigator(), and UM_INTEGER_URF_NAME.

Referenced by llvm::LLVMTCEBuilder::createTerminalRegister(), TTAProgram::CodeGenerator::createTerminalRegister(), TTAProgram::TPEFProgramFactory::findRegisterFile(), DataDependenceGraphBuilder::findStaticRegisters(), and TTAProgram::TPEFResourceUpdater::registerFile().

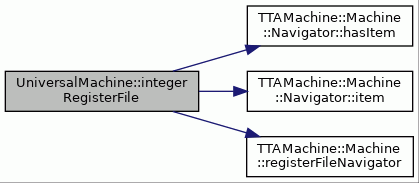

Here is the call graph for this function:

◆ isUniversalMachine()

bool UniversalMachine::isUniversalMachine ( ) const

virtual

Reimplemented from TTAMachine::Machine.

Definition at line 195 of file UniversalMachine.cc.

                                           {
    return true;
}

◆ loadState()

void UniversalMachine::loadState ( const ObjectState * state )

virtual

Redefinement of this method prevents loading the state of UniversalMachine from an ObjectState tree. Aborts the program if this method is called. DO NOT CALL THIS METHOD.

Parameters

state ObjectState instance.

Exceptions

ObjectStateLoadingException Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 593 of file UniversalMachine.cc.

                                              {
    const string procName = "UniversalMachine::loadState";
    const string errorMsg =
        "Tried to load UniversalMachine from an ObjectState tree!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ removeBus()

void UniversalMachine::removeBus ( TTAMachine::Bus & bus )

virtual

Aborts the program. It is not allowed to remove buses from UniversalMachine. DO NOT CALL THIS METHOD!

Parameters

bus	Never used.

Exceptions

InstanceNotFound Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 499 of file UniversalMachine.cc.

                                {
    const string procName = "UniversalMachine::removeBus";
    const string errorMsg = "Tried to remove bus from UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ removeFunctionUnit()

void UniversalMachine::removeFunctionUnit ( TTAMachine::FunctionUnit & unit )

virtual

Aborts the program. It is not allowed to remove function units from UniversalMachine. DO NOT CALL THIS METHOD!

Parameters

unit	Never used.

Exceptions

InstanceNotFound Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 529 of file UniversalMachine.cc.

                                                  {
    const string procName = "UniversalMachine::removeFunctionUnit";
    const string errorMsg =
        "Tried to remove function unit from UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

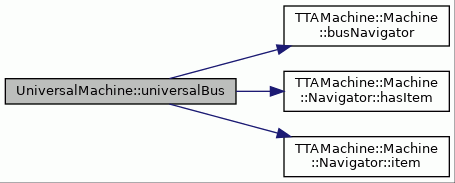

Here is the call graph for this function:

◆ removeRegisterFile()

void UniversalMachine::removeRegisterFile ( TTAMachine::RegisterFile & unit )

virtual

Aborts the program. It is not allowed to remove register files from UniversalMachine. DO NOT CALL THIS METHOD!

Parameters

unit	Never used.

Exceptions

InstanceNotFound Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 545 of file UniversalMachine.cc.

                                                  {
    const string procName = "UniversalMachine::removeRegisterFile";
    const string errorMsg =
        "Tried to remove register file from UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

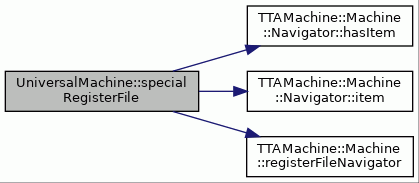

Here is the call graph for this function:

◆ removeSocket()

void UniversalMachine::removeSocket ( TTAMachine::Socket & socket )

virtual

Aborts the program. It is not allowed to remove sockets from UniversalMachine. DO NOT CALL THIS METHOD!

Parameters

socket Never used.

Exceptions

InstanceNotFound Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 514 of file UniversalMachine.cc.

                                      {
    const string procName = "UniversalMachine::removeSocket";
    const string errorMsg = "Tried to remove socket from UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

◆ setGlobalControl()

void UniversalMachine::setGlobalControl ( TTAMachine::ControlUnit & unit )

virtual

Sets the control unit of the machine. Aborts the program if tried to set the control unit after the UniversalMachine is constructed. DO NOT CALL THIS METHOD!

Parameters

unit	The control unit to be set.

Exceptions

ComponentAlreadyExists Never thrown.

Reimplemented from TTAMachine::Machine.

Definition at line 479 of file UniversalMachine.cc.

                                                    {
    if (!isBuilt_) {
        Machine::setGlobalControl(unit);
    } else {
        const string procName = "UniversalMachine::setGlobalControl";
        const string errorMsg =
            "Tried to set control unit to UniversalMachine!";
        Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
        Application::abortProgram();
    }
}

References Application::abortProgram(), isBuilt_, TTAMachine::Machine::setGlobalControl(), and Application::writeToErrorLog().

Referenced by construct().

Here is the call graph for this function:

◆ specialRegisterFile()

RegisterFile & UniversalMachine::specialRegisterFile ( ) const

Returns the special register file.

Returns: The special register file.

Definition at line 267 of file UniversalMachine.cc.

                                            {
    RegisterFileNavigator rfNav = registerFileNavigator();
    assert(rfNav.hasItem(UM_SPECIAL_RF_NAME));
    return *rfNav.item(UM_SPECIAL_RF_NAME);
}

References assert, TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Machine::registerFileNavigator(), and UM_SPECIAL_RF_NAME.

Here is the call graph for this function:

◆ universalBus()

Bus & UniversalMachine::universalBus ( ) const

Returns the only transport bus of universal machine.

Returns: The bus.

Definition at line 306 of file UniversalMachine.cc.

                                     {
    BusNavigator busNav = busNavigator();
    assert(busNav.hasItem(UM_BUS_NAME));
    return *busNav.item(UM_BUS_NAME);
}

References assert, TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), and UM_BUS_NAME.

Here is the call graph for this function:

◆ universalFunctionUnit()

UniversalFunctionUnit & UniversalMachine::universalFunctionUnit ( ) const

Returns the universal function unit of the machine.

Returns: The universal function unit.

Definition at line 205 of file UniversalMachine.cc.

                                              {
    FunctionUnitNavigator fuNav = functionUnitNavigator();
    assert(fuNav.hasItem(UM_UNIVERSAL_FU_NAME));
    FunctionUnit* fu = fuNav.item(UM_UNIVERSAL_FU_NAME);
    UniversalFunctionUnit* ufu = dynamic_cast<UniversalFunctionUnit*>(fu);
    assert(ufu != NULL);
    return *ufu;
}

References assert, TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Machine::Navigator< ComponentType >::item(), and UM_UNIVERSAL_FU_NAME.

Referenced by TTAProgram::CodeGenerator::createBreakOperation(), TTAProgram::CodeGenerator::createForLoopBufferInit(), TTAProgram::CodeGenerator::createTerminalFUPort(), TTAProgram::CodeGenerator::createWhileLoopBufferInit(), MoveNodeDuplicator::duplicateMove(), llvm::LLVMTCEBuilder::emitOperationMacro(), TTAProgram::TPEFProgramFactory::findFunctionUnit(), TTAProgram::TPEFResourceUpdater::functionUnit(), llvm::LLVMTCEBuilder::getHWOperation(), and CopyingDelaySlotFiller::getMove().

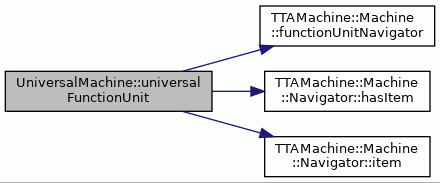

Here is the call graph for this function:

◆ unsetGlobalControl()

void UniversalMachine::unsetGlobalControl ( )

virtual

Aborts the program. It is not allowed to unset global control unit from UniversalMachine. DO NOT CALL THIS METHOD!

Reimplemented from TTAMachine::Machine.

Definition at line 574 of file UniversalMachine.cc.

                                     {

    const string procName = "UniversalMachine::unsetglobalControl";
    const string errorMsg =
        "Tried to unset global control unit from UniversalMachine!";
    Application::writeToErrorLog(__FILE__, __LINE__, procName, errorMsg);
    Application::abortProgram();
}

References Application::abortProgram(), and Application::writeToErrorLog().

Here is the call graph for this function:

Member Data Documentation

◆ instance_

UniversalMachine * UniversalMachine::instance_ = NULL

staticprivate

The singleton instance. Use this instance everywhere. Creating multiple instances of UM is deprecated.

Definition at line 102 of file UniversalMachine.hh.

Referenced by instance().

◆ isBuilt_

bool UniversalMachine::isBuilt_

private

Indicates whether the UniversalMachine is built completely.

Definition at line 97 of file UniversalMachine.hh.

Referenced by addAddressSpace(), addBus(), addFunctionUnit(), addRegisterFile(), addSocket(), construct(), and setGlobalControl().

◆ opPool

OperationPool UniversalMachine::opPool

private

The operation pool instance to use for finding operations.

Definition at line 99 of file UniversalMachine.hh.

Referenced by construct().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~UniversalMachine()

◆ UniversalMachine()

Member Function Documentation

◆ addAddressSpace()

◆ addBridge()

◆ addBus()

◆ addFunctionUnit()

◆ addImmediateUnit()

◆ addInstructionTemplate()

◆ addRegisterFile()

◆ addSocket()

◆ booleanRegisterFile()

◆ construct()

◆ dataAddressSpace()

◆ deleteAddressSpace()

◆ doubleRegisterFile()

◆ instance()

◆ instructionAddressSpace()

◆ integerRegisterFile()

◆ isUniversalMachine()

◆ loadState()

◆ removeBus()

◆ removeFunctionUnit()

◆ removeRegisterFile()

◆ removeSocket()

◆ setGlobalControl()

◆ specialRegisterFile()

◆ universalBus()

◆ universalFunctionUnit()

◆ unsetGlobalControl()

Member Data Documentation

◆ instance_

◆ isBuilt_

◆ opPool
