ProGe::GeneratableFUNetlistBlock Class Reference

#include <GeneratableFUNetlistBlock.hh>

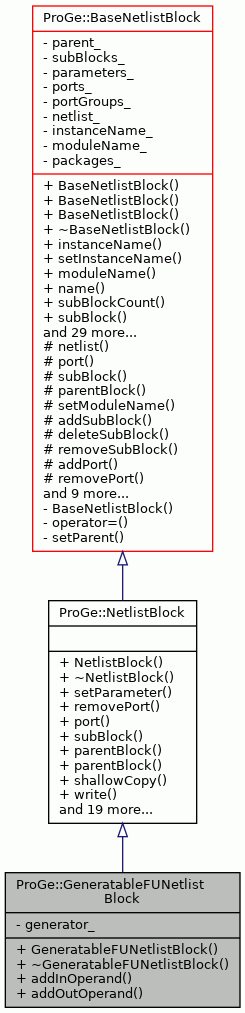

Inheritance diagram for ProGe::GeneratableFUNetlistBlock:

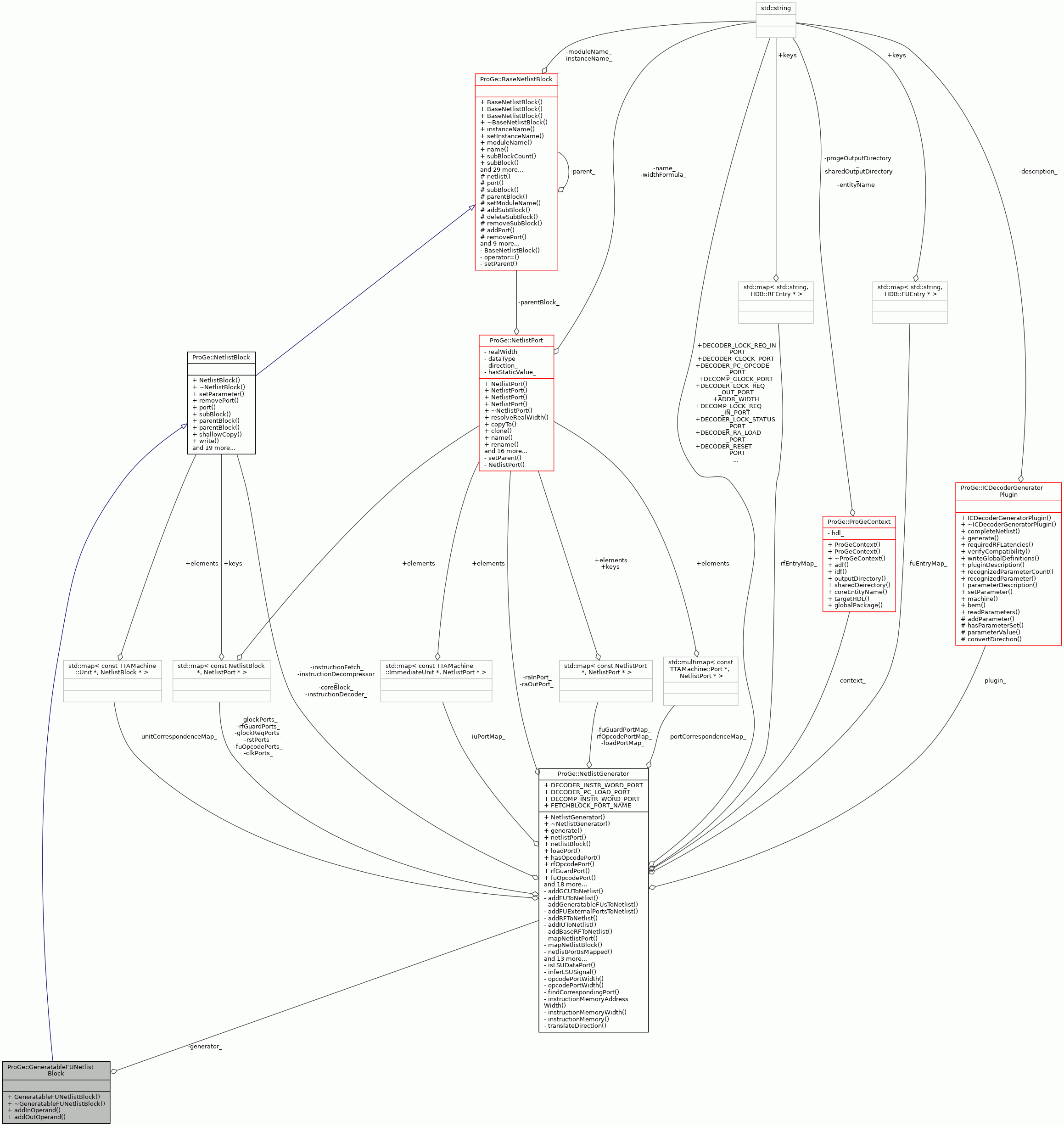

Collaboration diagram for ProGe::GeneratableFUNetlistBlock:

Public Member Functions
	GeneratableFUNetlistBlock (const std::string &moduleName, const std::string instanceName, NetlistGenerator &generator)
virtual	~GeneratableFUNetlistBlock ()=default
void	addInOperand (TTAMachine::FUPort *port, int id)
void	addOutOperand (TTAMachine::FUPort *port)
Public Member Functions inherited from ProGe::NetlistBlock
	NetlistBlock (const std::string &moduleName, const std::string &instanceName, BaseNetlistBlock *parent=NULL)
virtual	~NetlistBlock ()
void	setParameter (const std::string &name, const std::string &type, const std::string &value)
void	removePort (NetlistPort &port)
virtual NetlistPort *	port (const std::string &portName, bool partialMatch=true)
NetlistBlock &	subBlock (size_t index) override
virtual const NetlistBlock &	parentBlock () const override
virtual NetlistBlock &	parentBlock () override
NetlistBlock *	shallowCopy (const std::string &instanceName) const
virtual void	write (const Path &targetBaseDir, HDL targetLang=VHDL) const override
void	addParameter (const Parameter &param)
void	setParameter (const Parameter &param)
virtual const Parameter &	parameter (const std::string &name) const
virtual const Parameter &	parameter (size_t index) const
Parameter &	parameter (const std::string &name)
NetlistPort *	addPort (NetlistPort *port)
void	removePort (NetlistPort *port)
virtual size_t	portCount () const
virtual const NetlistPort &	port (size_t index) const
virtual const NetlistPort *	port (const std::string &portName, bool partialMatch=true) const
virtual NetlistPort &	port (size_t index)
void	addPortGroup (NetlistPortGroup *portGroup)
void	addSubBlock (BaseNetlistBlock *subBlock, const std::string &instanceName="")
virtual size_t	subBlockCount () const
virtual const Netlist &	netlist () const
Netlist &	netlist ()
void	addPackage (const std::string &packageName)
virtual size_t	packageCount () const
virtual const std::string &	package (size_t idx) const
Public Member Functions inherited from ProGe::BaseNetlistBlock
	BaseNetlistBlock ()
	BaseNetlistBlock (BaseNetlistBlock *parent)
	BaseNetlistBlock (const std::string &moduleName, const std::string &instanceName, BaseNetlistBlock *parent=nullptr)
virtual	~BaseNetlistBlock ()
const std::string &	instanceName () const
void	setInstanceName (const std::string &name)
const std::string &	moduleName () const
const std::string	name () const
virtual const BaseNetlistBlock &	subBlock (size_t index) const
virtual bool	hasSubBlock (const std::string &instanceName) const
virtual bool	isSubBlock (const BaseNetlistBlock &block) const
virtual bool	hasParameter (const std::string &name) const
virtual size_t	parameterCount () const
virtual std::vector< const NetlistPort * >	portsBy (SignalType type) const
virtual const NetlistPort &	portBy (SignalType type, size_t index=0) const
virtual bool	hasPortsBy (SignalType type) const
virtual size_t	portGroupCount () const
virtual const NetlistPortGroup &	portGroup (size_t index) const
virtual std::vector< const NetlistPortGroup * >	portGroupsBy (SignalGroupType type) const
virtual bool	hasParentBlock () const
virtual bool	isVirtual () const
virtual void	build () override
virtual void	connect () override
virtual void	finalize () override
virtual void	writeSelf (const Path &targetBaseDir, HDL targetLang=VHDL) const
PortContainerType &	ports ()
virtual bool	isLeaf () const
BaseNetlistBlock *	shallowCopy (const std::string &instanceName="") const
Public Member Functions inherited from ProGe::IGenerationPhases
virtual	~IGenerationPhases ()

Private Attributes
NetlistGenerator &	generator_

Additional Inherited Members
Public Types inherited from ProGe::BaseNetlistBlock
typedef std::vector< BaseNetlistBlock * >	BlockContainerType
typedef std::vector< Parameter >	ParameterContainerType
typedef std::vector< NetlistPort * >	PortContainerType
typedef std::vector< NetlistPortGroup * >	PortGroupContainerType
Protected Member Functions inherited from ProGe::BaseNetlistBlock
Netlist &	netlist ()
void	setModuleName (const std::string &name)
void	addSubBlock (BaseNetlistBlock *subBlock, const std::string &instanceName="")
void	deleteSubBlock (BaseNetlistBlock *subBlock)
void	removeSubBlock (BaseNetlistBlock *subBlock)
NetlistPort *	addPort (NetlistPort *port)
void	removePort (NetlistPort *port)
void	addPortGroup (NetlistPortGroup *portGroup)
void	removePortGroup (NetlistPortGroup *portGroup)
void	setParameter (const Parameter &param)
void	addParameter (const Parameter &param)
Parameter &	parameter (const std::string &name)
NetlistPort *	findPort (const std::string &portName, bool recursiveSearch=false, bool partialMatch=true) const
void	addPackage (const std::string &packageName)
void	connectClocks ()
void	connectResets ()

Detailed Description

Definition at line 40 of file GeneratableFUNetlistBlock.hh.

Constructor & Destructor Documentation

GeneratableFUNetlistBlock()

ProGe::GeneratableFUNetlistBlock::GeneratableFUNetlistBlock ( const std::string &  moduleName, const std::string  instanceName, NetlistGenerator &  generator  )

inline

Definition at line 42 of file GeneratableFUNetlistBlock.hh.

            : NetlistBlock(moduleName, instanceName), generator_(generator) {}

~GeneratableFUNetlistBlock()

virtual ProGe::GeneratableFUNetlistBlock::~GeneratableFUNetlistBlock ( )

virtualdefault

Member Function Documentation

addInOperand()

void ProGe::GeneratableFUNetlistBlock::addInOperand ( TTAMachine::FUPort *  port, int  id  )

inline

Definition at line 48 of file GeneratableFUNetlistBlock.hh.

                                                          {
            (void) id;
            NetlistPort* dataPort =
                new NetlistPort("data_" + port->name() + "_in",
                    std::to_string(port->width()), BIT_VECTOR, IN, *this);
            NetlistPort* loadPort = new NetlistPort(
                "load_" + port->name() + "_in", "1", BIT, IN, *this);
            generator_.mapLoadPort(*dataPort, *loadPort);
            generator_.mapNetlistPort(*port, *dataPort);
        }

References ProGe::BIT, ProGe::BIT_VECTOR, generator_, ProGe::IN, ProGe::NetlistGenerator::mapLoadPort(), ProGe::NetlistGenerator::mapNetlistPort(), ProGe::NetlistPort::name(), and ProGe::NetlistBlock::port().

Referenced by ProGe::NetlistGenerator::addGeneratableFUsToNetlist().

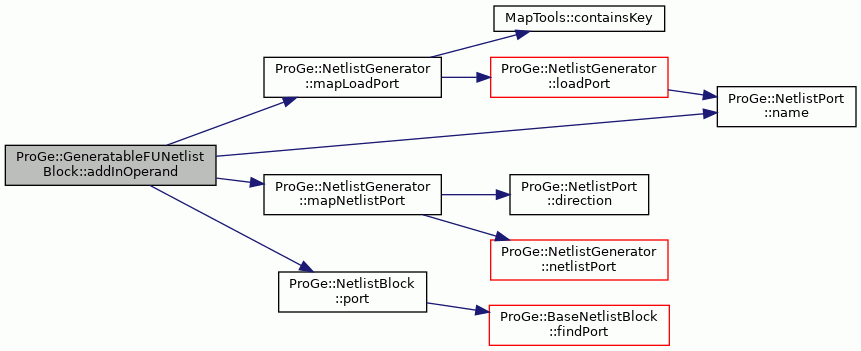

Here is the call graph for this function:

addOutOperand()

void ProGe::GeneratableFUNetlistBlock::addOutOperand ( TTAMachine::FUPort *  port )

inline

Definition at line 58 of file GeneratableFUNetlistBlock.hh.

                                                   {
            NetlistPort* dataPort =
                new NetlistPort("data_" + port->name() + "_out",
                    std::to_string(port->width()), BIT_VECTOR, OUT, *this);
            generator_.mapNetlistPort(*port, *dataPort);
        }

References ProGe::BIT_VECTOR, generator_, ProGe::NetlistGenerator::mapNetlistPort(), ProGe::NetlistPort::name(), ProGe::OUT, and ProGe::NetlistBlock::port().

Referenced by ProGe::NetlistGenerator::addGeneratableFUsToNetlist().

Here is the call graph for this function:

Member Data Documentation

generator_

NetlistGenerator& ProGe::GeneratableFUNetlistBlock::generator_

private

Definition at line 66 of file GeneratableFUNetlistBlock.hh.

Referenced by addInOperand(), and addOutOperand().

---

The documentation for this class was generated from the following file:

• GeneratableFUNetlistBlock.hh
