Public Member Functions | List of all members
BFDREEarly Class Reference

#include <BFDREEarly.hh>

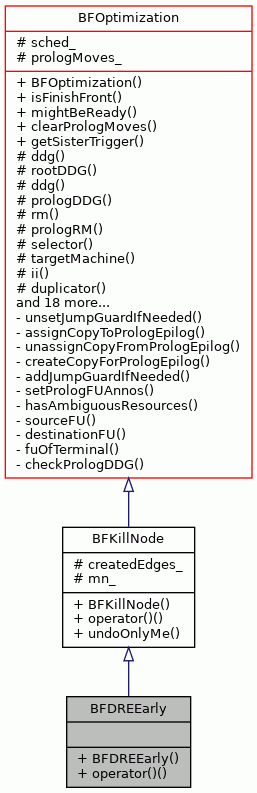

Inheritance diagram for BFDREEarly:
Inheritance graph

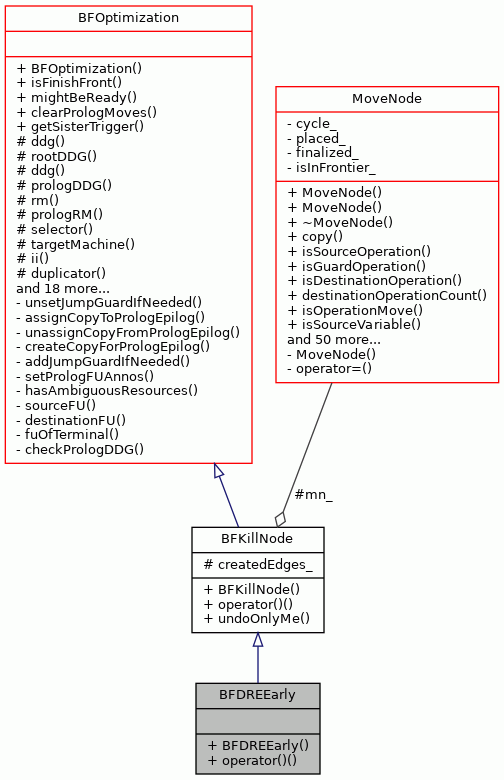

Collaboration diagram for BFDREEarly:
Collaboration graph

Public Member Functions

 BFDREEarly (BF2Scheduler &sched, MoveNode &mn)

bool operator() ()

- Public Member Functions inherited from BFKillNode
 BFKillNode (BF2Scheduler &sched, MoveNode &mn)

bool operator() ()

void undoOnlyMe ()

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNodegetSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Member Functions inherited from BFOptimization
DataDependenceGraphddg ()

DataDependenceGraphrootDDG ()

const DataDependenceGraphddg () const

DataDependenceGraphprologDDG ()

SimpleResourceManagerrm () const

SimpleResourceManagerprologRM () const

BUMoveNodeSelectorselector ()

const TTAMachine::MachinetargetMachine () const

unsigned int ii () const

MoveNodeDuplicatorduplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFileRFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)

- Protected Attributes inherited from BFKillNode
DataDependenceGraph::EdgeSet createdEdges_

MoveNodemn_

- Protected Attributes inherited from BFOptimization
BF2Schedulersched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::ComparatorprologMoves_


Detailed Description

Definition at line 40 of file BFDREEarly.hh.

Constructor & Destructor Documentation

◆ BFDREEarly()

BFDREEarly::BFDREEarly ( BF2Scheduler sched,
MoveNode mn
)
inline

Definition at line 42 of file BFDREEarly.hh.

42 :
43 BFKillNode(sched, mn) {}

Member Function Documentation

◆ operator()()

bool BFDREEarly::operator() ( )
virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 42 of file BFDREEarly.cc.

42 {
43
44 if (!sched_.killDeadResults() && !targetMachine().alwaysWriteResults()) {
45 return false;
46 }
47
48 if (ddg().resultUsed(mn_)) {
49 return false;
50 }
51
52 // Take the predecssors of the dre'd src because their
53 // antideps may change
55
56 createdEdges_ = ddg().copyDepsOver(mn_, true, false);
57 ddg().dropNode(mn_);
59
60 // now mark antideps sources to be notified
61 for (auto n: pred) {
62 mightBeReady(*n);
63 }
64
65 return true;
66}
bool killDeadResults() const
void nodeAndCopyKilled(MoveNode &mn)
DataDependenceGraph::EdgeSet createdEdges_
Definition BFKillNode.hh:51
MoveNode & mn_
Definition BFKillNode.hh:52
virtual void mightBeReady(MoveNode &mn)
BF2Scheduler & sched_
DataDependenceGraph & ddg()
const TTAMachine::Machine & targetMachine() const
virtual void dropNode(Node &node)
virtual NodeSet predecessors(const Node &node, bool ignoreBackEdges=false, bool ignoreForwardEdges=false) const
EdgeSet copyDepsOver(MoveNode &node, bool anti, bool raw)
std::set< GraphNode *, typename GraphNode::Comparator > NodeSet
Definition Graph.hh:53

References DataDependenceGraph::copyDepsOver(), BFKillNode::createdEdges_, BFOptimization::ddg(), BoostGraph< GraphNode, GraphEdge >::dropNode(), BF2Scheduler::killDeadResults(), BFOptimization::mightBeReady(), BFKillNode::mn_, BF2Scheduler::nodeAndCopyKilled(), BoostGraph< GraphNode, GraphEdge >::predecessors(), BFOptimization::sched_, and BFOptimization::targetMachine().

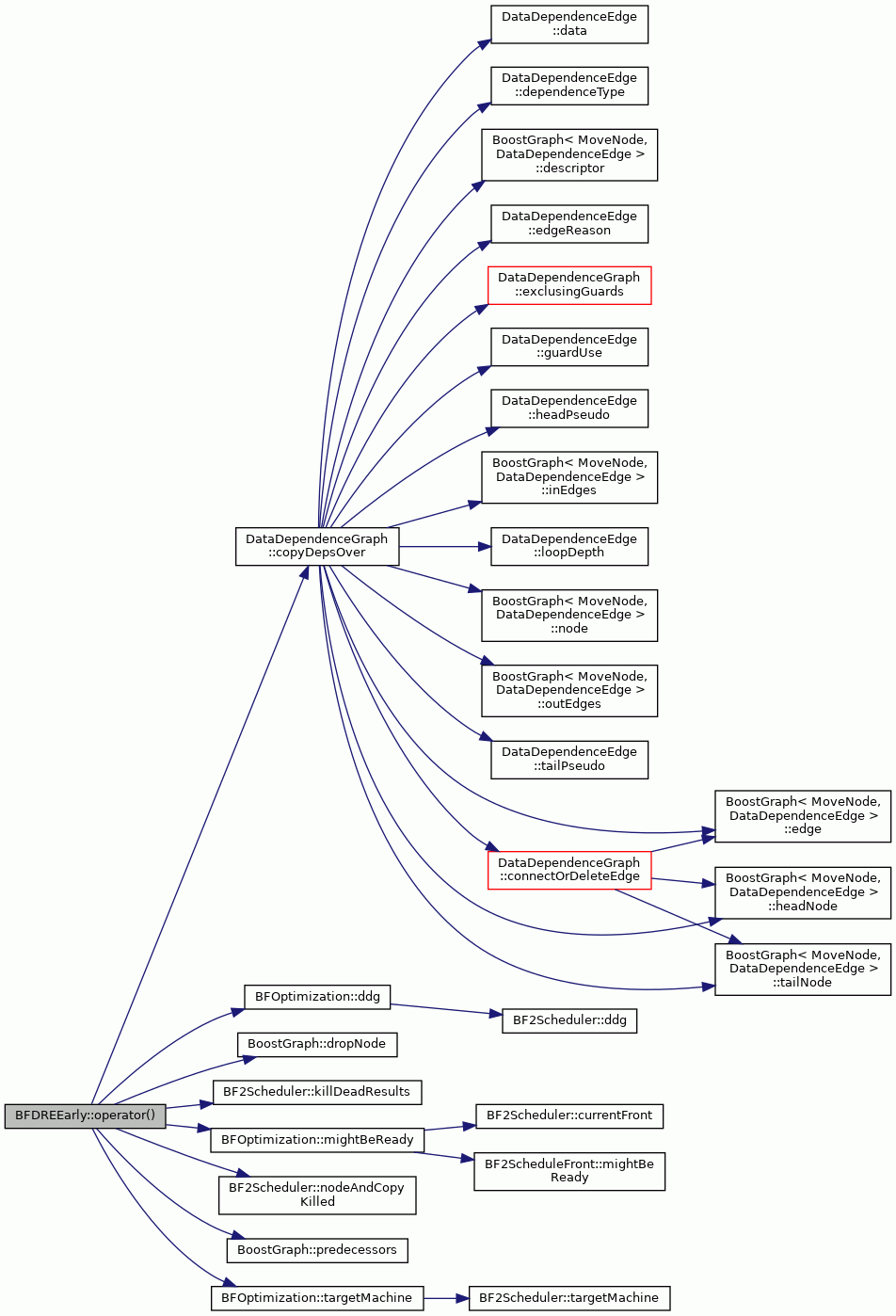

Here is the call graph for this function:

The documentation for this class was generated from the following files:
