BFPostpassDRE Class Reference

#include <BFPostpassDRE.hh>

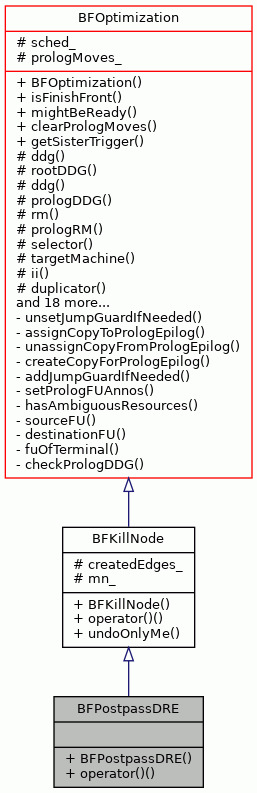

Inheritance diagram for BFPostpassDRE:
Inheritance graph

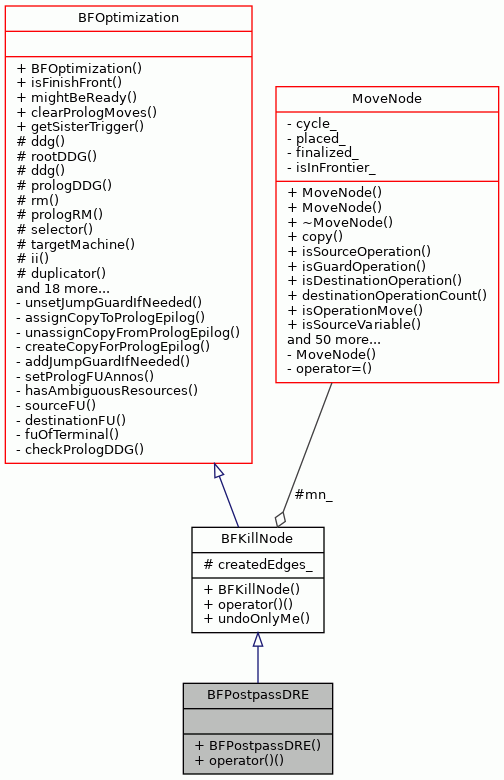

Collaboration diagram for BFPostpassDRE:
Collaboration graph

Public Member Functions

 BFPostpassDRE (BF2Scheduler &sched, MoveNode &mn)

bool operator() () override

- Public Member Functions inherited from BFKillNode
 BFKillNode (BF2Scheduler &sched, MoveNode &mn)

void undoOnlyMe ()

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNodegetSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Member Functions inherited from BFOptimization
DataDependenceGraphddg ()

DataDependenceGraphrootDDG ()

const DataDependenceGraphddg () const

DataDependenceGraphprologDDG ()

SimpleResourceManagerrm () const

SimpleResourceManagerprologRM () const

BUMoveNodeSelectorselector ()

const TTAMachine::MachinetargetMachine () const

unsigned int ii () const

MoveNodeDuplicatorduplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFileRFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)

- Protected Attributes inherited from BFKillNode
DataDependenceGraph::EdgeSet createdEdges_

MoveNodemn_

- Protected Attributes inherited from BFOptimization
BF2Schedulersched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::ComparatorprologMoves_


Detailed Description

Definition at line 42 of file BFPostpassDRE.hh.

Constructor & Destructor Documentation

◆ BFPostpassDRE()

BFPostpassDRE::BFPostpassDRE ( BF2Scheduler sched,
MoveNode mn
)
inline

Definition at line 44 of file BFPostpassDRE.hh.

44 :
45 BFKillNode(sched, mn) {}

Member Function Documentation

◆ operator()()

bool BFPostpassDRE::operator() ( )
overridevirtual

This performs the operation. Returns true if success, false if fail.

Reimplemented from BFKillNode.

Definition at line 44 of file BFPostpassDRE.cc.

44 {
45 if (!sched_.killDeadResults() || targetMachine().alwaysWriteResults()) {
46#ifdef DEBUG_BUBBLEFISH_SCHEDULER
47 std::cerr << "\t\t\t\t\tdre forbidden!" << std::endl;
48#endif
49 return false;
50 }
51
52 if (ddg().resultUsed(mn_)) {
53#ifdef DEBUG_BUBBLEFISH_SCHEDULER
54 std::cerr << "\t\t\t\tresult is used!" << std::endl;
55#endif
56 return false;
57 }
58
59 // then remove
60 createdEdges_ = ddg().copyDepsOver(mn_, true, false);
61 ddg().dropNode(mn_);
63 return true;
64}
bool killDeadResults() const
void nodeAndCopyKilled(MoveNode &mn)
DataDependenceGraph::EdgeSet createdEdges_
Definition BFKillNode.hh:51
MoveNode & mn_
Definition BFKillNode.hh:52
BF2Scheduler & sched_
DataDependenceGraph & ddg()
const TTAMachine::Machine & targetMachine() const
virtual void dropNode(Node &node)
EdgeSet copyDepsOver(MoveNode &node, bool anti, bool raw)

References DataDependenceGraph::copyDepsOver(), BFKillNode::createdEdges_, BFOptimization::ddg(), BoostGraph< GraphNode, GraphEdge >::dropNode(), BF2Scheduler::killDeadResults(), BFKillNode::mn_, BF2Scheduler::nodeAndCopyKilled(), BFOptimization::sched_, and BFOptimization::targetMachine().

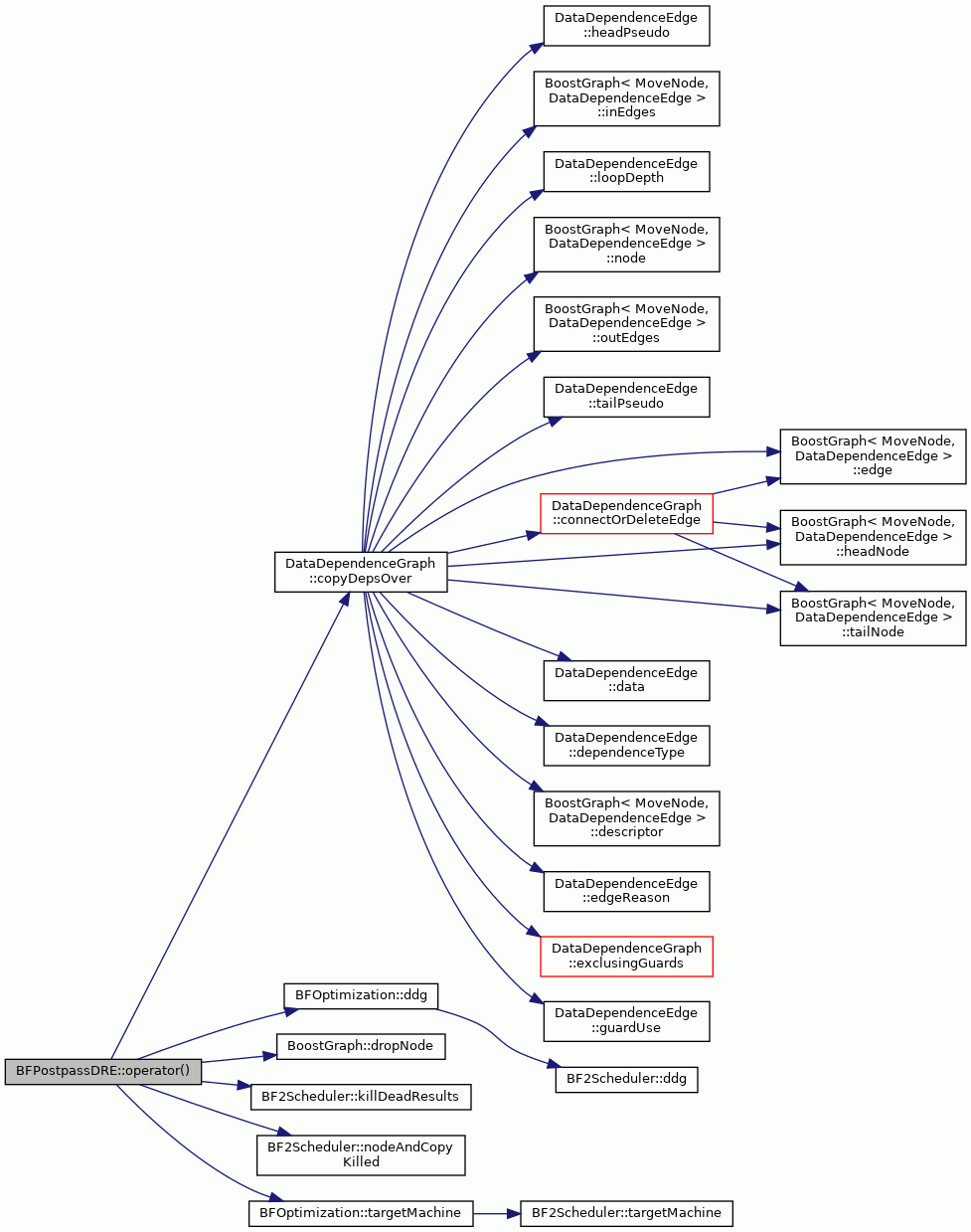

Here is the call graph for this function:

The documentation for this class was generated from the following files:
