BFRemoveGuardFromSucc Class Reference

#include <BFRemoveGuardFromSucc.hh>

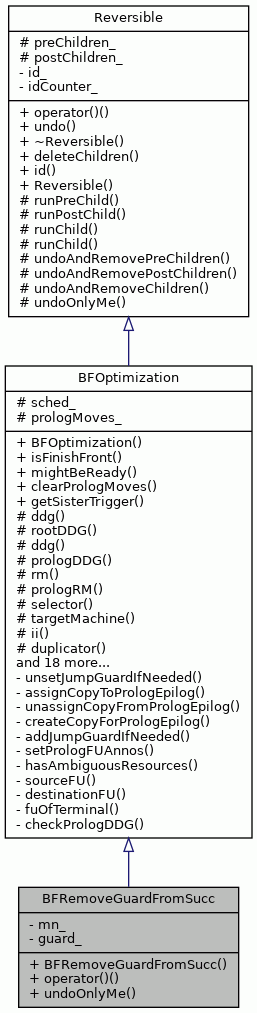

Inheritance diagram for BFRemoveGuardFromSucc:

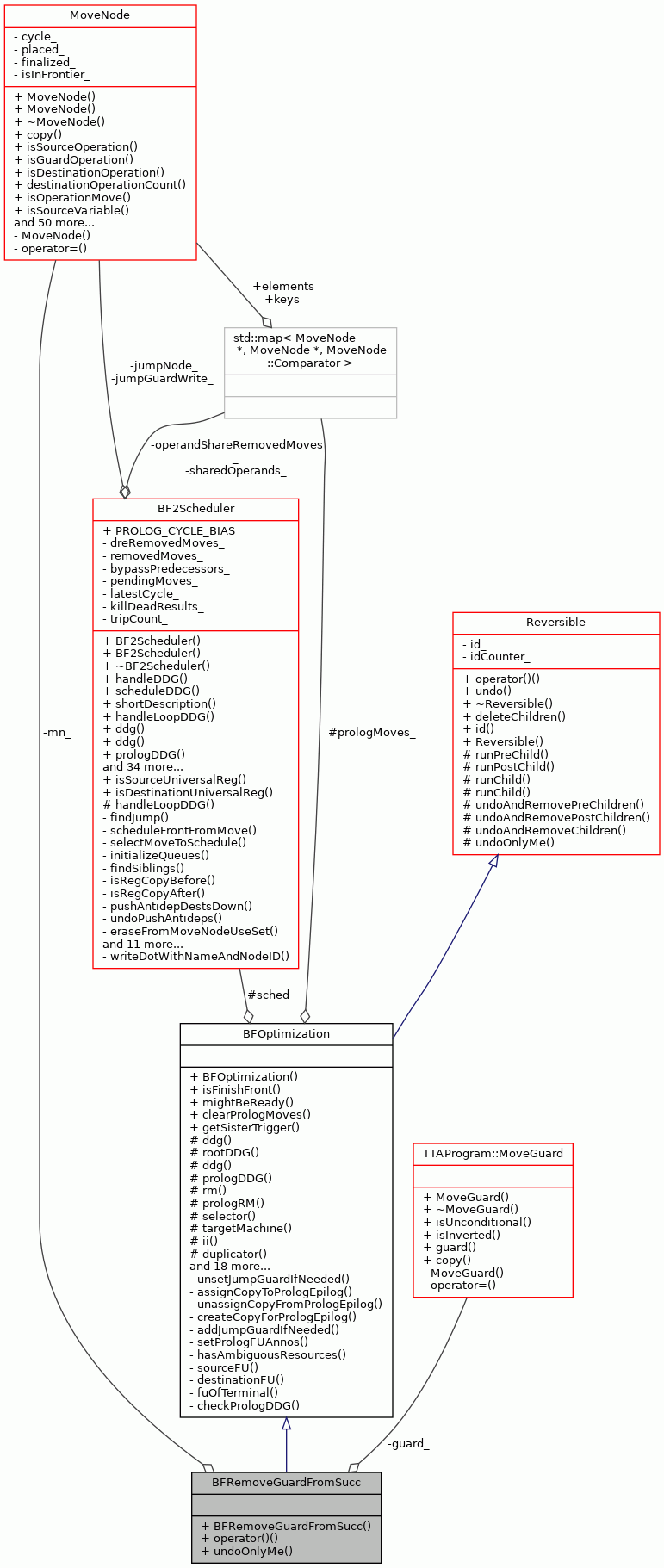

Collaboration diagram for BFRemoveGuardFromSucc:

Public Member Functions
	BFRemoveGuardFromSucc (BF2Scheduler &sched, MoveNode &succ)
bool	operator() () override
void	undoOnlyMe () override
Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)
virtual bool	isFinishFront ()
virtual void	mightBeReady (MoveNode &mn)
Public Member Functions inherited from Reversible
virtual void	undo ()
virtual	~Reversible ()
void	deleteChildren (std::stack< Reversible * > &children)
int	id ()
	Reversible ()

Private Attributes
MoveNode &	mn_
TTAProgram::MoveGuard *	guard_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()
static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)
Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()
DataDependenceGraph *	rootDDG ()
const DataDependenceGraph &	ddg () const
DataDependenceGraph *	prologDDG ()
SimpleResourceManager &	rm () const
SimpleResourceManager *	prologRM () const
BUMoveNodeSelector &	selector ()
const TTAMachine::Machine &	targetMachine () const
unsigned int	ii () const
MoveNodeDuplicator &	duplicator () const
virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)
virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)
virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)
virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)
virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)
bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)
void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)
void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)
void	setJumpGuard (MoveNode &mn)
void	unsetJumpGuard (MoveNode &mn)
bool	needJumpGuard (const MoveNode &mn, int cycle)
int	jumpGuardAvailableCycle (const MoveNode &mn)
bool	canBeSpeculated (const Operation &op)
bool	canBeSpeculated (const MoveNode &mn)
bool	usePrologMove (const MoveNode &mn)
bool	canBeScheduled (const MoveNode &mn)
const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)
bool	immCountPreventsScheduling (const MoveNode &mn)
Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)
bool	runPostChild (Reversible *preChild)
bool	runChild (std::stack< Reversible * > &children, Reversible *child)
bool	runChild (Reversible *child, bool pre)
void	undoAndRemovePreChildren ()
void	undoAndRemovePostChildren ()
void	undoAndRemoveChildren (std::stack< Reversible * > &children)
Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_
Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_
std::stack< Reversible * >	postChildren_
Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 54 of file BFRemoveGuardFromSucc.hh.

Constructor & Destructor Documentation

BFRemoveGuardFromSucc()

BFRemoveGuardFromSucc::BFRemoveGuardFromSucc ( BF2Scheduler &  sched, MoveNode &  succ  )

inline

Definition at line 56 of file BFRemoveGuardFromSucc.hh.

                                             :
        BFOptimization(sched), mn_(succ) {}

Member Function Documentation

operator()()

bool BFRemoveGuardFromSucc::operator() ( )

overridevirtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 47 of file BFRemoveGuardFromSucc.cc.

                                       {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    std::cerr << "\t\t\tRemoving guard from succ: " << mn_.toString()
              << std::endl;
#endif
    int cycle = mn_.cycle();
    BFOptimization* unsched = new BFUnscheduleMove(sched_, mn_);
    if (!runPreChild(unsched)) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "\t\t\t\tUnsched failed: " << mn_.toString()
                  << std::endl;
#endif
        return false;
    }

    // Remove the guard edges from the ddg
    auto inEdges = ddg().inEdges(mn_);
    for (auto e: inEdges) {
        if (e->guardUse() && !e->isFalseDep()) {
            runPreChild(new BFRemoveEdge(sched_, ddg().tailNode(*e), mn_,*e));
        }
    }
    auto outEdges = ddg().outEdges(mn_);
    for (auto e: outEdges) {
        if (e->guardUse() &&
            e->dependenceType() == DataDependenceEdge::DEP_WAR) {
            runPreChild(new BFRemoveEdge(sched_, mn_,ddg().headNode(*e), *e));
        }
    }

    // If the prolog move has already been created, update also it
    MoveNode* prologMN = ii() ? duplicator().getMoveNode(mn_) : nullptr;
    if (prologMN != nullptr) {
        prologMN->move().setGuard(NULL);
    }

    guard_ = mn_.move().guard().copy();
    mn_.move().setGuard(NULL);
    BFOptimization* sched = new BFSchedule(sched_, mn_, cycle);
    if (runPostChild(sched)) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "\t\t\t\tRe-scheduling ok: " << mn_.toString()
                  << std::endl;
#endif
        return true;
    } else {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "\t\t\t\tRe-scheduling failed, undoing..: "
                  << mn_.toString() << std::endl;
#endif
        undo();
        return false;
    }
}

References TTAProgram::MoveGuard::copy(), MoveNode::cycle(), BFOptimization::ddg(), DataDependenceEdge::DEP_WAR, BFOptimization::duplicator(), MoveNodeDuplicator::getMoveNode(), TTAProgram::Move::guard(), guard_, BFOptimization::ii(), BoostGraph< GraphNode, GraphEdge >::inEdges(), mn_, MoveNode::move(), BoostGraph< GraphNode, GraphEdge >::outEdges(), Reversible::runPostChild(), Reversible::runPreChild(), BFOptimization::sched_, TTAProgram::Move::setGuard(), MoveNode::toString(), and Reversible::undo().

Here is the call graph for this function:

undoOnlyMe()

void BFRemoveGuardFromSucc::undoOnlyMe ( )

overridevirtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from Reversible.

Definition at line 102 of file BFRemoveGuardFromSucc.cc.

                                       {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    std::cerr << "\t\t\tRestoring guard to succ: " << mn_.toString()
              << std::endl;
#endif

    // If the prolog move has already been created, update also it
    MoveNode* prologMN = ii() ? duplicator().getMoveNode(mn_) : nullptr;
    if (prologMN != nullptr) {
        prologMN->move().setGuard(guard_->copy());
    }

    mn_.move().setGuard(guard_);
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    std::cerr << "\t\t\tRestored guard to succ: " << mn_.toString()
              << std::endl;
#endif

}

References TTAProgram::MoveGuard::copy(), BFOptimization::duplicator(), MoveNodeDuplicator::getMoveNode(), guard_, BFOptimization::ii(), mn_, MoveNode::move(), TTAProgram::Move::setGuard(), and MoveNode::toString().

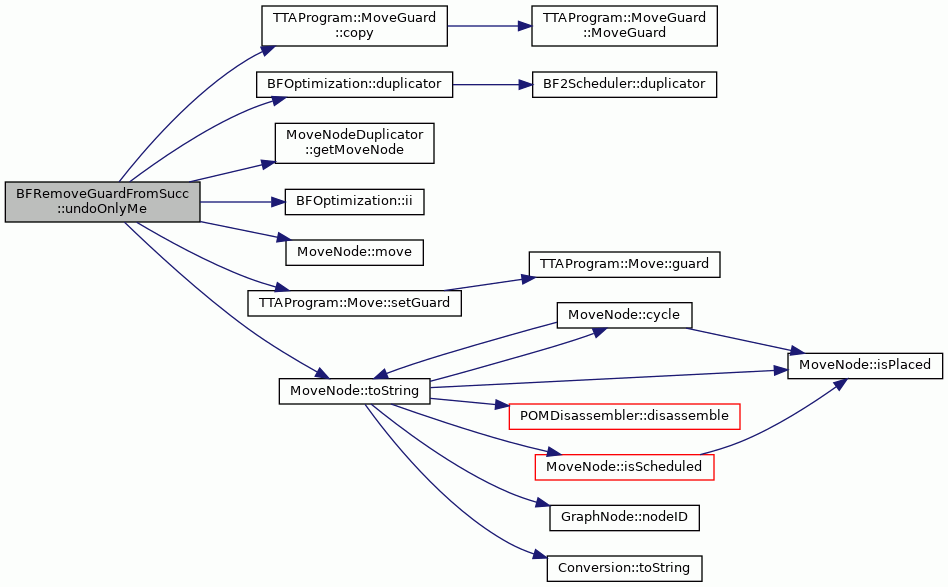

Here is the call graph for this function:

Member Data Documentation

guard_

TTAProgram::MoveGuard* BFRemoveGuardFromSucc::guard_

private

Definition at line 63 of file BFRemoveGuardFromSucc.hh.

Referenced by operator()(), and undoOnlyMe().

mn_

MoveNode& BFRemoveGuardFromSucc::mn_

private

Definition at line 62 of file BFRemoveGuardFromSucc.hh.

Referenced by operator()(), and undoOnlyMe().

---

The documentation for this class was generated from the following files:

• BFRemoveGuardFromSucc.hh
• BFRemoveGuardFromSucc.cc
