FullyConnectedCheck Class Reference

#include <FullyConnectedCheck.hh>

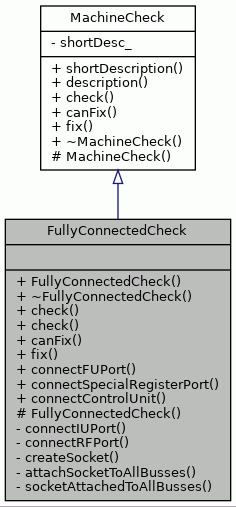

Inheritance diagram for FullyConnectedCheck:

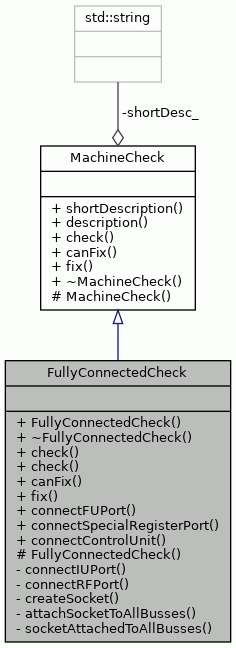

Collaboration diagram for FullyConnectedCheck:

Public Member Functions
	FullyConnectedCheck ()
virtual	~FullyConnectedCheck ()
virtual bool	check (const TTAMachine::Machine &mach) const
virtual bool	check (const TTAMachine::Machine &mach, MachineCheckResults &results) const
virtual bool	canFix (const TTAMachine::Machine &mach) const
virtual std::string	fix (TTAMachine::Machine &mach) const
void	connectFUPort (TTAMachine::FUPort &port) const
void	connectSpecialRegisterPort (TTAMachine::SpecialRegisterPort &port) const
void	connectControlUnit (TTAMachine::ControlUnit &gcu) const
Public Member Functions inherited from MachineCheck
virtual std::string	shortDescription () const
virtual std::string	description () const
virtual	~MachineCheck ()

Protected Member Functions
	FullyConnectedCheck (const std::string &shortDesc)
Protected Member Functions inherited from MachineCheck
	MachineCheck (const std::string &shortDesc_)

Private Member Functions
void	connectIUPort (TTAMachine::RFPort &port) const
void	connectRFPort (TTAMachine::RFPort &port, TTAMachine::Socket::Direction direction) const
TTAMachine::Socket *	createSocket (const TTAMachine::Unit &unit, TTAMachine::Socket::Direction direction) const
void	attachSocketToAllBusses (TTAMachine::Socket &socket) const
bool	socketAttachedToAllBusses (const TTAMachine::Socket &socket) const

Detailed Description

MachineCheck to check is the machine fully connected.

Definition at line 51 of file FullyConnectedCheck.hh.

Constructor & Destructor Documentation

FullyConnectedCheck() [1/2]

FullyConnectedCheck::FullyConnectedCheck

(

)

Constructor for using this generic class directly.

Definition at line 52 of file FullyConnectedCheck.cc.

                                         :
    MachineCheck("Fully connected machine check.") {
}

~FullyConnectedCheck()

FullyConnectedCheck::~FullyConnectedCheck ( )

virtual

The destructor.

Definition at line 68 of file FullyConnectedCheck.cc.

                                          {
}

FullyConnectedCheck() [2/2]

FullyConnectedCheck::FullyConnectedCheck ( const std::string &  shortDesc )

protected

Constructor for deriving.

Parameters

shortDesc

The short description of the check.

Definition at line 61 of file FullyConnectedCheck.cc.

                                                                  :
    MachineCheck(shortDesc) {
}

Member Function Documentation

attachSocketToAllBusses()

void FullyConnectedCheck::attachSocketToAllBusses ( TTAMachine::Socket &  socket ) const

private

Attaches given socket to all possible busses.

Parameters

socket

Socket to connect.

Definition at line 552 of file FullyConnectedCheck.cc.

                                                                 {

    TTAMachine::Machine& machine = *socket.machine();
    MachineTester tester(machine);

    const TTAMachine::Machine::BusNavigator busNav = machine.busNavigator();

    for (int b = 0; b < busNav.count(); b++) {
        // for each bus in the machine
        TTAMachine::Bus& bus = *busNav.item(b);
        for (int seg = 0; seg < bus.segmentCount(); seg++) {
            TTAMachine::Segment& segment = *bus.segment(seg);
            // for each segment in the bus
            if ((!socket.isConnectedTo(segment)) &&
                tester.canConnect(socket, segment)) {

                socket.attachBus(segment);
            }
        }
    }
}

References TTAMachine::Socket::attachBus(), TTAMachine::Machine::busNavigator(), MachineTester::canConnect(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Socket::isConnectedTo(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), machine, TTAMachine::Bus::segment(), and TTAMachine::Bus::segmentCount().

Referenced by createSocket(), and fix().

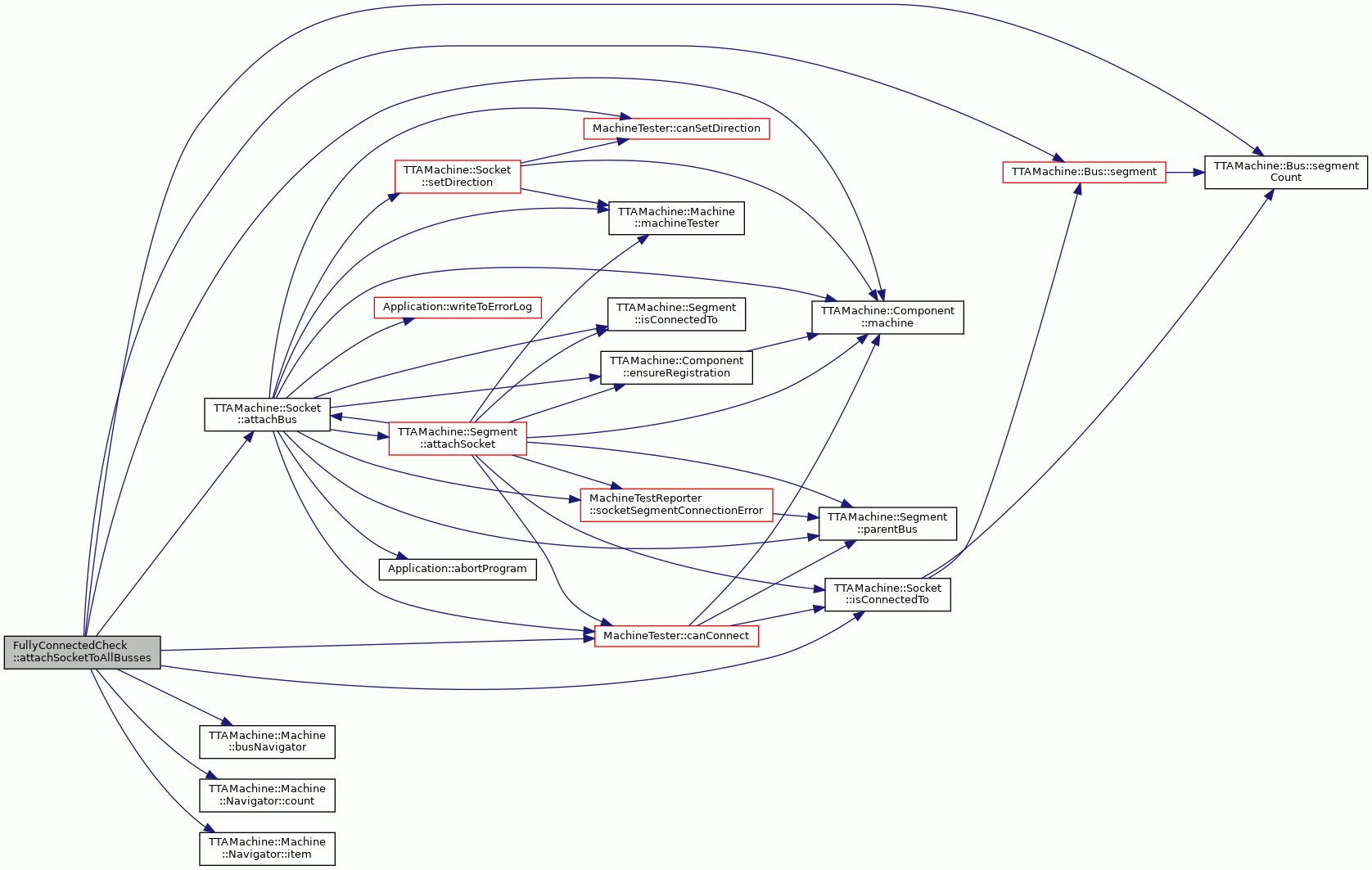

Here is the call graph for this function:

canFix()

bool FullyConnectedCheck::canFix ( const TTAMachine::Machine &  mach ) const

virtual

Returns true if the machine can be fixed to pass the check.

Parameters

mach	The machine to be analyzed.

Returns

True if the machine can be fixed to pass the check.

Reimplemented from MachineCheck.

Definition at line 78 of file FullyConnectedCheck.cc.

                                                               {

    const TTAMachine::Machine::BridgeNavigator brNav =
        mach.bridgeNavigator();

    const TTAMachine::Machine::BusNavigator busNav =
        mach.busNavigator();

    if (busNav.count() == 0 || brNav.count() > 0) {
        return false;
    }
    return true;
}

References TTAMachine::Machine::bridgeNavigator(), TTAMachine::Machine::busNavigator(), and TTAMachine::Machine::Navigator< ComponentType >::count().

Referenced by fix(), and FullyConnectBussesCmd::isEnabled().

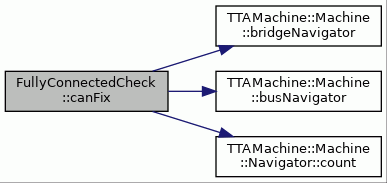

Here is the call graph for this function:

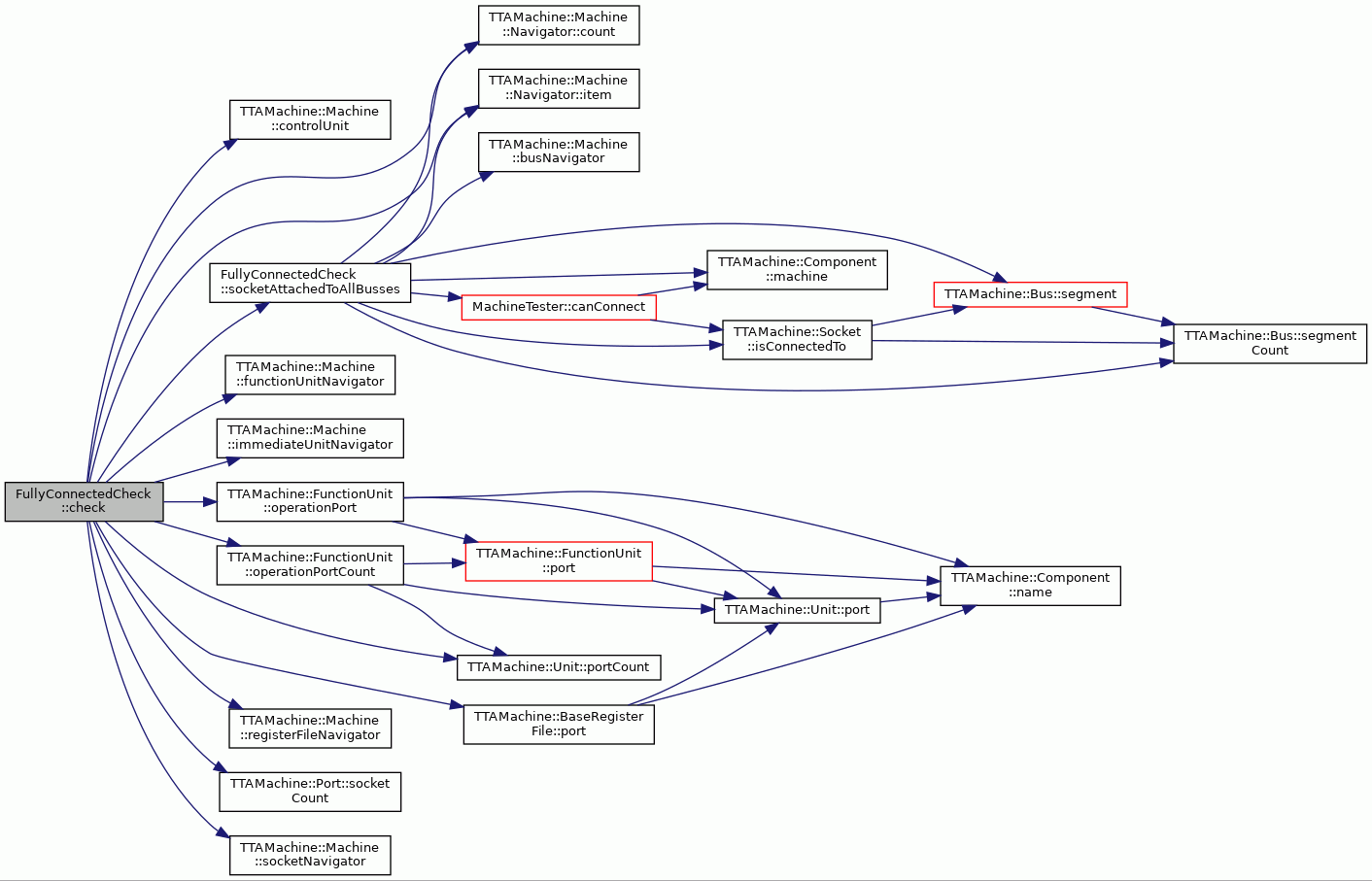

check() [1/2]

bool FullyConnectedCheck::check ( const TTAMachine::Machine &  mach ) const

virtual

Checks is the machine fully connected.

Parameters

mach	Machine to be checked.

Returns

True if the machine is fully connected.

Definition at line 99 of file FullyConnectedCheck.cc.

                                                              {
    const Machine::SocketNavigator
        socketNav = mach.socketNavigator();

    for (int so = 0; so < socketNav.count(); so++) {
        // for each socket in the machine
        if (!socketAttachedToAllBusses(*socketNav.item(so))) {
            return false;
        }
    }

    // check unconnected FU ports
    const Machine::FunctionUnitNavigator fuNav = mach.functionUnitNavigator();

    for (int i = 0; i < fuNav.count(); i++) {
        FunctionUnit& fu = *fuNav.item(i);
        for (int p = 0; p < fu.operationPortCount(); p++) {
            FUPort& port = *fu.operationPort(p);
            if (port.socketCount() == 0) {
                return false;
            }
        }
    }

    // check unconnected IU ports
    const Machine::ImmediateUnitNavigator iuNav =
        mach.immediateUnitNavigator();

    for (int i = 0; i < iuNav.count(); i++) {
        ImmediateUnit& iu = *iuNav.item(i);
        for (int p = 0; p < iu.portCount(); p++) {
            RFPort& port = *iu.port(p);
            if (port.socketCount() == 0) {
                return false;
            }
        }
    }

    // check unconnected RF ports
    const Machine::RegisterFileNavigator rfNav = mach.registerFileNavigator();

    for (int i = 0; i < rfNav.count(); i++) {
        RegisterFile& rf = *rfNav.item(i);
        for (int p = 0; p < rf.portCount(); p++) {
            RFPort& port = *rf.port(p);
            if (port.socketCount() == 0) {
                return false;
            }
        }
    }

    ControlUnit* gcu = mach.controlUnit();
    if (gcu != NULL) {
        for (int p = 0; p < gcu->operationPortCount(); p++) {
            FUPort& port = *gcu->operationPort(p);
            if (port.socketCount() == 0) {
                return false;
            }
        }
    }
    return true;
}

References TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), TTAMachine::Machine::registerFileNavigator(), socketAttachedToAllBusses(), TTAMachine::Port::socketCount(), and TTAMachine::Machine::socketNavigator().

Referenced by RegisterQuantityCheck::check(), RegisterQuantityCheck::checkIntRegs(), RegisterQuantityCheck::checkWithIgnore(), RegisterQuantityCheck::checkWithIgnore(), RegisterQuantityCheck::fixIntRegs(), and FullyConnectBussesCmd::isEnabled().

Here is the call graph for this function:

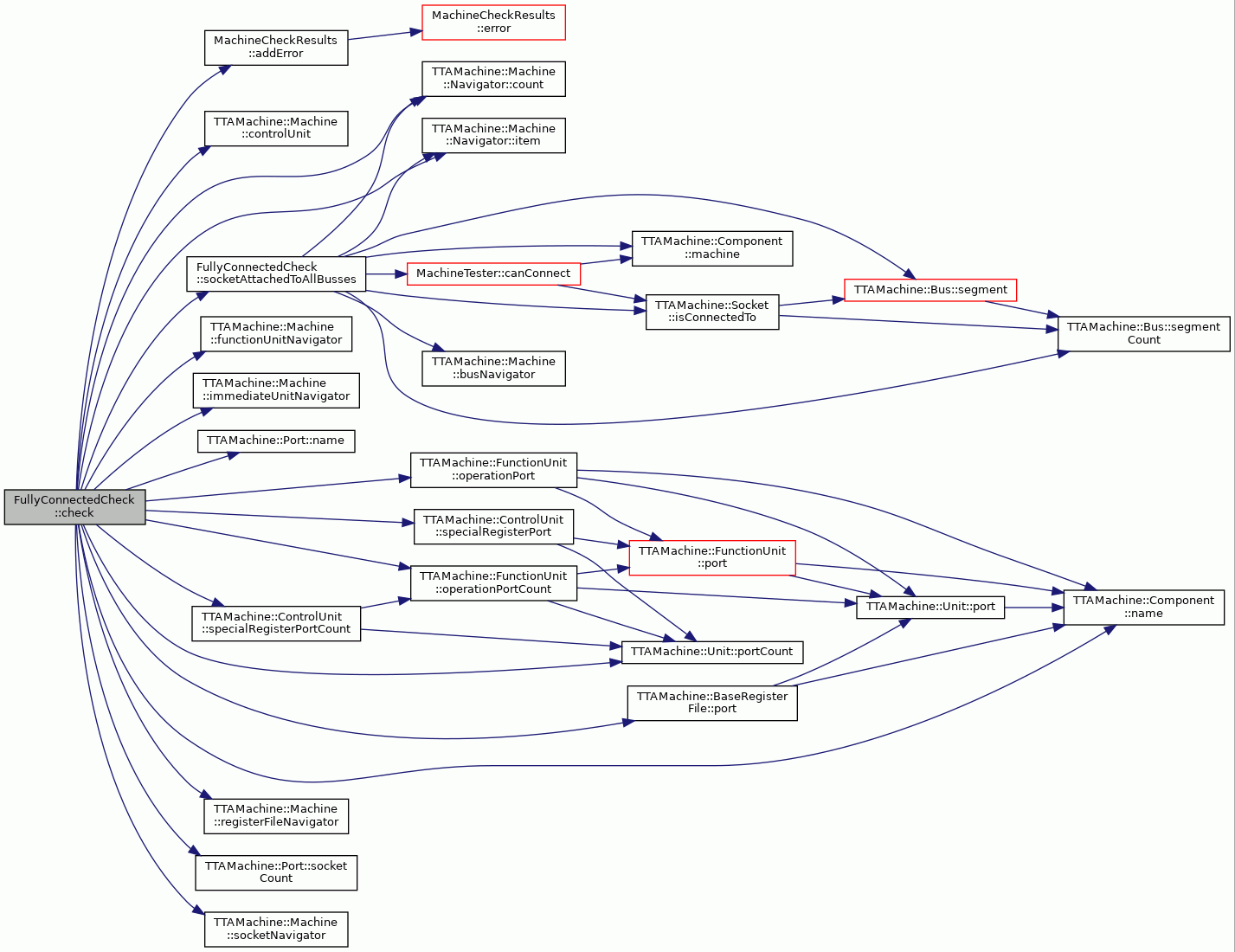

check() [2/2]

bool FullyConnectedCheck::check ( const TTAMachine::Machine &  mach, MachineCheckResults &  results  ) const

virtual

Checks is the machine fully connected and adds errors to results.

Parameters

mach	Machine to be checked.
results	Check results.

Returns

True if the machine is fully connected.

Implements MachineCheck.

Definition at line 170 of file FullyConnectedCheck.cc.

                                                                       {

    bool result = true;

    const Machine::SocketNavigator
        socketNav = mach.socketNavigator();

    for (int so = 0; so < socketNav.count(); so++) {
        // for each socket in the machine
        if (!socketAttachedToAllBusses(*socketNav.item(so))) {
            results.addError(
                *this, "All sockets not connected to all busses.");
            result = false;
        }
    }

    // check unconnected FU ports
    const Machine::FunctionUnitNavigator fuNav = mach.functionUnitNavigator();

    for (int i = 0; i < fuNav.count(); i++) {
        FunctionUnit& fu = *fuNav.item(i);
        for (int p = 0; p < fu.operationPortCount(); p++) {
            FUPort& port = *fu.operationPort(p);
            if (port.socketCount() == 0) {
                results.addError(
                    *this, "FU: '" + fu.name() + "' port '" +
                    port.name() + "' not connected to any socket.");
                result = false;
            }
        }
    }

    // check unconnected IU ports
    const Machine::ImmediateUnitNavigator iuNav =
        mach.immediateUnitNavigator();

    for (int i = 0; i < iuNav.count(); i++) {
        ImmediateUnit& iu = *iuNav.item(i);
        for (int p = 0; p < iu.portCount(); p++) {
            RFPort& port = *iu.port(p);
            if (port.socketCount() == 0) {
                results.addError(
                    *this, "IU: '" + iu.name() + "' port '" +
                    port.name() + "' not connected to any socket.");
                result = false;
            }
        }
    }

    // check unconnected RF ports
    const Machine::RegisterFileNavigator rfNav = mach.registerFileNavigator();

    for (int i = 0; i < rfNav.count(); i++) {
        RegisterFile& rf = *rfNav.item(i);
        for (int p = 0; p < rf.portCount(); p++) {
            RFPort& port = *rf.port(p);
            if (port.socketCount() == 0) {
                results.addError(
                    *this, "RF: '" + rf.name() + "' port '" +
                    port.name() + "' not connected to any socket.");
                result = false;
            }
        }
    }

    ControlUnit* gcu = mach.controlUnit();
    if (gcu != NULL) {
        for (int p = 0; p < gcu->operationPortCount(); p++) {
            FUPort& port = *gcu->operationPort(p);
            if (port.socketCount() == 0) {
                results.addError(
                    *this, "GCU port '" +
                    port.name() + "' not connected to any socket.");
                return false;
            }
        }
        for (int p = 0; p < gcu->specialRegisterPortCount(); p++) {
            SpecialRegisterPort& port = *gcu->specialRegisterPort(p);
            if (port.socketCount() == 0) {
                results.addError(
                    *this, "GCU port '" +
                    port.name() + "' not connected to any socket.");
            }
        }
    }
    return result;
}

References MachineCheckResults::addError(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::name(), TTAMachine::Port::name(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), TTAMachine::Machine::registerFileNavigator(), socketAttachedToAllBusses(), TTAMachine::Port::socketCount(), TTAMachine::Machine::socketNavigator(), TTAMachine::ControlUnit::specialRegisterPort(), and TTAMachine::ControlUnit::specialRegisterPortCount().

Here is the call graph for this function:

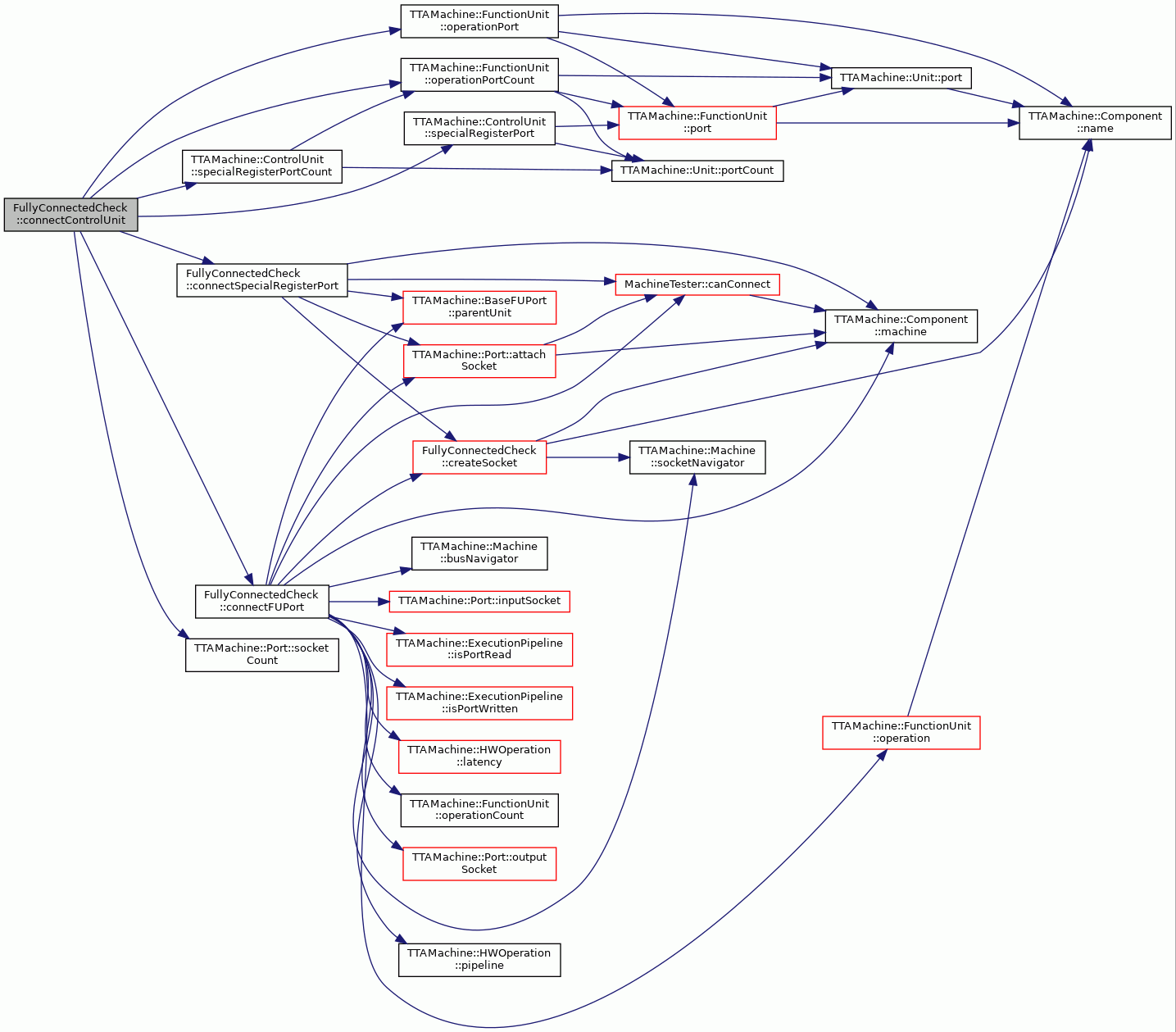

connectControlUnit()

void FullyConnectedCheck::connectControlUnit

(

TTAMachine::ControlUnit &

gcu

)

const

Definition at line 363 of file FullyConnectedCheck.cc.

                                                                        {
    for (int p = 0; p < gcu.operationPortCount(); p++) {
        FUPort& port = *gcu.operationPort(p);
        if (port.socketCount() == 0) {
            connectFUPort(port);
        }
    }
    for (int p = 0; p < gcu.specialRegisterPortCount(); p++) {
        SpecialRegisterPort& port = *gcu.specialRegisterPort(p);
        if (port.socketCount() == 0) {
            connectSpecialRegisterPort(port);
        }
    }
}

References connectFUPort(), connectSpecialRegisterPort(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), TTAMachine::Port::socketCount(), TTAMachine::ControlUnit::specialRegisterPort(), and TTAMachine::ControlUnit::specialRegisterPortCount().

Referenced by ADFCombiner::addFunctionUnits(), and fix().

Here is the call graph for this function:

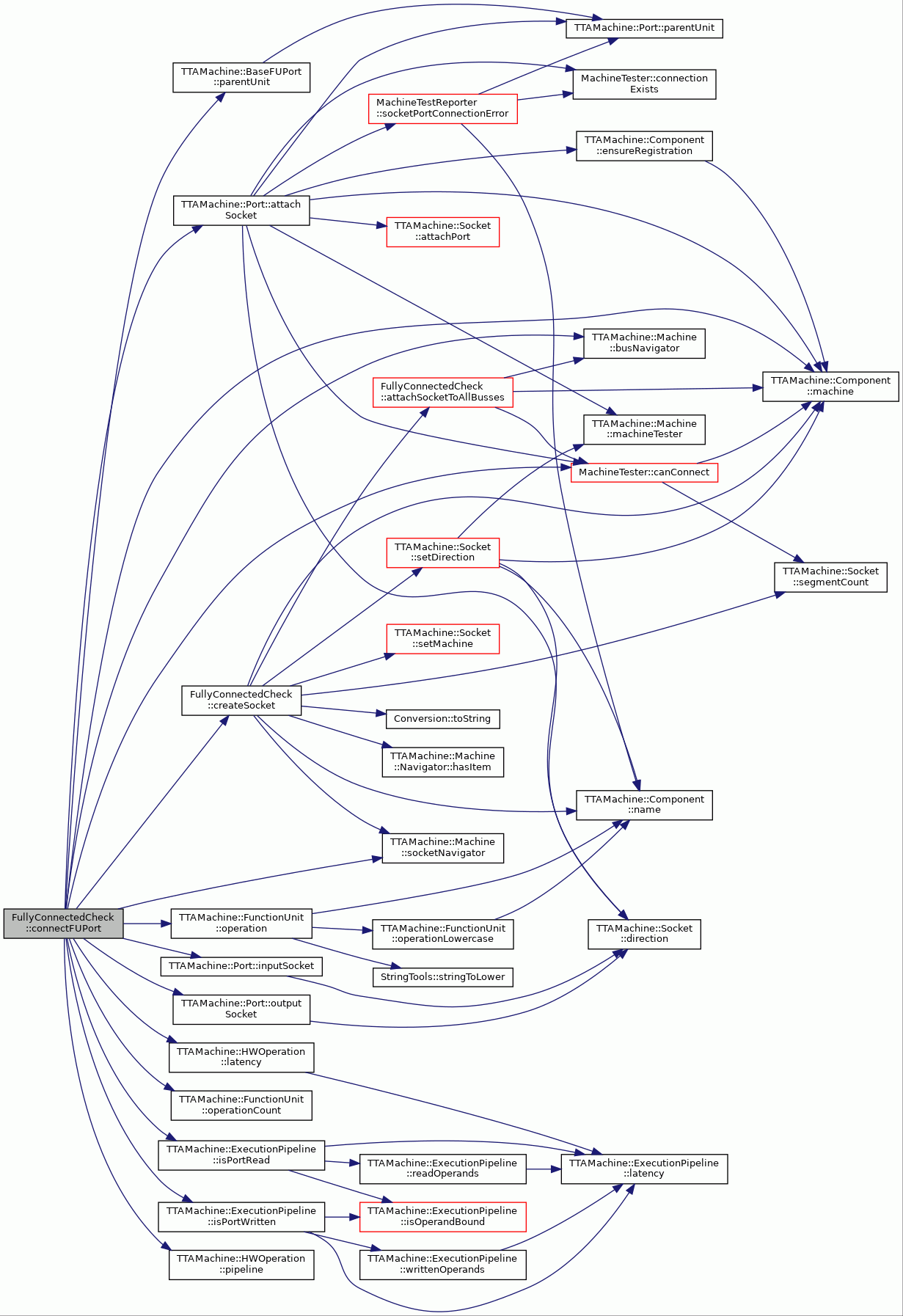

connectFUPort()

void FullyConnectedCheck::connectFUPort

(

TTAMachine::FUPort &

port

)

const

Creates socket(s) and connects a FU port to all possible busses.

Parameters

port	FU port to connect to busses.

Definition at line 497 of file FullyConnectedCheck.cc.

                                                     {

    const FunctionUnit& fu = *port.parentUnit();
    Machine& machine = *fu.machine();
    MachineTester tester(machine);

    const TTAMachine::Machine::BusNavigator busNav = machine.busNavigator();
    const Machine::SocketNavigator socketNav =
        machine.socketNavigator();

    // Operand ports.
    for (int i = 0; i < fu.operationCount(); i++) {
        const HWOperation& operation = *fu.operation(i);
        for (int c = 0; c < operation.latency(); c++) {
            if (port.inputSocket() == NULL &&
                operation.pipeline()->isPortRead(port, c)) {

                Socket* socket = createSocket(fu, Socket::INPUT);

                if (tester.canConnect(*socket, port)) {
                    port.attachSocket(*socket);
                } else {
                    delete socket;
                }
                break;
            }
        }
    }

    // Result ports.
    for (int i = 0; i < fu.operationCount(); i++) {
        const HWOperation& operation = *fu.operation(i);
        for (int c = 0; c < operation.latency(); c++) {
            if (port.outputSocket() == NULL &&
                operation.pipeline()->isPortWritten(port, c)) {

                Socket* socket = createSocket(fu, Socket::OUTPUT);
                if (tester.canConnect(*socket, port)) {
                    port.attachSocket(*socket);
                } else {
                    delete socket;
                }
                break;
            }
        }
    }

}

References TTAMachine::Port::attachSocket(), TTAMachine::Machine::busNavigator(), MachineTester::canConnect(), createSocket(), TTAMachine::Socket::INPUT, TTAMachine::Port::inputSocket(), TTAMachine::ExecutionPipeline::isPortRead(), TTAMachine::ExecutionPipeline::isPortWritten(), TTAMachine::HWOperation::latency(), TTAMachine::Component::machine(), machine, TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::Socket::OUTPUT, TTAMachine::Port::outputSocket(), TTAMachine::BaseFUPort::parentUnit(), TTAMachine::HWOperation::pipeline(), and TTAMachine::Machine::socketNavigator().

Referenced by connectControlUnit(), fix(), and MinimalOpSetCheck::fix().

Here is the call graph for this function:

connectIUPort()

void FullyConnectedCheck::connectIUPort ( TTAMachine::RFPort &  port ) const

private

Connects an immediate unit port to all possible busses.

Parameters

port	Immediate unit port to connect.

Definition at line 383 of file FullyConnectedCheck.cc.

                                                     {

    MachineTester tester(*port.parentUnit()->machine());

    Socket* socket = createSocket(*port.parentUnit(), Socket::OUTPUT);

    if (tester.canConnect(*socket, port)) {
        port.attachSocket(*socket);
    } else {
        delete socket;
    }
}

References TTAMachine::Port::attachSocket(), MachineTester::canConnect(), createSocket(), TTAMachine::Component::machine(), TTAMachine::Socket::OUTPUT, and TTAMachine::RFPort::parentUnit().

Referenced by fix().

Here is the call graph for this function:

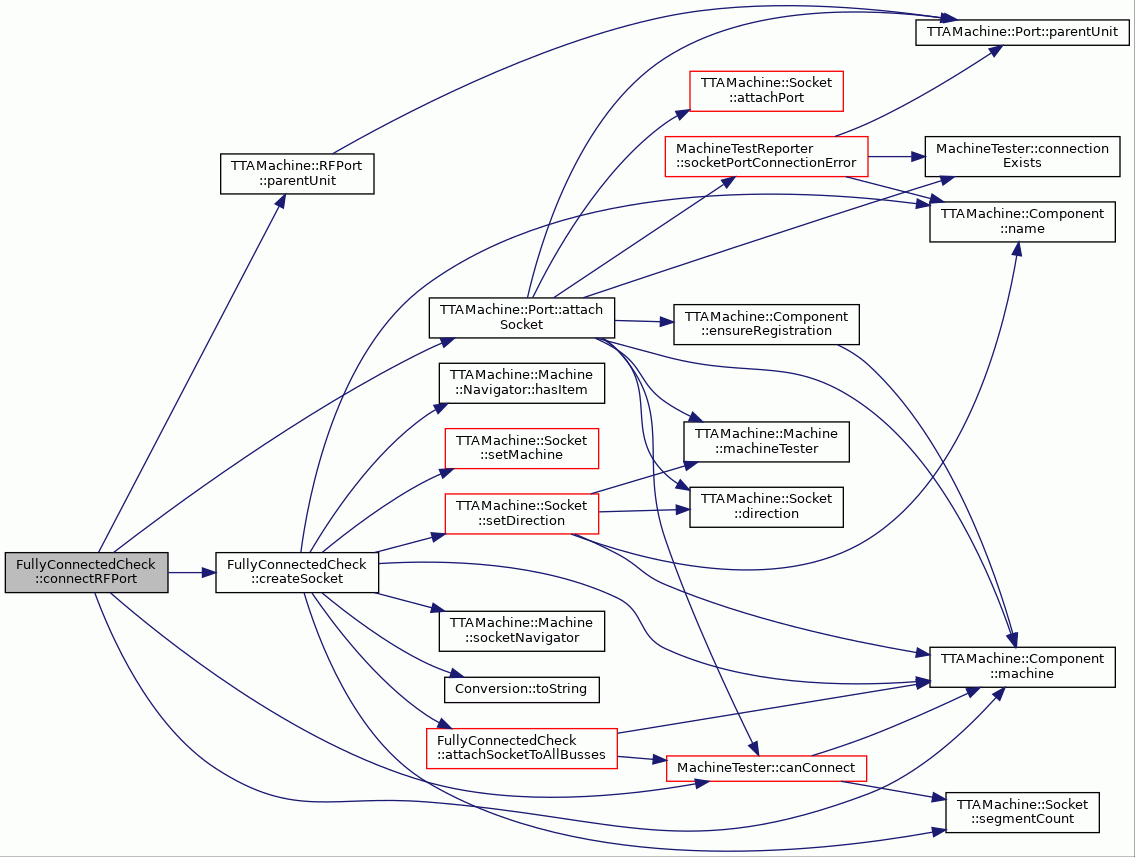

connectRFPort()

void FullyConnectedCheck::connectRFPort ( TTAMachine::RFPort &  port, TTAMachine::Socket::Direction  direction  ) const

private

Connects a register file port to all possible busses.

Parameters

port	Immediate unit port to connect.

Definition at line 430 of file FullyConnectedCheck.cc.

                                                                                          {

    MachineTester tester(*port.parentUnit()->machine());
    const BaseRegisterFile& rf = *port.parentUnit();

    Socket* socket = NULL;
    socket = createSocket(rf, direction);

    if (tester.canConnect(*socket, port)) {
        port.attachSocket(*socket);
    } else {
        delete socket;
    }

}

References TTAMachine::Port::attachSocket(), MachineTester::canConnect(), createSocket(), TTAMachine::Component::machine(), and TTAMachine::RFPort::parentUnit().

Referenced by fix().

Here is the call graph for this function:

connectSpecialRegisterPort()

void FullyConnectedCheck::connectSpecialRegisterPort

(

TTAMachine::SpecialRegisterPort &

port

)

const

Connects a special register port to all possible busses.

Parameters

port	Special register port to connect.

Definition at line 402 of file FullyConnectedCheck.cc.

                                    {

    MachineTester tester(*port.parentUnit()->machine());

    Socket* inSocket = createSocket(*port.parentUnit(), Socket::INPUT);
    Socket* outSocket = createSocket(*port.parentUnit(), Socket::OUTPUT);

    if (tester.canConnect(*inSocket, port)) {
        port.attachSocket(*inSocket);
    } else {
        delete inSocket;
    }

    if (tester.canConnect(*outSocket, port)) {
        port.attachSocket(*outSocket);
    } else {
        delete outSocket;
    }
}

References TTAMachine::Port::attachSocket(), MachineTester::canConnect(), createSocket(), TTAMachine::Socket::INPUT, TTAMachine::Component::machine(), TTAMachine::Socket::OUTPUT, and TTAMachine::BaseFUPort::parentUnit().

Referenced by connectControlUnit().

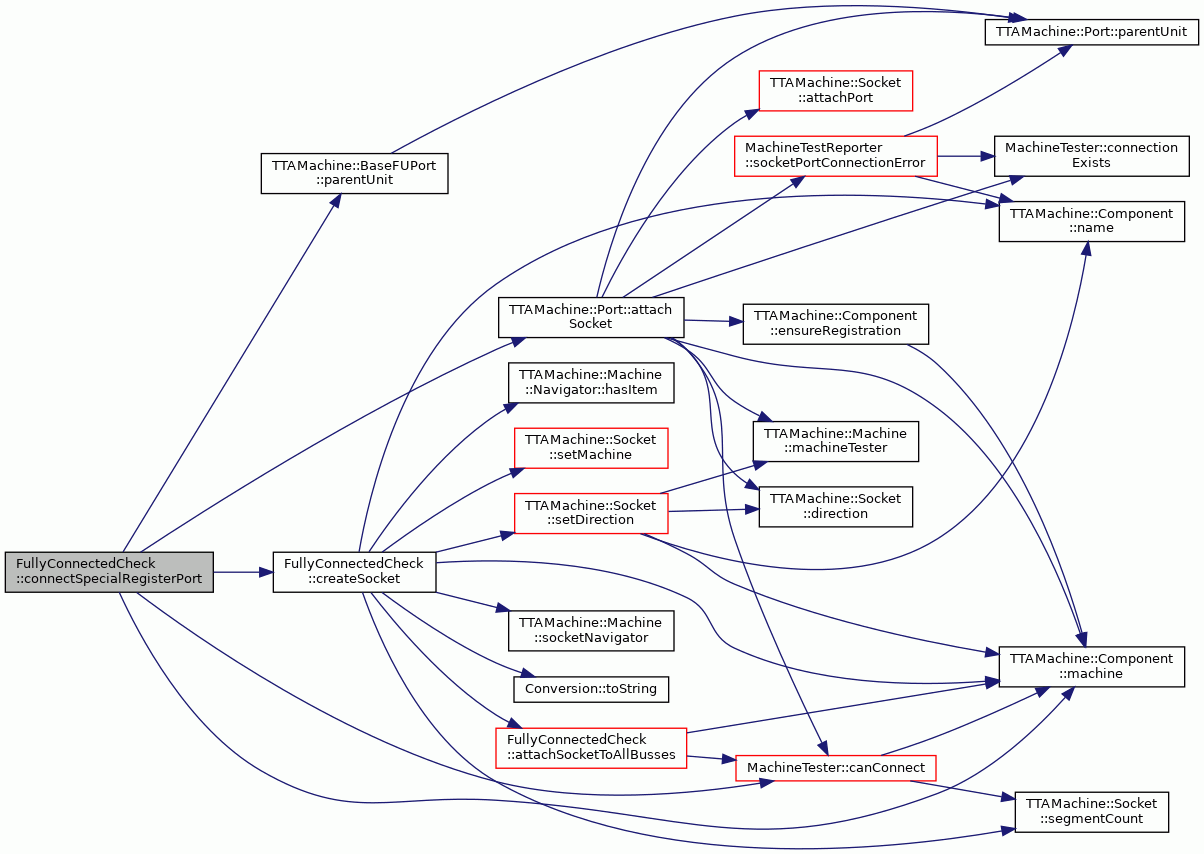

Here is the call graph for this function:

createSocket()

Socket * FullyConnectedCheck::createSocket ( const TTAMachine::Unit &  unit, TTAMachine::Socket::Direction  direction  ) const

private

Creates a new socket to be attached to an unit.

Parameters

unit	Unit whose name is used to generate a name for the socket.
direction	Direction of the socket.

Returns

A new socket, attached to all possible busses, but not to a port.

Definition at line 454 of file FullyConnectedCheck.cc.

                                                       {

    TTAMachine::Machine& machine = *unit.machine();

    const TTAMachine::Machine::SocketNavigator socketNav =
        machine.socketNavigator();

    int s = 1;
    std::string socketName = unit.name();
    if (direction == Socket::INPUT) {
        socketName = socketName + "_i";
    } else {
        socketName = socketName + "_o";
    }

    while (socketNav.hasItem(
               socketName + Conversion::toString(s))) {

        s++;
    }

    Socket* socket =
        new Socket(socketName + Conversion::toString(s));

    socket->setMachine(machine);
    attachSocketToAllBusses(*socket);

    // direction can be set only if the socket is connected to a segment
    if (socket->segmentCount() > 0) {
        socket->setDirection(direction);
    }

    return socket;
}

References attachSocketToAllBusses(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), TTAMachine::Socket::INPUT, TTAMachine::Component::machine(), machine, TTAMachine::Component::name(), TTAMachine::Socket::segmentCount(), TTAMachine::Socket::setDirection(), TTAMachine::Socket::setMachine(), TTAMachine::Machine::socketNavigator(), and Conversion::toString().

Referenced by connectFUPort(), connectIUPort(), connectRFPort(), and connectSpecialRegisterPort().

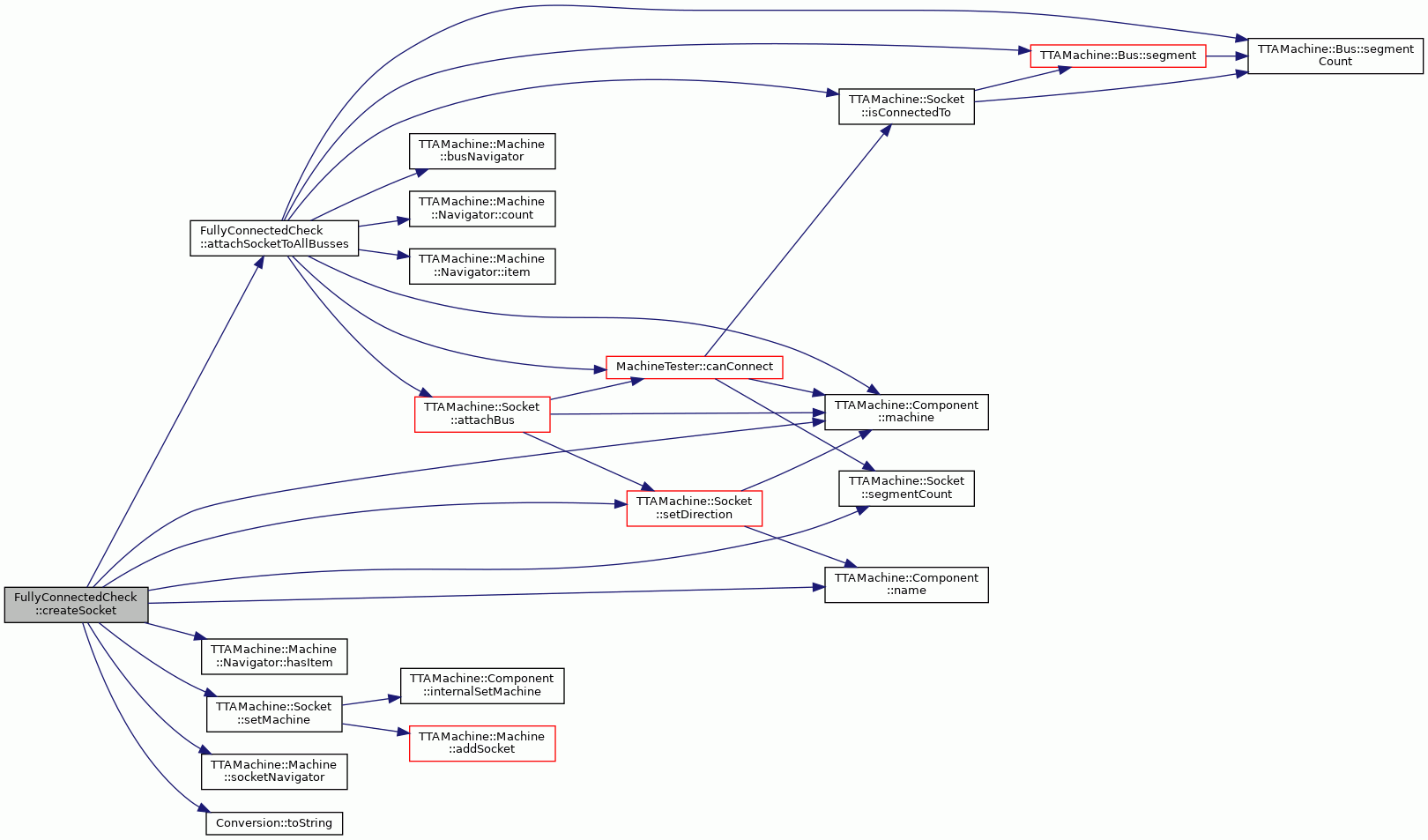

Here is the call graph for this function:

fix()

std::string FullyConnectedCheck::fix ( TTAMachine::Machine &  mach ) const

virtual

Fixes the machine to pass the chek if possible.

Parameters

mach	Machine to be fixed.

Returns

Returns an empty string.

Exceptions

InvalidData

Thows if the machine cannot be fixed.

Reimplemented from MachineCheck.

Definition at line 267 of file FullyConnectedCheck.cc.

                                                      {
    if (!canFix(mach)) {
        throw InvalidData(
            __FILE__, __LINE__, __func__,
            "Machines contains no busses or contains bridges.");
    }

    const Machine::SocketNavigator
        socketNav = mach.socketNavigator();

    for (int so = 0; so < socketNav.count(); so++) {
        // for each socket in the machine
        attachSocketToAllBusses(*socketNav.item(so));
    }
    // Connect all unconnected FU ports to newly created sockets.
    const Machine::FunctionUnitNavigator fuNav = mach.functionUnitNavigator();

    for (int i = 0; i < fuNav.count(); i++) {
        FunctionUnit& fu = *fuNav.item(i);
        for (int p = 0; p < fu.operationPortCount(); p++) {
            FUPort& port = *fu.operationPort(p);
            if (port.socketCount() == 0) {
                connectFUPort(port);
            }
        }
    }

    // Connect all unconnected IU ports to new sockets.
    const Machine::ImmediateUnitNavigator iuNav =
        mach.immediateUnitNavigator();

    for (int i = 0; i < iuNav.count(); i++) {
        ImmediateUnit& iu = *iuNav.item(i);
        for (int p = 0; p < iu.portCount(); p++) {
            RFPort& port = *iu.port(p);
            if (port.socketCount() == 0) {
                connectIUPort(port);
            }
        }
    }

    // Connect all unconnected RF ports to new sockets.
    const Machine::RegisterFileNavigator rfNav = mach.registerFileNavigator();

    for (int i = 0; i < rfNav.count(); i++) {
        RegisterFile& rf = *rfNav.item(i);
        int maxReads = rf.maxReads();
        int maxWrites = rf.maxWrites();
        bool lastWasReadPort = false;
        for (int p = 0; p < rf.portCount(); p++) {
            RFPort& port = *rf.port(p);
            if (port.socketCount() == 0) {
                if (maxReads > 0) {
                    connectRFPort(port, Socket::OUTPUT);
                    maxReads--;
                } else if (maxWrites > 0) {
                    connectRFPort(port, Socket::INPUT);
                    maxWrites--;
                } else {
                    // when maxReads == 0 and maxWrites == 0, connect every other
                    // port as a read port, every other as write
                    if (lastWasReadPort) {
                        connectRFPort(port, Socket::INPUT);
                        lastWasReadPort = false;
                    } else {
                        connectRFPort(port, Socket::OUTPUT);
                        lastWasReadPort = true;
                    }
                }

            }
            else // port connected, check wheter it is input or output
            {
                if (port.inputSocket() != NULL) {
                    maxWrites--;
                } else if (port.outputSocket() != NULL) {
                    maxReads--;
                } else {
                    // port connected, but input and output sockets are null
                    throw InvalidData(
                        __FILE__, __LINE__, __func__,
                        "Port connected to unknown socket.");
                }
            }
        }
    }

    ControlUnit* gcu = mach.controlUnit();
    if (gcu != NULL) {
        connectControlUnit(*gcu);
    }

    return "";
}

References __func__, attachSocketToAllBusses(), canFix(), connectControlUnit(), connectFUPort(), connectIUPort(), connectRFPort(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Socket::INPUT, TTAMachine::Port::inputSocket(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::RegisterFile::maxReads(), TTAMachine::RegisterFile::maxWrites(), TTAMachine::FunctionUnit::operationPort(), TTAMachine::FunctionUnit::operationPortCount(), TTAMachine::Socket::OUTPUT, TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), TTAMachine::Machine::registerFileNavigator(), TTAMachine::Port::socketCount(), and TTAMachine::Machine::socketNavigator().

Referenced by MachineResourceModifier::addBusesByAmount(), FullyConnectBussesCmd::Do(), MachineResourceModifier::increaseAllFUsThatDiffersByAmount(), MachineResourceModifier::increaseAllRFsThatDiffersByAmount(), MachineResourceModifier::percentualFUIncrease(), and MachineResourceModifier::percentualRegisterIncrease().

Here is the call graph for this function:

socketAttachedToAllBusses()

bool FullyConnectedCheck::socketAttachedToAllBusses ( const TTAMachine::Socket &  socket ) const

private

Checks if the given socket is attached to all possible busses.

Parameters

socket

Socket to check.

Returns

True if the socket is attached to all possible busses.

Definition at line 581 of file FullyConnectedCheck.cc.

                                                                         {

    TTAMachine::Machine& machine = *socket.machine();
    MachineTester tester(machine);

    const TTAMachine::Machine::BusNavigator busNav = machine.busNavigator();

    for (int b = 0; b < busNav.count(); b++) {
        // for each bus in the machine
        TTAMachine::Bus& bus = *busNav.item(b);
        for (int seg = 0; seg < bus.segmentCount(); seg++) {
            TTAMachine::Segment& segment = *bus.segment(seg);
            // for each segment in the bus
            if (!socket.isConnectedTo(segment)) {
                if (tester.canConnect(socket, segment)) {
                    return false;
                }
            }
        }
    }
    return true;
}

References TTAMachine::Machine::busNavigator(), MachineTester::canConnect(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Socket::isConnectedTo(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::Component::machine(), machine, TTAMachine::Bus::segment(), and TTAMachine::Bus::segmentCount().

Referenced by check(), and check().

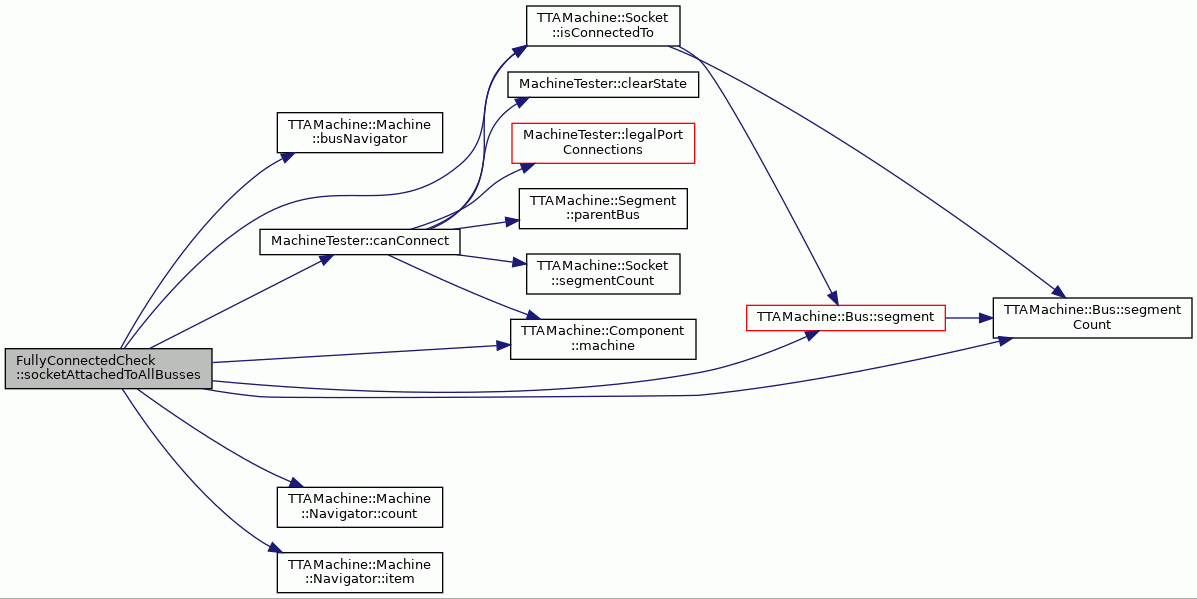

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• FullyConnectedCheck.hh
• FullyConnectedCheck.cc
