ProGe::RV32MicroCodeGenerator Class Reference

#include <RV32MicroCodeGenerator.hh>

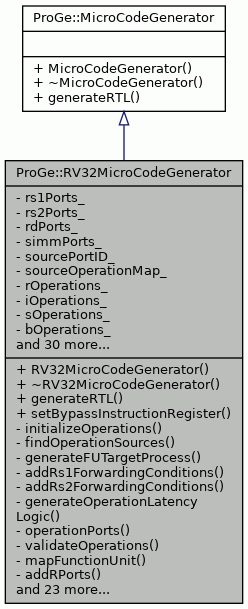

Inheritance diagram for ProGe::RV32MicroCodeGenerator:

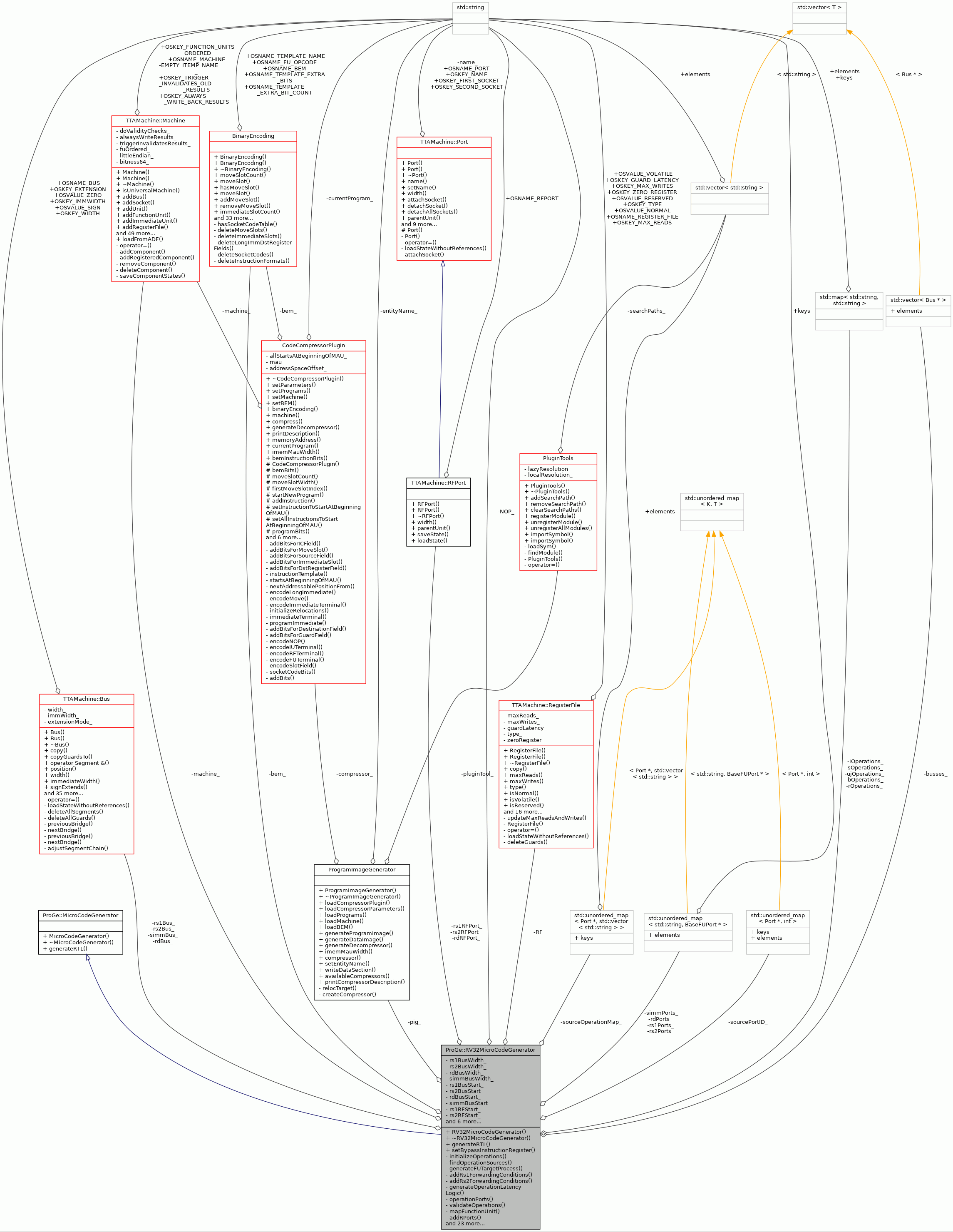

Collaboration diagram for ProGe::RV32MicroCodeGenerator:

Public Member Functions
	RV32MicroCodeGenerator (const Machine &machine, const BinaryEncoding &bem, const std::string &entityName)
	~RV32MicroCodeGenerator ()
void	generateRTL (HDLTemplateInstantiator &instantiator, const std::string &fileDst)
void	setBypassInstructionRegister (const bool &value)
Public Member Functions inherited from ProGe::MicroCodeGenerator
	MicroCodeGenerator (const Machine &machine, const BinaryEncoding &bem, const std::string &entityName)
	~MicroCodeGenerator ()=default

Private Member Functions
void	initializeOperations ()
void	findOperationSources ()
void	generateFUTargetProcess (std::ofstream &stream)
void	addRs1ForwardingConditions (std::map< std::string, std::string > ops, std::unordered_map< std::string, InstructionBitVector * >(ProGe::RV32MicroCodeGenerator::*instructionFunc)(Port *p1, Port *p2) const, std::ofstream &stream) const
void	addRs2ForwardingConditions (std::map< std::string, std::string > ops, std::unordered_map< std::string, InstructionBitVector * >(ProGe::RV32MicroCodeGenerator::*instructionFunc)(Port *p1, Port *p2) const, std::ofstream &stream) const

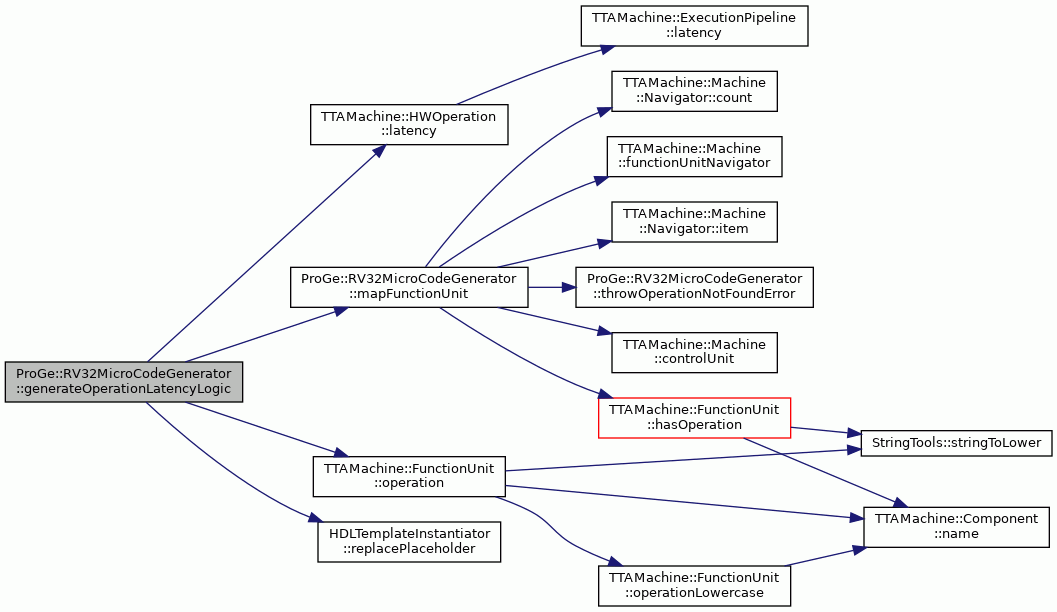

std::string	generateOperationLatencyLogic (HDLTemplateInstantiator &instantiator)
std::set< Port * >	operationPorts (const std::unordered_map< std::string, BaseFUPort * > &ports) const

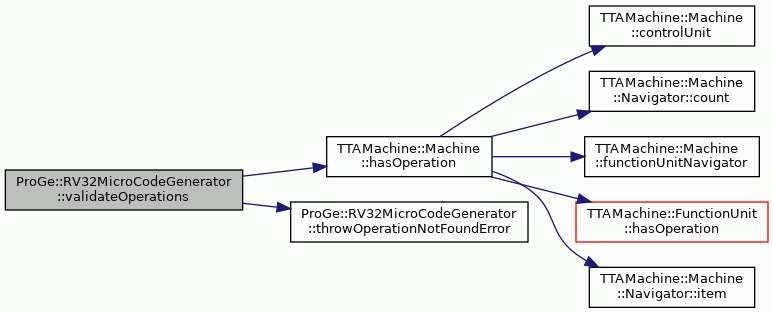

void	validateOperations () const
FunctionUnit *	mapFunctionUnit (const std::string &operation) const
void	addR1Ports (const std::string &opName)
void	addR1RPorts (const std::string &opName)
void	addRPorts (const std::string &opName)
void	addIPorts (const std::string &opName)
void	addSPorts (const std::string &opName)
void	addBPorts (const std::string &opName)

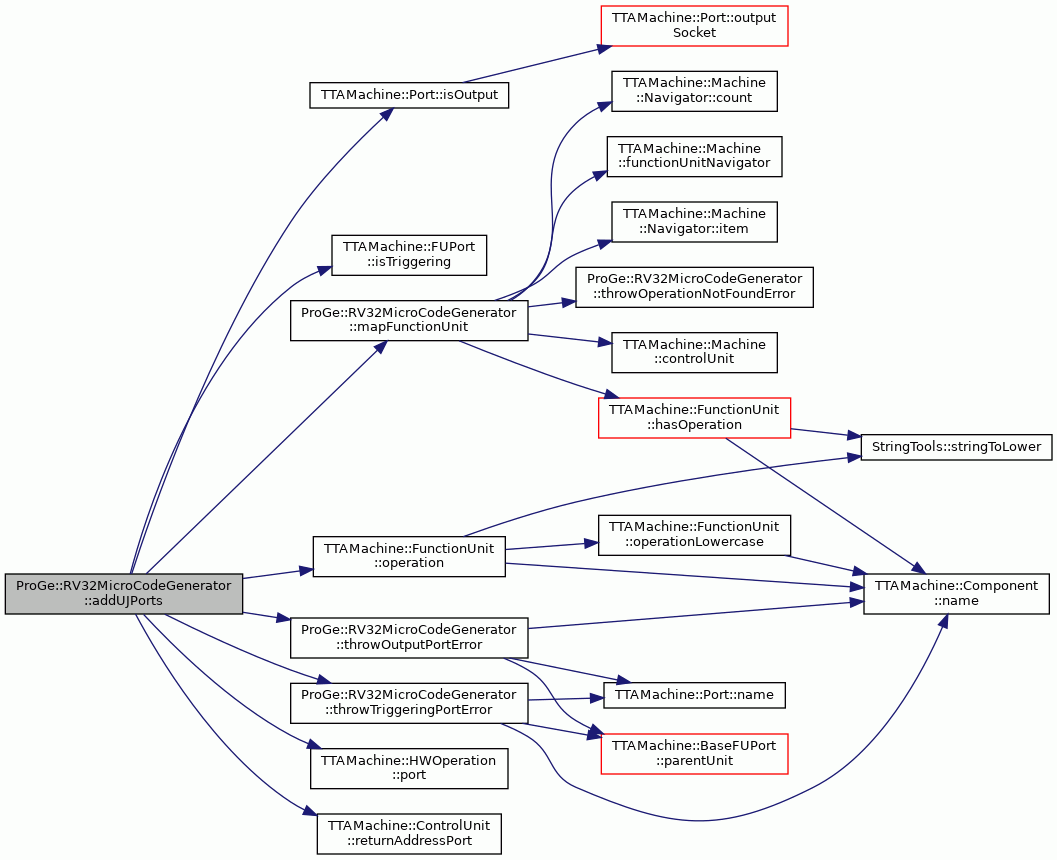

void	addUJPorts (const std::string &opName)

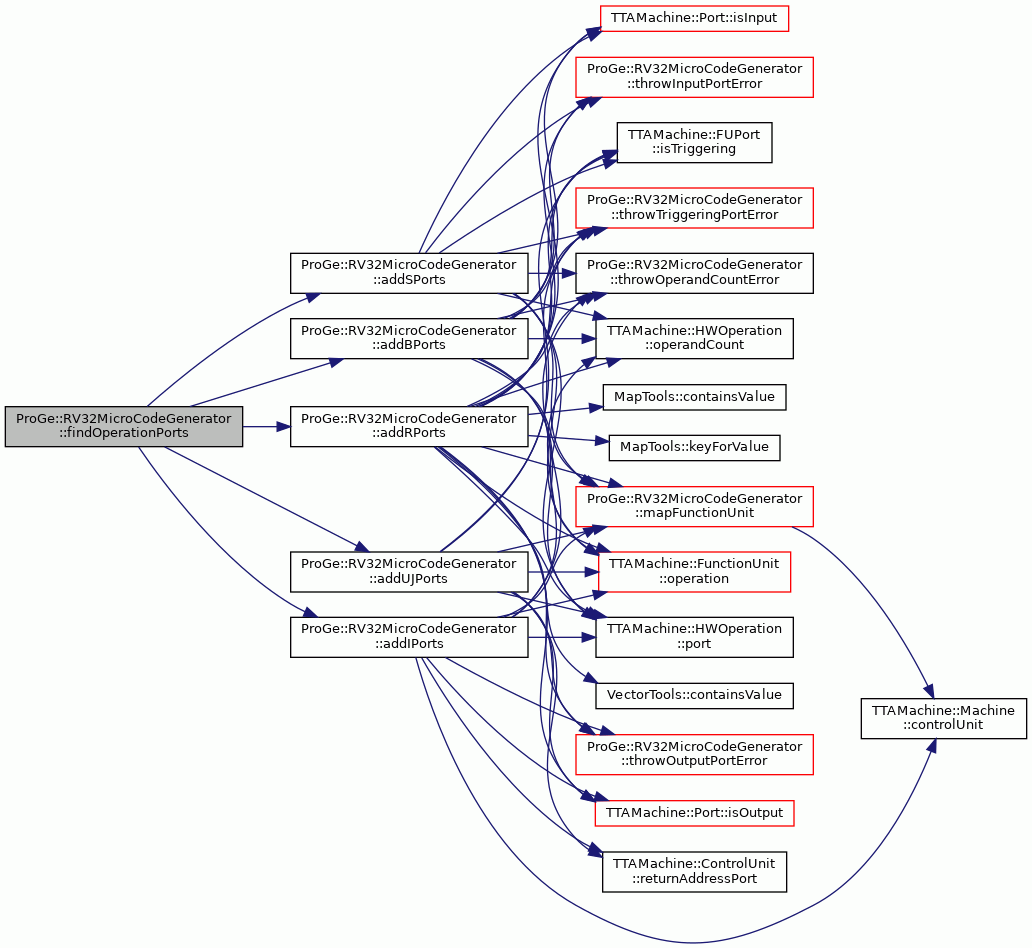

void	findOperationPorts ()

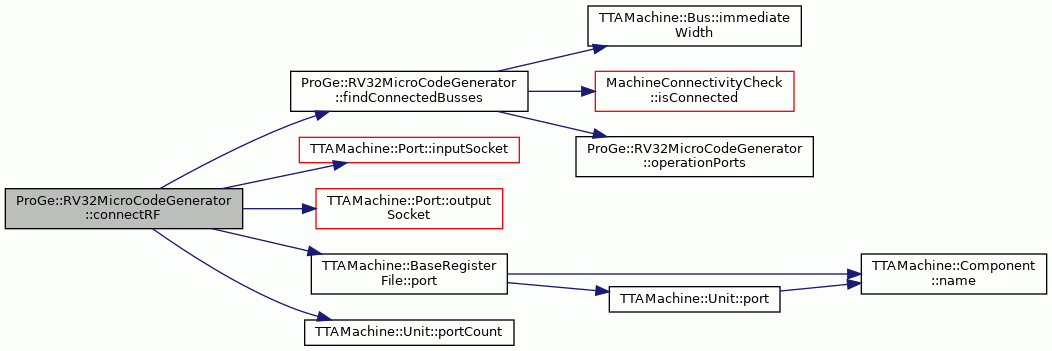

void	connectRF ()
void	findRF ()
void	findBusWidths ()
bool	findConnectedBusses (Connection &rs1, Connection &rs2, Connection &rd, Connection &simm, const bool &forwarding) const
std::unordered_map< std::string, InstructionBitVector * >	constructRInstructions (Port *src1, Port *src2) const
std::unordered_map< std::string, InstructionBitVector * >	constructIInstructions (Port *src1, Port *src2) const
std::unordered_map< std::string, InstructionBitVector * >	constructSInstructions (Port *src1, Port *src2) const
std::unordered_map< std::string, InstructionBitVector * >	constructBInstructions (Port *src1, Port *src2) const
std::unordered_map< std::string, InstructionBitVector * >	constructUJInstructions () const
std::unordered_map< std::string, InstructionBitVector * >	constructR1RInstructions (Port *src1, Port *src2) const
std::unordered_map< std::string, InstructionBitVector * >	constructR1Instructions (Port *src1, Port *src2) const
void	addBitsToMap (std::unordered_map< std::string, InstructionBitVector * > instructions, const std::map< std::string, std::string > encodings, std::ofstream &stream) const
void	generateMap (const std::string &dstDirectory)
void	generateWrapper (HDLTemplateInstantiator &instantiator, const std::string &fileDst)
void	generateNOP ()
void	throwOperationNotFoundError (const std::string &op) const
void	throwTriggeringPortError (const BaseFUPort *port, const std::string &type) const
void	throwInputPortError (const BaseFUPort *port, const std::string &type) const
void	throwOutputPortError (const BaseFUPort *port, const std::string &type) const
void	throwOperandCountError (const std::string &op, int required, int found) const

Private Attributes
std::unordered_map< std::string, BaseFUPort * >	rs1Ports_
std::unordered_map< std::string, BaseFUPort * >	rs2Ports_
std::unordered_map< std::string, BaseFUPort * >	rdPorts_
std::unordered_map< std::string, BaseFUPort * >	simmPorts_
std::unordered_map< Port *, int >	sourcePortID_
std::unordered_map< Port *, std::vector< std::string > >	sourceOperationMap_
std::map< std::string, std::string >	rOperations_
std::map< std::string, std::string >	r1rOperations_
std::map< std::string, std::string >	r1Operations_
std::map< std::string, std::string >	iOperations_
std::map< std::string, std::string >	sOperations_
std::map< std::string, std::string >	bOperations_
std::map< std::string, std::string >	ujOperations_
std::vector< Bus * >	busses_
RegisterFile *	RF_
int	rs1BusWidth_
int	rs2BusWidth_
int	rdBusWidth_
int	simmBusWidth_
int	rs1BusStart_
int	rs2BusStart_
int	rdBusStart_
int	simmBusStart_
int	rs1RFStart_
int	rs2RFStart_
int	rdRFStart_
int	simmRFStart_
Bus *	rs1Bus_
Bus *	rs2Bus_
Bus *	rdBus_
Bus *	simmBus_
RFPort *	rs1RFPort_
RFPort *	rs2RFPort_
RFPort *	rdRFPort_
ProgramImageGenerator *	pig_
std::string	NOP_
bool	bypassInstructionRegister_
bool	hasForwarding_
bool	variableLengthOpLatency_
bool	eVariant_
bool	hasCustom0Operations_

Additional Inherited Members
Protected Attributes inherited from ProGe::MicroCodeGenerator
const Machine *	machine_
const BinaryEncoding *	bem_
const std::string	entityName_

Detailed Description

Definition at line 67 of file RV32MicroCodeGenerator.hh.

Constructor & Destructor Documentation

RV32MicroCodeGenerator()

ProGe::RV32MicroCodeGenerator::RV32MicroCodeGenerator	(	const Machine &	machine,
		const BinaryEncoding &	bem,
		const std::string &	entityName
	)

Definition at line 81 of file RV32MicroCodeGenerator.cc.

    :
      MicroCodeGenerator(machine, bem, entityName),
      RF_(NULL),
      rs1Bus_(NULL),
      rs2Bus_(NULL),
      rdBus_(NULL),
      rs1RFPort_(NULL),
      rs2RFPort_(NULL),
      rdRFPort_(NULL),
      pig_(new ProgramImageGenerator()),
      NOP_(""),
      bypassInstructionRegister_(false),
      hasForwarding_(false),
      variableLengthOpLatency_(false),
      eVariant_(false),
      hasCustom0Operations_(false) {
    Machine::BusNavigator busNav = machine.busNavigator();
    for (int i = 0; i < busNav.count(); i++) {
        busses_.push_back(busNav.item(i));
    }

    initializeOperations();

    findOperationPorts();
    findOperationSources();

    pig_->loadBEM(bem);
    pig_->loadMachine(machine);

    generateNOP();

    findRF();
    connectRF();
    findBusWidths();
    if (RV32_RTL_GEN_VERBOSE) {
        if (hasForwarding_) {
            std::cout << "Generated bypass logic" << std::endl;
        } else {
            std::cout << "Not required connectivity for bypass logic"
                      << std::endl;
        }
    }
}

References TTAMachine::Machine::busNavigator(), busses_, connectRF(), TTAMachine::Machine::Navigator< ComponentType >::count(), findBusWidths(), findOperationPorts(), findOperationSources(), findRF(), generateNOP(), hasForwarding_, initializeOperations(), TTAMachine::Machine::Navigator< ComponentType >::item(), ProgramImageGenerator::loadBEM(), ProgramImageGenerator::loadMachine(), machine, pig_, and RV32_RTL_GEN_VERBOSE.

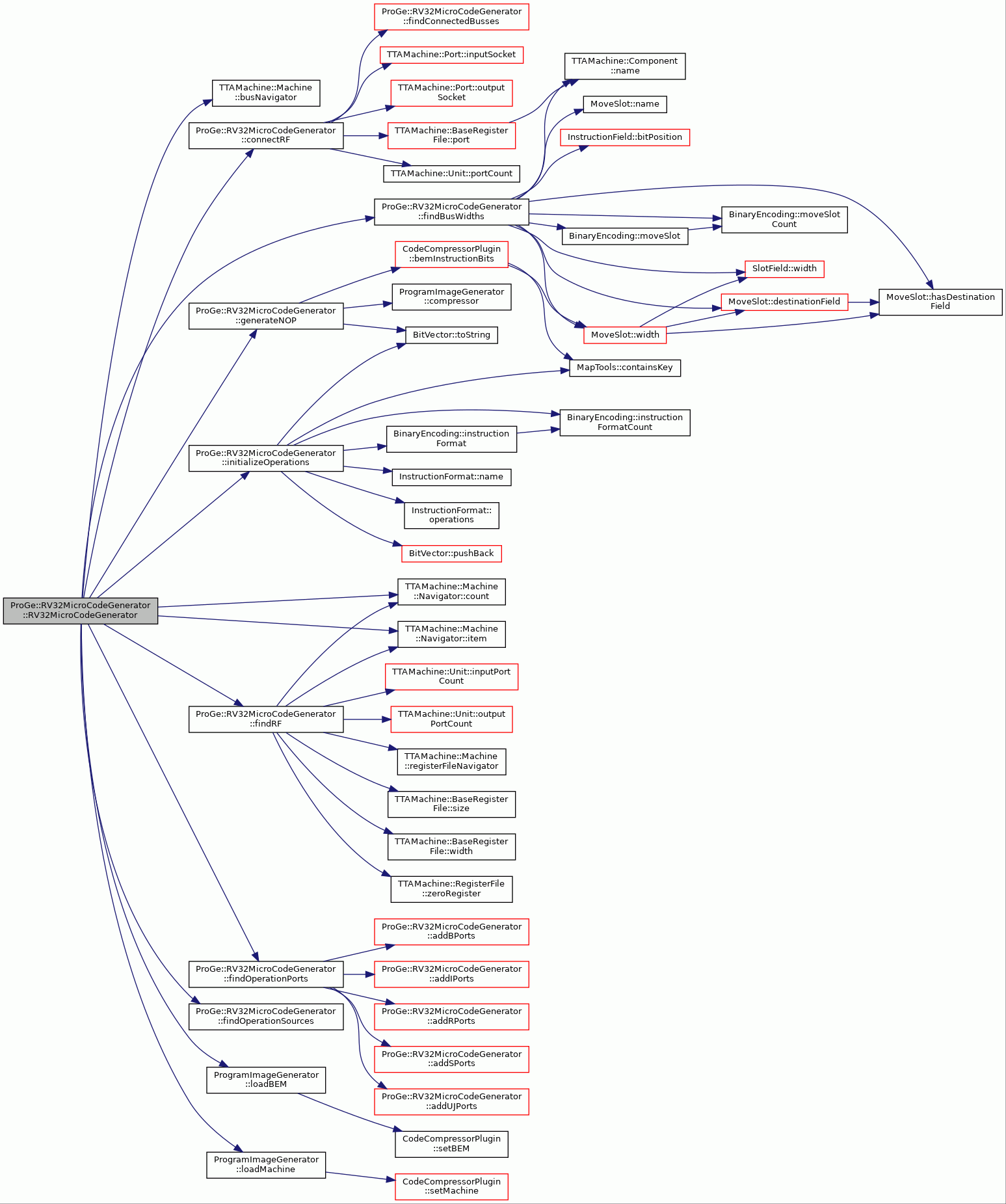

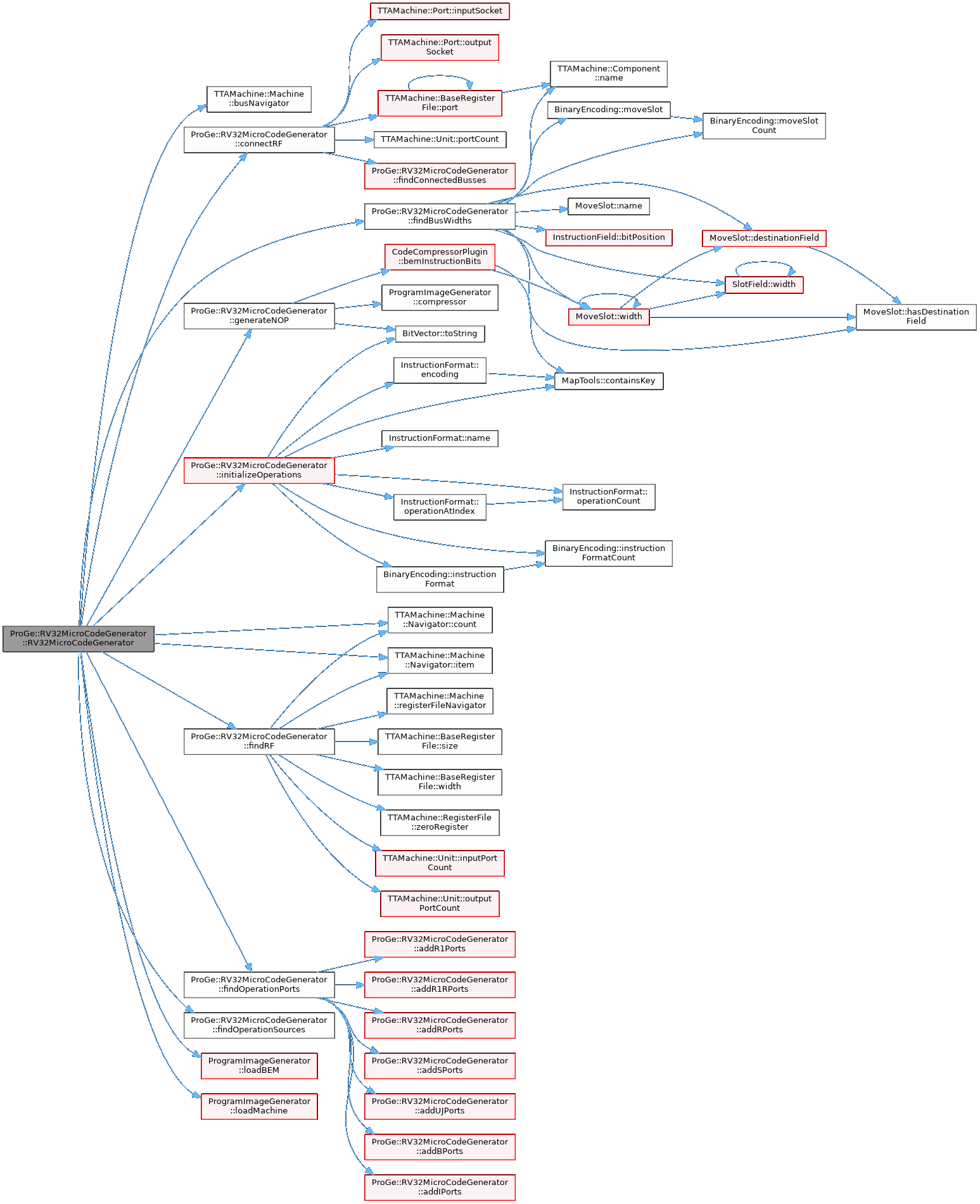

Here is the call graph for this function:

~RV32MicroCodeGenerator()

ProGe::RV32MicroCodeGenerator::~RV32MicroCodeGenerator

(

)

Definition at line 128 of file RV32MicroCodeGenerator.cc.

{ delete pig_; }

References pig_.

Member Function Documentation

addBitsToMap()

void ProGe::RV32MicroCodeGenerator::addBitsToMap ( std::unordered_map< std::string, InstructionBitVector * >  instructions, const std::map< std::string, std::string >  encodings, std::ofstream &  stream  ) const

private

Definition at line 1077 of file RV32MicroCodeGenerator.cc.

                               {
    assert(instructions.size() == encodings.size());
    for (const auto& op : instructions) {
        stream << "    elsif(fu_opcode(" << encodings.at(op.first).size()
               << " - 1 downto 0) = "
               << "\"" << encodings.at(op.first) << "\""
               << ") then" << std::endl
               << "      moves <= \"" << op.second->toString() << "\";"
               << std::endl;
        delete op.second;
    }
}

References assert.

addBPorts()

void ProGe::RV32MicroCodeGenerator::addBPorts ( const std::string &  opName )

private

Definition at line 437 of file RV32MicroCodeGenerator.cc.

                                                         {
    FunctionUnit* fu = mapFunctionUnit(opName);
    HWOperation* op = fu->operation(opName);
    if (op->operandCount() != 3) {
        throwOperandCountError(opName, 3, op->operandCount());
    }
    FUPort* simmPort = op->port(1);
    FUPort* rs1Port = op->port(2);
    FUPort* rs2Port = op->port(3);
    if (!simmPort->isTriggering()) {
        throwTriggeringPortError(simmPort, "imm");
    } else if (!rs1Port->isInput()) {
        throwInputPortError(rs1Port, "rs1");
    } else if (!rs2Port->isInput()) {
        throwInputPortError(rs1Port, "rs2");
    }
    rs1Ports_.insert({opName, rs1Port});
    simmPorts_.insert({opName, simmPort});
    rs2Ports_.insert({opName, rs2Port});
}

References TTAMachine::Port::isInput(), TTAMachine::FUPort::isTriggering(), mapFunctionUnit(), TTAMachine::HWOperation::operandCount(), TTAMachine::FunctionUnit::operation(), TTAMachine::HWOperation::port(), rs1Ports_, rs2Ports_, simmPorts_, throwInputPortError(), throwOperandCountError(), and throwTriggeringPortError().

Referenced by findOperationPorts().

Here is the call graph for this function:

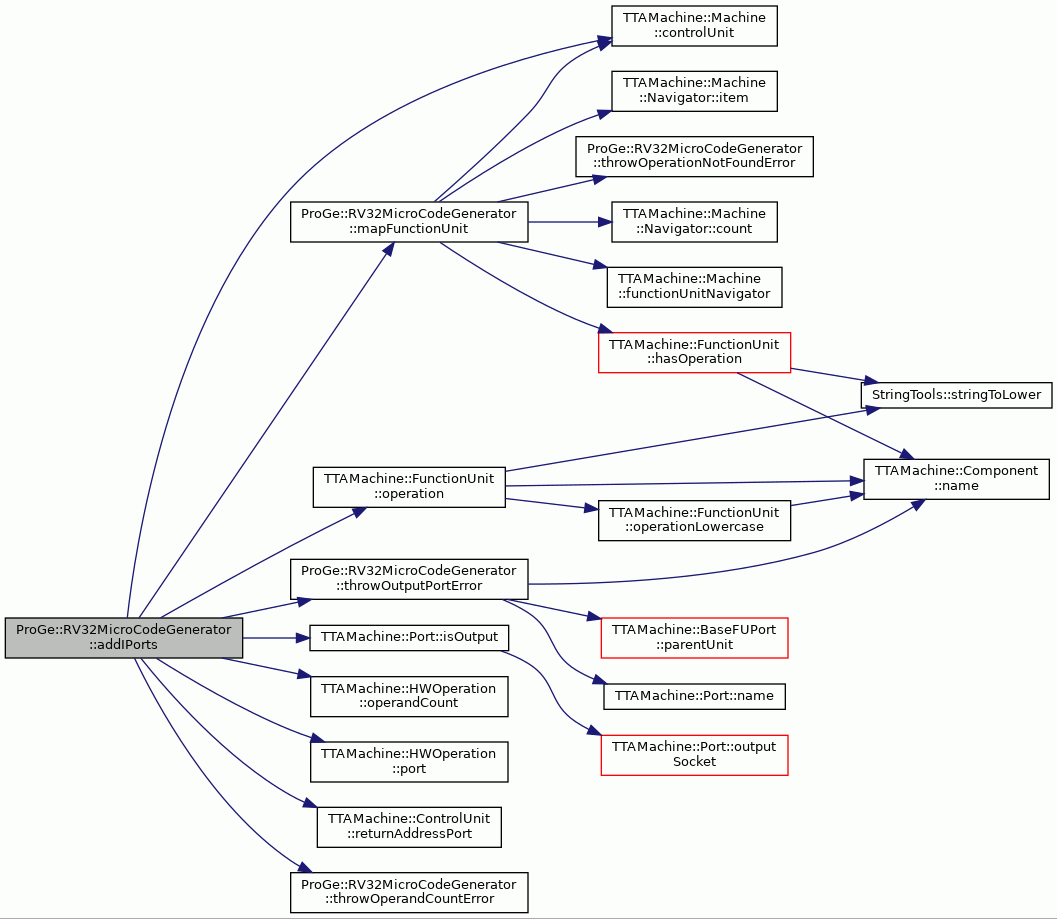

addIPorts()

void ProGe::RV32MicroCodeGenerator::addIPorts ( const std::string &  opName )

private

Definition at line 408 of file RV32MicroCodeGenerator.cc.

                                                         {
    if (rOperations_.count(opName)) {
        return;
    }
    FunctionUnit* fu = mapFunctionUnit(opName);
    HWOperation* op = fu->operation(opName);
    const int operandCount = (opName == "calla") ? 2 : 3;
    if (op->operandCount() != operandCount) {
        throwOperandCountError(opName, operandCount, op->operandCount());
    }
    FUPort* rs1Port = op->port(1);
    FUPort* simmPort = op->port(2);
    BaseFUPort* rdPort;
    if (opName != "calla") {
        rdPort = op->port(3);
        if (!rdPort->isOutput()) {
            throwOutputPortError(rdPort, "rd");
        }
    } else {
        rs1Port = op->port(2);
        simmPort = op->port(1);
        rdPort = machine_->controlUnit()->returnAddressPort();
    }
    rs1Ports_.insert({opName, rs1Port});
    simmPorts_.insert({opName, simmPort});
    rdPorts_.insert({opName, rdPort});
}

References TTAMachine::Machine::controlUnit(), TTAMachine::Port::isOutput(), ProGe::MicroCodeGenerator::machine_, mapFunctionUnit(), TTAMachine::HWOperation::operandCount(), TTAMachine::FunctionUnit::operation(), TTAMachine::HWOperation::port(), rdPorts_, TTAMachine::ControlUnit::returnAddressPort(), rOperations_, rs1Ports_, simmPorts_, throwOperandCountError(), and throwOutputPortError().

Referenced by findOperationPorts().

Here is the call graph for this function:

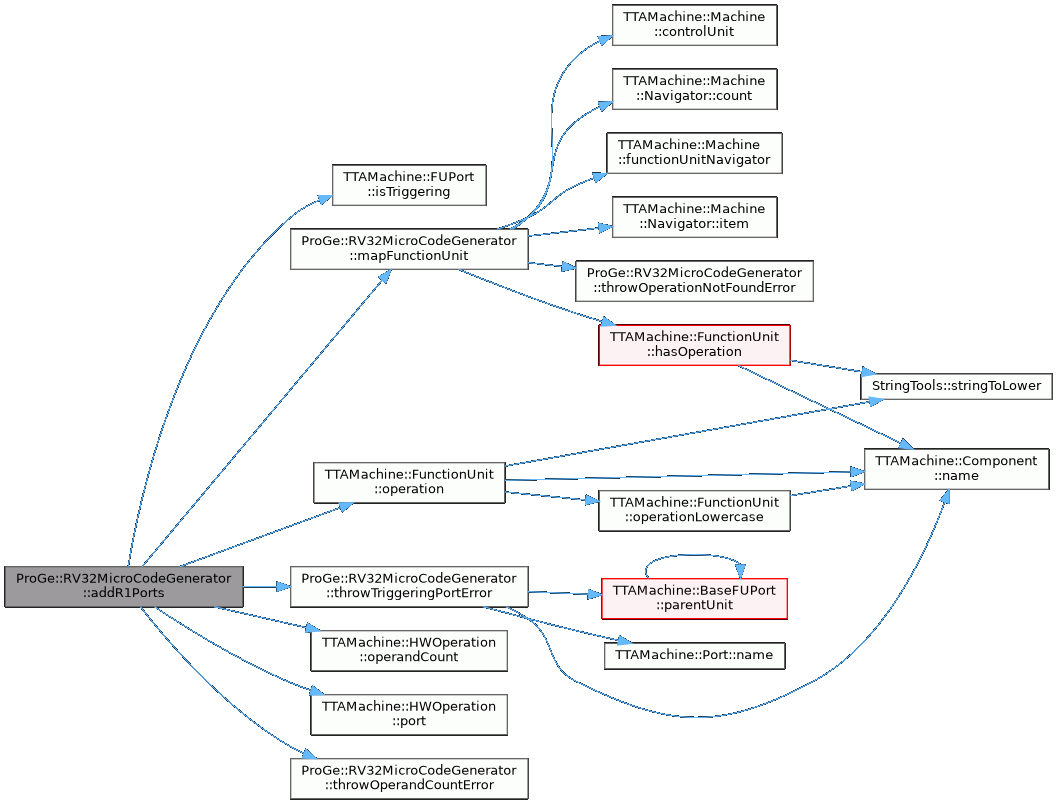

addR1Ports()

void ProGe::RV32MicroCodeGenerator::addR1Ports ( const std::string &  opName )

private

Definition at line 394 of file RV32MicroCodeGenerator.cc.

                                                          {
    FunctionUnit* fu = mapFunctionUnit(opName);
    HWOperation* op = fu->operation(opName);
    if (op->operandCount() != 1) {
        throwOperandCountError(opName, 1, op->operandCount());
    }
    FUPort* rs1Port = op->port(1);
    if (!rs1Port->isTriggering()) {
        throwTriggeringPortError(rs1Port, "rs1");
    }
    rs1Ports_.insert({opName, rs1Port});
}

References TTAMachine::FUPort::isTriggering(), mapFunctionUnit(), TTAMachine::HWOperation::operandCount(), TTAMachine::FunctionUnit::operation(), TTAMachine::HWOperation::port(), rs1Ports_, throwOperandCountError(), and throwTriggeringPortError().

Referenced by findOperationPorts().

Here is the call graph for this function:

addR1RPorts()

void ProGe::RV32MicroCodeGenerator::addR1RPorts ( const std::string &  opName )

private

Definition at line 375 of file RV32MicroCodeGenerator.cc.

                                                           {
    FunctionUnit* fu = mapFunctionUnit(opName);
    HWOperation* op = fu->operation(opName);
    if (op->operandCount() != 2) {
        throwOperandCountError(opName, 2, op->operandCount());
    }
    FUPort* rs1Port = op->port(1);
    FUPort* rdPort = op->port(2);
    if (!rs1Port->isTriggering()) {
        throwTriggeringPortError(rs1Port, "rs1");
    }
    if (!rdPort->isOutput()) {
        throwOutputPortError(rdPort, "rd");
    }
    rs1Ports_.insert({opName, rs1Port});
    rdPorts_.insert({opName, rdPort});
}

References TTAMachine::Port::isOutput(), TTAMachine::FUPort::isTriggering(), mapFunctionUnit(), TTAMachine::HWOperation::operandCount(), TTAMachine::FunctionUnit::operation(), TTAMachine::HWOperation::port(), rdPorts_, rs1Ports_, throwOperandCountError(), throwOutputPortError(), and throwTriggeringPortError().

Referenced by findOperationPorts().

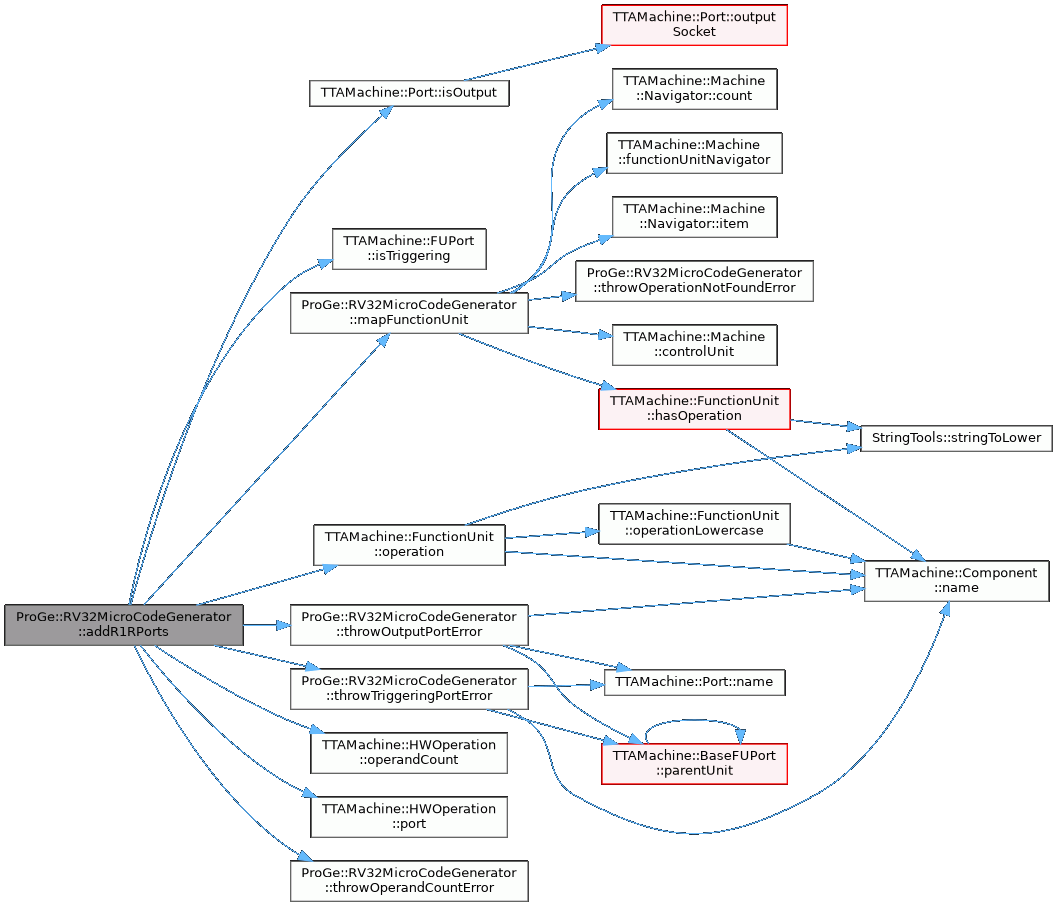

Here is the call graph for this function:

addRPorts()

void ProGe::RV32MicroCodeGenerator::addRPorts ( const std::string &  opName )

private

Definition at line 341 of file RV32MicroCodeGenerator.cc.

                                                         {
    FunctionUnit* fu = mapFunctionUnit(opName);
    HWOperation* op = fu->operation(opName);
    if (op->operandCount() != 3) {
        throwOperandCountError(opName, 3, op->operandCount());
    }
    FUPort* rs1Port = op->port(1);
    FUPort* rs2Port = op->port(2);
    FUPort* rdPort = op->port(3);
    if (!rs1Port->isTriggering()) {
        throwTriggeringPortError(rs1Port, "rs1");
    }
    if (!rs2Port->isInput()) {
        throwInputPortError(rs2Port, "rs2");
    }
    if (!rdPort->isOutput()) {
        throwOutputPortError(rdPort, "rd");
    }
    rs1Ports_.insert({opName, rs1Port});
    rs2Ports_.insert({opName, rs2Port});
    // Do not add custom ops to simm ports
    if (MapTools::containsValue(RISCVFields::RISCVOperationNameTable, opName)) {
        const std::string riscvOpName =MapTools::keyForValue
        <string, map<string, string>, string>(RISCVFields::RISCVOperationNameTable, opName);
        // Do not add M-extension ops
        if (!VectorTools::containsValue(RISCVFields::RISCVMExtensionOperations,
            riscvOpName)) {
            simmPorts_.insert({opName, rs2Port});
        }
    }
    rdPorts_.insert({opName, rdPort});
}

References VectorTools::containsValue(), MapTools::containsValue(), TTAMachine::Port::isInput(), TTAMachine::Port::isOutput(), TTAMachine::FUPort::isTriggering(), MapTools::keyForValue(), mapFunctionUnit(), TTAMachine::HWOperation::operandCount(), TTAMachine::FunctionUnit::operation(), TTAMachine::HWOperation::port(), rdPorts_, RISCVFields::RISCVMExtensionOperations, RISCVFields::RISCVOperationNameTable, rs1Ports_, rs2Ports_, simmPorts_, throwInputPortError(), throwOperandCountError(), throwOutputPortError(), and throwTriggeringPortError().

Referenced by findOperationPorts().

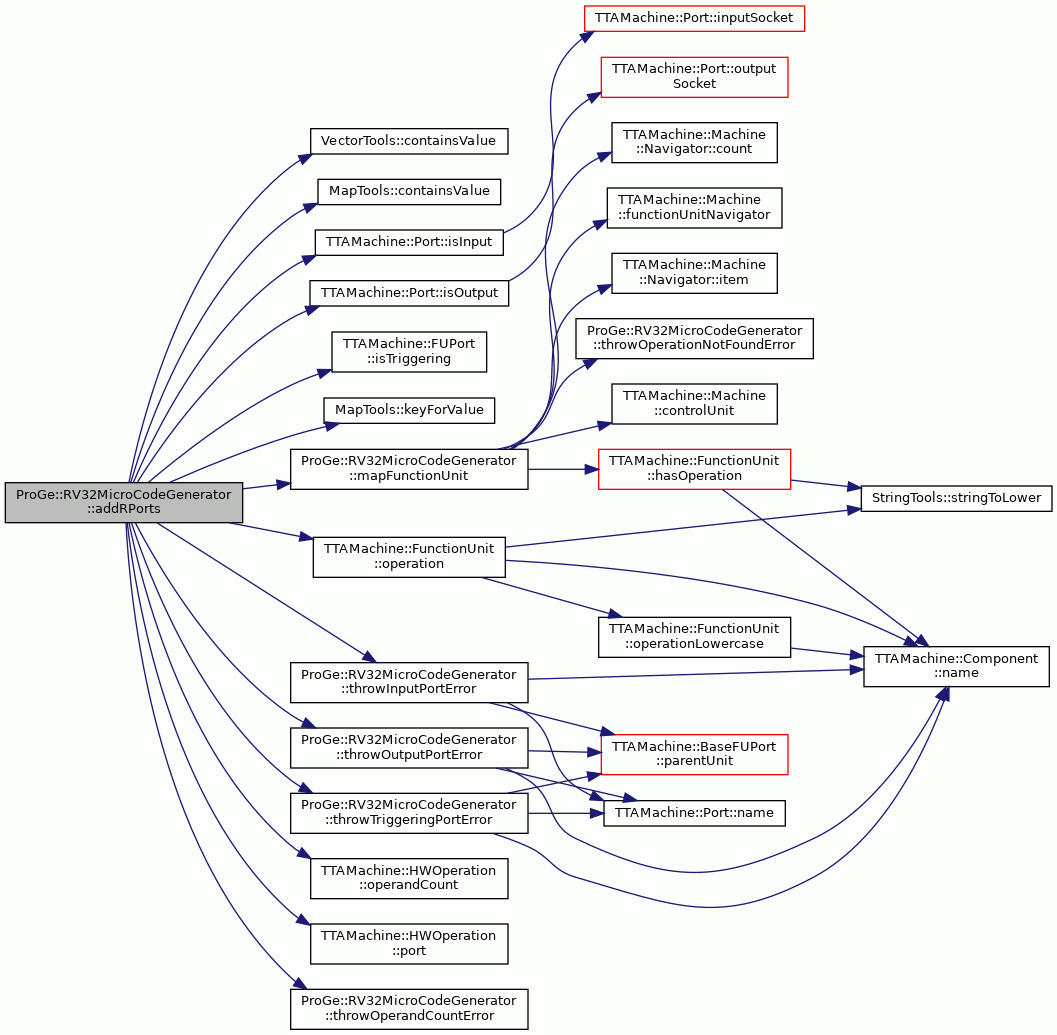

Here is the call graph for this function:

addRs1ForwardingConditions()

void ProGe::RV32MicroCodeGenerator::addRs1ForwardingConditions ( std::map< std::string, std::string >  ops, std::unordered_map< std::string, InstructionBitVector * >(ProGe::RV32MicroCodeGenerator::*)(Port *p1, Port *p2) const  instructionFunc, std::ofstream &  stream  ) const

private

Definition at line 1167 of file RV32MicroCodeGenerator.cc.

                               {
    if (ops.size() == 0) {
        return;
    }
    bool firstOpcodeCond = true;
    for (const auto& op : ops) {
        std::string opcodeCond = "        elsif ";
        if (firstOpcodeCond) {
            opcodeCond = "        if ";
            firstOpcodeCond = false;
        }
        stream << opcodeCond << "fu_opcode(" << op.second.size()
               << "-1 downto 0) = \"" << op.second << "\"";
        if (rOperations_.count(op.first) && iOperations_.count(op.first)) {
            stream << " or fu_opcode(" << iOperations_.at(op.first).size()
                   << "-1 downto 0) = \"" << iOperations_.at(op.first)
                   << "\"";
        }
        stream << "then\n";
        bool firstTargetCond = true;
        for (const auto& p : sourceOperationMap_) {
            std::string targetCond = "          elsif ";
            if (firstTargetCond) {
                targetCond = "          if ";
                firstTargetCond = false;
            }
            stream << targetCond + "target_fu_r = "
                   << sourcePortID_.at(p.first) << " then \n";
            std::unordered_map<std::string, InstructionBitVector*>
                instructions = (this->*instructionFunc)(p.first, rs2RFPort_);
            std::string bits = instructions.at(op.first)->toString();
            reverse(bits.begin(), bits.end());
            bits = bits.substr(rs1BusStart_, rs1BusWidth_);
            reverse(bits.begin(), bits.end());
            stream << "            moves(rs1_start_c + rs1_width_c -1 downto"
                   << " rs1_start_c)"
                   << " <= \"" << bits << "\";\n";
            for (const auto& val : instructions) {
                delete val.second;
            }
        }
        stream << "          end if;" << std::endl;
    }
    stream << "        end if;" << std::endl;
}

addRs2ForwardingConditions()

void ProGe::RV32MicroCodeGenerator::addRs2ForwardingConditions ( std::map< std::string, std::string >  ops, std::unordered_map< std::string, InstructionBitVector * >(ProGe::RV32MicroCodeGenerator::*)(Port *p1, Port *p2) const  instructionFunc, std::ofstream &  stream  ) const

private

Definition at line 1219 of file RV32MicroCodeGenerator.cc.

                               {
    bool firstOpcodeCond = true;
    for (const auto& op : ops) {
        std::string opcodeCond = "        elsif ";
        if (firstOpcodeCond) {
            opcodeCond = "        if ";
            firstOpcodeCond = false;
        }
        stream << opcodeCond << "fu_opcode(" << op.second.size()
               << "-1 downto 0) = \"" << op.second << "\" then\n";
        bool firstTargetCond = true;
        for (const auto& p : sourceOperationMap_) {
            std::string targetCond = "          elsif ";
            if (firstTargetCond) {
                targetCond = "          if ";
                firstTargetCond = false;
            }
            stream << targetCond + "target_fu_r = "
                   << sourcePortID_.at(p.first) << " then \n";
            std::unordered_map<std::string, InstructionBitVector*>
                instructions = (this->*instructionFunc)(rs1RFPort_, p.first);
            std::string bits = instructions.at(op.first)->toString();
            reverse(bits.begin(), bits.end());
            bits = bits.substr(rs2BusStart_, rs2BusWidth_);
            reverse(bits.begin(), bits.end());
            stream << "            moves(rs2_start_c + rs2_width_c -1 downto"
                   << " rs2_start_c)"
                   << " <= \"" << bits << "\";\n";
            for (const auto& val : instructions) {
                delete val.second;
            }
        }
        stream << "          end if;" << std::endl;
    }
    stream << "        end if;" << std::endl;
}

addSPorts()

void ProGe::RV32MicroCodeGenerator::addSPorts ( const std::string &  opName )

private

Definition at line 483 of file RV32MicroCodeGenerator.cc.

                                                         {
    FunctionUnit* fu = mapFunctionUnit(opName);
    HWOperation* op = fu->operation(opName);
    if (op->operandCount() != 3) {
        throwOperandCountError(opName, 3, op->operandCount());
    }
    FUPort* rs1Port = op->port(1);
    FUPort* simmPort = op->port(2);
    FUPort* rs2Port = op->port(3);
    if (!rs1Port->isTriggering()) {
        throwTriggeringPortError(rs1Port, "rs1");
    }
    if (!rs2Port->isInput()) {
        throwInputPortError(rs2Port, "rs2");
    }
    if (!simmPort->isInput()) {
        throwInputPortError(simmPort, "imm");
    }
    rs1Ports_.insert({opName, rs1Port});
    simmPorts_.insert({opName, simmPort});
    rs2Ports_.insert({opName, rs2Port});
}

References TTAMachine::Port::isInput(), TTAMachine::FUPort::isTriggering(), mapFunctionUnit(), TTAMachine::HWOperation::operandCount(), TTAMachine::FunctionUnit::operation(), TTAMachine::HWOperation::port(), rs1Ports_, rs2Ports_, simmPorts_, throwInputPortError(), throwOperandCountError(), and throwTriggeringPortError().

Referenced by findOperationPorts().

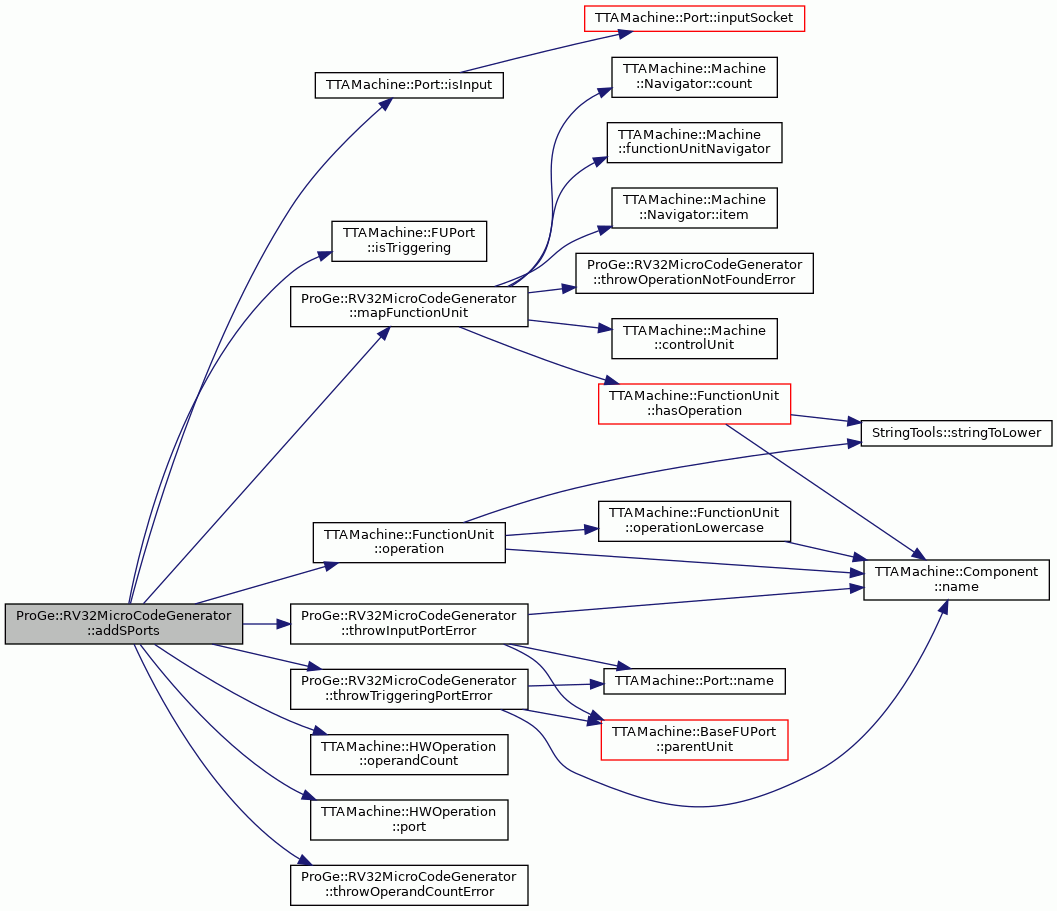

Here is the call graph for this function:

addUJPorts()

void ProGe::RV32MicroCodeGenerator::addUJPorts ( const std::string &  opName )

private

Definition at line 459 of file RV32MicroCodeGenerator.cc.

                                                          {
    if (opName == "move") {
        return;
    }
    ControlUnit* fu = dynamic_cast<ControlUnit*>(mapFunctionUnit(opName));
    HWOperation* op = fu->operation(opName);
    FUPort* simmPort = op->port(1);
    BaseFUPort* rdPort;
    if (opName == "apc") {
        rdPort = op->port(2);
        if (!rdPort->isOutput()) {
            throwOutputPortError(rdPort, "rd");
        }
    } else {
        rdPort = fu->returnAddressPort();
    }
    if (!simmPort->isTriggering()) {
        throwTriggeringPortError(simmPort, "imm");
    }
    rdPorts_.insert({opName, rdPort});
    simmPorts_.insert({opName, simmPort});
}

References TTAMachine::Port::isOutput(), TTAMachine::FUPort::isTriggering(), mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), TTAMachine::HWOperation::port(), rdPorts_, TTAMachine::ControlUnit::returnAddressPort(), simmPorts_, throwOutputPortError(), and throwTriggeringPortError().

Referenced by findOperationPorts().

Here is the call graph for this function:

connectRF()

void ProGe::RV32MicroCodeGenerator::connectRF ( )

private

Definition at line 594 of file RV32MicroCodeGenerator.cc.

                                  {
    RFPort* rs1RFPort = NULL;
    RFPort* rs2RFPort = NULL;
    RFPort* rdRFPort = NULL;

    std::vector<RFPort*> RFOutputPorts;
    std::vector<RFPort*> RFInputPorts;
    for (int i = 0; i < RF_->portCount(); i++) {
        RFPort* tmpPort = RF_->port(i);
        if (tmpPort->outputSocket() != NULL) {
            RFOutputPorts.push_back(tmpPort);
        } else if (tmpPort->inputSocket() != NULL) {
            RFInputPorts.push_back(tmpPort);
        }
    }

    assert(RFInputPorts.size() > 0);
    assert(RFOutputPorts.size() > 1);

    Connection rs1;
    Connection rs2;
    Connection rd;
    Connection simm;

    // Find candidates for rs1, rs2 and rd busses.
    bool success = false;
    bool forwarding = false;
    for (int l = 0; l < 2 && !success; l++) {
        // First try with forwarding enabled
        forwarding = !forwarding;
        for (unsigned int i = 0; i < RFOutputPorts.size() && !success; i++) {
            std::vector<RFPort*> tmpRFOutputPorts = RFOutputPorts;
            rs1RFPort = RFOutputPorts.at(i);
            tmpRFOutputPorts.erase(tmpRFOutputPorts.begin() + i);
            for (unsigned int j = 0; j < tmpRFOutputPorts.size() && !success;
                 j++) {
                rs2RFPort = tmpRFOutputPorts.at(j);
                for (unsigned int k = 0; k < RFInputPorts.size() && !success;
                     k++) {
                    std::vector<RFPort*> tmpRFInputPorts;
                    tmpRFInputPorts = RFInputPorts;
                    rdRFPort = RFInputPorts.at(k);

                    rs1.port = rs1RFPort;
                    rs2.port = rs2RFPort;
                    rd.port = rdRFPort;

                    rs1.bus = NULL;
                    rs2.bus = NULL;
                    rd.bus = NULL;
                    simm.bus = NULL;

                    success =
                        findConnectedBusses(rs1, rs2, rd, simm, forwarding);
                    if (success) {
                        break;
                    }
                }
            }
        }
    }

    if (!success) {
        std::string msg =
            "Could not find enough connectivity in the "
            "interconnect to construct RISC-V control and decode logic. Make "
            "sure "
            "the minimum connections are in place and that the operand-port "
            "bindings are valid in FUs";
        throw InvalidData(__FILE__, __LINE__, __func__, msg);
    }
    hasForwarding_ = forwarding;

    rs1Bus_ = rs1.bus;
    rs2Bus_ = rs2.bus;
    rdBus_ = rd.bus;
    simmBus_ = simm.bus;
    rs1RFPort_ = rs1RFPort;
    rs2RFPort_ = rs2RFPort;
    rdRFPort_ = rdRFPort;
}

References __func__, assert, ProGe::MicroCodeGenerator::Connection::bus, findConnectedBusses(), hasForwarding_, TTAMachine::Port::inputSocket(), TTAMachine::Port::outputSocket(), ProGe::MicroCodeGenerator::Connection::port, TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), rdBus_, rdRFPort_, RF_, rs1Bus_, rs1RFPort_, rs2Bus_, rs2RFPort_, and simmBus_.

Referenced by RV32MicroCodeGenerator().

Here is the call graph for this function:

constructBInstructions()

std::unordered_map< std::string, InstructionBitVector * > ProGe::RV32MicroCodeGenerator::constructBInstructions ( Port *  src1, Port *  src2  ) const

private

Definition at line 968 of file RV32MicroCodeGenerator.cc.

                                                                           {
    std::unordered_map<std::string, InstructionBitVector*> retval;
    CodeCompressorPlugin* compressor = &pig_->compressor();
    for (const auto& op : bOperations_) {
        Instruction* instruction = new Instruction();
        HWOperation* operation =
            mapFunctionUnit(op.first)->operation(op.first);

        FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at(op.first));
        FUPort* simmPort = static_cast<FUPort*>(simmPorts_.at(op.first));
        FUPort* rs2Port = static_cast<FUPort*>(rs2Ports_.at(op.first));

        instruction->addMove(std::make_shared<Move>(
            new TerminalImmediate(SimValue(0, simmBus_->width())),
            new TerminalFUPort(*simmPort, *operation), *simmBus_));

        if (dynamic_cast<RFPort*>(src1)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src1, 0), new TerminalFUPort(*rs1Port),
                *rs1Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src1)),
                new TerminalFUPort(*rs1Port), *rs1Bus_));
        }

        if (dynamic_cast<RFPort*>(src2)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src2, 0), new TerminalFUPort(*rs2Port),
                *rs2Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src2)),
                new TerminalFUPort(*rs2Port), *rs2Bus_));
        }

        InstructionBitVector* bits =
            compressor->bemInstructionBits(*instruction);
        delete instruction;
        retval.insert({op.first, bits});
    }
    return retval;
}

References TTAProgram::Instruction::addMove(), CodeCompressorPlugin::bemInstructionBits(), bOperations_, ProgramImageGenerator::compressor(), mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), pig_, rs1Bus_, rs1Ports_, rs2Bus_, rs2Ports_, simmBus_, simmPorts_, and TTAMachine::Bus::width().

Referenced by generateMap().

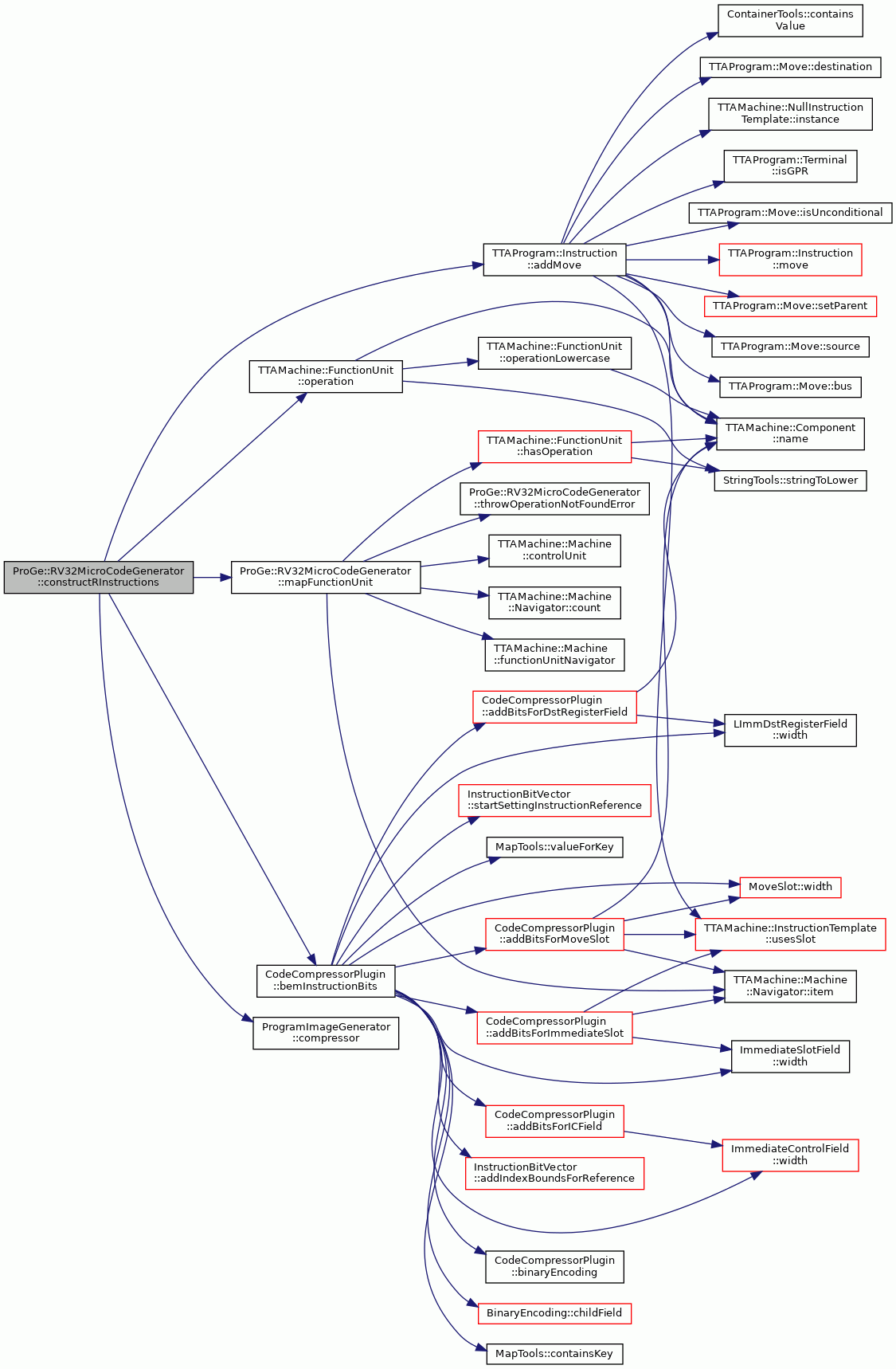

Here is the call graph for this function:

constructIInstructions()

std::unordered_map< std::string, InstructionBitVector * > ProGe::RV32MicroCodeGenerator::constructIInstructions ( Port *  src1, Port *  src2  ) const

private

Definition at line 860 of file RV32MicroCodeGenerator.cc.

                               {
    std::unordered_map<std::string, InstructionBitVector*> retval;
    CodeCompressorPlugin* compressor = &pig_->compressor();
    for (const auto& op : iOperations_) {
        Instruction* instruction = new Instruction();

        HWOperation* operation =
            mapFunctionUnit(op.first)->operation(op.first);

        FUPort* rdPort = static_cast<FUPort*>(rdPorts_.at(op.first));

        // ALU operations are a special case as they are shared with R type
        if (op.first != "calla") {
            FUPort* simmPort = static_cast<FUPort*>(simmPorts_.at(op.first));
            FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at(op.first));

            if (dynamic_cast<RFPort*>(src1)) {
                instruction->addMove(std::make_shared<Move>(
                    new TerminalRegister(*src1, 0),
                    new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
            } else {
                instruction->addMove(std::make_shared<Move>(
                    new TerminalFUPort(*static_cast<BaseFUPort*>(src1)),
                    new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
            }

            instruction->addMove(std::make_shared<Move>(
                new TerminalImmediate(SimValue(0, simmBus_->width())),
                new TerminalFUPort(*simmPort), *simmBus_));

        } else {
            FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at(op.first));
            FUPort* simmPort = static_cast<FUPort*>(simmPorts_.at(op.first));

            if (dynamic_cast<RFPort*>(src1)) {
                instruction->addMove(std::make_shared<Move>(
                    new TerminalRegister(*src1, 0),
                    new TerminalFUPort(*rs1Port), *rs1Bus_));
            } else {
                instruction->addMove(std::make_shared<Move>(
                    new TerminalFUPort(*static_cast<BaseFUPort*>(src1)),
                    new TerminalFUPort(*rs1Port), *rs1Bus_));
            }

            instruction->addMove(std::make_shared<Move>(
                new TerminalImmediate(SimValue(0, simmBus_->width())),
                new TerminalFUPort(*simmPort, *operation), *simmBus_));
        }

        instruction->addMove(std::make_shared<Move>(
            new TerminalFUPort(*rdPort), new TerminalRegister(*rdRFPort_, 0),
            *rdBus_));

        InstructionBitVector* bits =
            compressor->bemInstructionBits(*instruction);
        delete instruction;
        retval.insert({op.first, bits});
    }
    return retval;
}

References TTAProgram::Instruction::addMove(), CodeCompressorPlugin::bemInstructionBits(), ProgramImageGenerator::compressor(), iOperations_, mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), pig_, rdBus_, rdPorts_, rdRFPort_, rs1Bus_, rs1Ports_, simmBus_, simmPorts_, and TTAMachine::Bus::width().

Referenced by generateMap().

Here is the call graph for this function:

constructR1Instructions()

std::unordered_map< std::string, InstructionBitVector * > ProGe::RV32MicroCodeGenerator::constructR1Instructions ( Port *  src1, Port *  src2  ) const

private

Definition at line 831 of file RV32MicroCodeGenerator.cc.

                                                                         {
    std::unordered_map<std::string, InstructionBitVector*> retval;
    CodeCompressorPlugin* compressor = &pig_->compressor();
    for (const auto& op : r1Operations_) {
        Instruction* instruction = new Instruction();
        HWOperation* operation =
            mapFunctionUnit(op.first)->operation(op.first);

        FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at(op.first));

        if (dynamic_cast<RFPort*>(src1)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src1, 0),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src1)),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        }

        InstructionBitVector* bits =
            compressor->bemInstructionBits(*instruction);
        delete instruction;
        retval.insert({op.first, bits});
    }
    return retval;
}

References TTAProgram::Instruction::addMove(), CodeCompressorPlugin::bemInstructionBits(), ProgramImageGenerator::compressor(), mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), pig_, r1Operations_, rs1Bus_, and rs1Ports_.

Referenced by generateMap().

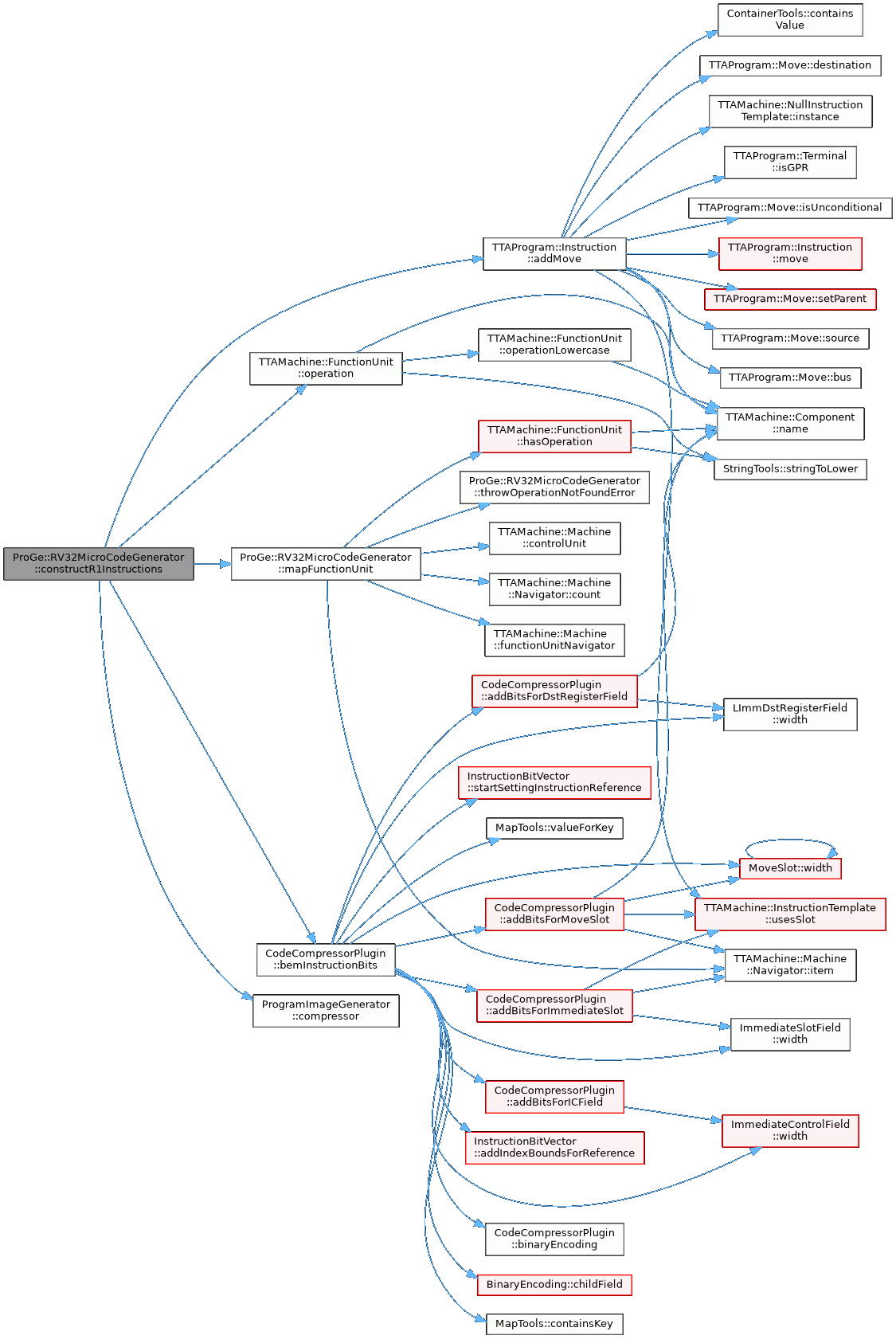

Here is the call graph for this function:

constructR1RInstructions()

std::unordered_map< std::string, InstructionBitVector * > ProGe::RV32MicroCodeGenerator::constructR1RInstructions ( Port *  src1, Port *  src2  ) const

private

Definition at line 797 of file RV32MicroCodeGenerator.cc.

                                                                          {
    std::unordered_map<std::string, InstructionBitVector*> retval;
    CodeCompressorPlugin* compressor = &pig_->compressor();
    for (const auto& op : r1rOperations_) {
        Instruction* instruction = new Instruction();
        HWOperation* operation =
            mapFunctionUnit(op.first)->operation(op.first);

        FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at(op.first));
        FUPort* rdPort = static_cast<FUPort*>(rdPorts_.at(op.first));

        if (dynamic_cast<RFPort*>(src1)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src1, 0),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src1)),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        }

        instruction->addMove(std::make_shared<Move>(
            new TerminalFUPort(*rdPort), new TerminalRegister(*rdRFPort_, 0),
            *rdBus_));

        InstructionBitVector* bits =
            compressor->bemInstructionBits(*instruction);
        delete instruction;
        retval.insert({op.first, bits});
    }
    return retval;
}

References TTAProgram::Instruction::addMove(), CodeCompressorPlugin::bemInstructionBits(), ProgramImageGenerator::compressor(), mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), pig_, r1rOperations_, rdBus_, rdPorts_, rdRFPort_, rs1Bus_, and rs1Ports_.

Referenced by generateMap().

Here is the call graph for this function:

constructRInstructions()

std::unordered_map< std::string, InstructionBitVector * > ProGe::RV32MicroCodeGenerator::constructRInstructions ( Port *  src1, Port *  src2  ) const

private

Definition at line 752 of file RV32MicroCodeGenerator.cc.

                                                                           {
    std::unordered_map<std::string, InstructionBitVector*> retval;
    CodeCompressorPlugin* compressor = &pig_->compressor();
    for (const auto& op : rOperations_) {
        Instruction* instruction = new Instruction();
        HWOperation* operation =
            mapFunctionUnit(op.first)->operation(op.first);

        FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at(op.first));
        FUPort* rs2Port = static_cast<FUPort*>(rs2Ports_.at(op.first));
        FUPort* rdPort = static_cast<FUPort*>(rdPorts_.at(op.first));

        if (dynamic_cast<RFPort*>(src1)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src1, 0),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src1)),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        }

        if (dynamic_cast<RFPort*>(src2)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src2, 0), new TerminalFUPort(*rs2Port),
                *rs2Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src2)),
                new TerminalFUPort(*rs2Port), *rs2Bus_));
        }

        instruction->addMove(std::make_shared<Move>(
            new TerminalFUPort(*rdPort), new TerminalRegister(*rdRFPort_, 0),
            *rdBus_));

        InstructionBitVector* bits =
            compressor->bemInstructionBits(*instruction);
        delete instruction;
        retval.insert({op.first, bits});
    }
    return retval;
}

References TTAProgram::Instruction::addMove(), CodeCompressorPlugin::bemInstructionBits(), ProgramImageGenerator::compressor(), mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), pig_, rdBus_, rdPorts_, rdRFPort_, rOperations_, rs1Bus_, rs1Ports_, rs2Bus_, and rs2Ports_.

Referenced by generateMap().

Here is the call graph for this function:

constructSInstructions()

std::unordered_map< std::string, InstructionBitVector * > ProGe::RV32MicroCodeGenerator::constructSInstructions ( Port *  src1, Port *  src2  ) const

private

Definition at line 923 of file RV32MicroCodeGenerator.cc.

                                                                           {
    std::unordered_map<std::string, InstructionBitVector*> retval;
    CodeCompressorPlugin* compressor = &pig_->compressor();
    for (const auto& op : sOperations_) {
        Instruction* instruction = new Instruction();
        HWOperation* operation =
            mapFunctionUnit(op.first)->operation(op.first);

        FUPort* simmPort = static_cast<FUPort*>(simmPorts_.at(op.first));
        FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at(op.first));
        FUPort* rs2Port = static_cast<FUPort*>(rs2Ports_.at(op.first));

        if (dynamic_cast<RFPort*>(src1)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src1, 0),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src1)),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));
        }

        instruction->addMove(std::make_shared<Move>(
            new TerminalImmediate(SimValue(0, simmBus_->width())),
            new TerminalFUPort(*simmPort), *simmBus_));

        if (dynamic_cast<RFPort*>(src2)) {
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*src2, 0), new TerminalFUPort(*rs2Port),
                *rs2Bus_));
        } else {
            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*static_cast<BaseFUPort*>(src2)),
                new TerminalFUPort(*rs2Port), *rs2Bus_));
        }

        InstructionBitVector* bits =
            compressor->bemInstructionBits(*instruction);
        delete instruction;
        retval.insert({op.first, bits});
    }
    return retval;
}

References TTAProgram::Instruction::addMove(), CodeCompressorPlugin::bemInstructionBits(), ProgramImageGenerator::compressor(), mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), pig_, rs1Bus_, rs1Ports_, rs2Bus_, rs2Ports_, simmBus_, simmPorts_, sOperations_, and TTAMachine::Bus::width().

Referenced by generateMap().

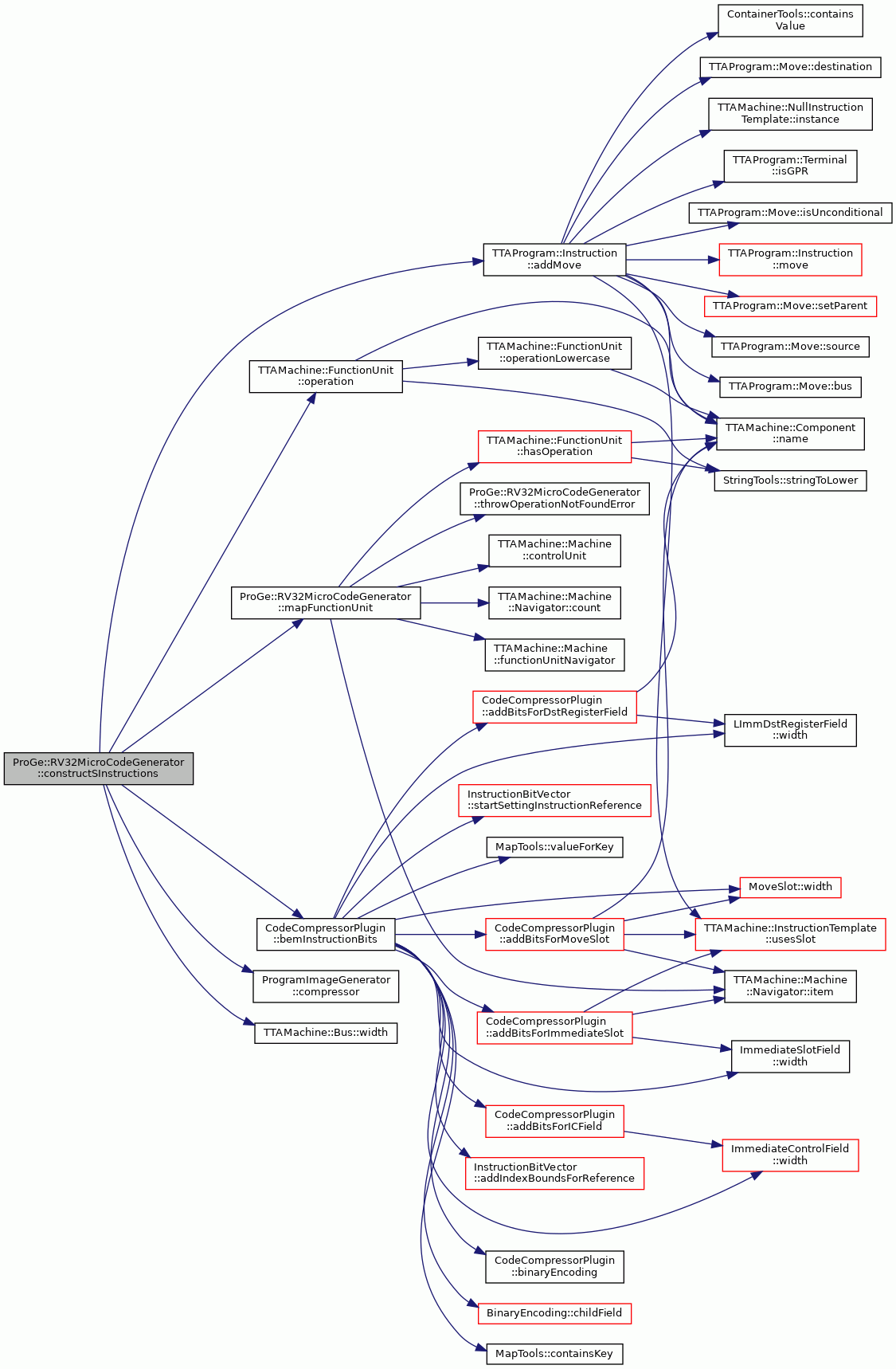

Here is the call graph for this function:

constructUJInstructions()

std::unordered_map< std::string, InstructionBitVector * > ProGe::RV32MicroCodeGenerator::constructUJInstructions ( ) const

private

Definition at line 1013 of file RV32MicroCodeGenerator.cc.

                                                      {
    std::unordered_map<std::string, InstructionBitVector*> retval;
    CodeCompressorPlugin* compressor = &pig_->compressor();
    InstructionBitVector* bits;

    for (const auto& op : ujOperations_) {
        Instruction* instruction = new Instruction();
        if (op.first == "move") {
            HWOperation* operation = mapFunctionUnit("add")->operation("add");
            FUPort* rs1Port = static_cast<FUPort*>(rs1Ports_.at("add"));
            FUPort* simmPort = static_cast<FUPort*>(simmPorts_.at("add"));
            FUPort* rdPort = static_cast<FUPort*>(rdPorts_.at("add"));
            instruction->addMove(std::make_shared<Move>(
                new TerminalRegister(*rs1RFPort_, 0),
                new TerminalFUPort(*rs1Port, *operation), *rs1Bus_));

            instruction->addMove(std::make_shared<Move>(
                new TerminalImmediate(SimValue(0, simmBus_->width())),
                new TerminalFUPort(*simmPort), *simmBus_));

            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*rdPort),
                new TerminalRegister(*rdRFPort_, 0), *rdBus_));

            bits = compressor->bemInstructionBits(*instruction);
            retval.insert({"move", bits});
            delete instruction;
        } else if (op.first == "callr" or op.first == "apc") {
            FUPort* rdPort = static_cast<FUPort*>(rdPorts_.at(op.first));

            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*rdPort),
                new TerminalRegister(*rdRFPort_, 0), *rdBus_));

            bits = compressor->bemInstructionBits(*instruction);
            delete instruction;
            retval.insert({op.first, bits});

        } else {
            FUPort* simmPort = static_cast<FUPort*>(simmPorts_.at(op.first));
            FUPort* rdPort = static_cast<FUPort*>(rdPorts_.at(op.first));

            HWOperation* operation =
                mapFunctionUnit(op.first)->operation(op.first);

            instruction->addMove(std::make_shared<Move>(
                new TerminalImmediate(SimValue(0, simmBus_->width())),
                new TerminalFUPort(*simmPort, *operation), *simmBus_));

            instruction->addMove(std::make_shared<Move>(
                new TerminalFUPort(*rdPort),
                new TerminalRegister(*rdRFPort_, 0), *rdBus_));

            bits = compressor->bemInstructionBits(*instruction);
            delete instruction;

            retval.insert({op.first, bits});
        }
    }

    return retval;
}

References TTAProgram::Instruction::addMove(), CodeCompressorPlugin::bemInstructionBits(), ProgramImageGenerator::compressor(), mapFunctionUnit(), TTAMachine::FunctionUnit::operation(), pig_, rdBus_, rdPorts_, rdRFPort_, rs1Bus_, rs1Ports_, rs1RFPort_, simmBus_, simmPorts_, ujOperations_, and TTAMachine::Bus::width().

Here is the call graph for this function:

findBusWidths()

void ProGe::RV32MicroCodeGenerator::findBusWidths ( )

private

Definition at line 564 of file RV32MicroCodeGenerator.cc.

                                      {
    for (int i = 0; i < bem_->moveSlotCount(); i++) {
        MoveSlot& slot = bem_->moveSlot(i);
        if (slot.name() == rs1Bus_->name()) {
            rs1BusWidth_ = slot.width();
            assert(slot.hasDestinationField());
            rs1RFStart_ = slot.destinationField().width();
            rs1BusStart_ = slot.bitPosition();
        } else if (slot.name() == rs2Bus_->name()) {
            rs2BusWidth_ = slot.width();
            assert(slot.hasDestinationField());
            rs2RFStart_ = slot.destinationField().width();
            rs2BusStart_ = slot.bitPosition();
        } else if (slot.name() == rdBus_->name()) {
            rdBusWidth_ = slot.width();
            rdRFStart_ = 0;
            rdBusStart_ = slot.bitPosition();
        } else if (slot.name() == simmBus_->name()) {
            simmBusWidth_ = slot.width();
            simmRFStart_ = 0;
            simmBusStart_ = slot.bitPosition();
        }
    }
    assert(rs1BusWidth_ > 0);
    assert(rs2BusWidth_ > 0);
    assert(rdBusWidth_ > 0);
    assert(simmBusWidth_ > 0);
}

References assert, ProGe::MicroCodeGenerator::bem_, InstructionField::bitPosition(), MoveSlot::destinationField(), MoveSlot::hasDestinationField(), BinaryEncoding::moveSlot(), BinaryEncoding::moveSlotCount(), MoveSlot::name(), TTAMachine::Component::name(), rdBus_, rdBusStart_, rdBusWidth_, rdRFStart_, rs1Bus_, rs1BusStart_, rs1BusWidth_, rs1RFStart_, rs2Bus_, rs2BusStart_, rs2BusWidth_, rs2RFStart_, simmBus_, simmBusStart_, simmBusWidth_, simmRFStart_, MoveSlot::width(), and SlotField::width().

Referenced by RV32MicroCodeGenerator().

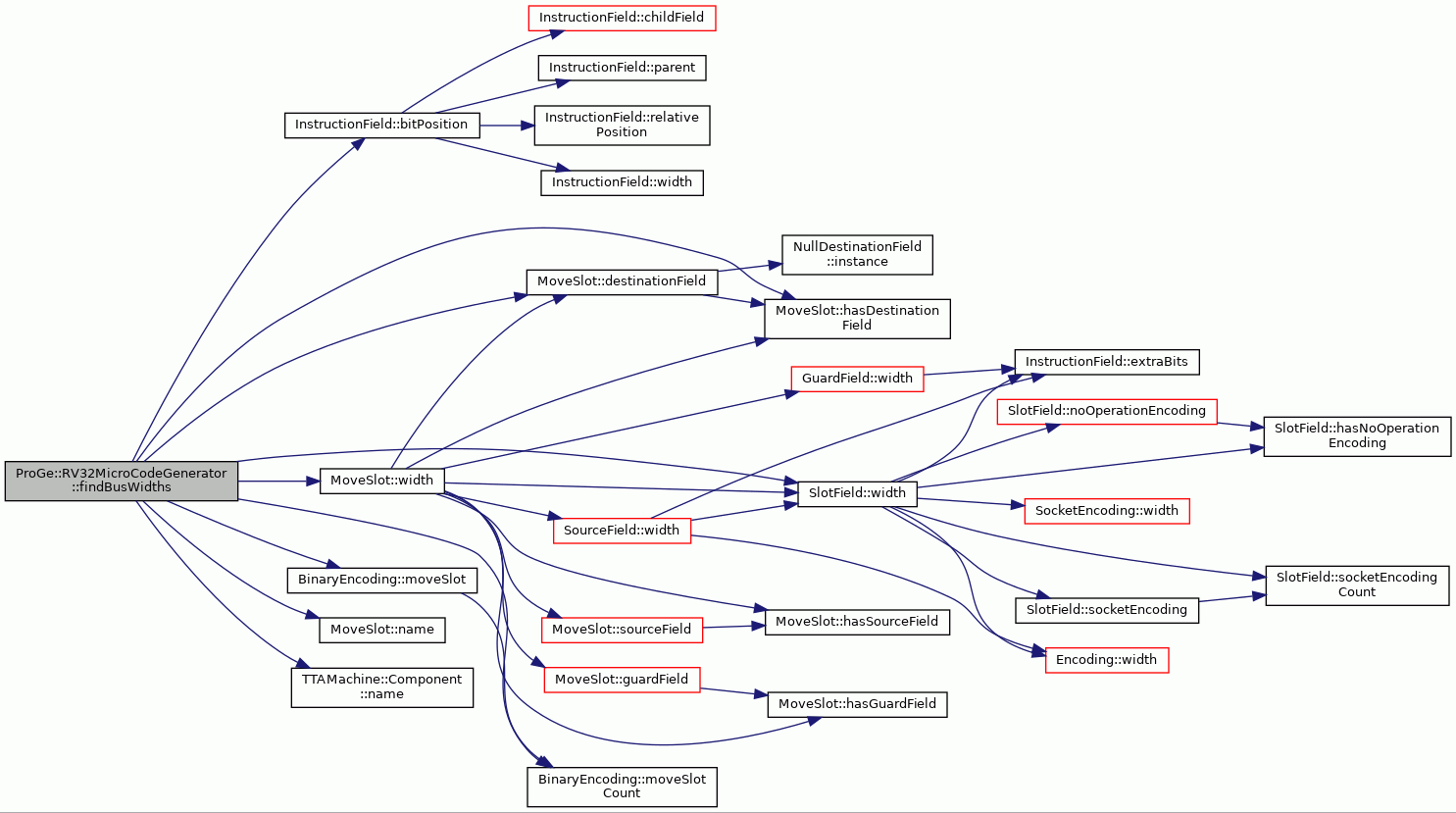

Here is the call graph for this function:

findConnectedBusses()

bool ProGe::RV32MicroCodeGenerator::findConnectedBusses ( Connection &  rs1, Connection &  rs2, Connection &  rd, Connection &  simm, const bool &  forwarding  ) const

private

Definition at line 687 of file RV32MicroCodeGenerator.cc.

                                  {
    std::set<Port*> rs1Ports = operationPorts(rs1Ports_);
    rs1Ports.insert(rs1.port);

    std::set<Port*> rs2Ports = operationPorts(rs2Ports_);
    rs2Ports.insert(rs2.port);

    std::set<Port*> simmPorts = operationPorts(simmPorts_);

    std::set<Port*> rdPorts = operationPorts(rdPorts_);

    if (forwarding) {
        rs1Ports.insert(rdPorts.begin(), rdPorts.end());
        rs2Ports.insert(rdPorts.begin(), rdPorts.end());
    }

    rdPorts.insert(rd.port);

    // Brute forces all combinations until all ports can be mapped to a bus
    for (unsigned int i = 0; i < busses_.size(); i++) {
        std::vector<Bus*> tmpBusses = busses_;
        rs1.bus = NULL;
        rs2.bus = NULL;
        rd.bus = NULL;
        simm.bus = NULL;
        Bus* tmpBus = busses_.at(i);
        if (!MachineConnectivityCheck::isConnected(rs1Ports, *tmpBus)) {
            continue;
        }
        rs1.bus = tmpBus;
        tmpBusses.erase(tmpBusses.begin() + i);
        rs2.bus = NULL;
        for (unsigned int j = 0; j < tmpBusses.size(); j++) {
            tmpBus = tmpBusses.at(j);
            if (!MachineConnectivityCheck::isConnected(rs2Ports, *tmpBus)) {
                continue;
            }
            rs2.bus = tmpBus;
            tmpBusses.erase(tmpBusses.begin() + j);
            for (unsigned int k = 0; k < tmpBusses.size(); k++) {
                tmpBus = tmpBusses.at(k);
                if (!MachineConnectivityCheck::isConnected(
                        rdPorts, *tmpBus)) {
                    continue;
                }
                rd.bus = tmpBus;
                tmpBusses.erase(tmpBusses.begin() + k);
                for (unsigned int h = 0; h < tmpBusses.size(); h++) {
                    tmpBus = tmpBusses.at(h);
                    if (MachineConnectivityCheck::isConnected(
                            simmPorts, *tmpBus) &&
                        tmpBus->immediateWidth() > 0) {
                        simm.bus = tmpBus;
                        return true;
                    }
                }
            }
        }
    }
    return false;
}

References ProGe::MicroCodeGenerator::Connection::bus, busses_, TTAMachine::Bus::immediateWidth(), MachineConnectivityCheck::isConnected(), operationPorts(), ProGe::MicroCodeGenerator::Connection::port, rdPorts_, rs1Ports_, rs2Ports_, and simmPorts_.

Referenced by connectRF().

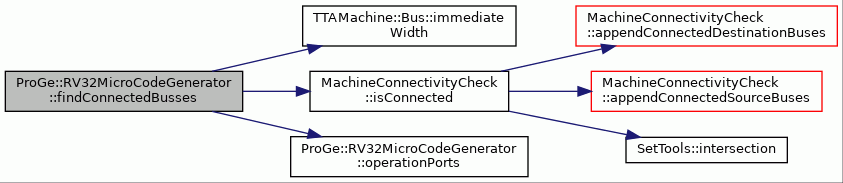

Here is the call graph for this function:

findOperationPorts()

void ProGe::RV32MicroCodeGenerator::findOperationPorts ( )

private

Definition at line 507 of file RV32MicroCodeGenerator.cc.

                                           {
    for (const auto& op : rOperations_) {
        addRPorts(op.first);
    }
    for (const auto& op : iOperations_) {
        addIPorts(op.first);
    }
    for (const auto& op : sOperations_) {
        addSPorts(op.first);
    }
    for (const auto& op : bOperations_) {
        addBPorts(op.first);
    }
    for (const auto& op : ujOperations_) {
        addUJPorts(op.first);
    }
    for (const auto& op : r1rOperations_) {
        addR1RPorts(op.first);
    }
    for (const auto& op : r1Operations_) {
        addR1Ports(op.first);
    }
}

References addBPorts(), addIPorts(), addR1Ports(), addR1RPorts(), addRPorts(), addSPorts(), addUJPorts(), bOperations_, iOperations_, r1Operations_, r1rOperations_, rOperations_, sOperations_, and ujOperations_.

Referenced by RV32MicroCodeGenerator().

Here is the call graph for this function:

findOperationSources()

void ProGe::RV32MicroCodeGenerator::findOperationSources ( )

private

Definition at line 131 of file RV32MicroCodeGenerator.cc.

                                             {
    for (const auto& op : rdPorts_) {
        if (sourceOperationMap_.count(op.second)) {
            sourceOperationMap_.at(op.second).push_back(op.first);
        } else {
            sourceOperationMap_.insert({op.second, {op.first}});
        }
    }
}

References rdPorts_, and sourceOperationMap_.

Referenced by RV32MicroCodeGenerator().

findRF()

void ProGe::RV32MicroCodeGenerator::findRF ( )

private

Definition at line 541 of file RV32MicroCodeGenerator.cc.

                               {
    Machine::RegisterFileNavigator rfNav = machine_->registerFileNavigator();
    // TODO: Design can have multiple register files. Iterate over all of
    // them and find one that fits based on connectivity.
    for (int i = 0; i < rfNav.count(); i++) {
        RegisterFile* rf = rfNav.item(0);
        if (rf->inputPortCount() > 0 && rf->outputPortCount() > 1 &&
            rf->zeroRegister()) {
            if (rf->size() > 31 && rf->width() == 32) {
                RF_ = rf;
            } else if (rf->size() == 16 && rf->width() == 32) {
                RF_ = rf;
                eVariant_ = true;
            }
        }
    }
    if (RF_ == NULL) {
        std::string msg = "Could not find a valid register file for RISC-V";
        throw InvalidData(__FILE__, __LINE__, __func__, msg);
    }
}

References __func__, TTAMachine::Machine::Navigator< ComponentType >::count(), eVariant_, TTAMachine::Unit::inputPortCount(), TTAMachine::Machine::Navigator< ComponentType >::item(), ProGe::MicroCodeGenerator::machine_, TTAMachine::Unit::outputPortCount(), TTAMachine::Machine::registerFileNavigator(), RF_, TTAMachine::BaseRegisterFile::size(), TTAMachine::BaseRegisterFile::width(), and TTAMachine::RegisterFile::zeroRegister().

Referenced by RV32MicroCodeGenerator().

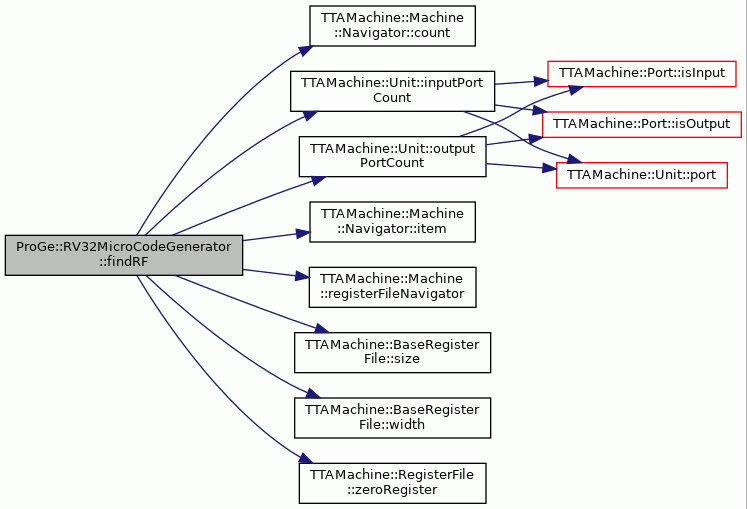

Here is the call graph for this function:

generateFUTargetProcess()

void ProGe::RV32MicroCodeGenerator::generateFUTargetProcess ( std::ofstream &  stream )

private

Definition at line 1094 of file RV32MicroCodeGenerator.cc.

                                                                   {
    std::unordered_map<std::string, std::string> operations;
    operations.insert(rOperations_.begin(), rOperations_.end());
    operations.insert(iOperations_.begin(), iOperations_.end());
    operations.insert(sOperations_.begin(), sOperations_.end());
    operations.insert(bOperations_.begin(), bOperations_.end());
    operations.insert(ujOperations_.begin(), ujOperations_.end());
    operations.insert(r1rOperations_.begin(), r1rOperations_.end());
    operations.insert(r1Operations_.begin(), r1Operations_.end());
    int len = std::ceil(std::log2(sourceOperationMap_.size()));

    stream << "  process(fu_opcode)" << std::endl
           << "  begin" << std::endl
           << "    target_fu <= to_unsigned(0, " << len << ");" << std::endl;

    int id = 0;
    bool firstCond = true;
    std::string cond;
    for (const auto& p : sourceOperationMap_) {
        sourcePortID_.insert({p.first, id});
        for (const auto& op : p.second) {
            if (firstCond) {
                cond = "    if ";
                firstCond = false;
            } else {
                cond = "    elsif ";
            }
            // Add is a special case as it is used in LUI
            if (op == "add") {
                int iLen = iOperations_.at(op).size();
                int uLen = ujOperations_.at("move").size();
                stream << cond << "fu_opcode(" << iLen << "-1 downto 0)"
                       << " = \"" << iOperations_.at(op) << "\""
                       << " or "
                       << "fu_opcode = \"" << rOperations_.at(op)
                       << "\" or fu_opcode(" << uLen << "-1 downto 0) = \""
                       << ujOperations_.at("move") << "\""
                       << " then\n";

            } else if (iOperations_.count(op) && rOperations_.count(op)) {
                int iLen = iOperations_.at(op).size();
                stream << cond << "fu_opcode(" << iLen << "-1 downto 0)"
                       << " = \"" << iOperations_.at(op) << "\"  or "
                       << "fu_opcode = \"" << rOperations_.at(op)
                       << "\" then\n";
            } else {
                int opLen = operations.at(op).size();
                stream << cond << "fu_opcode(" << opLen << "-1 downto 0)"
                       << "= \"" << operations.at(op) << "\" then\n";
            }
            stream << "      target_fu <= to_unsigned(" << id << ", " << len
                   << ");\n";
        }
        id++;
    }
    stream << "    end if;" << std::endl << "  end process;" << std::endl;

    stream << std::endl << std::endl;
    stream << "  process(clk, rstx)" << std::endl
           << "  begin" << std::endl
           << "    if(rstx = '0') then" << std::endl
           << "      target_fu_r <= (others => '0');" << std::endl
           << "    elsif clk'event and clk = '1' then" << std::endl
           << "      if glock_in = '0' and halt = '0' then" << std::endl
           << "        target_fu_r <= target_fu;" << std::endl
           << "      end if;" << std::endl
           << "    end if;" << std::endl
           << "  end process;" << std::endl
           << std::endl
           << std::endl;
}

References bOperations_, iOperations_, r1Operations_, r1rOperations_, rOperations_, sOperations_, sourceOperationMap_, sourcePortID_, and ujOperations_.

generateMap()

void ProGe::RV32MicroCodeGenerator::generateMap ( const std::string &  dstDirectory )

private

Definition at line 1262 of file RV32MicroCodeGenerator.cc.

                                                                 {
    /*TODO: The if structure should be replaced with a case statement
            The problem is that the fu_opcode's width is different between
            formats. Don't care states in a case statement
             is a VHDL-2OO8 feature
    */
    const std::string DS = FileSystem::DIRECTORY_SEPARATOR;
    std::string mapFile = dstDirectory + DS + "rv32_microcode.vhdl";

    std::ofstream stream;
    stream.open(mapFile);
    stream << LicenseGenerator::generateMITLicense("2023", "--");

    stream << "library IEEE;" << std::endl
           << "use IEEE.std_logic_1164.all;" << std::endl
           << "use IEEE.numeric_std.all;" << std::endl
           << "use work." << entityName_ << "_globals.all;" << std::endl
           << std::endl
           << std::endl;

    stream << "entity rv32_microcode is" << std::endl << "port(" << std::endl;
    if (hasForwarding_) {
        stream << "  clk            : in std_logic;" << std::endl
               << "  rstx           : in std_logic;" << std::endl
               << "  glock_in       : in std_logic;" << std::endl
               << "  data_hazard_in : in std_logic;" << std::endl
               << "  rs1_hazard_in  : in std_logic;" << std::endl
               << "  rs2_hazard_in  : in std_logic;" << std::endl
               << "  halt           : in std_logic;" << std::endl;
    }
    stream << "  fu_opcode_in : in  std_logic_vector(16 downto 0);"
           << std::endl
           << "  moves_out    : out std_logic_vector(INSTRUCTIONWIDTH-1 "
              "downto 0));"
           << std::endl
           << std::endl
           << "end rv32_microcode;" << std::endl
           << std::endl
           << "architecture rtl of rv32_microcode is" << std::endl
           << "  signal fu_opcode : std_logic_vector(16 downto 0);"
           << std::endl
           << "  signal moves     : std_logic_vector(INSTRUCTIONWIDTH-1 "
              "downto 0);"
           << std::endl
           << "  constant rs1_start_c : integer := " << rs1BusStart_ << ";"
           << std::endl
           << "  constant rs2_start_c : integer := " << rs2BusStart_ << ";"
           << std::endl
           << "  constant rs1_width_c : integer := " << rs1BusWidth_ << ";"
           << std::endl
           << "  constant rs2_width_c : integer := " << rs2BusWidth_ << ";"
           << std::endl;
    if (hasForwarding_) {
        int len = std::ceil(std::log2(sourceOperationMap_.size()));
        stream << "  signal target_fu : unsigned(" << len << "-1 downto 0);"
               << std::endl;
        stream << "  signal target_fu_r : unsigned (" << len
               << "-1 downto 0);" << std::endl
               << "  signal data_hazard : std_logic;\n"
               << "  signal rs1_hazard : std_logic;\n"
               << "  signal rs2_hazard : std_logic;\n";
    }

    stream << std::endl
           << "  begin" << std::endl
           << std::endl
           << "  fu_opcode  <= fu_opcode_in;" << std::endl
           << "  moves_out  <= moves;" << std::endl
           << std::endl;
    if (hasForwarding_) {
        stream << "  data_hazard <= data_hazard_in;" << std::endl
               << "  rs1_hazard  <= rs1_hazard_in;" << std::endl
               << "  rs2_hazard  <= rs2_hazard_in;" << std::endl;
        stream << std::endl;
        generateFUTargetProcess(stream);
    }
    stream << "  process(fu_opcode";
    if (hasForwarding_) {
        stream << ", data_hazard, rs1_hazard, rs2_hazard, target_fu_r";
    }
    stream << ")" << std::endl;
    stream << "  begin" << std::endl;

    std::unordered_map<std::string, InstructionBitVector*> instructions =
        constructRInstructions(rs1RFPort_, rs2RFPort_);
    bool firstCond = true;
    for (const auto& op : instructions) {
        if (firstCond) {
            stream << "    if(fu_opcode = \"" << rOperations_.at(op.first)
                   << "\")  then" << std::endl
                   << "      moves <= \"" << op.second->toString() << "\";"
                   << std::endl;
            delete op.second;
            firstCond = false;
            continue;
        }
        stream << "    elsif(fu_opcode(" << rOperations_.at(op.first).size()
               << " - 1 downto 0) = \"" << rOperations_.at(op.first) << "\""
               << ") then" << std::endl
               << "      moves <= \"" << op.second->toString() << "\";"
               << std::endl;
        delete op.second;
    }

    instructions = constructIInstructions(rs1RFPort_, rs1RFPort_);
    addBitsToMap(instructions, iOperations_, stream);

    instructions = constructSInstructions(rs1RFPort_, rs2RFPort_);
    addBitsToMap(instructions, sOperations_, stream);

    instructions = constructBInstructions(rs1RFPort_, rs2RFPort_);
    addBitsToMap(instructions, bOperations_, stream);

    instructions = constructUJInstructions();
    addBitsToMap(instructions, ujOperations_, stream);

    instructions = constructR1RInstructions(rs1RFPort_, rs2RFPort_);
    addBitsToMap(instructions, r1rOperations_, stream);

    instructions = constructR1Instructions(rs1RFPort_, rs2RFPort_);
    addBitsToMap(instructions, r1Operations_, stream);

    stream << "    else" << std::endl;
    stream << "      moves <= \"" + NOP_ + "\";" << std::endl;

    stream << "    end if;" << std::endl;

    if (hasForwarding_) {
        stream << "    if(data_hazard = '1') then\n"
               << "      if(rs1_hazard = '1') then\n";
        addRs1ForwardingConditions(
            rOperations_,
            &ProGe::RV32MicroCodeGenerator::constructRInstructions, stream);
        addRs1ForwardingConditions(
            bOperations_,
            &ProGe::RV32MicroCodeGenerator::constructBInstructions, stream);
        addRs1ForwardingConditions(
            sOperations_,
            &ProGe::RV32MicroCodeGenerator::constructSInstructions, stream);
        addRs1ForwardingConditions(
            iOperations_,
            &ProGe::RV32MicroCodeGenerator::constructIInstructions, stream);
        addRs1ForwardingConditions(
            r1rOperations_,
            &ProGe::RV32MicroCodeGenerator::constructR1RInstructions, stream);
        addRs1ForwardingConditions(
            r1Operations_,
            &ProGe::RV32MicroCodeGenerator::constructR1Instructions, stream);
        stream << "      end if;\n"
               << "    if(rs2_hazard = '1') then\n";
        addRs2ForwardingConditions(
            rOperations_,
            &ProGe::RV32MicroCodeGenerator::constructRInstructions, stream);
        addRs2ForwardingConditions(
            bOperations_,
            &ProGe::RV32MicroCodeGenerator::constructBInstructions, stream);
        addRs2ForwardingConditions(
            sOperations_,
            &ProGe::RV32MicroCodeGenerator::constructSInstructions, stream);
        stream << "      end if;\n"
               << "    end if;\n";
    }

    stream << "  end process;" << std::endl;

    stream << "end architecture rtl;" << std::endl;

    stream.close();
}

References constructBInstructions(), constructIInstructions(), constructR1Instructions(), constructR1RInstructions(), constructRInstructions(), constructSInstructions(), FileSystem::DIRECTORY_SEPARATOR, DS, and LicenseGenerator::generateMITLicense().

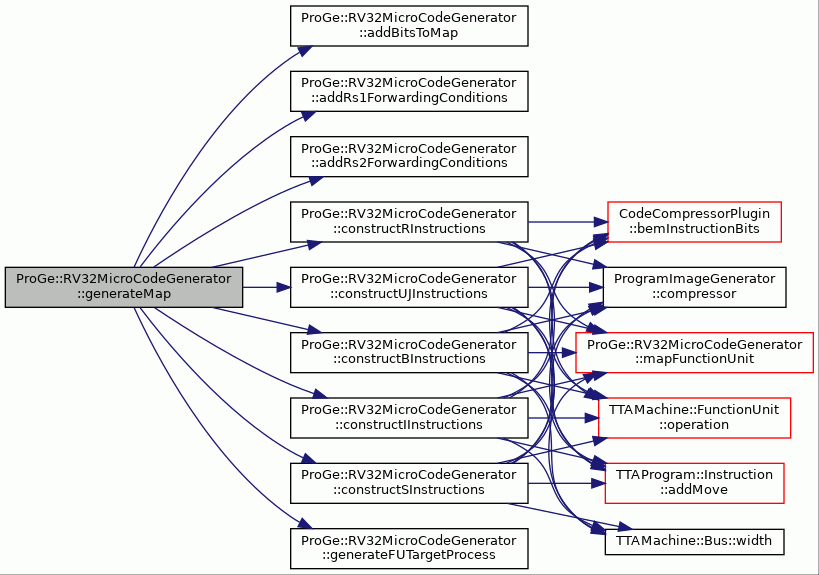

Here is the call graph for this function:

generateNOP()

void ProGe::RV32MicroCodeGenerator::generateNOP ( )

private

Definition at line 532 of file RV32MicroCodeGenerator.cc.

                                    {
    CodeCompressorPlugin* compressor = &pig_->compressor();
    Instruction* instruction = new Instruction();
    InstructionBitVector* bits = compressor->bemInstructionBits(*instruction);
    NOP_ = bits->toString();
    delete instruction;
}

References CodeCompressorPlugin::bemInstructionBits(), ProgramImageGenerator::compressor(), NOP_, pig_, and BitVector::toString().

Referenced by RV32MicroCodeGenerator().

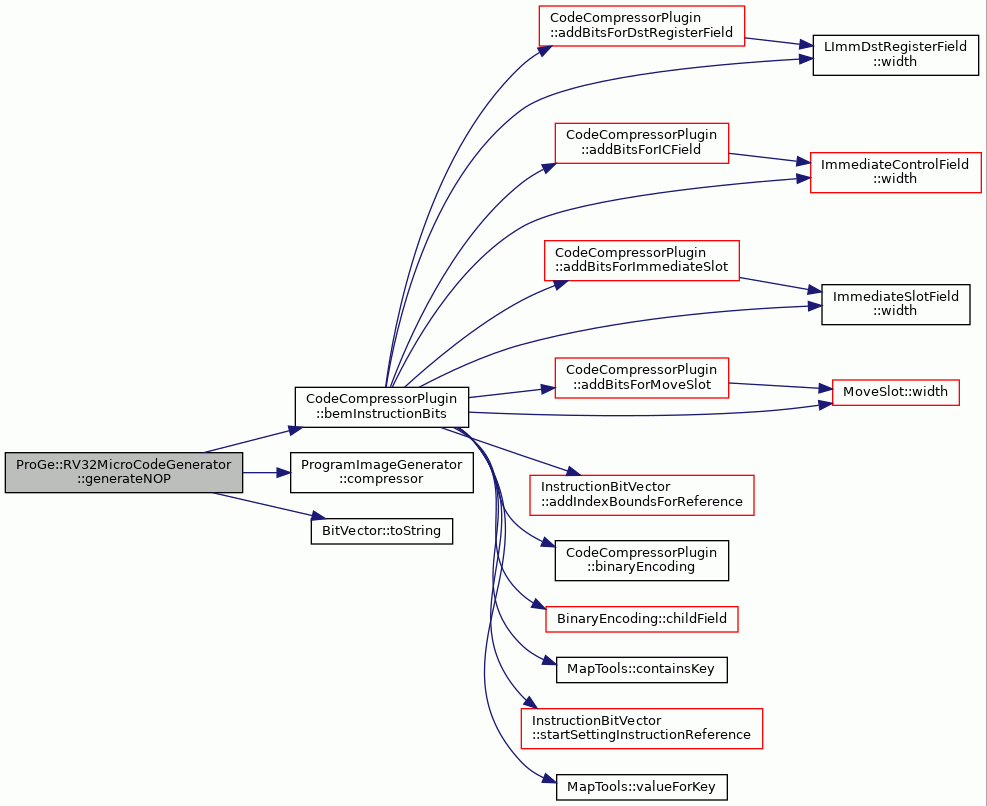

Here is the call graph for this function:

generateOperationLatencyLogic()

std::string ProGe::RV32MicroCodeGenerator::generateOperationLatencyLogic ( HDLTemplateInstantiator &  instantiator )

private

Definition at line 1433 of file RV32MicroCodeGenerator.cc.

                                           {
    std::map<std::string, std::string> operations;
    operations.insert(rOperations_.begin(), rOperations_.end());
    operations.insert(r1rOperations_.begin(), r1rOperations_.end());
    int maxVal = 1;
    for (const auto& op : iOperations_) {
        if (!rOperations_.count(op.first)) {
            operations.insert(op);
        }
    }
    std::map<std::string, int> opLatency;
    for (const auto& op : operations) {
        FunctionUnit* fu = mapFunctionUnit(op.first);
        HWOperation* operation = fu->operation(op.first);
        if (operation->latency() > 1) {
            opLatency.insert({op.first, operation->latency() - 1});
            if (operation->latency() > maxVal) {
                maxVal = operation->latency();
            }
        }
    }
    int len = std::ceil(std::log2((maxVal)) + 1);
    instantiator.replacePlaceholder("op-lat-width", std::to_string(len));
    if (opLatency.size() == 0) {
        return "op_latency <= to_unsigned(0,op_lat_width_c);";
    }
    variableLengthOpLatency_ = true;
    std::string logic =
        "process(fu_opcode)\n"
        "begin\n";
    bool firstCond = true;
    for (const auto& op : opLatency) {
        std::string cond = "  elsif ";
        if (firstCond) {
            cond = "  if ";
            firstCond = false;
        }
        if (rOperations_.count(op.first) && iOperations_.count(op.first)) {
            cond += "fu_opcode = \"" + rOperations_.at(op.first) + "\" or " +
                    "fu_opcode(" +
                    std::to_string(iOperations_.at(op.first).size()) +
                    "-1 downto 0) = \"" + iOperations_.at(op.first) +
                    "\" then\n";
        } else {
            cond += "fu_opcode(" +
                    std::to_string(operations.at(op.first).size()) +
                    "-1 downto 0) =  \"" + operations.at(op.first) +
                    "\" then\n";
        }
        logic += cond + "     op_latency <= to_unsigned(" +
                 std::to_string(op.second) + ",op_lat_width_c);\n";
    }
    logic +=
        "  else\n"
        "    op_latency <= to_unsigned(0,op_lat_width_c);\n"
        "  end if;\n"
        "end process;\n";
    return logic;
}

References TTAMachine::HWOperation::latency(), TTAMachine::FunctionUnit::operation(), and HDLTemplateInstantiator::replacePlaceholder().

Here is the call graph for this function:

generateRTL()

void ProGe::RV32MicroCodeGenerator::generateRTL ( HDLTemplateInstantiator &  instantiator, const std::string &  fileDst  )

virtual

Implements ProGe::MicroCodeGenerator.

Definition at line 1717 of file RV32MicroCodeGenerator.cc.

                                                                     {

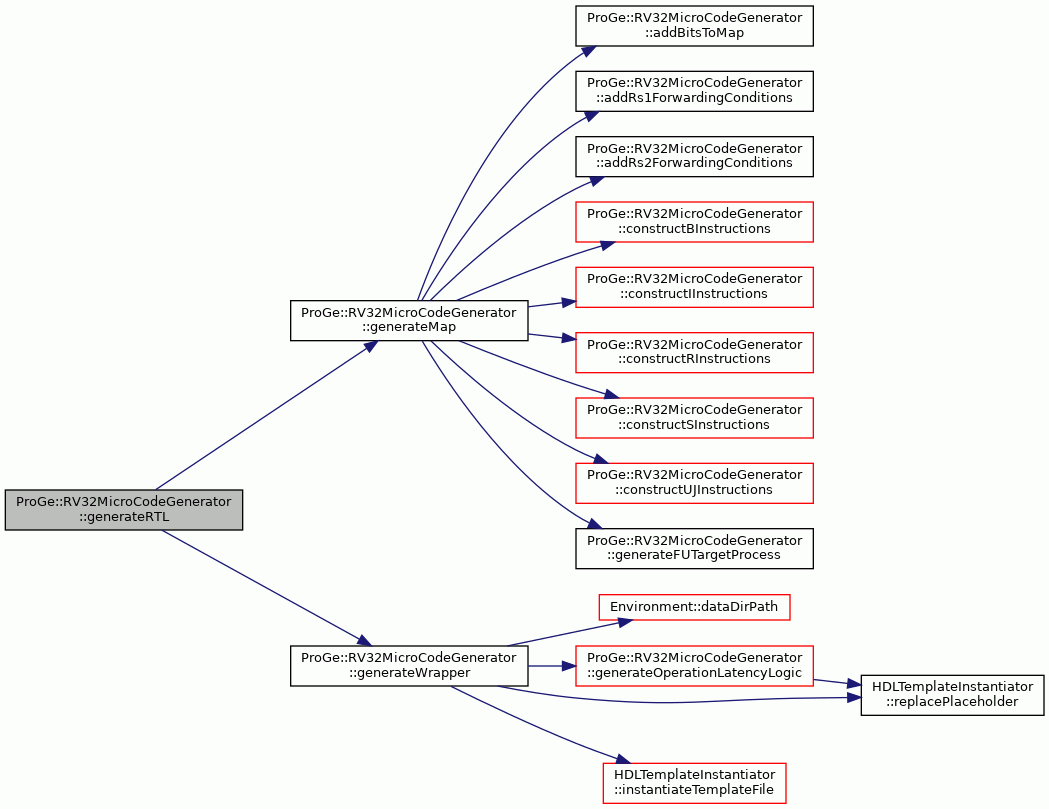

    generateMap(fileDst);
    generateWrapper(instantiator, fileDst);
}

Referenced by DefaultICDecoderGenerator::generate().

generateWrapper()

void ProGe::RV32MicroCodeGenerator::generateWrapper ( HDLTemplateInstantiator &  instantiator, const std::string &  fileDst  )

private

Definition at line 1495 of file RV32MicroCodeGenerator.cc.

                                                                     {
    instantiator.replacePlaceholder(
        "rs1-bus-width", std::to_string(rs1BusWidth_));
    instantiator.replacePlaceholder(
        "rs2-bus-width", std::to_string(rs2BusWidth_));
    instantiator.replacePlaceholder(
        "rd-bus-width", std::to_string(rdBusWidth_));
    instantiator.replacePlaceholder(
        "simm-bus-width", std::to_string(simmBusWidth_));

    instantiator.replacePlaceholder(
        "rs1-bus-start", std::to_string(rs1BusStart_));
    instantiator.replacePlaceholder(
        "rs2-bus-start", std::to_string(rs2BusStart_));
    instantiator.replacePlaceholder(
        "rd-bus-start", std::to_string(rdBusStart_));
    instantiator.replacePlaceholder(
        "simm-bus-start", std::to_string(simmBusStart_));

    instantiator.replacePlaceholder(
        "rs1-rf-start", std::to_string(rs1RFStart_));
    instantiator.replacePlaceholder(
        "rs2-rf-start", std::to_string(rs2RFStart_));
    instantiator.replacePlaceholder(
        "rd-rf-start", std::to_string(rdRFStart_));
    instantiator.replacePlaceholder(
        "simm-rf-start", std::to_string(simmRFStart_));

    if (eVariant_) {
        instantiator.replacePlaceholder("rf-width", std::to_string(4));
    } else {
        instantiator.replacePlaceholder("rf-width", std::to_string(5));
    }

    std::string nop = NOP_;
    reverse(nop.begin(), nop.end());
    nop = nop.substr(rdBusStart_, rdBusWidth_);
    reverse(nop.begin(), nop.end());
    const std::string rdNOP = nop;

    instantiator.replacePlaceholder("rd-nop", rdNOP);
    instantiator.replacePlaceholder("nop-instruction", NOP_);
    instantiator.replacePlaceholder(
        "rv32-microcode-simm-assign", "simm_out <= simm_r;");

    const std::string DS = FileSystem::DIRECTORY_SEPARATOR;
    const std::string templateDir = Environment::dataDirPath("ProGe");

    instantiator.replacePlaceholder(
        "rv32-microcode-instruction-assign",
        "instruction <= instruction_in;");

    if (hasForwarding_) {
        std::string forwardingPorts =
            "  clk            : in std_logic;\n"
            "  rstx           : in std_logic;\n"
            "  glock_in       : in std_logic;\n"
            "  data_hazard_in : in std_logic;\n"
            "  rs1_hazard_in  : in std_logic;\n"
            "  rs2_hazard_in  : in std_logic;\n"
            "  halt           : in std_logic;\n";

        std::string forwardingPortMapping =
            "clk              => clk,\n"
            "rstx             => rstx,\n"
            "glock_in         => glock_in,\n"
            "data_hazard_in   => data_hazard,\n"
            "rs1_hazard_in    => rs1_hazard,\n"
            "rs2_hazard_in    => rs2_hazard,\n"
            "halt             => filling_instruction_pipeline,";

        instantiator.replacePlaceholder("forwarding-ports", forwardingPorts);
        instantiator.replacePlaceholder(
            "forwarding-port-mapping", forwardingPortMapping);
    } else {
        instantiator.replacePlaceholder(
            "data-hazard-stall", "and data_hazard = '0'");
        instantiator.replacePlaceholder(
            "data-hazard-assign-conds",
            "elsif(data_hazard_r = '1') then\n"
            "  data_hazard <= '0';");
        instantiator.replacePlaceholder(
            "data-hazard-detection-sensitivity-list-signals",
            ", data_hazard_r");
    }
    instantiator.replacePlaceholder(
        "rv32-microcode-op-latency-process",
        generateOperationLatencyLogic(instantiator));
    std::string otherStates;

    if (variableLengthOpLatency_) {
        otherStates += ",HANDLE_OP_LATENCY";
    }
    if (!bypassInstructionRegister_) {
        otherStates += ",FILL_INSTRUCTION_PIPELINE_2";
    }
    instantiator.replacePlaceholder(
        "rv32-microcode-other-states", otherStates);
    std::string executeLogic;
    std::string fsm_sensitivity_list_signals;
    executeLogic =
        "  if(glock_in = '1') then\n"
        "    bubble <= '1';\n"
        "    stall_ifetch <= '0';\n"
        "    NS <= EXECUTE;\n"
        "  elsif (rv_jump_wire = '1' or rv_auipc_wire = '1') then\n"
        "     rd_bus_move <= rd_move;\n"
        "     stall_ifetch <= '0';\n"
        "     bubble <= '1';\n"
        "     if rv_auipc_wire = '0' then\n"
        "       NS <= FILL_INSTRUCTION_PIPELINE;\n"
        "     end if;\n";
    if (!hasForwarding_) {
        fsm_sensitivity_list_signals = ", data_hazard";
        if (variableLengthOpLatency_) {
            executeLogic +=
                "  elsif(op_latency_stall = '1' and data_hazard = '0') then\n"
                "    bubble <= '0';\n"
                "    NS <= HANDLE_OP_LATENCY;\n"
                "    stall_ifetch <= '1';\n"
                "    rd_bus_move <= rd_nop_c;\n";
        }
        executeLogic +=
            "  elsif(data_hazard = '1') then\n"
            "    bubble <= '1';\n"
            "    rd_bus_move <= rd_nop_c;\n"
            "    stall_ifetch <= '1';\n"
            "    NS <= EXECUTE;\n"
            "  elsif (is_control_flow_op = '1') then\n"
            "    bubble <= '0';\n"
            "    stall_ifetch <= '1';\n"
            "    NS <= HANDLE_CONTROL_FLOW_OP;\n"
            "    handle_control_flow_ns <= '1';\n"
            "  else\n"
            "    bubble <= '0';\n"
            "    stall_ifetch <= '0';\n"
            "    NS <= EXECUTE;\n"
            "  end if;\n";
    } else {
        if (variableLengthOpLatency_) {
            executeLogic +=
                "  elsif(op_latency_stall = '1') then\n"
                "    bubble <= '0';\n"
                "    NS <= HANDLE_OP_LATENCY;\n"
                "    stall_ifetch <= '1';\n"
                "    rd_bus_move <= rd_nop_c;\n";
        }
        executeLogic +=
            "  elsif (is_control_flow_op = '1') then\n"
            "    bubble <= '0';\n"
            "    stall_ifetch <= '1';\n"
            "    NS <= HANDLE_CONTROL_FLOW_OP;\n"
            "    handle_control_flow_ns <= '1';\n"
            "  else\n"
            "    bubble <= '0';\n"
            "    stall_ifetch <= '0';\n"
            "    NS <= EXECUTE;\n"
            "  end if;\n";
    }
    if (variableLengthOpLatency_) {
        fsm_sensitivity_list_signals += ",  op_latency_stall";
        executeLogic +=
            "\n"
            "when HANDLE_OP_LATENCY =>\n"
            "  bubble <= '1';\n"
            "  stall_ifetch <= '1';\n"
            "  rd_bus_move <= rd_nop_c;\n"
            "  NS <= HANDLE_OP_LATENCY;\n"
            "  if(op_latency_stall = '0') then\n"
            "    NS <= EXECUTE;\n"
            "    stall_ifetch <= '0';\n"
            "    rd_bus_move <= rd_move;\n"
            "  end if;";
    }
    std::string instructionPipelineStates;
    if (bypassInstructionRegister_) {
        instructionPipelineStates =
            "when FILL_INSTRUCTION_PIPELINE =>\n"
            "  filling_instruction_pipeline <= '1';\n"
            "  bubble <= '1';\n"
            "  rd_bus_move <= rd_nop_c;\n"
            "  stall_ifetch <= '0';\n"
            "  NS <= EXECUTE;\n";
    } else {
        instructionPipelineStates =
            "when FILL_INSTRUCTION_PIPELINE =>\n"
            "  filling_instruction_pipeline <= '1';\n"
            "  bubble <= '1';\n"
            "  rd_bus_move <= rd_nop_c;\n"
            "  stall_ifetch <= '0';\n"
            "  NS <= FILL_INSTRUCTION_PIPELINE_2;\n"
            "\n"
            "\n"
            "when FILL_INSTRUCTION_PIPELINE_2 =>\n"
            "  filling_instruction_pipeline <= '1';\n"
            "  bubble <= '1';\n"
            "  rd_bus_move <= rd_nop_c;\n"
            "  stall_ifetch <= '0';\n"
            "  NS <= EXECUTE;\n"
            "\n";
    }
    instantiator.replacePlaceholder(
        "rv32-microcode-instruction-pipeline-logic",
        instructionPipelineStates);

    instantiator.replacePlaceholder(
        "rv32-microcode-fsm-sensitivity-list-signals",
        fsm_sensitivity_list_signals);
    instantiator.replacePlaceholder(
        "rv32-microcode-execute-logic", executeLogic);

    if (hasCustom0Operations_) {
        instantiator.replacePlaceholder("rv32-custom0-frame-cond",
            "or frame_r_c(1) = opcode");
    }
    instantiator.instantiateTemplateFile(
        templateDir + DS + "rv32_microcode_wrapper.vhdl.tmpl",
        fileDst + DS + "rv32_microcode_wrapper.vhdl");
}

References Environment::dataDirPath(), FileSystem::DIRECTORY_SEPARATOR, DS, HDLTemplateInstantiator::instantiateTemplateFile(), and HDLTemplateInstantiator::replacePlaceholder().

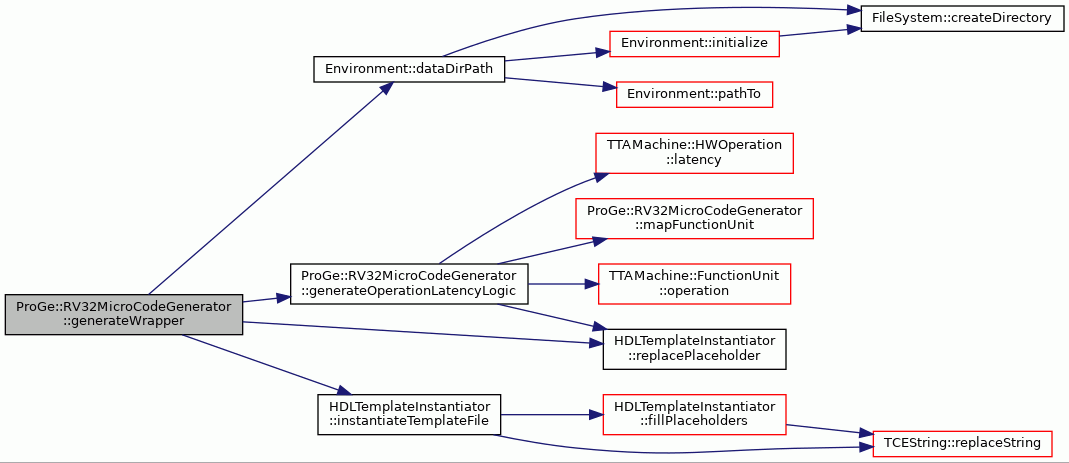

Here is the call graph for this function:

initializeOperations()

void ProGe::RV32MicroCodeGenerator::initializeOperations ( )

private

Definition at line 142 of file RV32MicroCodeGenerator.cc.

                                             {
    for (int i = 0; i < bem_->instructionFormatCount(); i++) {
        InstructionFormat fTemp = bem_->instructionFormat(i);
        for (int j = 0; j < fTemp.operationCount(); j++) {
            std::string name = fTemp.operationAtIndex(j);
            int encoding = fTemp.encoding(name);
            BitVector bits = BitVector();
            if (fTemp.name() == RISCVFields::RISCV_R_TYPE_NAME) {
                bits.pushBack(encoding, 17);
                std::string encBits = bits.toString();
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    rOperations_.insert({tceOpName, encBits});
                } else {
                    hasCustom0Operations_ = true;
                    rOperations_.insert({name, encBits});
                }
            } else if (fTemp.name() == RISCVFields::RISCV_I_TYPE_NAME) {
                std::string encBits;
                // Shift operations use imm bits for opcode
                if (name == "srai" || name == "slli" || name == "srli") {
                    bits.pushBack(encoding, 17);
                    encBits = bits.toString();
                } else {
                    bits.pushBack(encoding, 10);
                    encBits = bits.toString();
                }
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    iOperations_.insert({tceOpName, encBits});
                } else {
                    iOperations_.insert({name, encBits});
                }
            } else if (fTemp.name() == RISCVFields::RISCV_S_TYPE_NAME) {
                bits.pushBack(encoding, 10);
                std::string encBits = bits.toString();
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    sOperations_.insert({tceOpName, encBits});
                } else {
                    sOperations_.insert({name, encBits});
                }
            } else if (fTemp.name() == RISCVFields::RISCV_B_TYPE_NAME) {
                bits.pushBack(encoding, 10);
                std::string encBits = bits.toString();
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    bOperations_.insert(
                        {RISCVFields::RISCVOperationNameTable.at(name), encBits});
                } else {
                    bOperations_.insert({name, encBits});
                }
            } else if (fTemp.name() == RISCVFields::RISCV_U_TYPE_NAME) {
                bits.pushBack(encoding, 7);
                std::string encBits = bits.toString();
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    ujOperations_.insert({tceOpName, encBits});
                } else {
                    ujOperations_.insert({name, encBits});
                }
            } else if (fTemp.name() == RISCVFields::RISCV_J_TYPE_NAME) {
                bits.pushBack(encoding, 7);
                std::string encBits = bits.toString();
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    ujOperations_.insert({tceOpName, encBits});
                } else {
                    ujOperations_.insert({name, encBits});
                }
            } else if (fTemp.name() == RISCVFields::RISCV_R1R_TYPE_NAME) {
                bits.pushBack(encoding, 17);
                std::string encBits = bits.toString();
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    r1rOperations_.insert({tceOpName, encBits});
                } else {
                    r1rOperations_.insert({name, encBits});
                }
            } else if (fTemp.name() == RISCVFields::RISCV_R1_TYPE_NAME) {
                bits.pushBack(encoding, 17);
                std::string encBits = bits.toString();
                if (MapTools::containsKey(RISCVFields::RISCVOperationNameTable, name)) {
                    const std::string tceOpName = RISCVFields::RISCVOperationNameTable.at(name);
                    r1Operations_.insert({tceOpName, encBits});
                } else {
                    r1Operations_.insert({name, encBits});
                }
            }
        }
    }
}

References ProGe::MicroCodeGenerator::bem_, bOperations_, MapTools::containsKey(), InstructionFormat::encoding(), hasCustom0Operations_, BinaryEncoding::instructionFormat(), BinaryEncoding::instructionFormatCount(), iOperations_, InstructionFormat::name(), InstructionFormat::operationAtIndex(), InstructionFormat::operationCount(), BitVector::pushBack(), r1Operations_, r1rOperations_, RISCVFields::RISCV_B_TYPE_NAME, RISCVFields::RISCV_I_TYPE_NAME, RISCVFields::RISCV_J_TYPE_NAME, RISCVFields::RISCV_R1_TYPE_NAME, RISCVFields::RISCV_R1R_TYPE_NAME, RISCVFields::RISCV_R_TYPE_NAME, RISCVFields::RISCV_S_TYPE_NAME, RISCVFields::RISCV_U_TYPE_NAME, RISCVFields::RISCVOperationNameTable, rOperations_, sOperations_, BitVector::toString(), and ujOperations_.

Referenced by RV32MicroCodeGenerator().

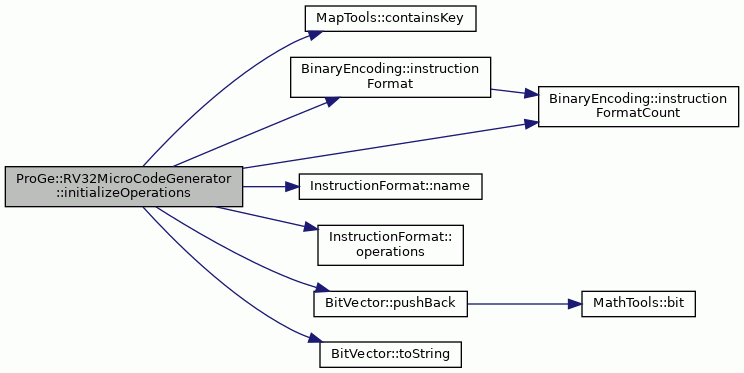

Here is the call graph for this function:

mapFunctionUnit()

FunctionUnit * ProGe::RV32MicroCodeGenerator::mapFunctionUnit ( const std::string &  operation ) const

private

Definition at line 280 of file RV32MicroCodeGenerator.cc.

                                                                        {
    Machine::FunctionUnitNavigator fuNav = machine_->functionUnitNavigator();
    for (int i = 0; i < fuNav.count(); i++) {
        FunctionUnit* fu = fuNav.item(i);
        if (fu->hasOperation(operation)) {
            return fu;
        }
    }
    if (machine_->controlUnit()->hasOperation(operation)) {
        return static_cast<FunctionUnit*>(machine_->controlUnit());
    }
    throwOperationNotFoundError(operation);
    return NULL;
}

References TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::FunctionUnit::hasOperation(), TTAMachine::Machine::Navigator< ComponentType >::item(), ProGe::MicroCodeGenerator::machine_, and throwOperationNotFoundError().

Referenced by addBPorts(), addIPorts(), addR1Ports(), addR1RPorts(), addRPorts(), addSPorts(), addUJPorts(), constructBInstructions(), constructIInstructions(), constructR1Instructions(), constructR1RInstructions(), constructRInstructions(), constructSInstructions(), and constructUJInstructions().

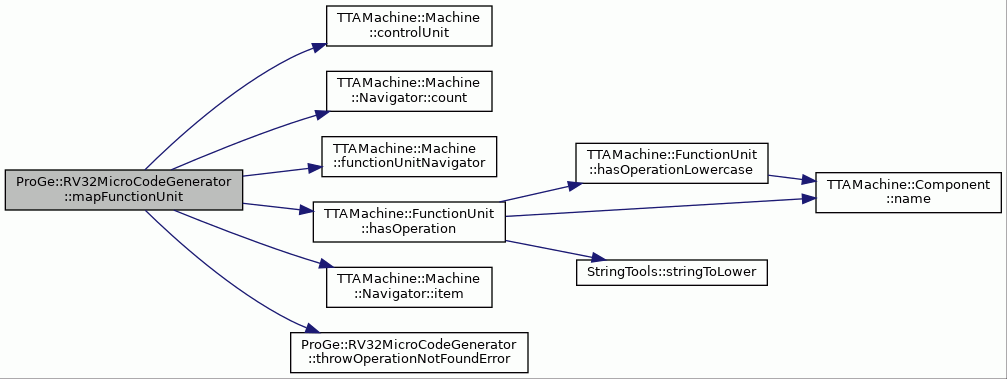

Here is the call graph for this function:

operationPorts()

std::set< Port * > ProGe::RV32MicroCodeGenerator::operationPorts ( const std::unordered_map< std::string, BaseFUPort * > &  ports ) const

private

Definition at line 677 of file RV32MicroCodeGenerator.cc.

                                                                 {
    std::set<Port*> retval;
    for (const auto& op : ports) {
        retval.insert(static_cast<Port*>(op.second));
    }
    return retval;
}

Referenced by findConnectedBusses().

setBypassInstructionRegister()

void ProGe::RV32MicroCodeGenerator::setBypassInstructionRegister

(

const bool &

value

)

Definition at line 1724 of file RV32MicroCodeGenerator.cc.

                                                                      {
    bypassInstructionRegister_ = value;
}

Referenced by DefaultICDecoderGenerator::generate().

throwInputPortError()

void ProGe::RV32MicroCodeGenerator::throwInputPortError ( const BaseFUPort *  port, const std::string &  type  ) const

private

Definition at line 313 of file RV32MicroCodeGenerator.cc.

                                                         {
    std::string fuName = port->parentUnit()->name();
    std::string msg = type + " operand port \'" + port->name() +
                      "\' in FU \'" + fuName + "\' not mapped as input";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
}

References __func__, TTAMachine::Component::name(), TTAMachine::Port::name(), and TTAMachine::BaseFUPort::parentUnit().

Referenced by addBPorts(), addRPorts(), and addSPorts().

Here is the call graph for this function:

throwOperandCountError()

void ProGe::RV32MicroCodeGenerator::throwOperandCountError ( const std::string &  op, int  required, int  found  ) const

private

Definition at line 331 of file RV32MicroCodeGenerator.cc.

                                                        {
    std::string msg = "Operation " + op +
                      " has invalid amount of operands. " +
                      std::to_string(required) + " required, " +
                      std::to_string(found) + " found.";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
}

References __func__.

Referenced by addBPorts(), addIPorts(), addR1Ports(), addR1RPorts(), addRPorts(), and addSPorts().

throwOperationNotFoundError()

void ProGe::RV32MicroCodeGenerator::throwOperationNotFoundError ( const std::string &  op ) const

private

Definition at line 296 of file RV32MicroCodeGenerator.cc.

                               {
    std::string msg = "Cannot find operation '" + op + "\' in machine.";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
}

References __func__.

Referenced by mapFunctionUnit(), and validateOperations().

throwOutputPortError()

void ProGe::RV32MicroCodeGenerator::throwOutputPortError ( const BaseFUPort *  port, const std::string &  type  ) const

private

Definition at line 322 of file RV32MicroCodeGenerator.cc.

                                                         {
    std::string fuName = port->parentUnit()->name();
    std::string msg = type + " operand port \'" + port->name() +
                      "\' in FU \'" + fuName + "\' not mapped as output";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
}

References __func__, TTAMachine::Component::name(), TTAMachine::Port::name(), and TTAMachine::BaseFUPort::parentUnit().

Referenced by addIPorts(), addR1RPorts(), addRPorts(), and addUJPorts().

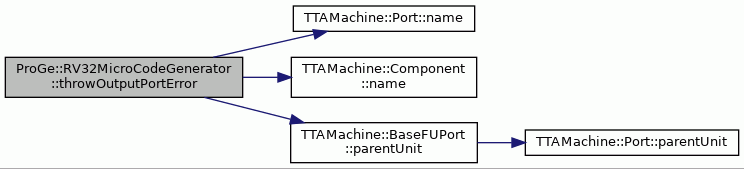

Here is the call graph for this function:

throwTriggeringPortError()

void ProGe::RV32MicroCodeGenerator::throwTriggeringPortError ( const BaseFUPort *  port, const std::string &  type  ) const

private

Definition at line 303 of file RV32MicroCodeGenerator.cc.

                                                         {
    std::string fuName = port->parentUnit()->name();
    std::string msg = type + " operand port \'" + port->name() +
                      "\' in FU \'" + fuName +
                      "\' not mapped as triggering port";
    throw InvalidData(__FILE__, __LINE__, __func__, msg);
}

References __func__, TTAMachine::Component::name(), TTAMachine::Port::name(), and TTAMachine::BaseFUPort::parentUnit().

Referenced by addBPorts(), addR1Ports(), addR1RPorts(), addRPorts(), addSPorts(), and addUJPorts().

Here is the call graph for this function:

validateOperations()

void ProGe::RV32MicroCodeGenerator::validateOperations ( ) const

private

Definition at line 236 of file RV32MicroCodeGenerator.cc.

                                                 {
    for (const auto& op : sOperations_) {
        const std::string opName = op.first;
        if (!machine_->hasOperation(opName)) {
            throwOperationNotFoundError(opName);
        }
    }
    for (const auto& op : bOperations_) {
        const std::string opName = op.first;
        if (!machine_->hasOperation(opName)) {
            throwOperationNotFoundError(opName);
        }
    }
    for (const auto& op : ujOperations_) {
        const std::string opName = op.first;
        if (op.first != "move") {
            if (!machine_->hasOperation(opName)) {
                throwOperationNotFoundError(opName);
            }
        }
    }
    for (const auto& op : rOperations_) {
        const std::string opName = op.first;
        if (!machine_->hasOperation(opName)) {
            throwOperationNotFoundError(opName);
        }
    }

    for (const auto& op : r1rOperations_) {
        const std::string opName = op.first;
        if (!machine_->hasOperation(opName)) {
            throwOperationNotFoundError(opName);
        }
    }

    for (const auto& op : r1Operations_) {
        const std::string opName = op.first;
        if (!machine_->hasOperation(opName)) {
            throwOperationNotFoundError(opName);
        }
    }
}

References bOperations_, TTAMachine::Machine::hasOperation(), ProGe::MicroCodeGenerator::machine_, r1Operations_, r1rOperations_, rOperations_, sOperations_, throwOperationNotFoundError(), and ujOperations_.

Here is the call graph for this function:

Member Data Documentation

bOperations_

std::map<std::string, std::string> ProGe::RV32MicroCodeGenerator::bOperations_

private

Definition at line 115 of file RV32MicroCodeGenerator.hh.

Referenced by constructBInstructions(), findOperationPorts(), generateFUTargetProcess(), initializeOperations(), and validateOperations().

busses_

std::vector<Bus*> ProGe::RV32MicroCodeGenerator::busses_

private

Definition at line 186 of file RV32MicroCodeGenerator.hh.

Referenced by findConnectedBusses(), and RV32MicroCodeGenerator().

bypassInstructionRegister_

bool ProGe::RV32MicroCodeGenerator::bypassInstructionRegister_

private

Definition at line 219 of file RV32MicroCodeGenerator.hh.

eVariant_

bool ProGe::RV32MicroCodeGenerator::eVariant_

private

Definition at line 222 of file RV32MicroCodeGenerator.hh.

Referenced by findRF().

hasCustom0Operations_

bool ProGe::RV32MicroCodeGenerator::hasCustom0Operations_

private

Definition at line 223 of file RV32MicroCodeGenerator.hh.

Referenced by initializeOperations().

hasForwarding_

bool ProGe::RV32MicroCodeGenerator::hasForwarding_

private

Definition at line 220 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), and RV32MicroCodeGenerator().

iOperations_

std::map<std::string, std::string> ProGe::RV32MicroCodeGenerator::iOperations_

private

Definition at line 113 of file RV32MicroCodeGenerator.hh.

Referenced by constructIInstructions(), findOperationPorts(), generateFUTargetProcess(), and initializeOperations().

NOP_

std::string ProGe::RV32MicroCodeGenerator::NOP_

private

Definition at line 218 of file RV32MicroCodeGenerator.hh.

Referenced by generateNOP().

pig_

ProgramImageGenerator* ProGe::RV32MicroCodeGenerator::pig_

private

Definition at line 216 of file RV32MicroCodeGenerator.hh.

Referenced by constructBInstructions(), constructIInstructions(), constructR1Instructions(), constructR1RInstructions(), constructRInstructions(), constructSInstructions(), constructUJInstructions(), generateNOP(), RV32MicroCodeGenerator(), and ~RV32MicroCodeGenerator().

r1Operations_

std::map<std::string, std::string> ProGe::RV32MicroCodeGenerator::r1Operations_

private

Definition at line 112 of file RV32MicroCodeGenerator.hh.

Referenced by constructR1Instructions(), findOperationPorts(), generateFUTargetProcess(), initializeOperations(), and validateOperations().

r1rOperations_

std::map<std::string, std::string> ProGe::RV32MicroCodeGenerator::r1rOperations_

private

Definition at line 111 of file RV32MicroCodeGenerator.hh.

Referenced by constructR1RInstructions(), findOperationPorts(), generateFUTargetProcess(), initializeOperations(), and validateOperations().

rdBus_

Bus* ProGe::RV32MicroCodeGenerator::rdBus_

private

Definition at line 208 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), constructIInstructions(), constructR1RInstructions(), constructRInstructions(), constructUJInstructions(), and findBusWidths().

rdBusStart_

int ProGe::RV32MicroCodeGenerator::rdBusStart_

private

Definition at line 197 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

rdBusWidth_

int ProGe::RV32MicroCodeGenerator::rdBusWidth_

private

Definition at line 192 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

rdPorts_

std::unordered_map<std::string, BaseFUPort*> ProGe::RV32MicroCodeGenerator::rdPorts_

private

Definition at line 83 of file RV32MicroCodeGenerator.hh.

Referenced by addIPorts(), addR1RPorts(), addRPorts(), addUJPorts(), constructIInstructions(), constructR1RInstructions(), constructRInstructions(), constructUJInstructions(), findConnectedBusses(), and findOperationSources().

rdRFPort_

RFPort* ProGe::RV32MicroCodeGenerator::rdRFPort_

private

Definition at line 214 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), constructIInstructions(), constructR1RInstructions(), constructRInstructions(), and constructUJInstructions().

rdRFStart_

int ProGe::RV32MicroCodeGenerator::rdRFStart_

private

Definition at line 203 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

RF_

RegisterFile* ProGe::RV32MicroCodeGenerator::RF_

private

Definition at line 188 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), and findRF().

rOperations_

std::map<std::string, std::string> ProGe::RV32MicroCodeGenerator::rOperations_

private

Definition at line 110 of file RV32MicroCodeGenerator.hh.

Referenced by addIPorts(), constructRInstructions(), findOperationPorts(), generateFUTargetProcess(), initializeOperations(), and validateOperations().

rs1Bus_

Bus* ProGe::RV32MicroCodeGenerator::rs1Bus_

private

Definition at line 206 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), constructBInstructions(), constructIInstructions(), constructR1Instructions(), constructR1RInstructions(), constructRInstructions(), constructSInstructions(), constructUJInstructions(), and findBusWidths().

rs1BusStart_

int ProGe::RV32MicroCodeGenerator::rs1BusStart_

private

Definition at line 195 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

rs1BusWidth_

int ProGe::RV32MicroCodeGenerator::rs1BusWidth_

private

Definition at line 190 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

rs1Ports_

std::unordered_map<std::string, BaseFUPort*> ProGe::RV32MicroCodeGenerator::rs1Ports_

private

Definition at line 81 of file RV32MicroCodeGenerator.hh.

Referenced by addBPorts(), addIPorts(), addR1Ports(), addR1RPorts(), addRPorts(), addSPorts(), constructBInstructions(), constructIInstructions(), constructR1Instructions(), constructR1RInstructions(), constructRInstructions(), constructSInstructions(), constructUJInstructions(), and findConnectedBusses().

rs1RFPort_

RFPort* ProGe::RV32MicroCodeGenerator::rs1RFPort_

private

Definition at line 212 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), and constructUJInstructions().

rs1RFStart_

int ProGe::RV32MicroCodeGenerator::rs1RFStart_

private

Definition at line 201 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

rs2Bus_

Bus* ProGe::RV32MicroCodeGenerator::rs2Bus_

private

Definition at line 207 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), constructBInstructions(), constructRInstructions(), constructSInstructions(), and findBusWidths().

rs2BusStart_

int ProGe::RV32MicroCodeGenerator::rs2BusStart_

private

Definition at line 196 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

rs2BusWidth_

int ProGe::RV32MicroCodeGenerator::rs2BusWidth_

private

Definition at line 191 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

rs2Ports_

std::unordered_map<std::string, BaseFUPort*> ProGe::RV32MicroCodeGenerator::rs2Ports_

private

Definition at line 82 of file RV32MicroCodeGenerator.hh.

Referenced by addBPorts(), addRPorts(), addSPorts(), constructBInstructions(), constructRInstructions(), constructSInstructions(), and findConnectedBusses().

rs2RFPort_

RFPort* ProGe::RV32MicroCodeGenerator::rs2RFPort_

private

Definition at line 213 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF().

rs2RFStart_

int ProGe::RV32MicroCodeGenerator::rs2RFStart_

private

Definition at line 202 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

simmBus_

Bus* ProGe::RV32MicroCodeGenerator::simmBus_

private

Definition at line 209 of file RV32MicroCodeGenerator.hh.

Referenced by connectRF(), constructBInstructions(), constructIInstructions(), constructSInstructions(), constructUJInstructions(), and findBusWidths().

simmBusStart_

int ProGe::RV32MicroCodeGenerator::simmBusStart_

private

Definition at line 198 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

simmBusWidth_

int ProGe::RV32MicroCodeGenerator::simmBusWidth_

private

Definition at line 193 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

simmPorts_

std::unordered_map<std::string, BaseFUPort*> ProGe::RV32MicroCodeGenerator::simmPorts_

private

Definition at line 84 of file RV32MicroCodeGenerator.hh.

Referenced by addBPorts(), addIPorts(), addRPorts(), addSPorts(), addUJPorts(), constructBInstructions(), constructIInstructions(), constructSInstructions(), constructUJInstructions(), and findConnectedBusses().

simmRFStart_

int ProGe::RV32MicroCodeGenerator::simmRFStart_

private

Definition at line 204 of file RV32MicroCodeGenerator.hh.

Referenced by findBusWidths().

sOperations_

std::map<std::string, std::string> ProGe::RV32MicroCodeGenerator::sOperations_

private

Definition at line 114 of file RV32MicroCodeGenerator.hh.

Referenced by constructSInstructions(), findOperationPorts(), generateFUTargetProcess(), initializeOperations(), and validateOperations().

sourceOperationMap_

std::unordered_map<Port*, std::vector<std::string> > ProGe::RV32MicroCodeGenerator::sourceOperationMap_

private

Definition at line 91 of file RV32MicroCodeGenerator.hh.

Referenced by findOperationSources(), and generateFUTargetProcess().

sourcePortID_

std::unordered_map<Port*, int> ProGe::RV32MicroCodeGenerator::sourcePortID_

private

Definition at line 88 of file RV32MicroCodeGenerator.hh.

Referenced by generateFUTargetProcess().

ujOperations_

std::map<std::string, std::string> ProGe::RV32MicroCodeGenerator::ujOperations_

private

Definition at line 116 of file RV32MicroCodeGenerator.hh.

Referenced by constructUJInstructions(), findOperationPorts(), generateFUTargetProcess(), initializeOperations(), and validateOperations().

variableLengthOpLatency_

bool ProGe::RV32MicroCodeGenerator::variableLengthOpLatency_

private

Definition at line 221 of file RV32MicroCodeGenerator.hh.

---

The documentation for this class was generated from the following files:

• RV32MicroCodeGenerator.hh
• RV32MicroCodeGenerator.cc
