#include <BFPushMoveUp.hh>

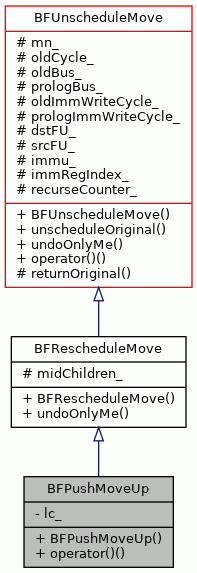

Inheritance diagram for BFPushMoveUp:

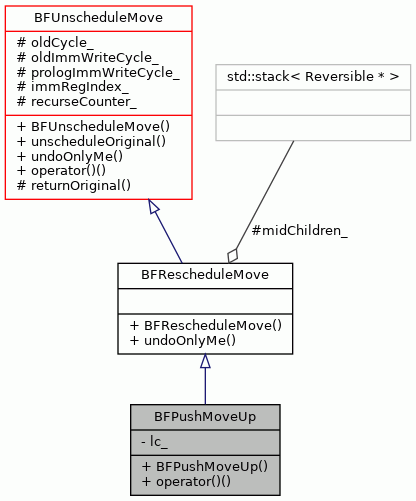

Collaboration diagram for BFPushMoveUp:

Public Member Functions
	BFPushMoveUp (BF2Scheduler &sched, MoveNode &mn, int lc)

bool	operator() ()

Public Member Functions inherited from BFRescheduleMove
	BFRescheduleMove (BF2Scheduler &sched, MoveNode &mn)

void	undoOnlyMe ()

Public Member Functions inherited from BFUnscheduleMove
	BFUnscheduleMove (BF2Scheduler &sched, MoveNode &mn)

void	unscheduleOriginal ()

void	undoOnlyMe ()

bool	operator() ()

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Private Attributes
int	lc_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Protected Member Functions inherited from BFUnscheduleMove
void	returnOriginal ()

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

Protected Attributes inherited from BFRescheduleMove
std::stack< Reversible * >	midChildren_

Protected Attributes inherited from BFUnscheduleMove
MoveNode &	mn_

int	oldCycle_

const TTAMachine::Bus *	oldBus_

const TTAMachine::Bus *	prologBus_

int	oldImmWriteCycle_

int	prologImmWriteCycle_

const TTAMachine::FunctionUnit *	dstFU_

const TTAMachine::FunctionUnit *	srcFU_

const TTAMachine::ImmediateUnit *	immu_

int	immRegIndex_

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Static Protected Attributes inherited from BFUnscheduleMove
static int	recurseCounter_ = 0

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 48 of file BFPushMoveUp.hh.

Constructor & Destructor Documentation

◆ BFPushMoveUp()

BFPushMoveUp::BFPushMoveUp	(	BF2Scheduler &	sched,
		MoveNode &	mn,
		int	lc
	)

inline

Definition at line 50 of file BFPushMoveUp.hh.

51 :

52 BFRescheduleMove(sched,mn), lc_(lc) {}

BFPushMoveUp::lc_

int lc_

Definition BFPushMoveUp.hh:55

BFRescheduleMove

Definition BFRescheduleMove.hh:47

Member Function Documentation

◆ operator()()

bool BFPushMoveUp::operator() ( )

virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 47 of file BFPushMoveUp.cc.

                         {

#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    static int dotCount = 0;
#endif
    bool isTrigger = mn_.isDestinationOperation() &&
        mn_.move().destination().isTriggering();

    if (lc_ == -1) {
        std::cerr << "incoming lc -1 on pushmoveup!"  << std::endl;
        assert(false);
    }
    if (mn_.move().isControlFlowMove()) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "\t\t|TCannot reschedule control flow move!" << std::endl;
#endif
        return false;
    }

    if (&mn_ == sched_.guardWriteNode()) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "\t\t|TCannot reschedule guard write move!" << std::endl;
#endif
        return false;
    }

#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    recurseCounter_++;

    for (int i = 0; i < recurseCounter_*2; i++)
        std::cerr << "\t";

    std::cerr << "\t\tPushing move up: " << mn_.toString() << " to cycle: "
              << lc_ << std::endl;
#endif

    // first push operands if I'm trigger?
    if (isTrigger && mn_.destinationOperation().inputMoveCount() > 1) {
        ProgramOperation& dstPO = mn_.destinationOperation();
        for (int i = 0; i < dstPO.inputMoveCount(); i++) {
            MoveNode& input = dstPO.inputMove(i);
            if (input.isScheduled() &&
                !input.move().destination().isTriggering()) {
                if (input.cycle() > lc_) {
                    // TODO: what if this fails??
                    runPreChild(new BFPushMoveUp(sched_, input, lc_));
                }
            }
        }
    }
    unscheduleOriginal();

    int ddgLC = ddg().latestCycle(mn_,ii());
    int ddgEC = ddg().earliestCycle(mn_,ii());

    if (ddgLC == -1) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "ddg latest cycle -1 in pushmoveup of:"
                  << mn_.toString() << std::endl;
#endif
        returnOriginal();
        return false;
    }
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    for (int i = 0; i < recurseCounter_*2; i++)
        std::cerr << "\t";

    std::cerr << "\t\tPushing move: " << mn_.toString()
              << " up, ddgLC now: " << ddgLC << std::endl;
#endif
    int lc = std::min(lc_, ddgLC);
    int rmlc = rmLC(lc, mn_);

    if (ddgEC > lc) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        for (int i = 0; i < recurseCounter_*2; i++)
            std::cerr << "\t";

        std::cerr << "\t\tMay need to push predecessors.." << std::endl;
#endif
        BFPushDepsUp* pusher = new BFPushDepsUp(sched_, mn_, lc);
        if ((*pusher)()) {
            midChildren_.push(pusher);
            ddgEC = ddg().earliestCycle(mn_, ii());
            if (ddgEC > lc) {
                std::cerr << "\t\tDDG earliest cycle still too early: "
                          << ddgEC << std::endl;
                ddg().writeToDotFile("ec_still_early.dot");
                assert(false);
            }
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        for (int i = 0; i < recurseCounter_*2; i++)
            std::cerr << "\t";

            std::cerr << "\t\tPredecessors pushed ok!" << std::endl;
#endif
//            assert(ddg().earliestCycle(mn_) <= lc);
        } else {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER

            for (int i = 0; i < recurseCounter_*2; i++)
                std::cerr << "\t";

            std::cerr << "\t\tDDG ec too late, Need to recursively push more,"
                      << " which failed" << std::endl;
#endif
            delete pusher;
            returnOriginal();
            undoAndRemoveChildren(preChildren_);
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
            recurseCounter_--;
#endif
            return false;
        }
        // TODO: this is buggy. should have back edge
        ddgLC = ddg().latestCycle(mn_,ii());
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        for (int i = 0; i < recurseCounter_*2; i++)
            std::cerr << "\t";

        std::cerr << "\t\tddgLC of " << mn_.toString()
                  << " after pushing preds: " << ddgLC << std::endl;
#endif
        rmlc = rmLC(std::min(lc_, ddgLC), mn_);
    }
    if (rmlc == -1 || rmlc < ddgEC) {
        if (lc < 1) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
            std::cerr << "\t\tlc too small, cannot push again" << std::endl;
#endif
            undoAndRemoveChildren(midChildren_);
            returnOriginal();
            undoAndRemoveChildren(preChildren_);
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
            recurseCounter_--;
#endif
            return false;
        }
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        for (int i = 0; i < recurseCounter_*2; i++)
            std::cerr << "\t";

        std::cerr << "\t\trmlc problem: " <<rmlc
                  << "ddgec: " << ddgEC << std::endl;
        TCEString dotName("rm_-1_pushup");
        dotName << mn_.nodeID() << "_" << ii() << "_" << dotCount++ << ".dot";
        std::cerr << "Writing dot: " << dotName << std::endl;
        ddg().writeToDotFile(dotName);

        for (int i = 0; i < recurseCounter_*2; i++)
            std::cerr << "\t";

        std::cerr << "\t\tRM lc -1 when pushing move up, failing:"
                  << mn_.toString() << " target cycle: " << lc_ << std::endl;

        for (int i = 0; i < recurseCounter_*2; i++)
            std::cerr << "\t";

        std::cerr << "\t\tddgLC is: " << ddgLC << std::endl;
//        assert(false);

        std::cerr << "Trying to push preds one more up." << std::endl;

#endif
        BFPushDepsUp* pusher2 = new BFPushDepsUp(sched_, mn_, lc-1);
        bool fail = false;

        if ((*pusher2)()) {
            midChildren_.push(pusher2);
            ddgEC = ddg().earliestCycle(mn_, ii());
            if (ddgEC > lc) {
                std::cerr << "\t\tDDG earliest cycle STILL too early: "
                          << ddgEC << std::endl;
                ddg().writeToDotFile("ec_still_early.dot");
                assert(false);
            }
            ddgLC = ddg().latestCycle(mn_,ii());
            rmlc = rmLC(std::min(lc_, ddgLC), mn_);
            if (rmlc == -1 || rmlc < ddgEC) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
                std::cerr << "still failing, now giving up" << std::endl;
#endif
                fail = true;
            }
        } else {
            delete pusher2;
            fail = true;
        }

        if (fail) {
            for (int i = 0; i < recurseCounter_*2; i++)
                std::cerr << "\t";
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
            std::cerr << "\t\tUndoing recursive pushs of predecessors"
                      << std::endl;
#endif
            undoAndRemoveChildren(midChildren_);

#ifdef DEBUG_BUBBLEFISH_SCHEDULER
            for (int i = 0; i < recurseCounter_*2; i++)
                std::cerr << "\t";

            std::cerr << "\t\tReturning the original" << std::endl;
#endif
            BFRescheduleMove::returnOriginal();
            undoAndRemoveChildren(preChildren_);
#ifdef DEBUG_BUBBLEFISH_SCHEDULER

            for (int i = 0; i < recurseCounter_*2; i++)
                std::cerr << "\t";

            std::cerr << "\t\treturned original: "<<mn_.toString()
                      << std::endl;
            recurseCounter_--;
#endif
            return false;
        }
    }

    assign(rmlc, mn_);
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    for (int i = 0; i < recurseCounter_*2; i++)
        std::cerr << "\t";

    std::cerr << "\tPushed move successfully: " << mn_.toString()
              << std::endl;
    recurseCounter_--;
#endif
    return true;
}

References assert, BFOptimization::assign(), MoveNode::cycle(), BFOptimization::ddg(), TTAProgram::Move::destination(), MoveNode::destinationOperation(), DataDependenceGraph::earliestCycle(), BF2Scheduler::guardWriteNode(), BFOptimization::ii(), ProgramOperation::inputMove(), ProgramOperation::inputMoveCount(), TTAProgram::Move::isControlFlowMove(), MoveNode::isDestinationOperation(), MoveNode::isScheduled(), TTAProgram::Terminal::isTriggering(), DataDependenceGraph::latestCycle(), lc_, BFRescheduleMove::midChildren_, BFUnscheduleMove::mn_, MoveNode::move(), GraphNode::nodeID(), Reversible::preChildren_, BFUnscheduleMove::recurseCounter_, BFUnscheduleMove::returnOriginal(), BFOptimization::rmLC(), Reversible::runPreChild(), BFOptimization::sched_, MoveNode::toString(), Reversible::undoAndRemoveChildren(), BFUnscheduleMove::unscheduleOriginal(), and GraphBase< GraphNode, GraphEdge >::writeToDotFile().

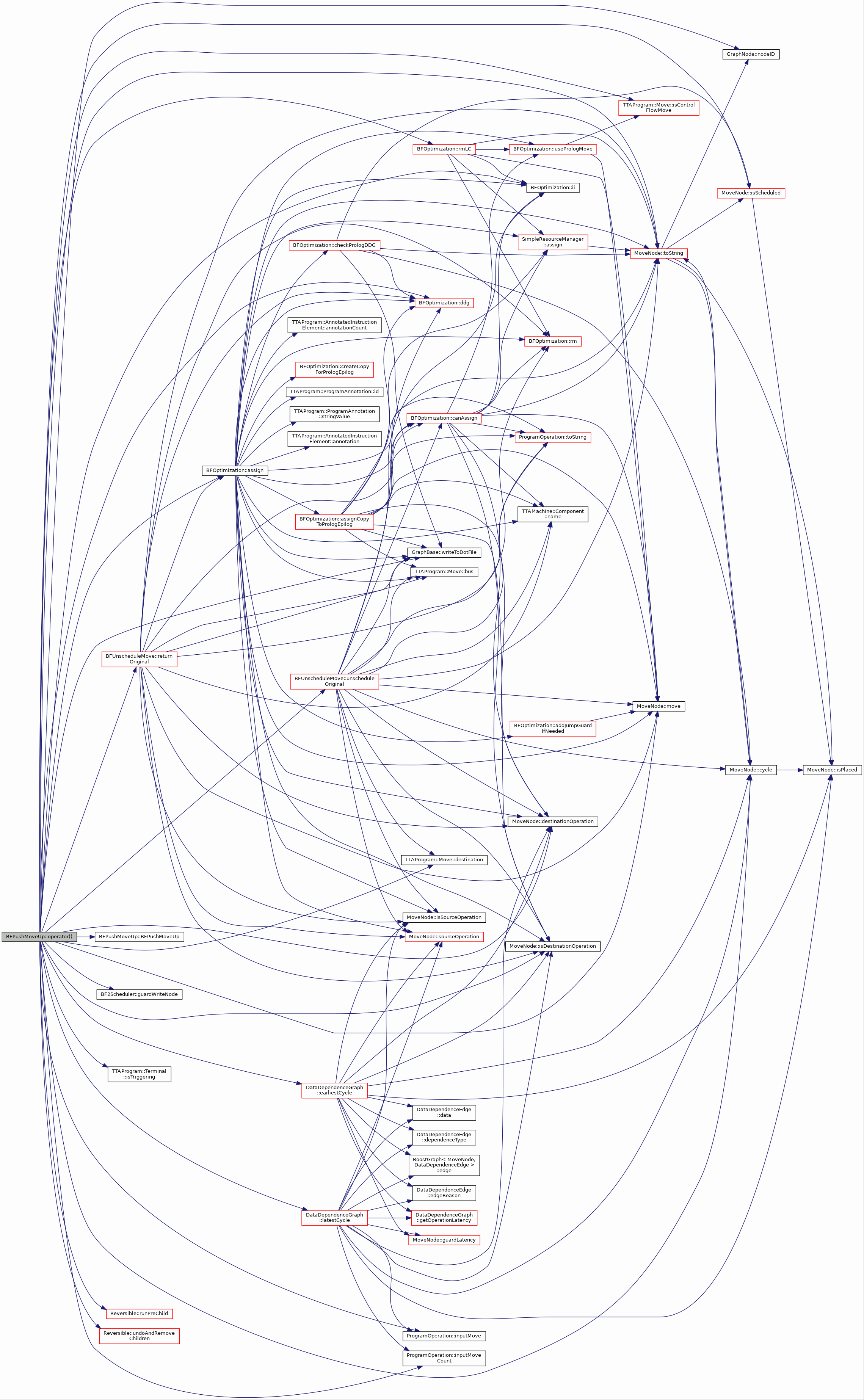

Here is the call graph for this function:

Member Data Documentation

◆ lc_

int BFPushMoveUp::lc_

private

Definition at line 55 of file BFPushMoveUp.hh.

Referenced by operator()().
