BFEarlyGuardBypass Class Reference

#include <BFEarlyGuardBypass.hh>

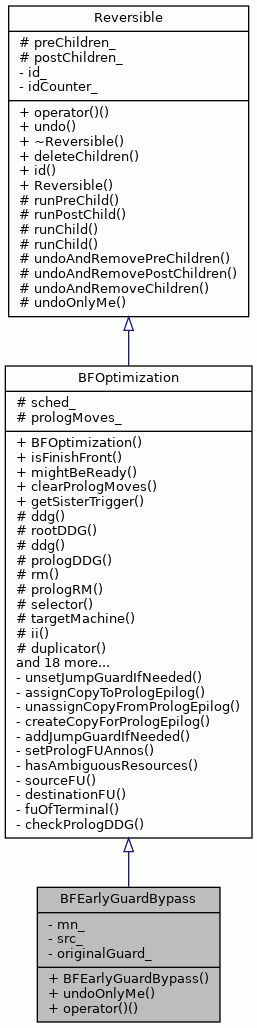

Inheritance diagram for BFEarlyGuardBypass:

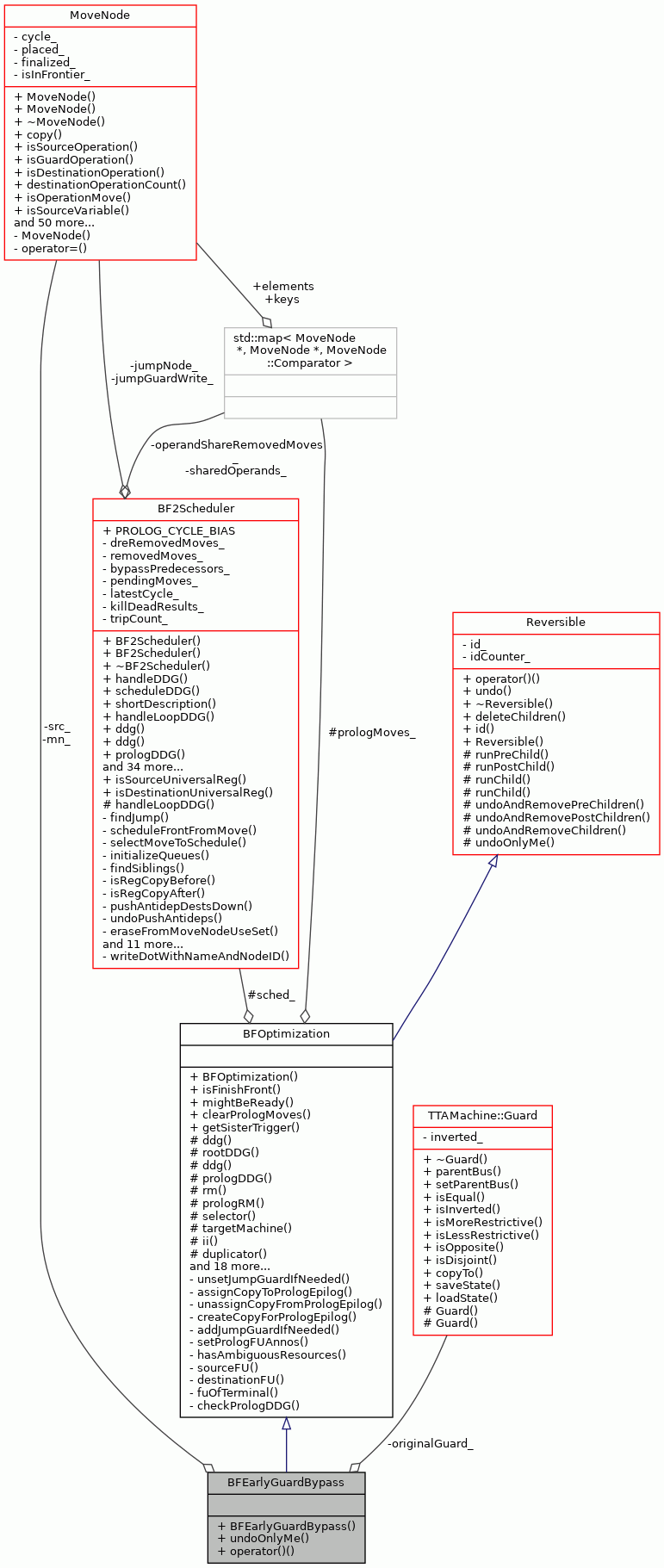

Collaboration diagram for BFEarlyGuardBypass:

Public Member Functions
	BFEarlyGuardBypass (BF2Scheduler &sched, MoveNode &mn)
void	undoOnlyMe () override
bool	operator() () override
Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)
virtual bool	isFinishFront ()
virtual void	mightBeReady (MoveNode &mn)
Public Member Functions inherited from Reversible
virtual void	undo ()
virtual	~Reversible ()
void	deleteChildren (std::stack< Reversible * > &children)
int	id ()
	Reversible ()

Private Attributes
MoveNode &	mn_
MoveNode *	src_
const TTAMachine::Guard *	originalGuard_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()
static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)
Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()
DataDependenceGraph *	rootDDG ()
const DataDependenceGraph &	ddg () const
DataDependenceGraph *	prologDDG ()
SimpleResourceManager &	rm () const
SimpleResourceManager *	prologRM () const
BUMoveNodeSelector &	selector ()
const TTAMachine::Machine &	targetMachine () const
unsigned int	ii () const
MoveNodeDuplicator &	duplicator () const
virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)
virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)
virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)
virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)
virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)
bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)
void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)
void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)
void	setJumpGuard (MoveNode &mn)
void	unsetJumpGuard (MoveNode &mn)
bool	needJumpGuard (const MoveNode &mn, int cycle)
int	jumpGuardAvailableCycle (const MoveNode &mn)
bool	canBeSpeculated (const Operation &op)
bool	canBeSpeculated (const MoveNode &mn)
bool	usePrologMove (const MoveNode &mn)
bool	canBeScheduled (const MoveNode &mn)
const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)
bool	immCountPreventsScheduling (const MoveNode &mn)
Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)
bool	runPostChild (Reversible *preChild)
bool	runChild (std::stack< Reversible * > &children, Reversible *child)
bool	runChild (Reversible *child, bool pre)
void	undoAndRemovePreChildren ()
void	undoAndRemovePostChildren ()
void	undoAndRemoveChildren (std::stack< Reversible * > &children)
Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_
Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_
std::stack< Reversible * >	postChildren_
Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 7 of file BFEarlyGuardBypass.hh.

Constructor & Destructor Documentation

BFEarlyGuardBypass()

BFEarlyGuardBypass::BFEarlyGuardBypass ( BF2Scheduler &  sched, MoveNode &  mn  )

inline

Definition at line 10 of file BFEarlyGuardBypass.hh.

                                                          :
        BFOptimization(sched), mn_(mn) {}

Member Function Documentation

operator()()

bool BFEarlyGuardBypass::operator() ( )

overridevirtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 12 of file BFEarlyGuardBypass.cc.

                                    {

    src_ = ddg().onlyRegisterRawSource(mn_, 1);
    if (!src_) {
        return false;
    }
    ProgramOperationPtr po = src_->sourceOperationPtr();
    const Operation& op = po->operation();

    auto dPorts = MachineConnectivityCheck::findPossibleDestinationPorts(
        targetMachine(), mn_);

    // TODO: this is not deterministic as this uses pointer as the key!
    std::set<const TTAMachine::Bus*> buses;

    for (auto p: dPorts) {
        MachineConnectivityCheck::appendConnectedSourceBuses(*p, buses);
    }

    for (auto bus: buses) {
        for (int i = 0; i < bus->guardCount(); i++) {
            const TTAMachine::Guard* guard = bus->guard(i);
            const TTAMachine::PortGuard* pg =
                dynamic_cast<const TTAMachine::PortGuard*>(guard);
            if (pg == NULL || pg->isInverted() != mn_.move().guard().isInverted()) {
                continue;
            }
            const TTAMachine::FUPort* port = pg->port();
            const TTAMachine::FunctionUnit* gfu = port->parentUnit();

            if (gfu->hasOperation(op.name()) &&
                po->outputIndexFromGuard(*pg) ==
                src_->move().source().operationIndex()) {

                if (!po->isLegalFU(*gfu)) {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
                    std::cerr << "\t\t\tFU: " << gfu->name() << " not allowed for operation: " << po->toString() << std::endl;
#endif
                    continue;
                }

                originalGuard_ = &mn_.move().guard().guard();
                // TODO: backup old guard.
                mn_.move().setGuard(new TTAProgram::MoveGuard(*guard));
                ddg().guardConverted(*src_, mn_);
                return true;
            }
        }
    }
    return false;
}

References MachineConnectivityCheck::appendConnectedSourceBuses(), BFOptimization::ddg(), MachineConnectivityCheck::findPossibleDestinationPorts(), TTAProgram::Move::guard(), TTAProgram::MoveGuard::guard(), DataDependenceGraph::guardConverted(), TTAMachine::FunctionUnit::hasOperation(), TTAMachine::Guard::isInverted(), TTAProgram::MoveGuard::isInverted(), mn_, MoveNode::move(), TTAMachine::Component::name(), Operation::name(), DataDependenceGraph::onlyRegisterRawSource(), TTAProgram::Terminal::operationIndex(), originalGuard_, TTAMachine::BaseFUPort::parentUnit(), TTAMachine::PortGuard::port(), TTAProgram::Move::setGuard(), TTAProgram::Move::source(), MoveNode::sourceOperationPtr(), src_, and BFOptimization::targetMachine().

Here is the call graph for this function:

undoOnlyMe()

void BFEarlyGuardBypass::undoOnlyMe ( )

overridevirtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from Reversible.

Definition at line 64 of file BFEarlyGuardBypass.cc.

                                    {
    ddg().guardRestored(*src_, mn_);
    mn_.move().setGuard(new TTAProgram::MoveGuard(*originalGuard_));
}

References BFOptimization::ddg(), DataDependenceGraph::guardRestored(), mn_, MoveNode::move(), originalGuard_, TTAProgram::Move::setGuard(), and src_.

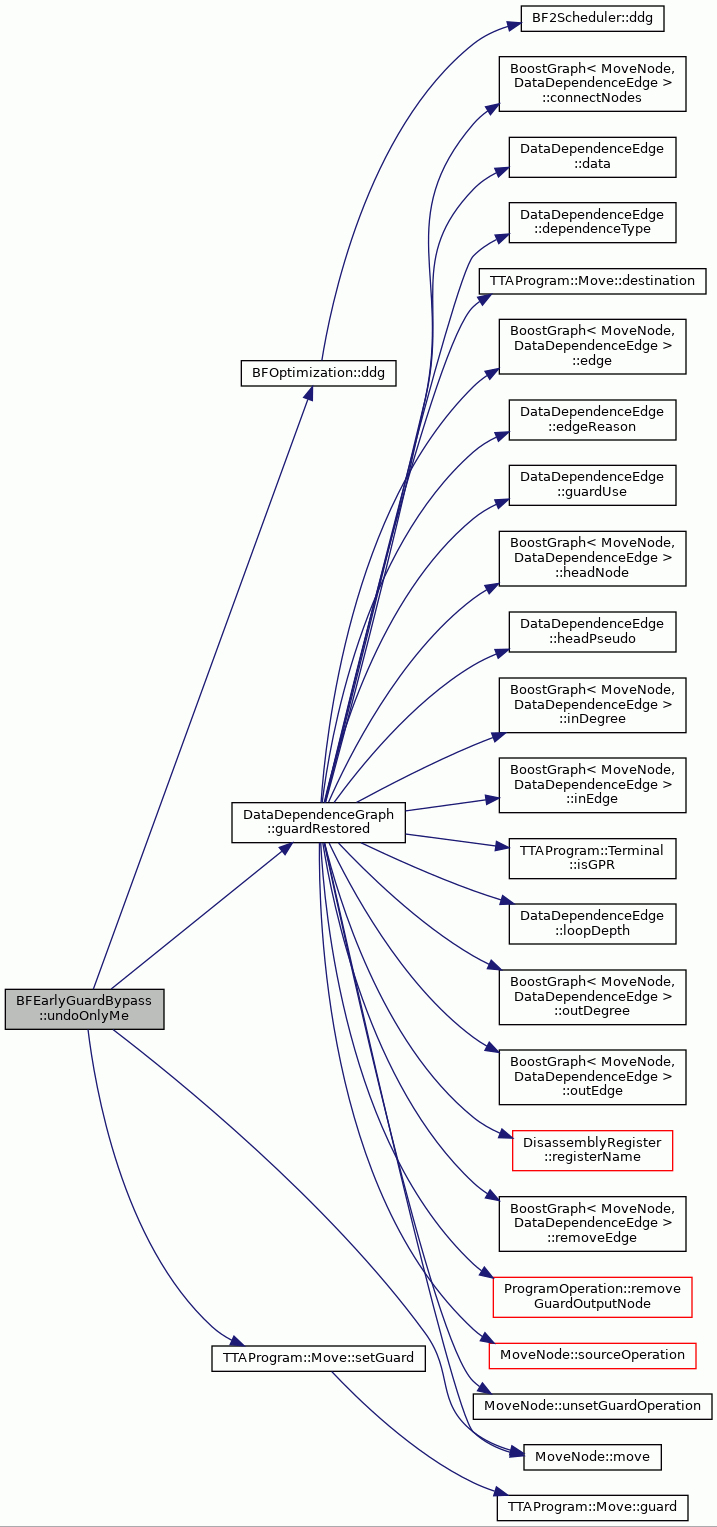

Here is the call graph for this function:

Member Data Documentation

mn_

MoveNode& BFEarlyGuardBypass::mn_

private

Definition at line 16 of file BFEarlyGuardBypass.hh.

Referenced by operator()(), and undoOnlyMe().

originalGuard_

const TTAMachine::Guard* BFEarlyGuardBypass::originalGuard_

private

Definition at line 18 of file BFEarlyGuardBypass.hh.

Referenced by operator()(), and undoOnlyMe().

src_

MoveNode* BFEarlyGuardBypass::src_

private

Definition at line 17 of file BFEarlyGuardBypass.hh.

Referenced by operator()(), and undoOnlyMe().

---

The documentation for this class was generated from the following files:

• BFEarlyGuardBypass.hh
• BFEarlyGuardBypass.cc
