#include <BFRegCopy.hh>

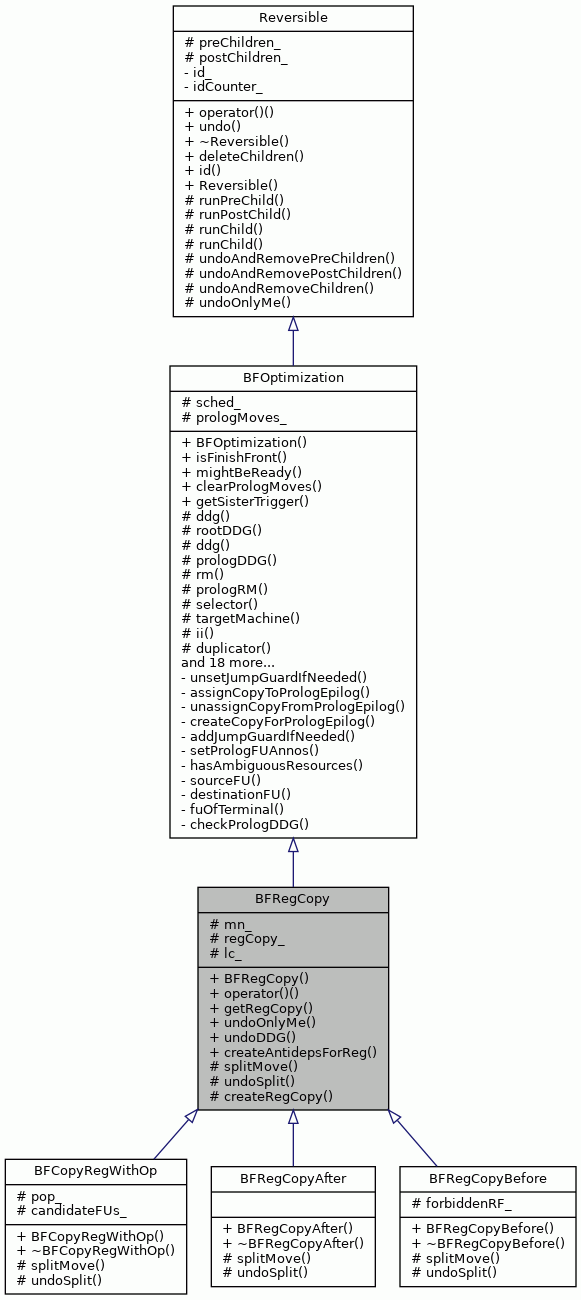

Inheritance diagram for BFRegCopy:

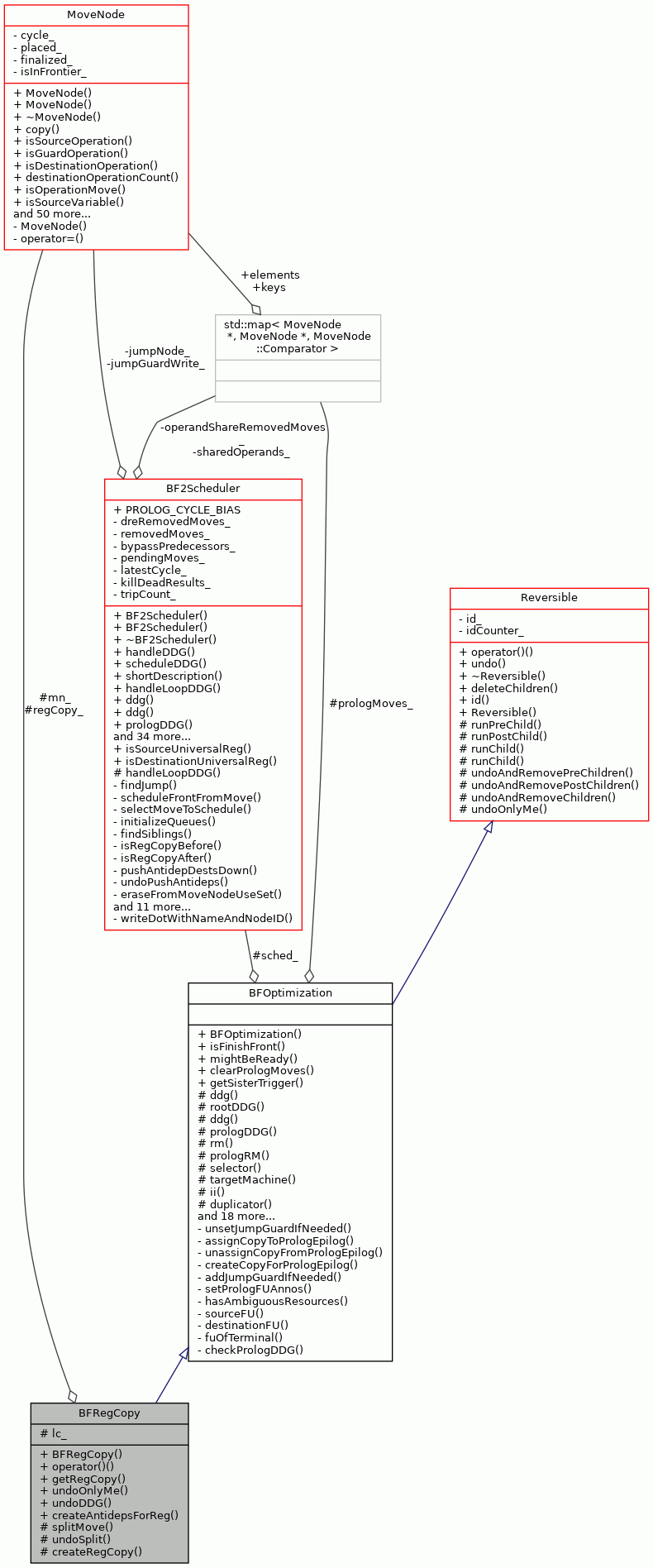

Collaboration diagram for BFRegCopy:

Public Member Functions
	BFRegCopy (BF2Scheduler &sched, MoveNode &mn, int lc)

bool	operator() ()

MoveNode *	getRegCopy ()

void	undoOnlyMe ()

void	undoDDG ()

void	createAntidepsForReg (MoveNode &firstMove, MoveNode &lastMove, const TTAMachine::RegisterFile &rf, int index, TCEString regName, BasicBlockNode &bbn, bool loopScheduling)

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Protected Member Functions
virtual bool	splitMove (BasicBlockNode &bbn)=0

virtual void	undoSplit ()=0

MoveNode *	createRegCopy (bool after)

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

Protected Attributes
MoveNode &	mn_

MoveNode *	regCopy_

int	lc_

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 47 of file BFRegCopy.hh.

Constructor & Destructor Documentation

◆ BFRegCopy()

BFRegCopy::BFRegCopy	(	BF2Scheduler &	sched,
		MoveNode &	mn,
		int	lc
	)

inline

Definition at line 49 of file BFRegCopy.hh.

49 :

50 BFOptimization(sched), mn_(mn), lc_(lc) {}

BFOptimization

Definition BFOptimization.hh:73

BFRegCopy::mn_

MoveNode & mn_

Definition BFRegCopy.hh:69

BFRegCopy::lc_

int lc_

Definition BFRegCopy.hh:71

Member Function Documentation

◆ createAntidepsForReg()

void BFRegCopy::createAntidepsForReg	(	MoveNode &	firstMove,
		MoveNode &	lastMove,
		const TTAMachine::RegisterFile &	rf,
		int	index,
		TCEString	regName,
		BasicBlockNode &	bbn,
		bool	loopScheduling
	)

Definition at line 99 of file BFRegCopy.cc.

                         {

    DataDependenceGraph::NodeSet firstScheduledDefs0 =
        ddg().firstScheduledRegisterWrites(rf, index);

    MoveNode* lastScheduledKill0 =
        ddg().lastScheduledRegisterKill(rf, index);

    for (auto i: firstScheduledDefs0) {
        if (!ddg().exclusingGuards(*i, useMove)) {
            DataDependenceEdge* war =
                new DataDependenceEdge(
                    DataDependenceEdge::EDGE_REGISTER,
                    DataDependenceEdge::DEP_WAR, regName);
            runPostChild(new BFConnectNodes(sched_, useMove, *i, war));
        }
        if (!ddg().exclusingGuards(*i, defMove)) {
            DataDependenceEdge* waw =
                new DataDependenceEdge(
                    DataDependenceEdge::EDGE_REGISTER,
                    DataDependenceEdge::DEP_WAW, regName);
            runPostChild(new BFConnectNodes(sched_, defMove, *i, waw));
        }
    }

    if (loopScheduling) {
        DataDependenceGraph::NodeSet lastScheduledReads0 =
            ddg().lastScheduledRegisterReads(rf, index);

        for (auto i: lastScheduledReads0) {
            if (!ddg().exclusingGuards(*i, defMove)) {
                DataDependenceEdge* war =
                    new DataDependenceEdge(
                        DataDependenceEdge::EDGE_REGISTER,
                        DataDependenceEdge::DEP_WAR, regName,
                        false, false, false, false, 1);
                runPostChild(new BFConnectNodes(sched_, *i, defMove, war));
            }
        }

        DataDependenceGraph::NodeSet lastScheduledDefs0 =
            ddg().lastScheduledRegisterWrites(rf, index);
        for (auto i: lastScheduledDefs0) {
            if (!ddg().exclusingGuards(*i, defMove)) {
                DataDependenceEdge* waw =
                    new DataDependenceEdge(
                        DataDependenceEdge::EDGE_REGISTER,
                        DataDependenceEdge::DEP_WAW, regName,
                        false, false, false, false, 1);
                runPostChild(new BFConnectNodes(sched_, *i, defMove, waw));
            }
        }
    }
    if (bbn.basicBlock().liveRangeData_ != NULL) {
        if (lastScheduledKill0 == NULL) {
            LiveRangeData::MoveNodeUseSet& lastWrites0 =
                bbn.basicBlock().liveRangeData_->regDefines_[regName];
            runPostChild(new BFInsertLiveRangeUse(
                             sched_, lastWrites0, MoveNodeUse(defMove)));

            LiveRangeData::MoveNodeUseSet& lastReads0 =
                    bbn.basicBlock().liveRangeData_->regLastUses_[regName];
                runPostChild(new BFInsertLiveRangeUse(
                                 sched_, lastReads0, MoveNodeUse(useMove)));
        }

        // last write, for WaW defs
        LiveRangeData::MoveNodeUseSet& firstDefs =
            bbn.basicBlock().liveRangeData_->regFirstDefines_[regName];

        if (useMove.move().isUnconditional()) {
            LiveRangeData::MoveNodeUseSet& firstReads =
                bbn.basicBlock().liveRangeData_->regFirstUses_[regName];

            runPostChild(new BFClearLiveRangeUse(sched_, firstReads));
            runPostChild(new BFClearLiveRangeUse(sched_, firstDefs));
            // TODO: what about updating the kill bookkeeping?
        }

        runPostChild(
            new BFInsertLiveRangeUse(
                sched_, firstDefs, MoveNodeUse(defMove)));
    }
}

References BasicBlockNode::basicBlock(), BFOptimization::ddg(), DataDependenceEdge::DEP_WAR, DataDependenceEdge::DEP_WAW, DataDependenceEdge::EDGE_REGISTER, DataDependenceGraph::exclusingGuards(), DataDependenceGraph::firstScheduledRegisterWrites(), TTAProgram::Move::isUnconditional(), DataDependenceGraph::lastScheduledRegisterKill(), DataDependenceGraph::lastScheduledRegisterReads(), DataDependenceGraph::lastScheduledRegisterWrites(), TTAProgram::BasicBlock::liveRangeData_, MoveNode::move(), LiveRangeData::regDefines_, LiveRangeData::regFirstDefines_, LiveRangeData::regFirstUses_, LiveRangeData::regLastUses_, Reversible::runPostChild(), and BFOptimization::sched_.

Referenced by BFRegCopyAfter::splitMove(), and BFRegCopyBefore::splitMove().

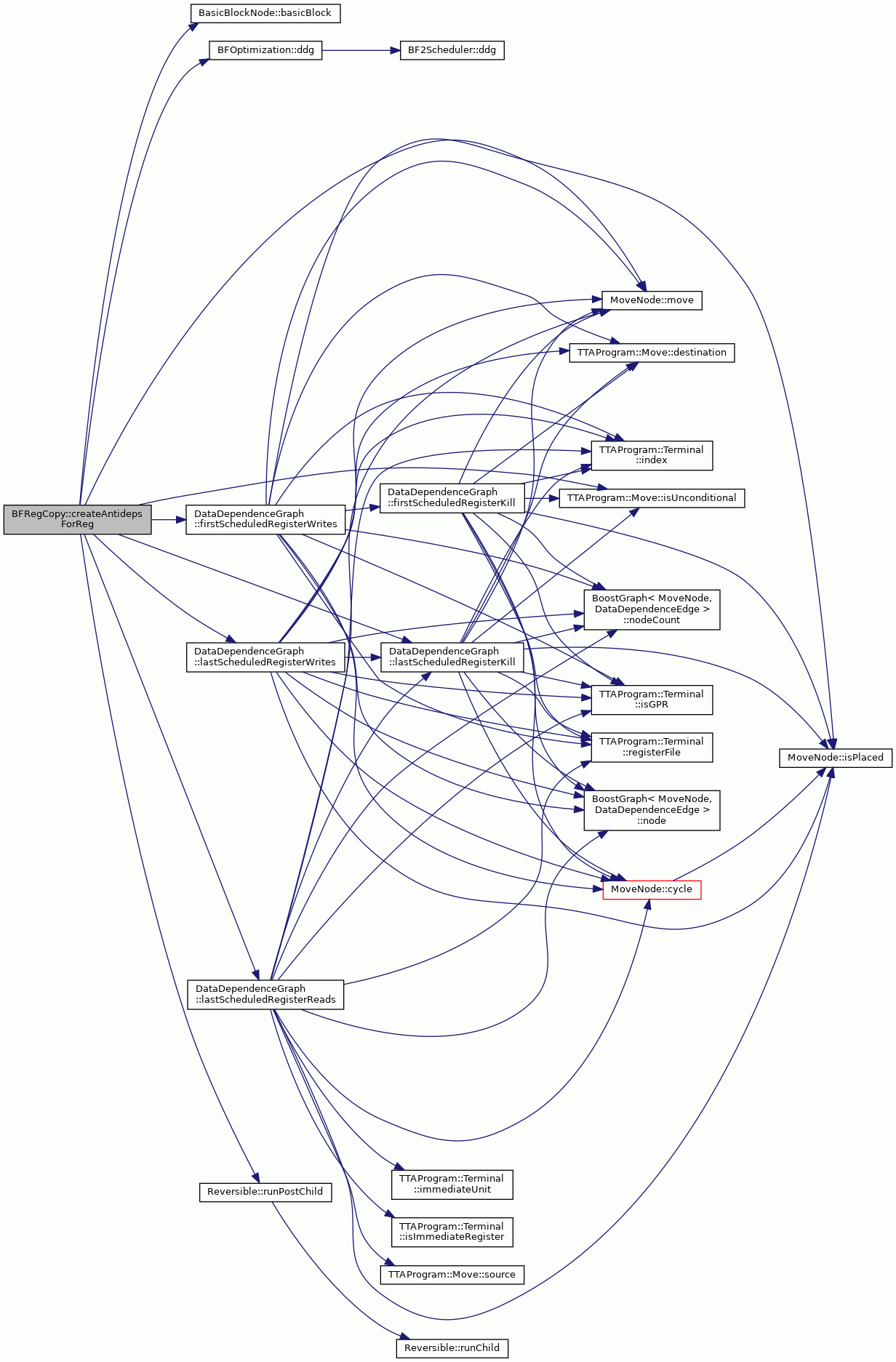

Here is the call graph for this function:

◆ createRegCopy()

MoveNode * BFRegCopy::createRegCopy ( bool after )

protected

◆ getRegCopy()

MoveNode * BFRegCopy::getRegCopy ( )

inline

Definition at line 52 of file BFRegCopy.hh.

52{ return regCopy_; }

BFRegCopy::regCopy_

MoveNode * regCopy_

Definition BFRegCopy.hh:70

References regCopy_.

Referenced by BFScheduleBU::operator()(), and BFScheduleExact::operator()().

◆ operator()()

bool BFRegCopy::operator() ( )

virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 52 of file BFRegCopy.cc.

                      {

    if (mn_.move().isReturn()) {
        TTAProgram::ProgramAnnotation annotation(
            TTAProgram::ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN);
        mn_.move().setAnnotation(annotation);
    }

    TTAProgram::ProgramAnnotation connMoveAnnotation(
        TTAProgram::ProgramAnnotation::ANN_CONNECTIVITY_MOVE);

    auto copyMove = mn_.move().copy();
    regCopy_ = new MoveNode(copyMove);
    BasicBlockNode& bbn = ddg().getBasicBlockNode(mn_);
    ddg().addNode(*regCopy_,bbn);
    copyMove->addAnnotation(connMoveAnnotation);

    if (splitMove(bbn)) {
        return true;
    }
    else {
#ifdef DEBUG_BUBBLEFISH_SCHEDULER
        std::cerr << "Regcopy creation failing.." << std::endl;
#endif
        undoDDG();
        return false;
    }
}

References DataDependenceGraph::addNode(), TTAProgram::ProgramAnnotation::ANN_CONNECTIVITY_MOVE, TTAProgram::ProgramAnnotation::ANN_STACKFRAME_PROCEDURE_RETURN, TTAProgram::Move::copy(), BFOptimization::ddg(), DataDependenceGraph::getBasicBlockNode(), TTAProgram::Move::isReturn(), mn_, MoveNode::move(), regCopy_, TTAProgram::AnnotatedInstructionElement::setAnnotation(), splitMove(), and undoDDG().

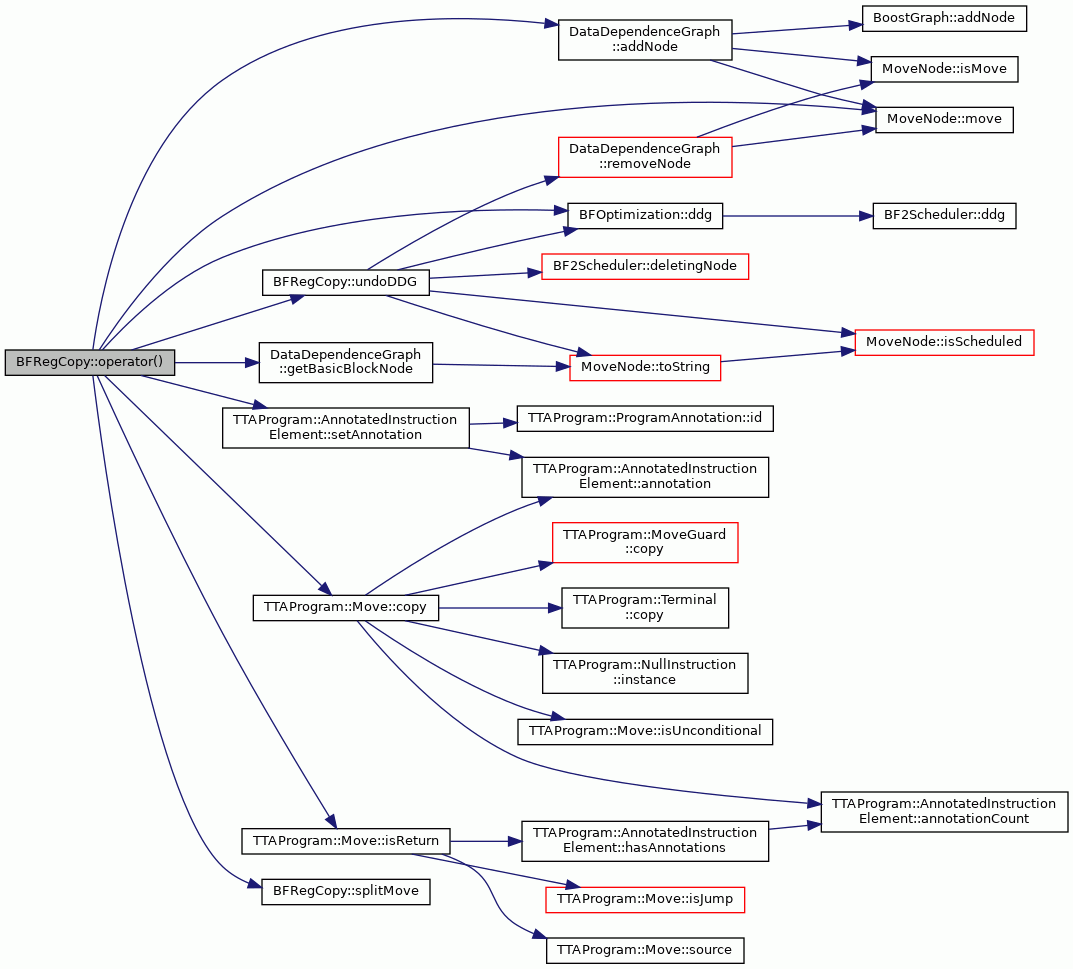

Here is the call graph for this function:

◆ splitMove()

virtual bool BFRegCopy::splitMove ( BasicBlockNode & bbn )

protectedpure virtual

Implemented in BFCopyRegWithOp, BFRegCopyAfter, and BFRegCopyBefore.

Referenced by operator()().

◆ undoDDG()

void BFRegCopy::undoDDG ( )

Definition at line 86 of file BFRegCopy.cc.

                        {

    assert(!regCopy_->isScheduled());

#ifdef DEBUG_BUBBLEFISH_SCHEDULER
    std::cerr << "\t\tUndid merge for copy for: " << mn_.toString()
              << " reg copy: " << regCopy_->toString() << std::endl;
#endif
    ddg().removeNode(*regCopy_);
    sched_.deletingNode(regCopy_);
    delete regCopy_;
}

References assert, BFOptimization::ddg(), BF2Scheduler::deletingNode(), MoveNode::isScheduled(), mn_, regCopy_, DataDependenceGraph::removeNode(), BFOptimization::sched_, and MoveNode::toString().

Referenced by operator()(), and undoOnlyMe().

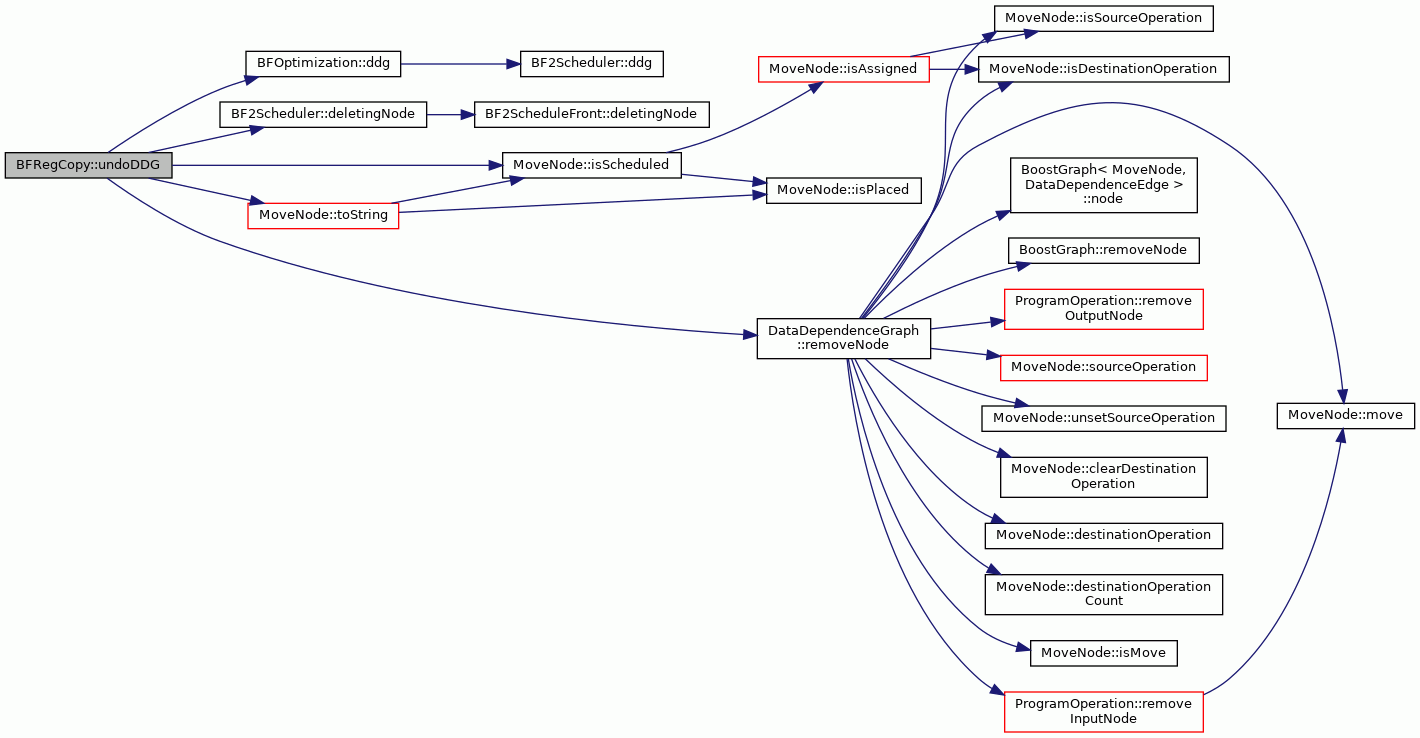

Here is the call graph for this function:

◆ undoOnlyMe()

void BFRegCopy::undoOnlyMe ( )

virtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from Reversible.

Definition at line 81 of file BFRegCopy.cc.

                           {
    undoSplit();
    undoDDG();
}

References undoDDG(), and undoSplit().

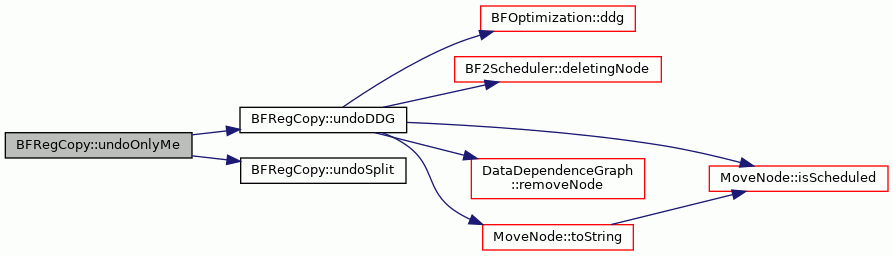

Here is the call graph for this function:

◆ undoSplit()

virtual void BFRegCopy::undoSplit ( )

protectedpure virtual

Implemented in BFCopyRegWithOp, BFRegCopyAfter, and BFRegCopyBefore.

Referenced by undoOnlyMe().

Member Data Documentation

◆ lc_

int BFRegCopy::lc_

protected

Definition at line 71 of file BFRegCopy.hh.

Referenced by BFRegCopyAfter::splitMove().

◆ mn_

MoveNode& BFRegCopy::mn_

protected

Definition at line 69 of file BFRegCopy.hh.

Referenced by operator()(), BFCopyRegWithOp::splitMove(), BFRegCopyAfter::splitMove(), BFRegCopyBefore::splitMove(), undoDDG(), BFCopyRegWithOp::undoSplit(), BFRegCopyAfter::undoSplit(), and BFRegCopyBefore::undoSplit().

◆ regCopy_

MoveNode* BFRegCopy::regCopy_

protected

Definition at line 70 of file BFRegCopy.hh.

Referenced by getRegCopy(), operator()(), BFCopyRegWithOp::splitMove(), BFRegCopyAfter::splitMove(), BFRegCopyBefore::splitMove(), undoDDG(), BFCopyRegWithOp::undoSplit(), BFRegCopyAfter::undoSplit(), and BFRegCopyBefore::undoSplit().

The documentation for this class was generated from the following files:
