#include <fstream>
#include <iostream>
#include <map>
#include "CompilerWarnings.hh"
#include "ADFSerializer.hh"
#include "Binary.hh"
#include "BinaryReader.hh"
#include "BinaryStream.hh"
#include "CmdLineOptions.hh"
#include "ControlUnit.hh"
#include "DataDefinition.hh"
#include "DataMemory.hh"
#include "DisassemblyInstruction.hh"
#include "FUPort.hh"
#include "FileSystem.hh"
#include "FunctionUnit.hh"
#include "HWOperation.hh"
#include "Immediate.hh"
#include "Instruction.hh"
#include "Move.hh"
#include "Operation.hh"
#include "POMDisassembler.hh"
#include "Procedure.hh"
#include "Program.hh"
#include "RegisterFile.hh"
#include "TPEFProgramFactory.hh"
#include "Terminal.hh"
#include "TerminalImmediate.hh"
#include "UniversalMachine.hh"
#include "tce_config.h"

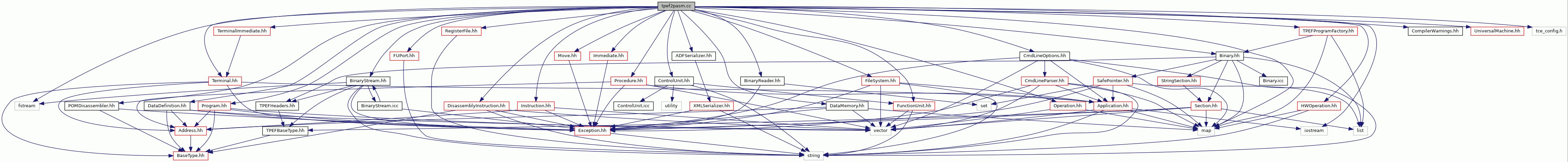

Include dependency graph for tpef2pasm.cc:

Classes
class	DisasmCmdLineOptions

Typedefs
typedef std::map< TCEString, std::map< int, TCEString > >	PasmPacket

Functions
TTAMachine::FunctionUnit *	getFunctionUnit (TTAMachine::Machine *machine, TCEString fuName)

TTAMachine::RegisterFile *	getRegisterFile (TTAMachine::Machine *machine, TCEString rfName)

TCEString	getPasmPacket (PasmPacket pkt, std::set< TCEString > fuSet, TCEString label="", bool printHeader=false)

TCEString	getOutputPort (TTAMachine::FunctionUnit *fu, TCEString op)

int	main (int argc, char *argv[])

Detailed Description

Blocks parallel disassembler.

Author: Kanishkan Vadivel 2021 (k.vadivel-no.spam-tue.nl); Barry de Bruin 2021 (e.d.bruin-no.spam-tue.nl)

Note: rating: red

Definition in file tpef2pasm.cc.

Typedef Documentation

◆ PasmPacket

typedef std::map<TCEString, std::map<int, TCEString> > PasmPacket

Definition at line 74 of file tpef2pasm.cc.

Function Documentation

◆ getFunctionUnit()

TTAMachine::FunctionUnit * getFunctionUnit	(	TTAMachine::Machine *	machine,
		TCEString	fuName
	)

Get FunctionUnit object from FU name

Parameters

machine	Machine for the search
fuName	Name of the FU to search

Returns: FunctionUnit object

Definition at line 125 of file tpef2pasm.cc.

                                                              {
    const TTAMachine::Machine::FunctionUnitNavigator fuNav =
        machine->functionUnitNavigator();
    for (int i = 0; i < fuNav.count(); i++) {
        if (fuNav.item(i)->name().ciEqual(fuName)) return fuNav.item(i);
    }
    return nullptr;
}

References TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), and machine.

Referenced by main().

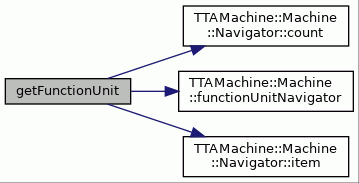

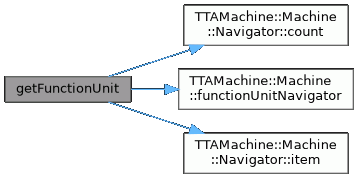

Here is the call graph for this function:

◆ getOutputPort()

TCEString getOutputPort	(	TTAMachine::FunctionUnit *	fu,
		TCEString	op
	)

Get FU output Port name for operation

Parameters

fu	FunctionUnit to search for instruction
op	Instruction name to search

Returns: TCEString Output port name

Definition at line 251 of file tpef2pasm.cc.

                                                        {
    TTAMachine::HWOperation* hwOp = fu->operation(op);
    for (int i = hwOp->operandCount(); i > 0; i--) {
        TTAMachine::FUPort* p = hwOp->port(i);
        if (p->isOutput()) return p->name();
    }
    return "";
}

References TTAMachine::Port::isOutput(), TTAMachine::Port::name(), TTAMachine::HWOperation::operandCount(), TTAMachine::FunctionUnit::operation(), and TTAMachine::HWOperation::port().

Referenced by main().

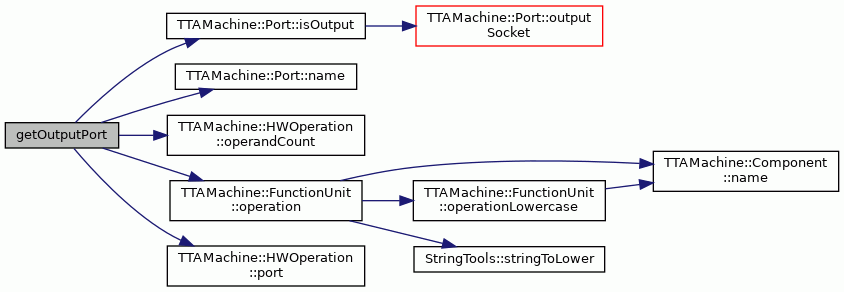

Here is the call graph for this function:

◆ getPasmPacket()

TCEString getPasmPacket	(	PasmPacket	pkt,
		std::set< TCEString >	fuSet,
		TCEString	label = `""`,
		bool	printHeader = `false`
	)

Get RegisterFile object from RF name

Parameters

pkt	PASM instructions in map form
fuSet	Pasm header, list of FU names
label	Procedure start label
printHeader	Name of the RF to search

Returns: TCEString PASM string

Definition at line 161 of file tpef2pasm.cc.

                              {
    const int width = 32;  // column width in spaces
    TCEString pasm = "";
    if (printHeader) {
        // first row with FU names
        pasm += "|";
        for (auto& fu : fuSet) {
            TCEString pasm_col = " " + fu;
            int ntabs = width/4 - (pasm_col.size()+1)/4; // 1 tab = 4 spaces
            for (int i = 0; i < ntabs; i++) pasm_col += "\t";
            pasm += pasm_col + "|";
        }
        pasm += "\n";

        // empty row
        pasm += "|";
        for (auto& fu : fuSet) {
            int ntabs = width/4;
            for (int i = 0; i < ntabs; i++) pasm += "\t";
            pasm += "|";
        }
        pasm += "\n";

        // .text row
        pasm += "|";
        for (auto& fu : fuSet) {
            TCEString pasm_col = " .text";
            int ntabs = width/4 - (pasm_col.size()+1)/4;
            for (int i = 0; i < ntabs; i++) pasm_col += "\t";
            pasm += pasm_col + "|";
        }
        pasm += "\n";

        // empty row
        pasm += "|";
        for (auto& fu : fuSet) {
            int ntabs = width/4;
            for (int i = 0; i < ntabs; i++) pasm += "\t";
            pasm += "|";
        }
        pasm += "\n";

    } else {
        pasm += "|";

        int col_idx = 0;
        for (auto& fu : fuSet) {
            TCEString pasm_col = "";

            if (!pkt.count(fu))
                pasm_col += " nop";
            else {
                pkt[fu][0].replaceString("copy", "pass");
                if (pkt[fu][0] == "jump" && pkt[fu][1] == fu+".ra") {
                    pkt[fu][0].replaceString("jump", "ret");
                    pkt[fu][1] = "";
                }
                TCEString instr = " " + pkt[fu][0] + " ";
                for (unsigned op = 1; op < pkt[fu].size(); op++) {
                    instr += pkt[fu][op].replaceString(".ra", ".0"); // .ra register is mapped to out0 (non-registered)
                    if (pkt[fu][op] != "" && op < pkt[fu].size() - 1) instr += ", ";
                }
                pasm_col += instr;
            }

            // Add label to first column, when available
            if (!label.empty() && col_idx++ == 0) {
                pasm_col += " ; " + label;
            }

            // Fix length of column
            int ntabs = width/4 - (pasm_col.size()+1)/4;
            for (int i = 0; i < ntabs; i++) pasm_col += "\t";  // 1 tab = 4 spaces
            pasm += pasm_col + "|";
        }
        pasm += "\n";
    }
    return pasm;
}

References TCEString::replaceString().

Referenced by main().

Here is the call graph for this function:

◆ getRegisterFile()

TTAMachine::RegisterFile * getRegisterFile	(	TTAMachine::Machine *	machine,
		TCEString	rfName
	)

Get RegisterFile object from RF name

Parameters

machine	Machine for the search
rfName	Name of the RF to search

Returns: RegisterFile object

Definition at line 142 of file tpef2pasm.cc.

                                                              {
    const TTAMachine::Machine::RegisterFileNavigator rfNav =
        machine->registerFileNavigator();
    for (int i = 0; i < rfNav.count(); i++) {
        if (rfNav.item(i)->name().ciEqual(rfName)) return rfNav.item(i);
    }
    return nullptr;
}

References TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine, and TTAMachine::Machine::registerFileNavigator().

Referenced by main().

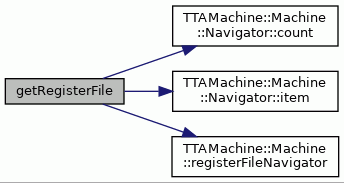

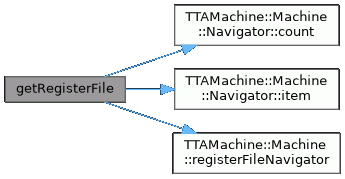

Here is the call graph for this function:

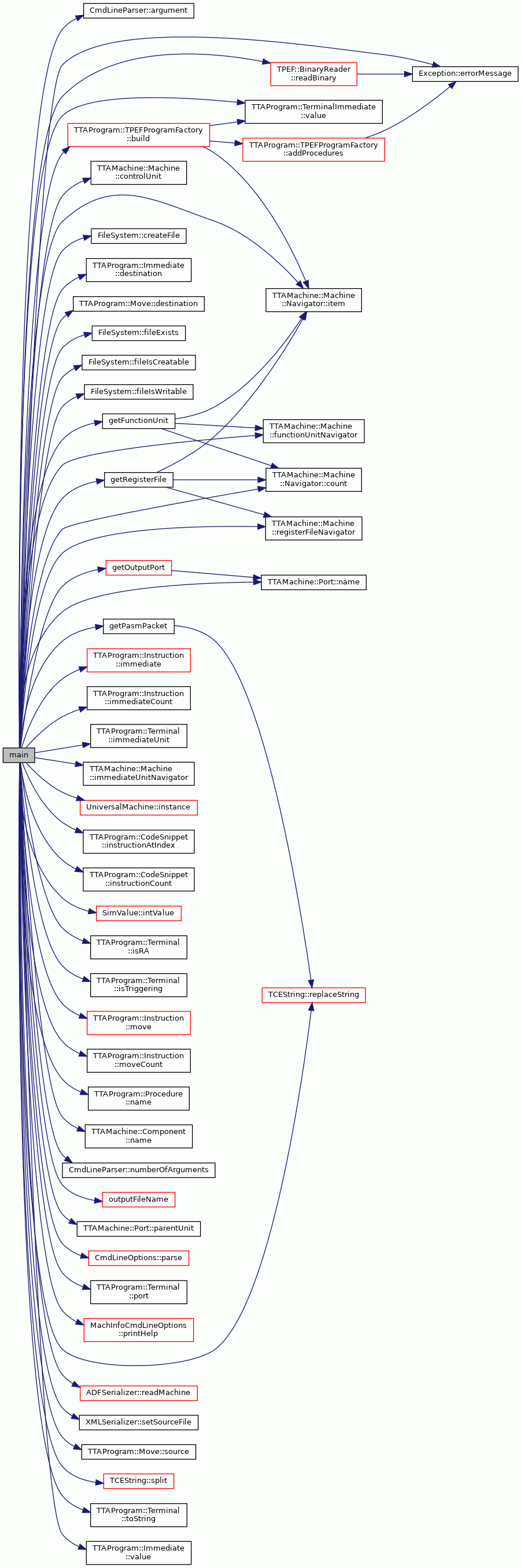

◆ main()

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 261 of file tpef2pasm.cc.

                             {
    DisasmCmdLineOptions options;

    try {
        options.parse(argv, argc);
    } catch (ParserStopRequest const&) {
        return 0;
    } catch (IllegalCommandLine& e) {
        std::cerr << "Error: Illegal commandline: " << e.errorMessage()
                  << endl
                  << endl;

        options.printHelp();
        return 1;
    }

    if (options.numberOfArguments() != 2) {
        std::cerr << "Error: Illegal number of parameters." << endl << endl;
        options.printHelp();
        return 1;
    }

    std::string inputFileName = options.argument(2);
    // Load TPEF.
    TPEF::BinaryStream stream(inputFileName);
    TPEF::Binary* tpef = NULL;
    try {
        tpef = TPEF::BinaryReader::readBinary(stream);
    } catch (Exception& e) {
        cerr << "Can't read TPEF binary file: " << options.argument(2) << endl
             << e.errorMessage() << endl;
        return 1;
    }

    // Load machine.
    TTAMachine::Machine* machine = NULL;
    ADFSerializer machineReader;
    machineReader.setSourceFile(options.argument(1));
    try {
        machine = machineReader.readMachine();
    } catch (Exception& e) {
        cerr << "Error: " << options.argument(1) << " is not a valid ADF File"
             << endl
             << e.errorMessage() << endl;

        delete tpef;
        return 1;
    }

    // Create blocks instruction packet header
    std::set<TCEString> blocksFU;
    const TTAMachine::Machine::FunctionUnitNavigator fuNav =
        machine->functionUnitNavigator();
    const TTAMachine::Machine::RegisterFileNavigator rfNav =
        machine->registerFileNavigator();
    const TTAMachine::Machine::ImmediateUnitNavigator immNav =
        machine->immediateUnitNavigator();
    TTAMachine::ControlUnit* abu = machine->controlUnit();
    for (int i = 0; i < fuNav.count(); i++) {
        TCEString fuName = fuNav.item(i)->name();
        blocksFU.insert(fuName.split("_out")[0]);
    }
    for (int i = 0; i < rfNav.count(); i++)
        blocksFU.insert(rfNav.item(i)->name());
    for (int i = 0; i < immNav.count(); i++)
        blocksFU.insert(immNav.item(i)->name());
    blocksFU.insert(abu->name());

    // Create POM.
    TTAProgram::Program* program = NULL;

    try {
        TTAProgram::TPEFProgramFactory factory(*tpef, *machine);
        program = factory.build();
    } catch (Exception& e) {
        // Try if mixed code
        try {
            TTAProgram::TPEFProgramFactory factory(
                *tpef, *machine, &UniversalMachine::instance());
            program = factory.build();
        } catch (Exception& e1) {
            cerr << "Error: " << e.errorMessage() << " and "
                 << e1.errorMessage() << endl;
            delete tpef;
            delete machine;
            return 1;
        }
    }

    std::ostream* output = &std::cout;
    std::fstream file;
    std::string outputFileName = options.outputFileDefined()
                                     ? options.outputFile()
                                     : inputFileName + ".pasm";
    if (!options.printToStdout()) {
        if ((!FileSystem::fileExists(outputFileName) &&
             FileSystem::fileIsCreatable(outputFileName))) {
            FileSystem::createFile(outputFileName);
            file.open(
                outputFileName.c_str(),
                std::fstream::trunc | std::fstream::out);
            output = &file;
        } else if (FileSystem::fileIsWritable(outputFileName)) {
            file.open(
                outputFileName.c_str(),
                std::fstream::trunc | std::fstream::out);
            if (file.is_open()) output = &file;
        }
    }

    // Write code section disassembly.
    POMDisassembler disassembler(*program);

    // assumes instruction addresses always start from 0
    PasmPacket pasmHeader;
    TCEString pasm = getPasmPacket(pasmHeader, blocksFU, "", true);

    // Write code section disassembly.
    for (int p = 0; p < program->procedureCount(); p++) {
        const TTAProgram::Procedure& proc = program->procedureAtIndex(p);
        TCEString label = proc.name();

        // Process each instruction
        for (int i = 0; i < proc.instructionCount(); i++) {
            TTAProgram::Instruction* instr = &proc.instructionAtIndex(i);
            // ASM map: {FU: {operand: asm}}
            PasmPacket asmMap;

            // Generate immediates
            for (int j = 0; j < instr->immediateCount(); j++) {
                TTAProgram::Immediate& imm = instr->immediate(j);
                asmMap[imm.destination().immediateUnit().name()][0] = "imm";
                asmMap[imm.destination().immediateUnit().name()][1] =
                    std::to_string(imm.value().value().intValue()); // signed value
            }

            // Generate instructions
            for (int j = 0; j < instr->moveCount(); j++) {
                TTAProgram::Move& m = instr->move(j);
                TTAProgram::Terminal& src = m.source();
                TTAProgram::Terminal& dst = m.destination();

                // Input source (bypass) of an operation
                TCEString srcFUName =
                    src.port().parentUnit()->name().split("_out")[0];
                TCEString srcPortName = src.port().name();
                srcPortName = srcPortName.replaceString("out", "");
                TCEString srcPort = srcFUName + "." + srcPortName;

                // Operand port of FU
                TTAMachine::FunctionUnit* dstFU =
                    getFunctionUnit(machine, dst.port().parentUnit()->name());
                TTAMachine::RegisterFile* dstRF =
                    getRegisterFile(machine, dst.port().parentUnit()->name());
                TTAMachine::RegisterFile* srcRF =
                    getRegisterFile(machine, src.port().parentUnit()->name());

                if (srcRF) { // found a load
                    if (!asmMap.count(srcRF->name())) {
                        asmMap[srcRF->name()][0] = "lrm";
                    } else if(asmMap[srcRF->name()][0] == "srm") { // if there is already a store
                        asmMap[srcRF->name()][0] = "lrm_srm";
                    }
                    asmMap[srcRF->name()][1] =
                        "r" + src.toString().split(".")[1];
                }

                if (dstRF) { // found a store
                    if (!asmMap.count(dstRF->name())) {
                        asmMap[dstRF->name()][0] = "srm";
                    } else if (asmMap[dstRF->name()][0] == "lrm") {  // if there is already a load
                        asmMap[dstRF->name()][0] = "lrm_srm";
                    }
                    asmMap[dstRF->name()][2] =
                        "r" + dst.toString().split(".")[1];
                    asmMap[dstRF->name()][3] = srcPort;
                } else if (dstFU) {
                    TCEString dstPort = dst.port().name();
                    dstPort = dstPort.replaceString("in", "");
                    TCEString dstFUName = dstFU->name().split("_out")[0];
                    if (dst.isTriggering()) {
                        TCEString opName = dst.toString().split(".")[2];
                        asmMap[dstFUName][0] = opName;
                        TCEString outPort = getOutputPort(dstFU, opName);
                        if (!outPort.empty())
                            asmMap[dstFUName][0] += " " + outPort + ",";
                    }
                    int inputPortID = std::stoi(dstPort.split("t")[0]);
                    asmMap[dstFUName][inputPortID] = srcPort;
                } else {
                    // ABU move. Handle it based on Blocks assumptions
                    std::vector<TCEString> abuParm =
                        dst.toString().split(".");
                    TCEString dstFUName = abu->name().split("_out")[0];
                    if (dst.isRA()) {
                        // Convert to store to RF
                        asmMap[dstFUName][0] = "srm";
                        asmMap[dstFUName][1] = "r1"; // $RA
                        asmMap[dstFUName][2] = srcPort;
                    } else if (dst.isTriggering()) {
                        // Handle control flow calls
                        asmMap[dstFUName][0] = abuParm[2];
                        asmMap[dstFUName][1] = srcPort;
                    } else if (abuParm[1].ciEqual("value")) {
                        // Handle additional param
                        asmMap[dstFUName][2] = srcPort;
                    } else {
                        std::cout << "Parsing failed for: " + dst.toString()
                                  << std::endl;
                        assert(false && "unknown format for abu op\n");
                    }
                }
            }
            pasm += getPasmPacket(asmMap, blocksFU, label);
            label.clear();
        }
    }
    *output << pasm;
    return 0;
}

References CmdLineParser::argument(), assert, TTAProgram::TPEFProgramFactory::build(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), FileSystem::createFile(), TTAProgram::Immediate::destination(), TTAProgram::Move::destination(), Exception::errorMessage(), FileSystem::fileExists(), FileSystem::fileIsCreatable(), FileSystem::fileIsWritable(), TTAMachine::Machine::functionUnitNavigator(), getFunctionUnit(), getOutputPort(), getPasmPacket(), getRegisterFile(), TTAProgram::Instruction::immediate(), TTAProgram::Instruction::immediateCount(), TTAProgram::Terminal::immediateUnit(), TTAMachine::Machine::immediateUnitNavigator(), UniversalMachine::instance(), TTAProgram::CodeSnippet::instructionAtIndex(), TTAProgram::CodeSnippet::instructionCount(), SimValue::intValue(), TTAProgram::Terminal::isRA(), TTAProgram::Terminal::isTriggering(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine, TTAProgram::Instruction::move(), TTAProgram::Instruction::moveCount(), TTAMachine::Component::name(), TTAMachine::Port::name(), TTAProgram::Procedure::name(), CmdLineParser::numberOfArguments(), options, outputFileName(), TTAMachine::Port::parentUnit(), CmdLineOptions::parse(), TTAProgram::Terminal::port(), MachInfoCmdLineOptions::printHelp(), program, TPEF::BinaryReader::readBinary(), ADFSerializer::readMachine(), TTAMachine::Machine::registerFileNavigator(), TCEString::replaceString(), XMLSerializer::setSourceFile(), TTAProgram::Move::source(), TCEString::split(), TTAProgram::Terminal::toString(), TTAProgram::Immediate::value(), and TTAProgram::TerminalImmediate::value().

Here is the call graph for this function:

Classes

Typedefs

Functions

Detailed Description

Typedef Documentation

◆ PasmPacket

Function Documentation

◆ getFunctionUnit()

◆ getOutputPort()

◆ getPasmPacket()

◆ getRegisterFile()

◆ main()
