#include <DefaultDecoderGenerator.hh>

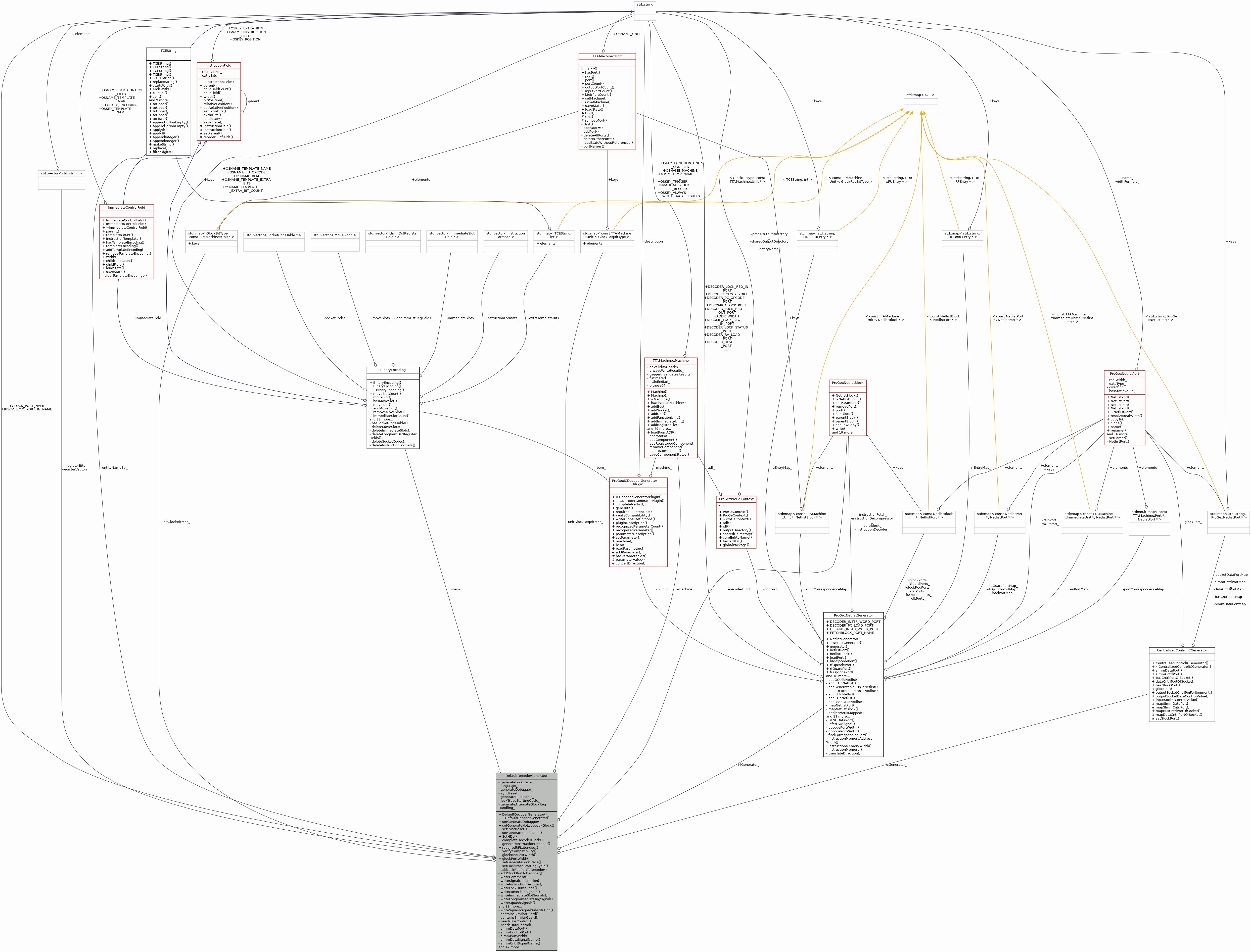

Collaboration diagram for DefaultDecoderGenerator:

Public Member Functions
	DefaultDecoderGenerator (const TTAMachine::Machine &machine, const BinaryEncoding &bem, const CentralizedControlICGenerator &icGenerator)

virtual	~DefaultDecoderGenerator ()

void	setGenerateDebugger (bool generate)

void	setGenerateNoLoopbackGlock (bool generate)

void	setSyncReset (bool value)

void	setGenerateBusEnable (bool value)

void	SetHDL (ProGe::HDL language)

void	completeDecoderBlock (const ProGe::NetlistGenerator &nlGenerator, ProGe::NetlistBlock &coreBlock)

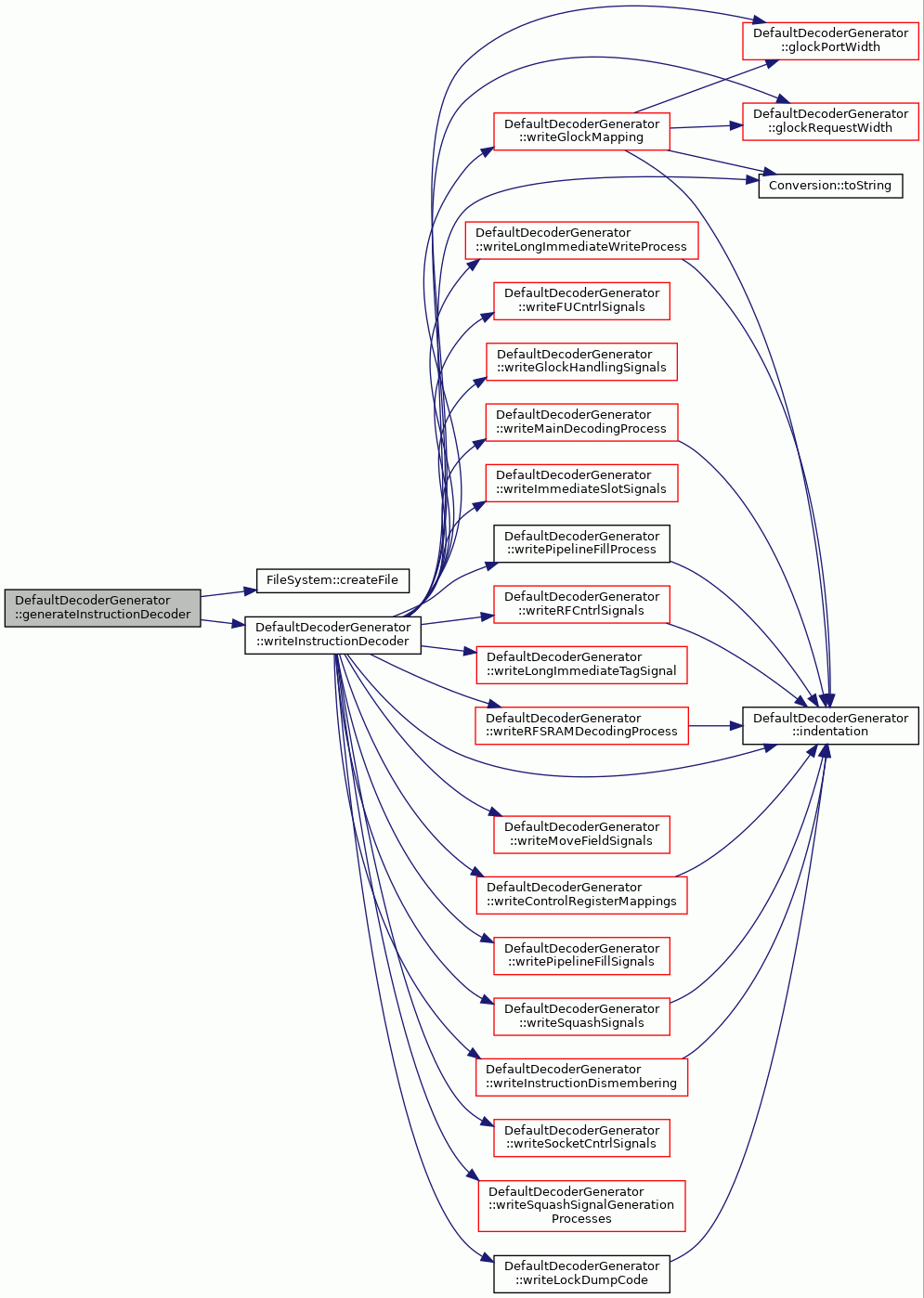

void	generateInstructionDecoder (const ProGe::NetlistGenerator &nlGenerator, const std::string &dstDirectory)

std::set< int >	requiredRFLatencies (const TTAMachine::ImmediateUnit &iu) const

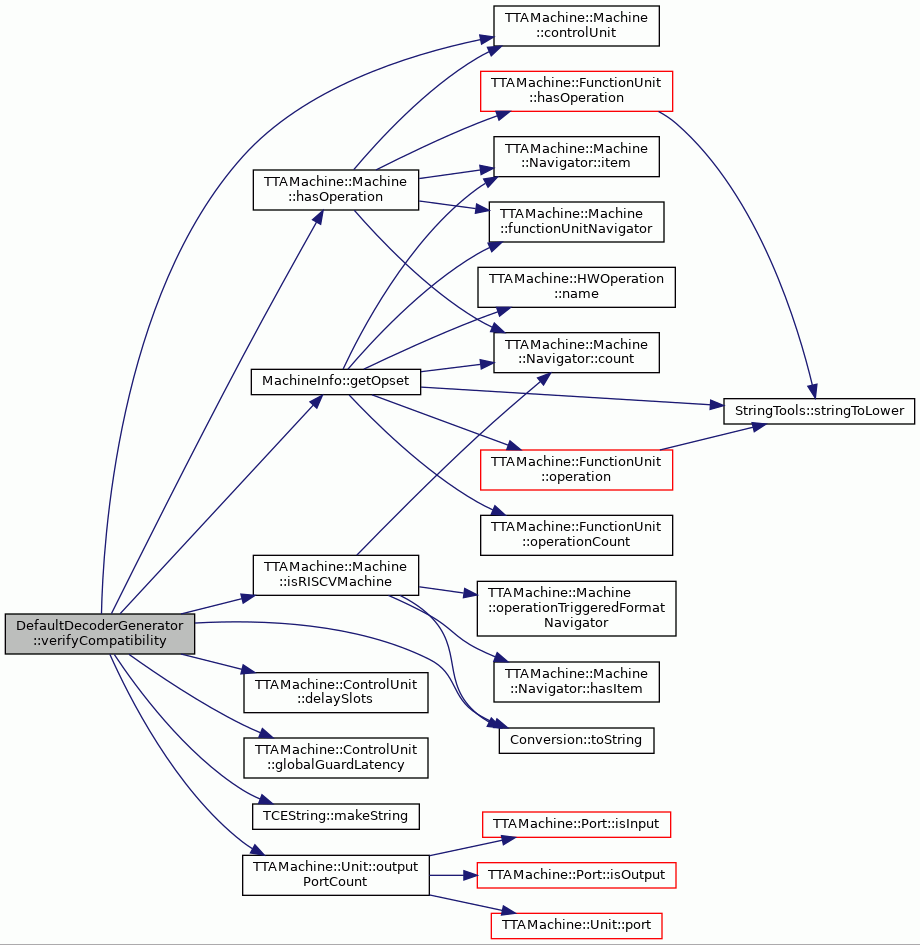

void	verifyCompatibility () const

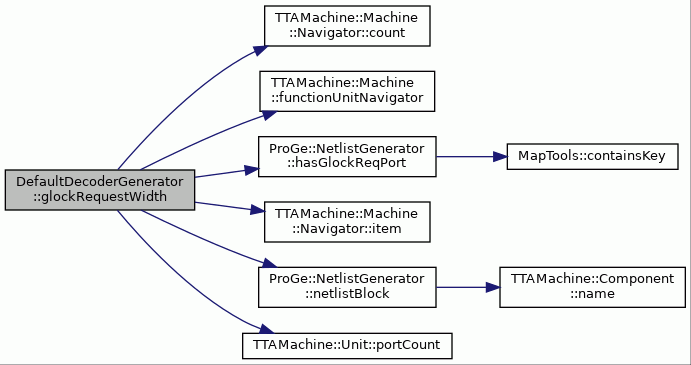

int	glockRequestWidth () const

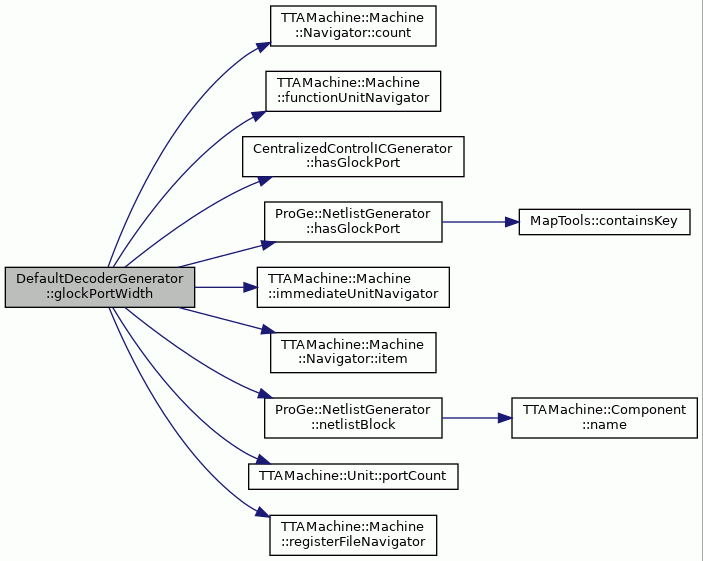

int	glockPortWidth () const

void	setGenerateLockTrace (bool generate)

void	setLockTraceStartingCycle (unsigned int startCycle)

Static Public Attributes
static const std::string	RISCV_SIMM_PORT_IN_NAME = "simm_in"

static const std::string	GLOCK_PORT_NAME = "glock"

Private Types
typedef std::set< TTAMachine::Bus * >	BusSet
	Set type for buses. More...

typedef int	GlockBitType
	Types for mapping global lock and global lock request signals. More...

typedef int	GlockReqBitType

typedef std::map< GlockBitType, const TTAMachine::Unit * >	UnitGlockBitMapType

typedef std::map< const TTAMachine::Unit *, GlockReqBitType >	UnitGlockReqBitMapType

Private Member Functions

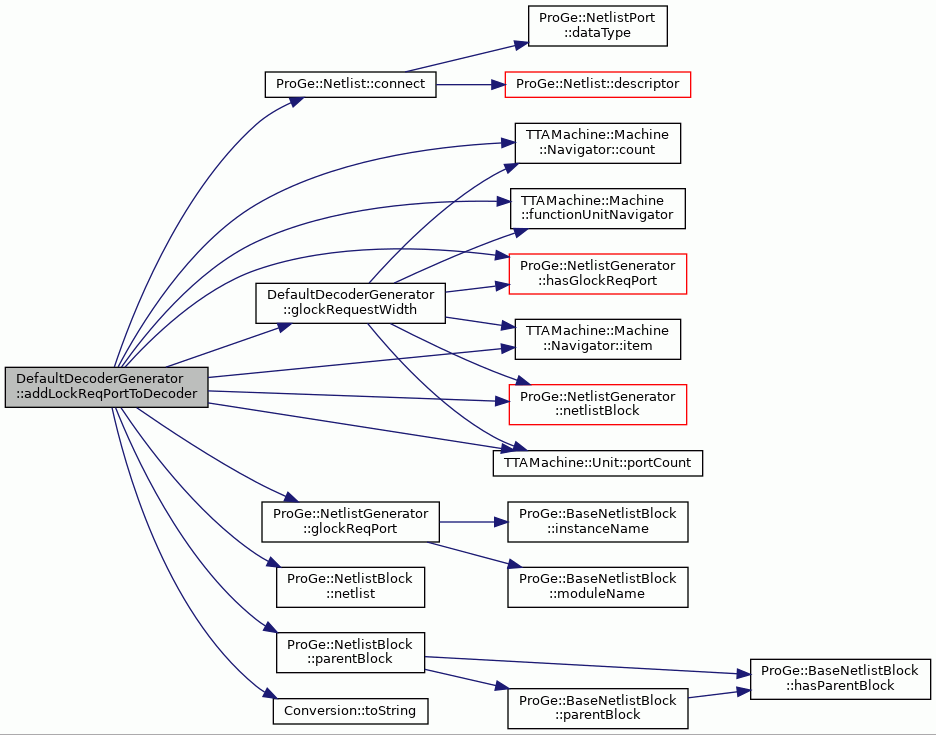

void	addLockReqPortToDecoder ()

void	addGlockPortToDecoder ()

void	writeComment (std::ostream &stream, int indent, std::string comment) const

void	writeSignalDeclaration (std::ostream &stream, ProGe::DataType type, std::string sigName, int width) const

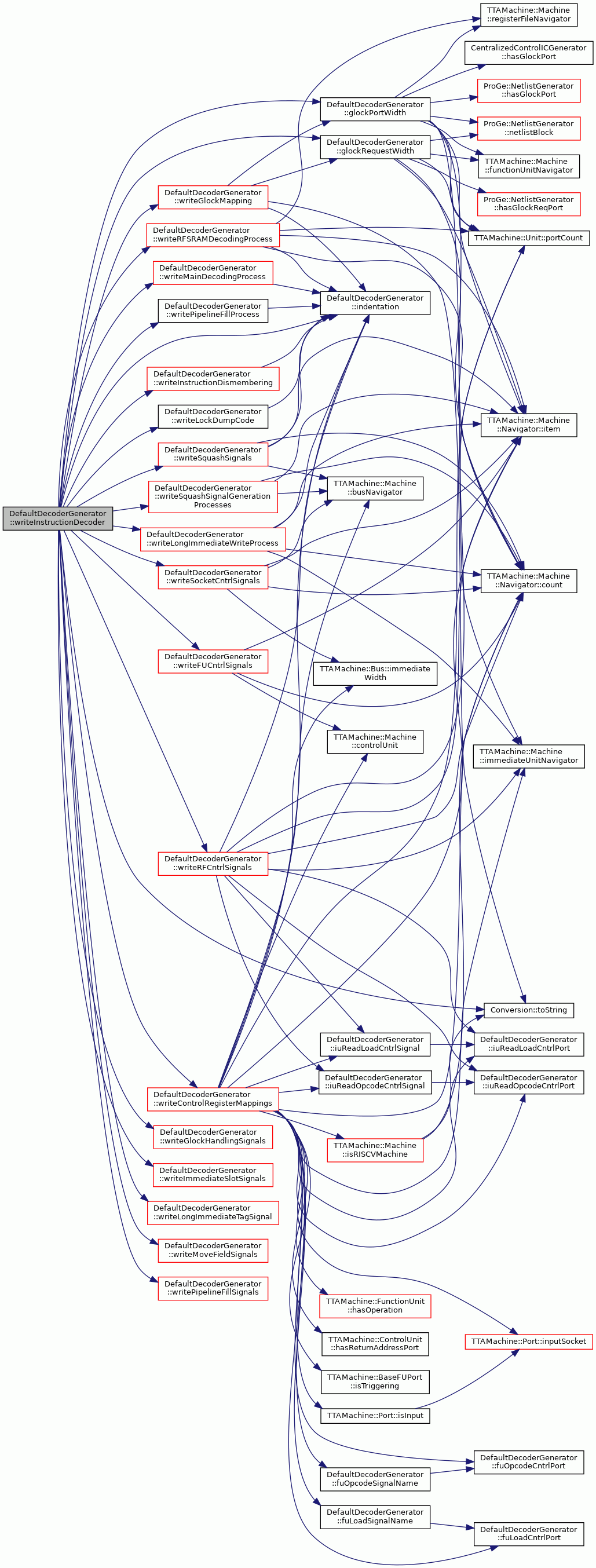

void	writeInstructionDecoder (std::ostream &stream)

void	writeLockDumpCode (std::ostream &stream) const
	void writeDecompressSignalsVHDL(std::ostream& stream) const; TBR More...

void	writeMoveFieldSignals (std::ostream &stream) const

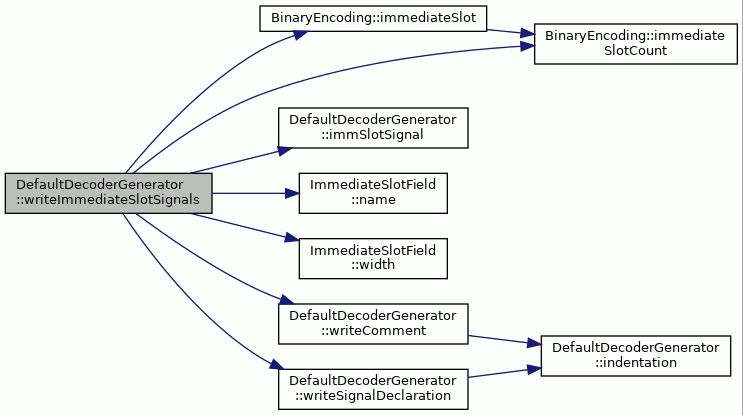

void	writeImmediateSlotSignals (std::ostream &stream) const

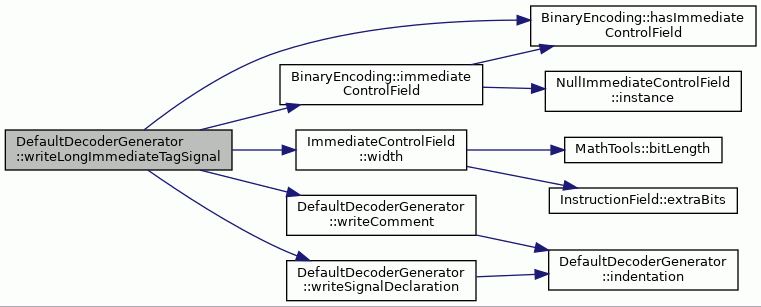

void	writeLongImmediateTagSignal (std::ostream &stream) const

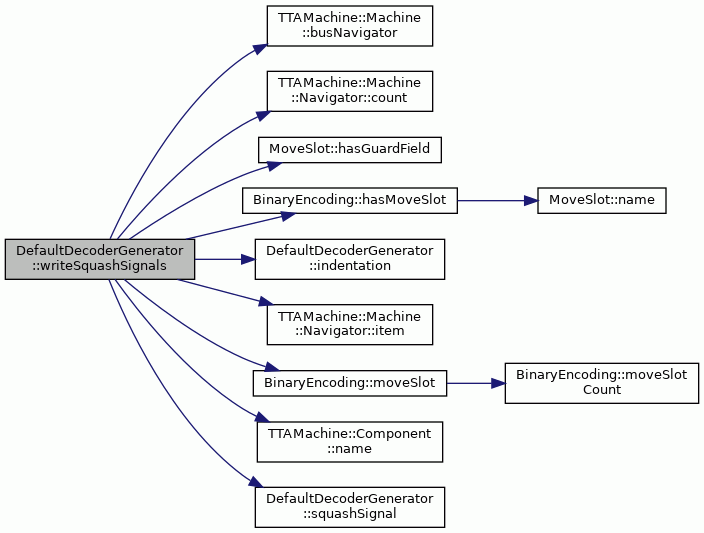

void	writeSquashSignals (std::ostream &stream) const

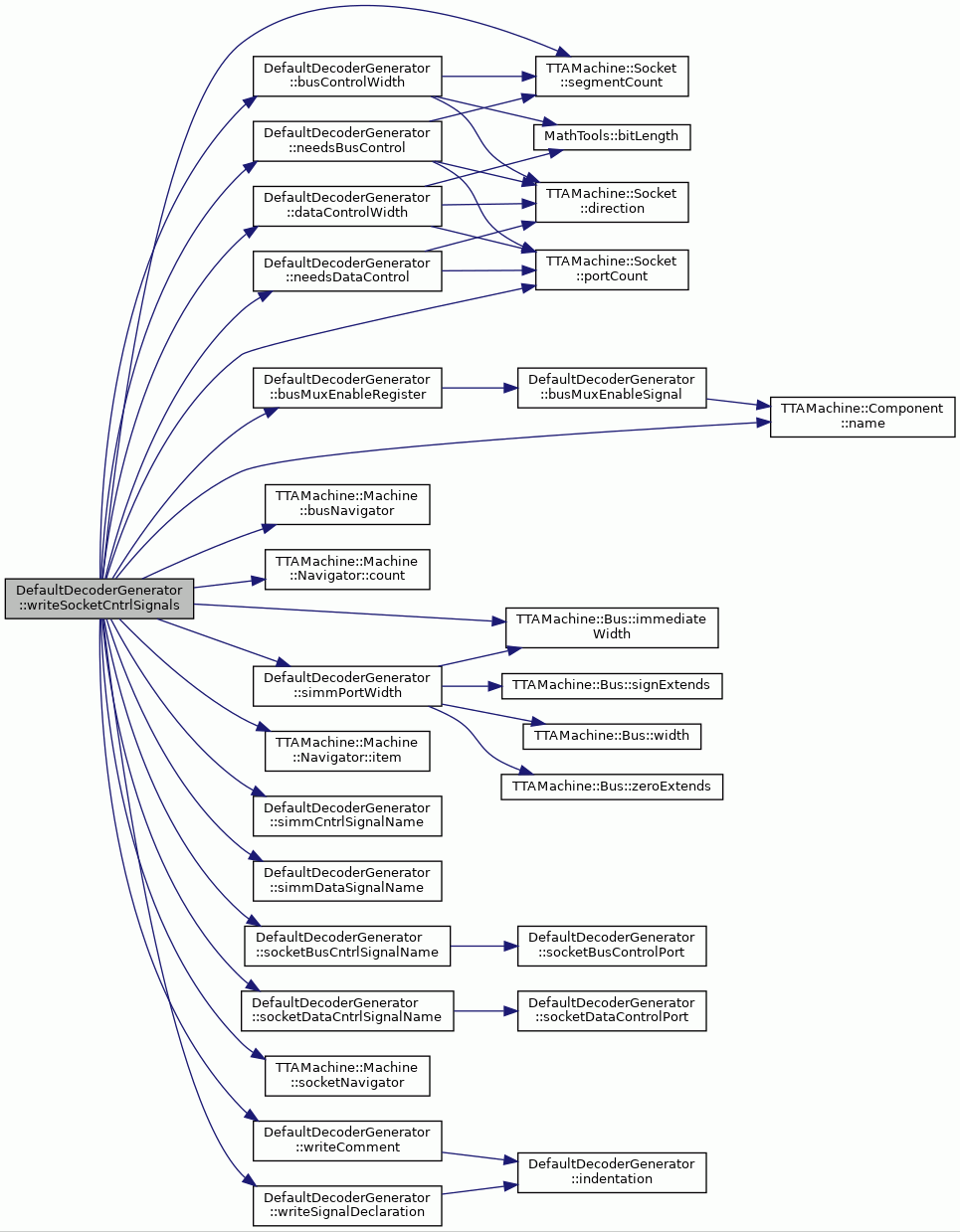

void	writeSocketCntrlSignals (std::ostream &stream)

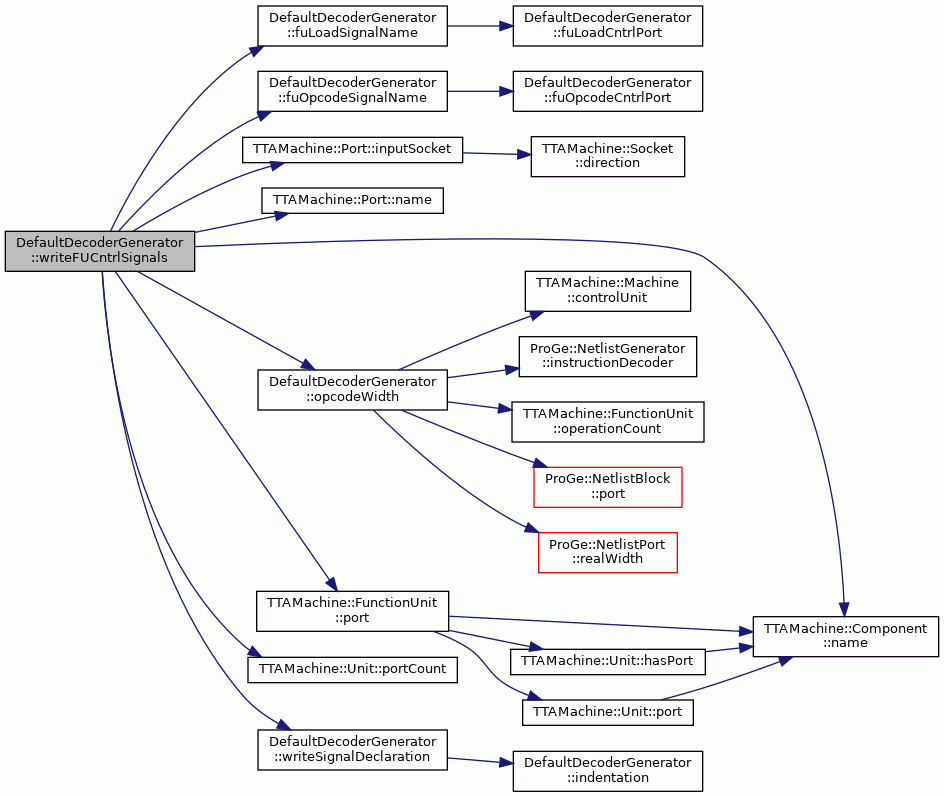

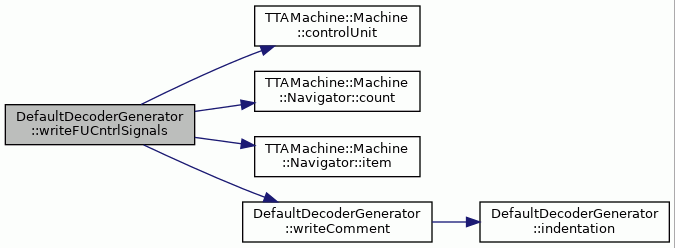

void	writeFUCntrlSignals (std::ostream &stream)

void	writeFUCntrlSignals (const TTAMachine::FunctionUnit &fu, std::ostream &stream)

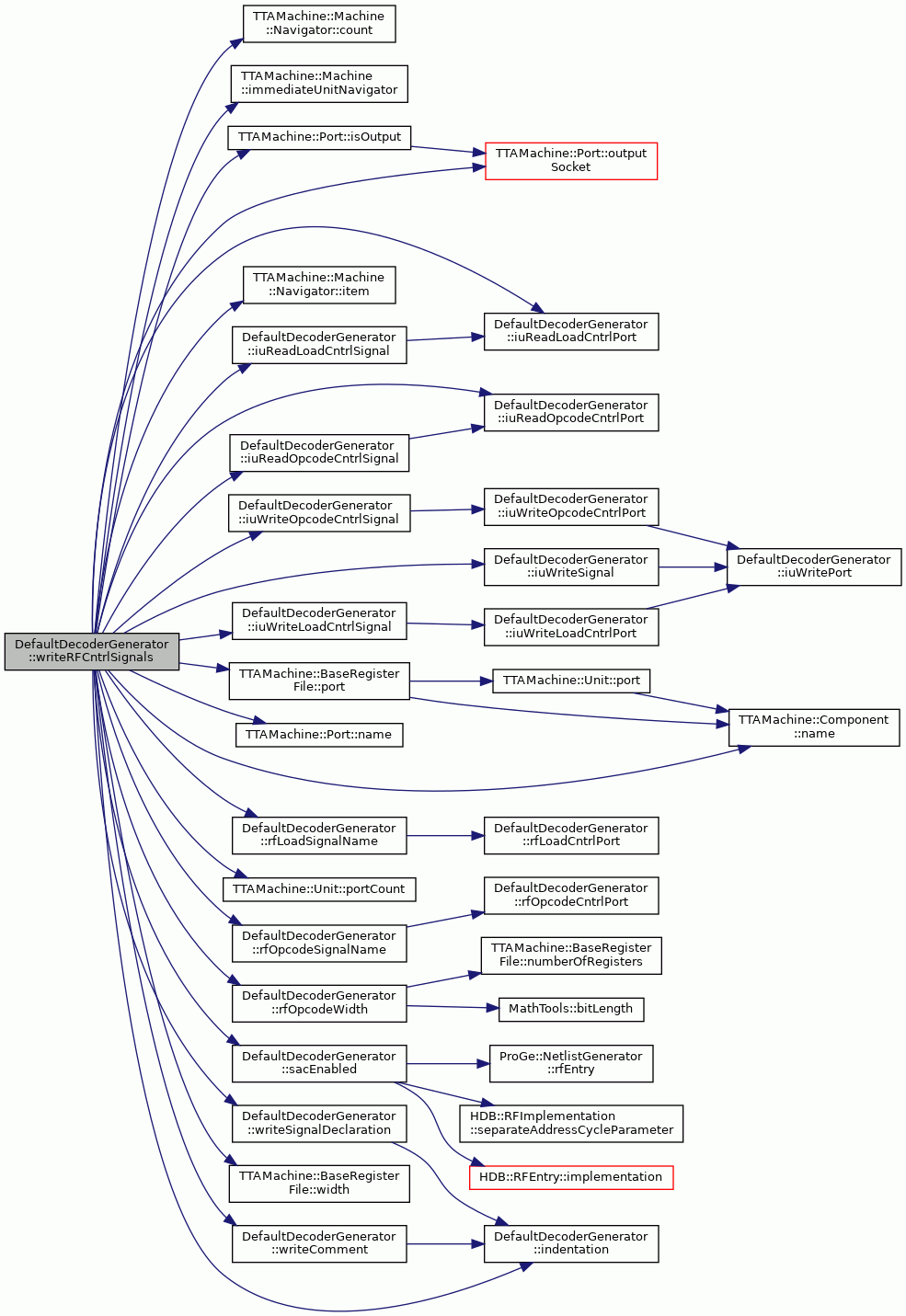

void	writeRFCntrlSignals (std::ostream &stream)

void	writeGlockHandlingSignals (std::ostream &stream) const

void	writePipelineFillSignals (std::ostream &stream) const

void	writeFullNOPConstant (std::ostream &stream) const

std::string	writeNOPEncodingVHDL () const

void	writeDismemberingAndITDecompression (std::ostream &stream) const

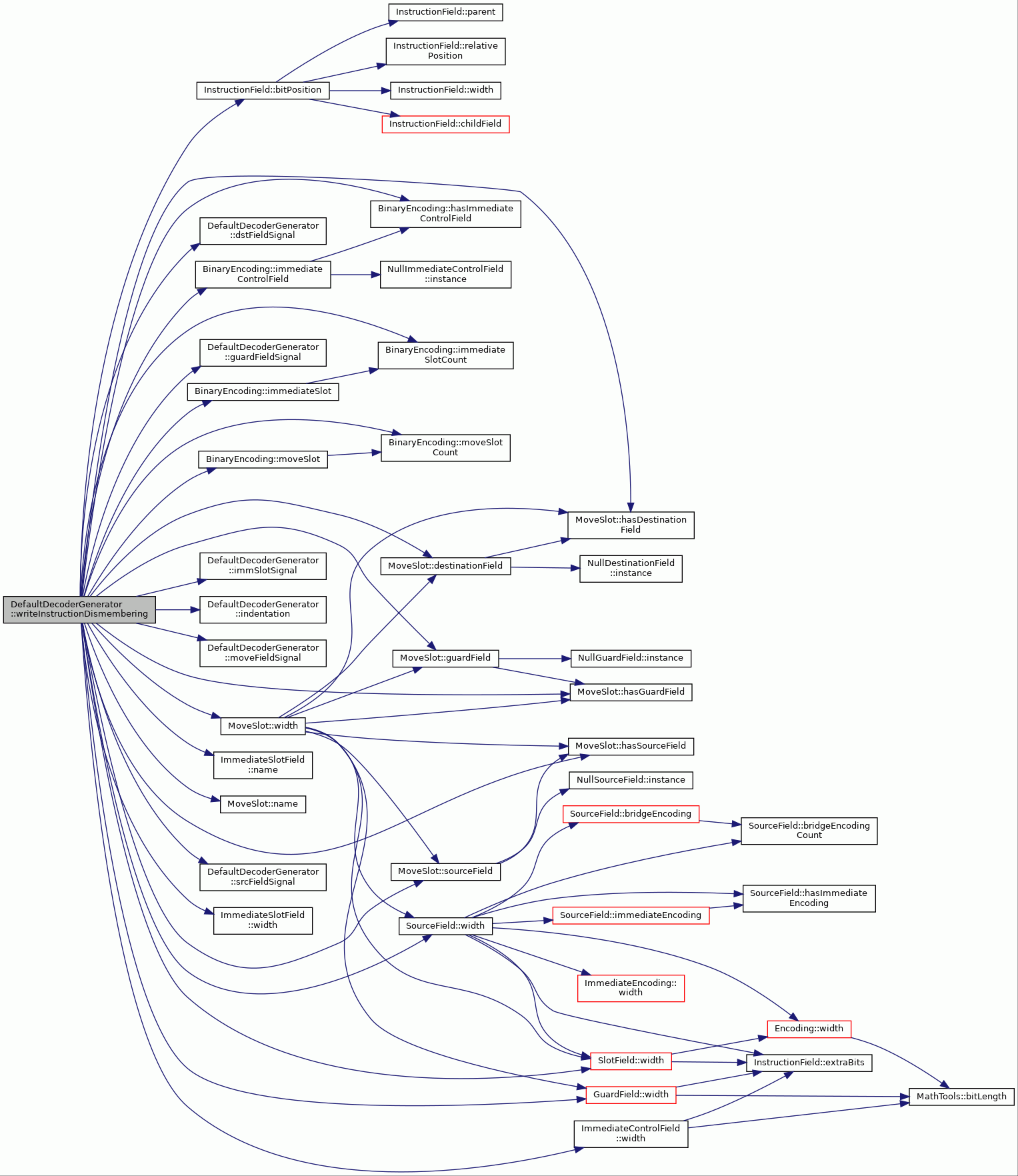

void	writeInstructionDismembering (std::ostream &stream) const

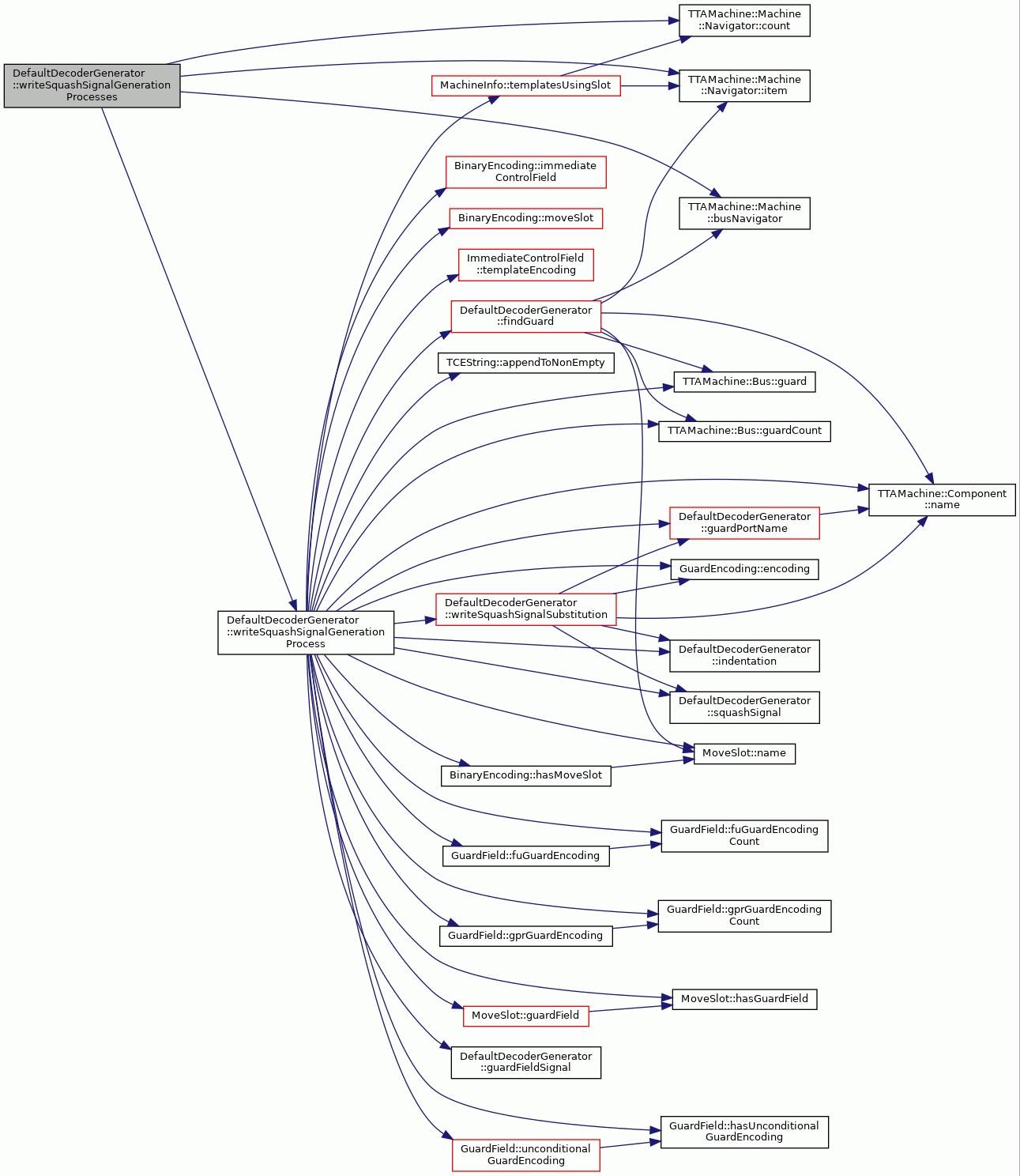

void	writeSquashSignalGenerationProcesses (std::ostream &stream) const

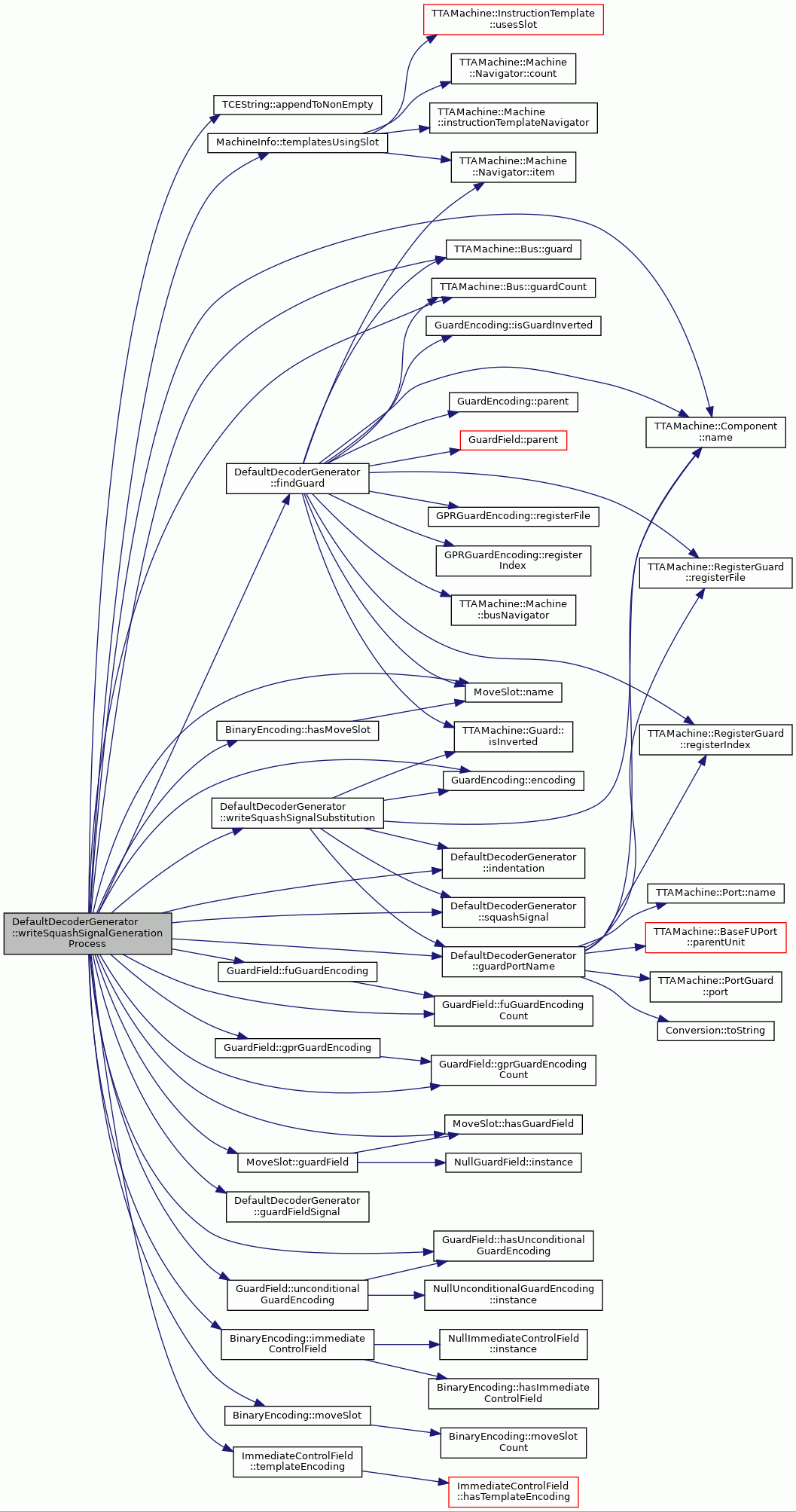

void	writeSquashSignalGenerationProcess (const TTAMachine::Bus &bus, std::ostream &stream) const

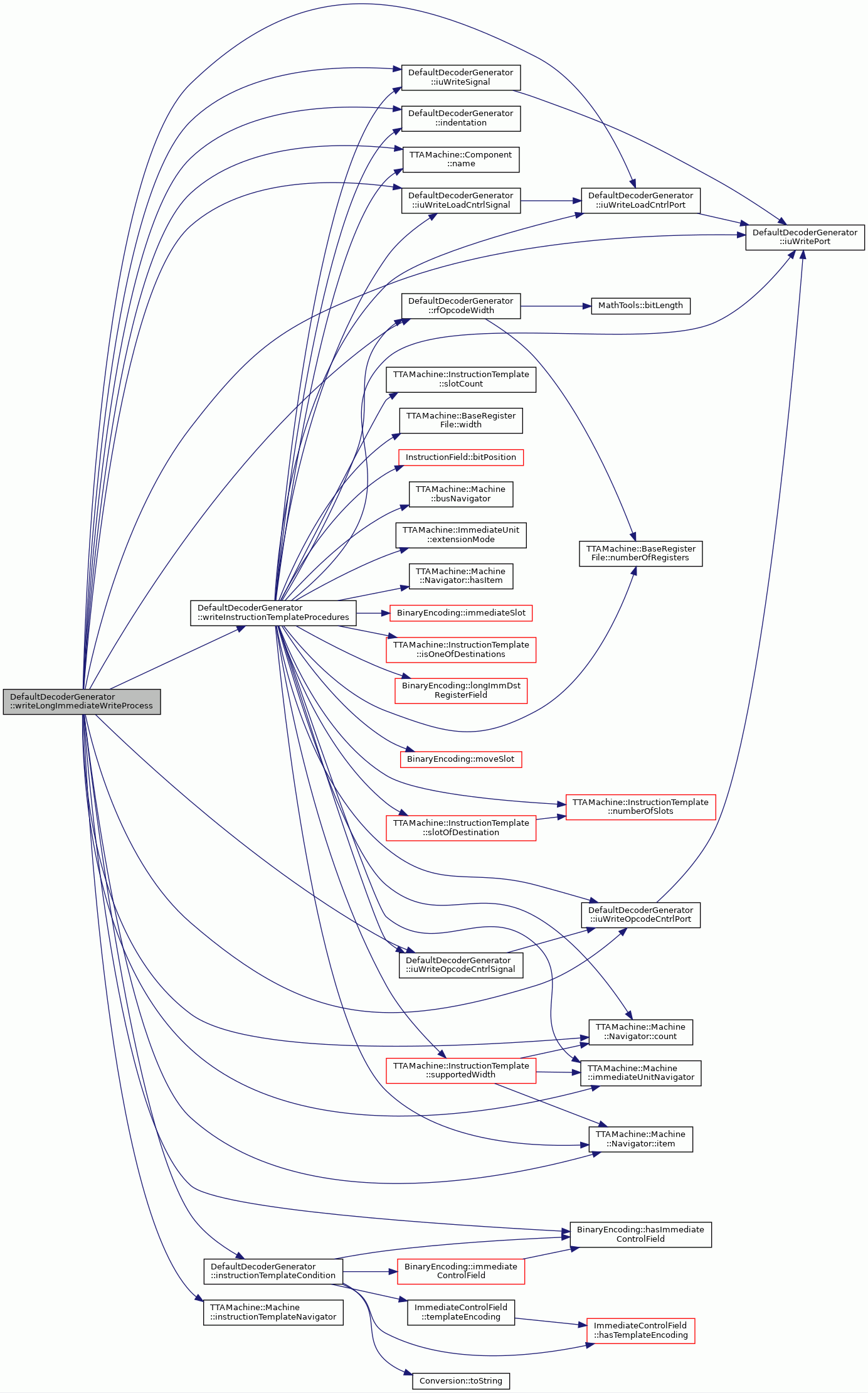

void	writeLongImmediateWriteProcess (std::ostream &stream) const

void	writeControlRegisterMappings (std::ostream &stream) const

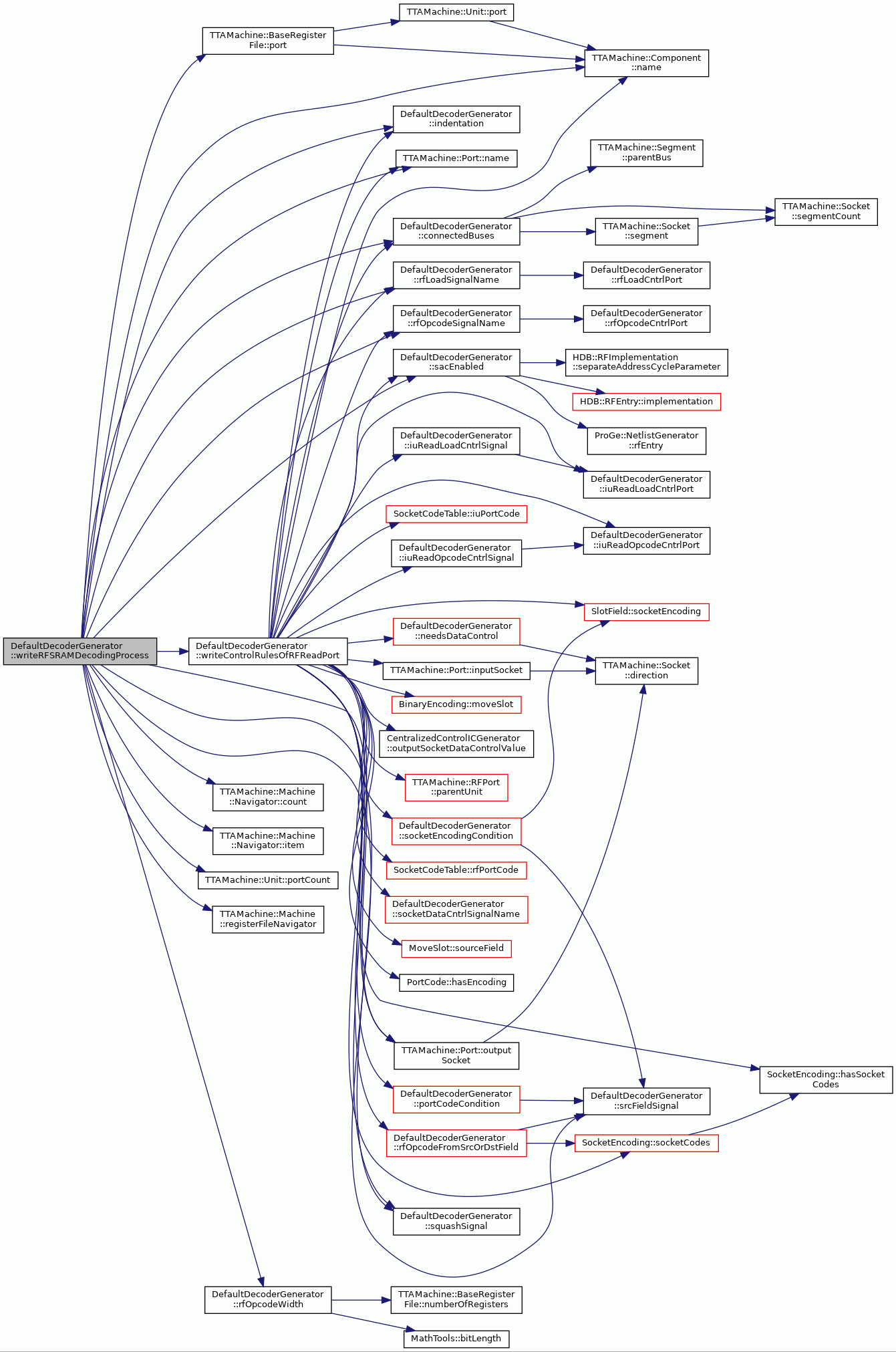

void	writeRFSRAMDecodingProcess (std::ostream &stream) const

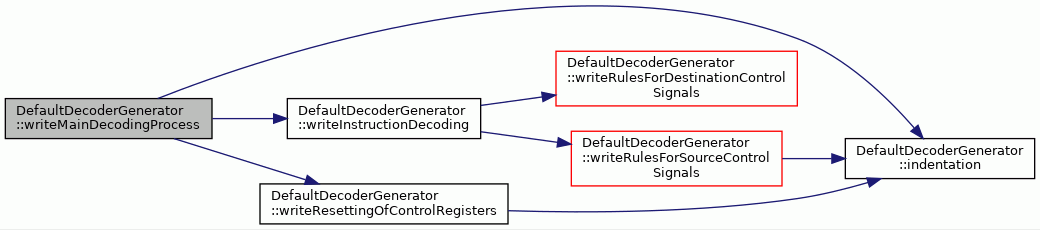

void	writeMainDecodingProcess (std::ostream &stream) const

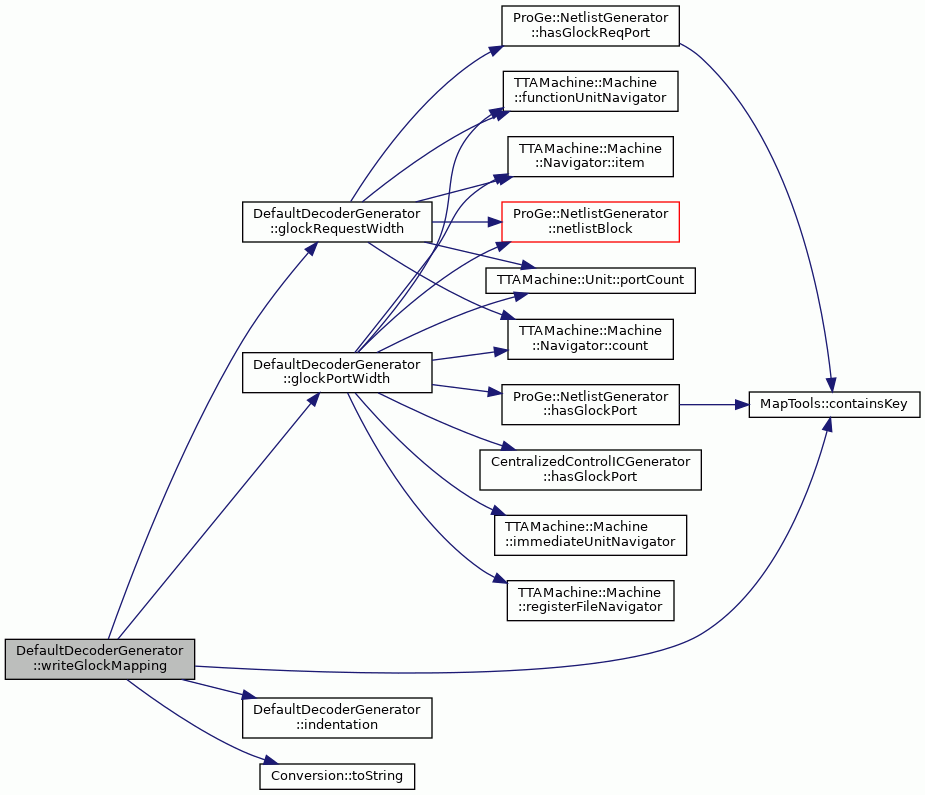

void	writeGlockMapping (std::ostream &stream) const

void	writePipelineFillProcess (std::ostream &stream) const

void	writeResettingOfControlRegisters (std::ostream &stream) const

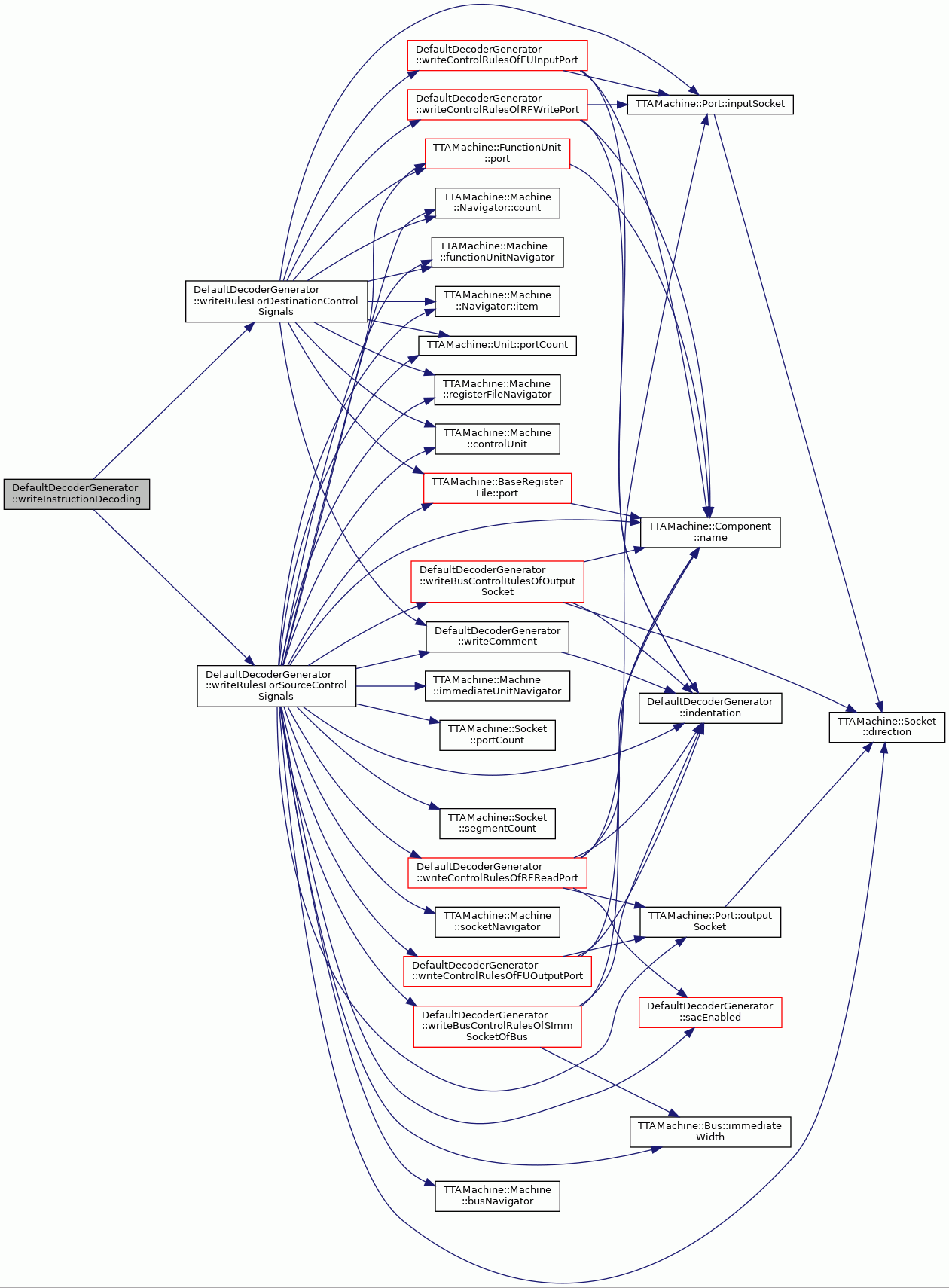

void	writeInstructionDecoding (std::ostream &stream) const

void	writeRulesForSourceControlSignals (std::ostream &stream) const

void	writeRulesForDestinationControlSignals (std::ostream &stream) const

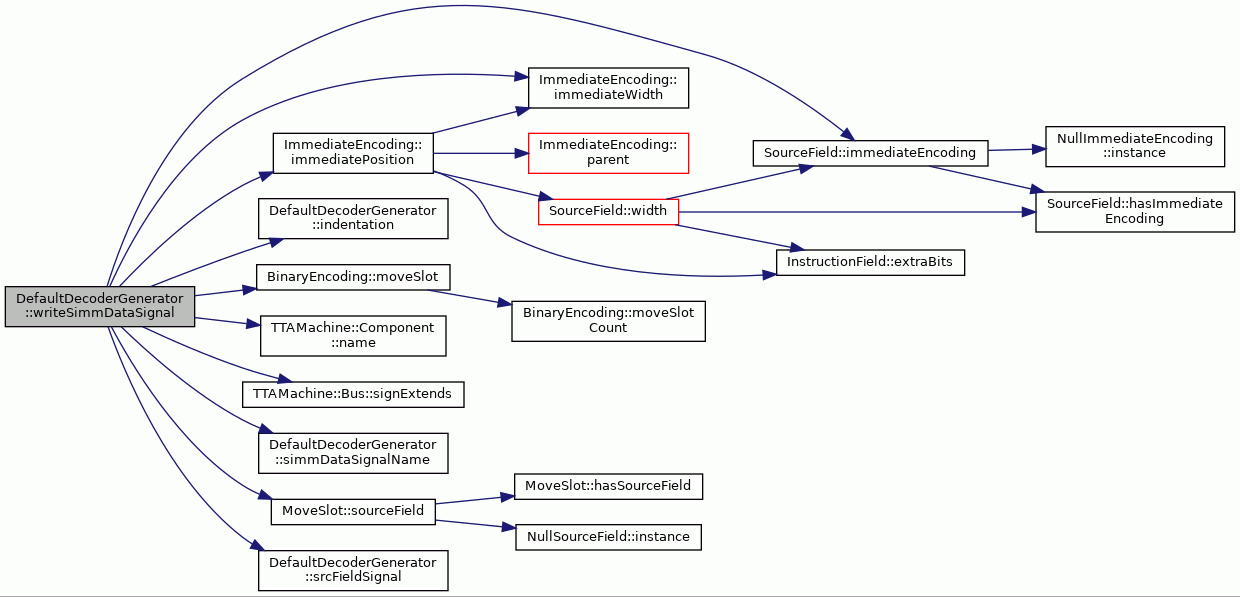

void	writeSimmDataSignal (const TTAMachine::Bus &bus, std::ostream &stream) const

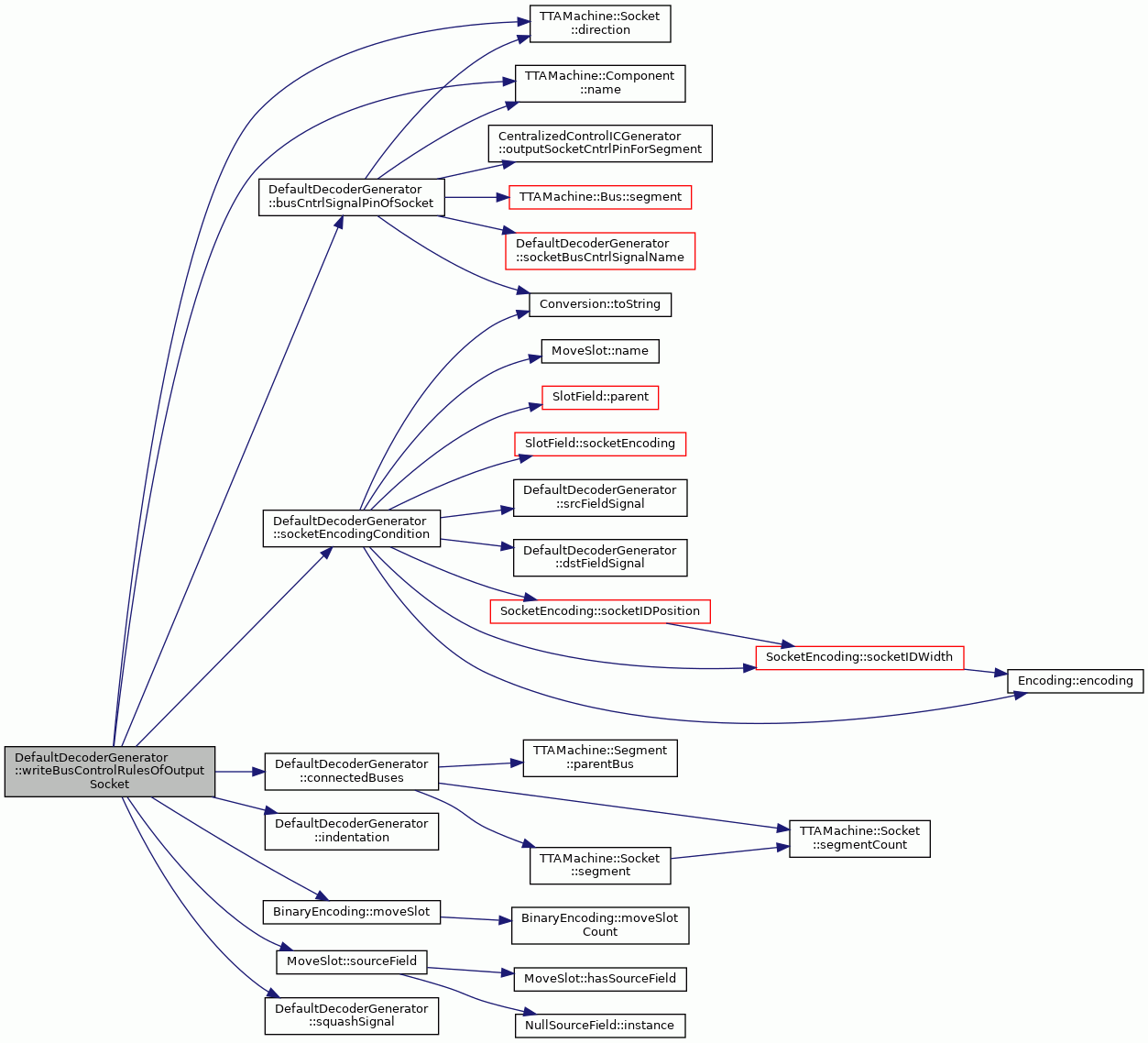

void	writeBusControlRulesOfOutputSocket (const TTAMachine::Socket &socket, std::ostream &stream) const

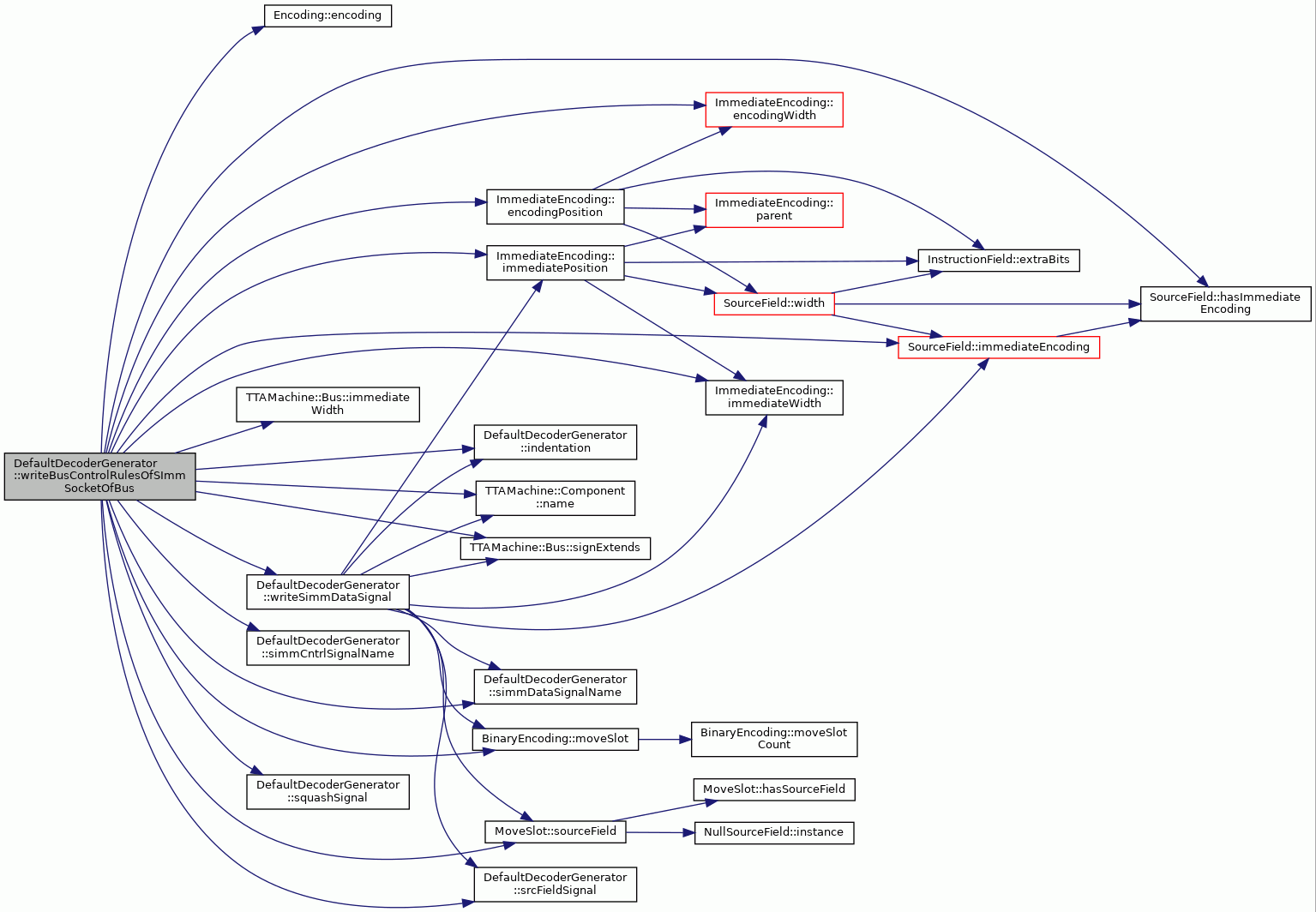

void	writeBusControlRulesOfSImmSocketOfBus (const TTAMachine::Bus &bus, std::ostream &stream) const

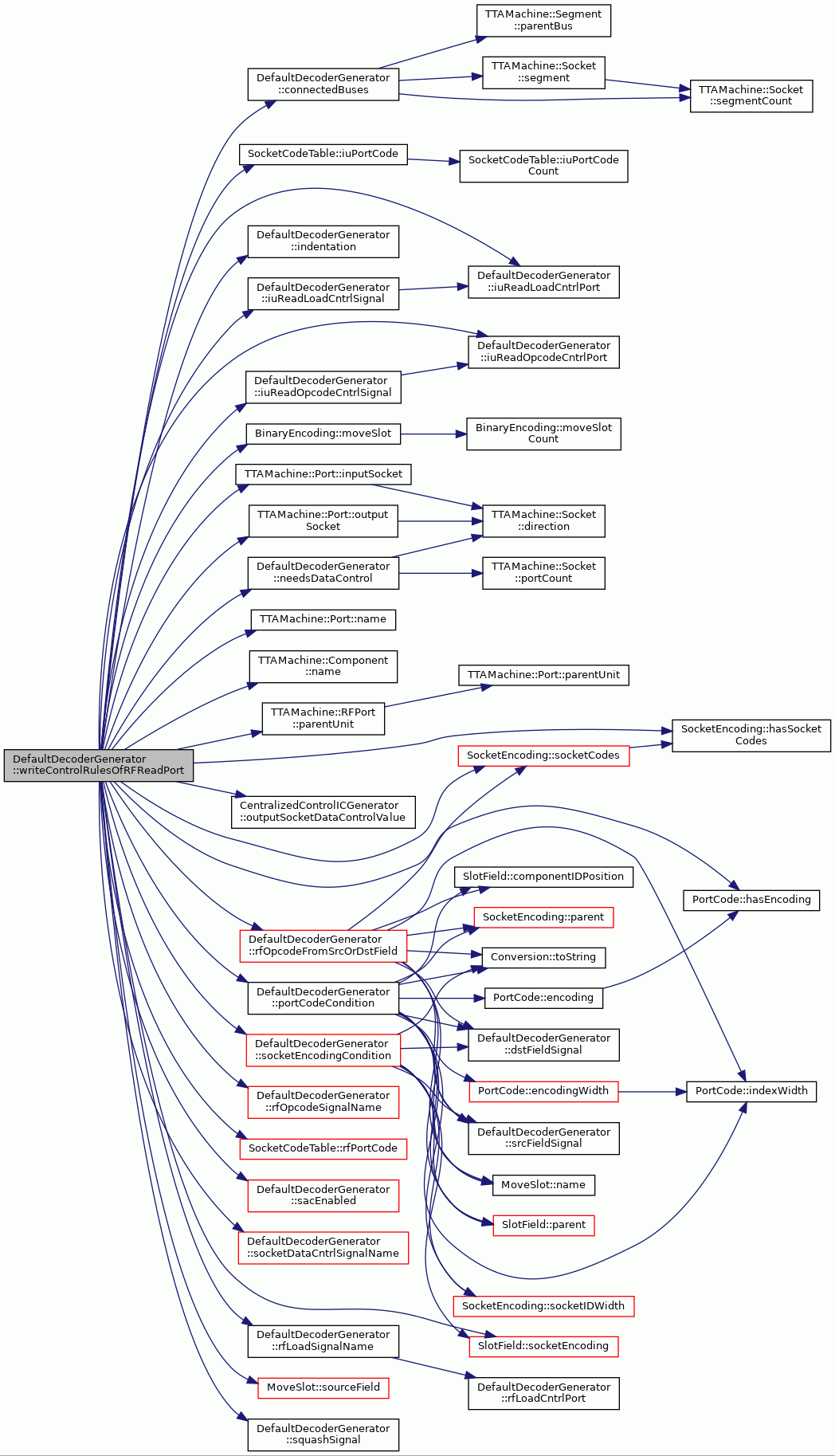

void	writeControlRulesOfRFReadPort (const TTAMachine::RFPort &port, std::ostream &stream) const

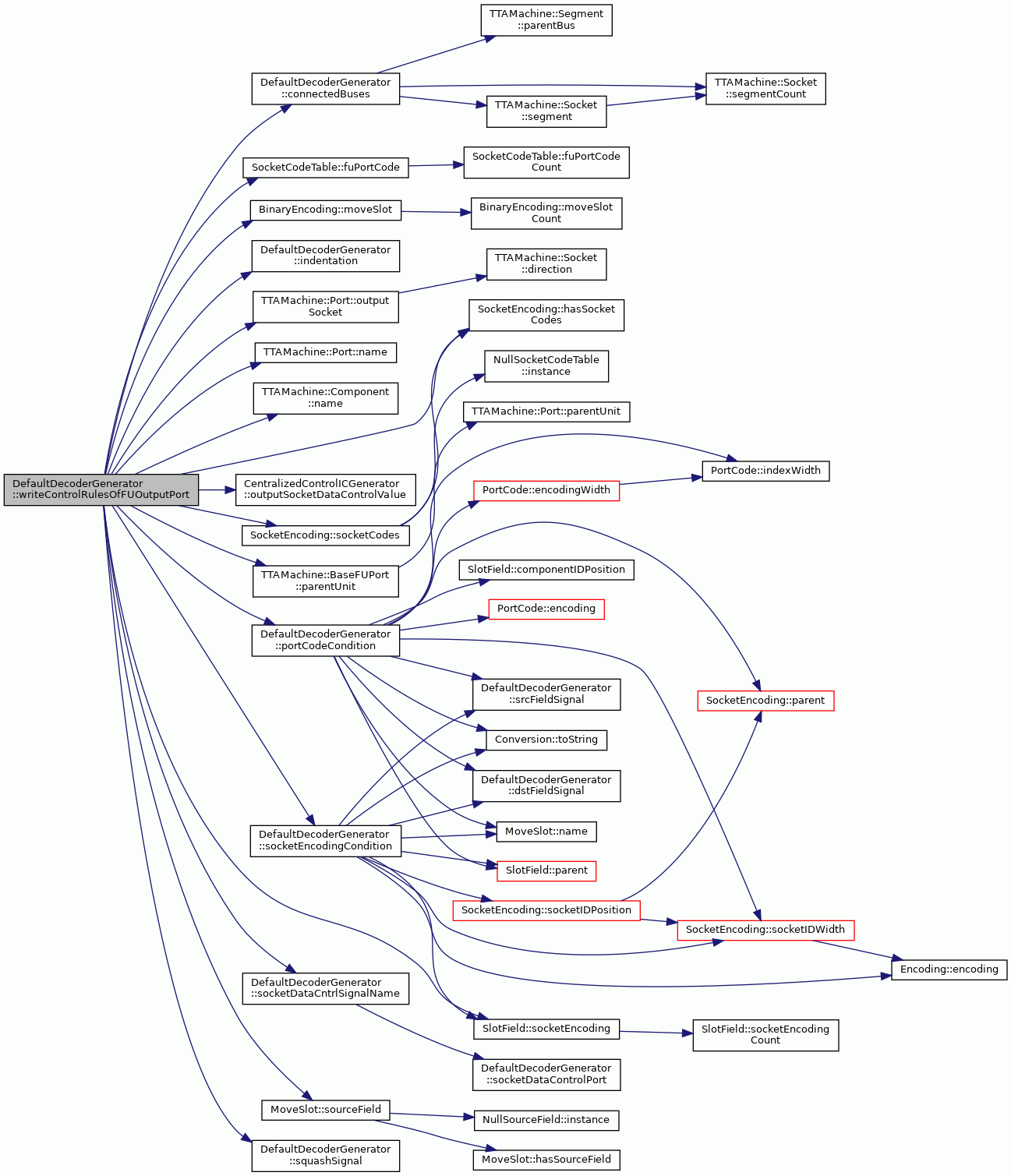

void	writeControlRulesOfFUOutputPort (const TTAMachine::BaseFUPort &port, std::ostream &stream) const

void	writeControlRulesOfFUInputPort (const TTAMachine::BaseFUPort &port, std::ostream &stream) const

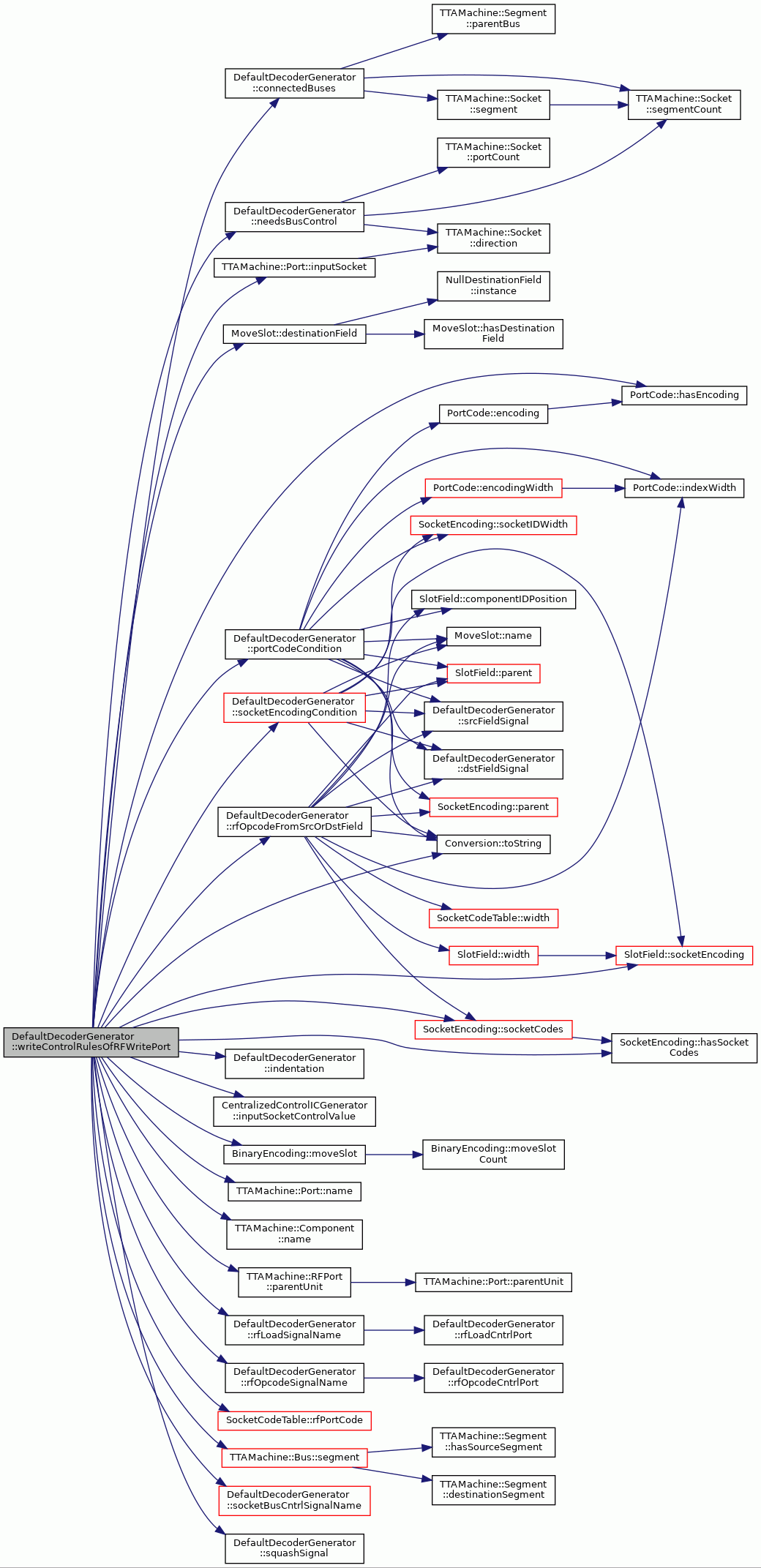

void	writeControlRulesOfRFWritePort (const TTAMachine::RFPort &port, std::ostream &stream) const

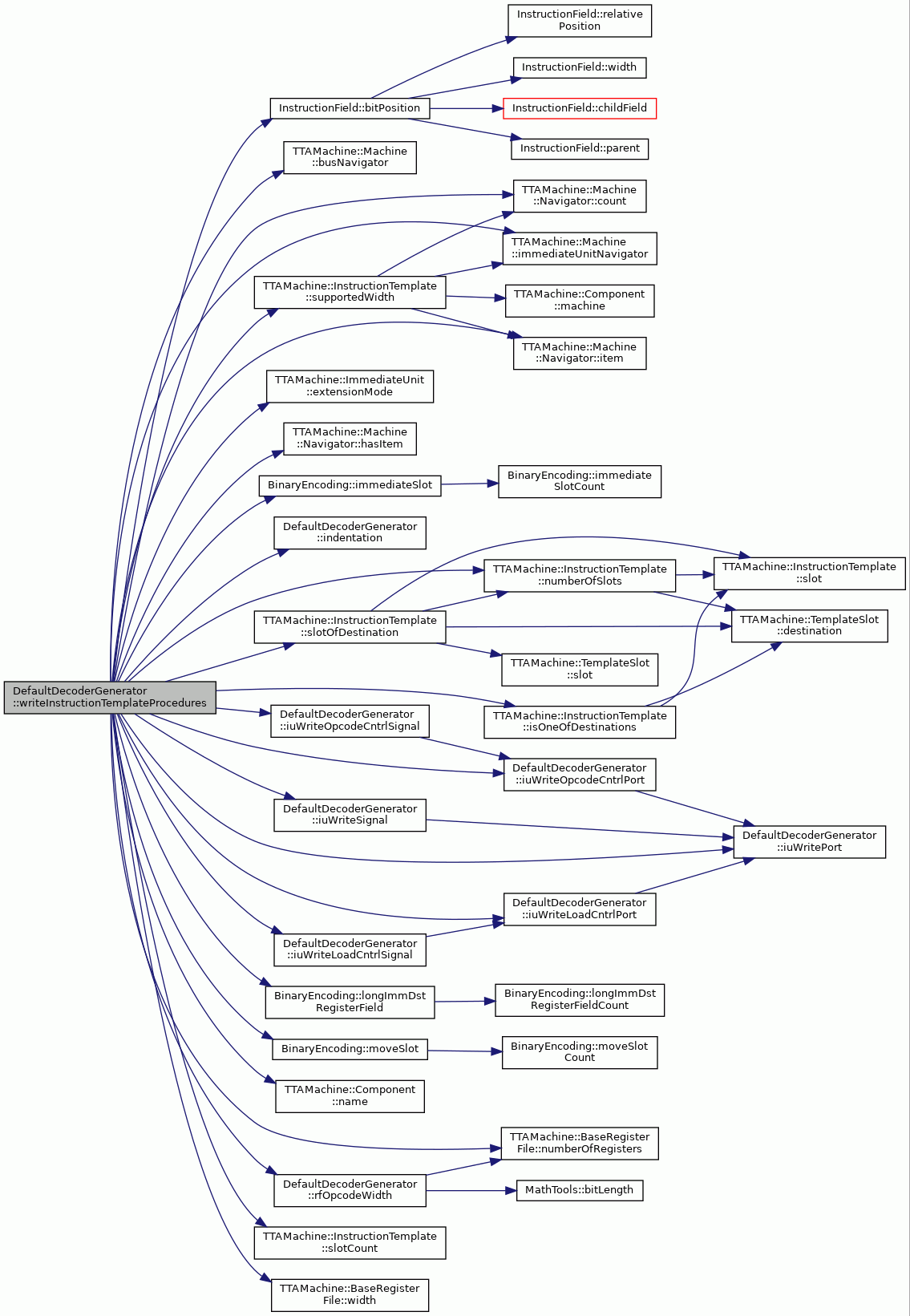

void	writeInstructionTemplateProcedures (const ProGe::HDL language, const TTAMachine::InstructionTemplate &iTemp, int indLevel, std::ostream &stream) const

void	writeBusMuxControlLogic (const TTAMachine::Bus &bus, const std::set< TTAMachine::Socket * > outputSockets, std::ostream &stream) const

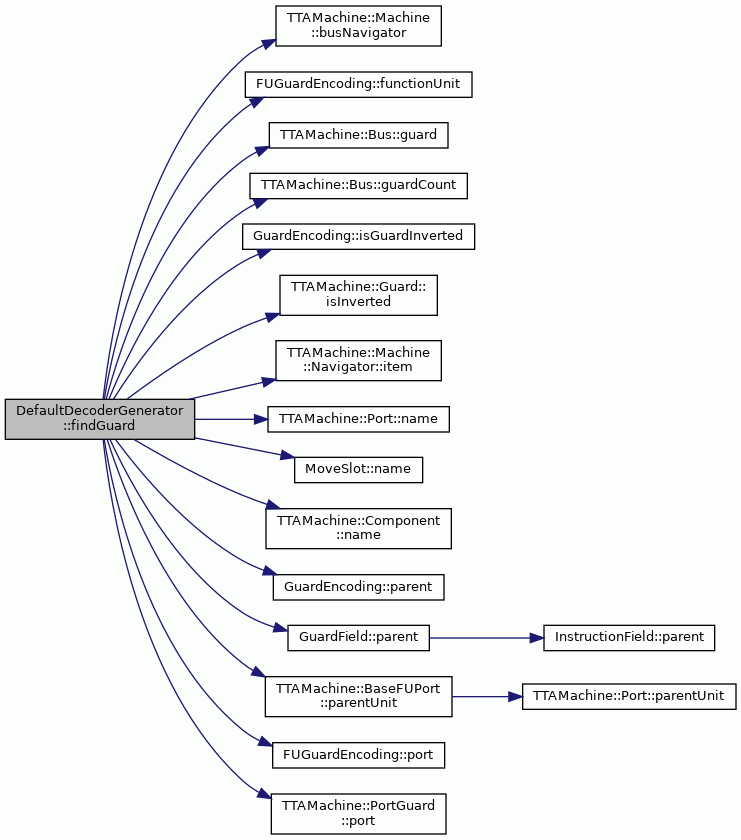

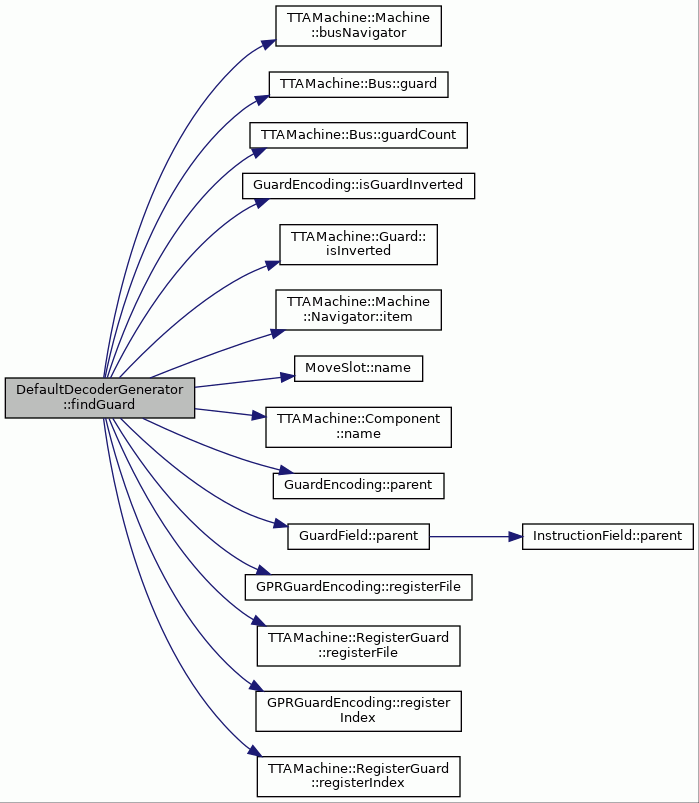

TTAMachine::RegisterGuard &	findGuard (const GPRGuardEncoding &encoding) const

TTAMachine::PortGuard &	findGuard (const FUGuardEncoding &encoding) const

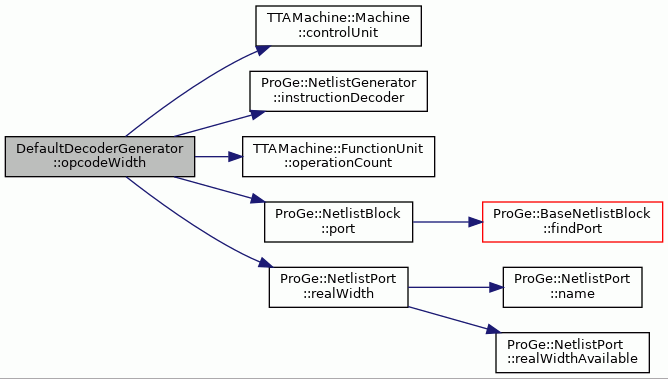

int	opcodeWidth (const TTAMachine::FunctionUnit &fu) const

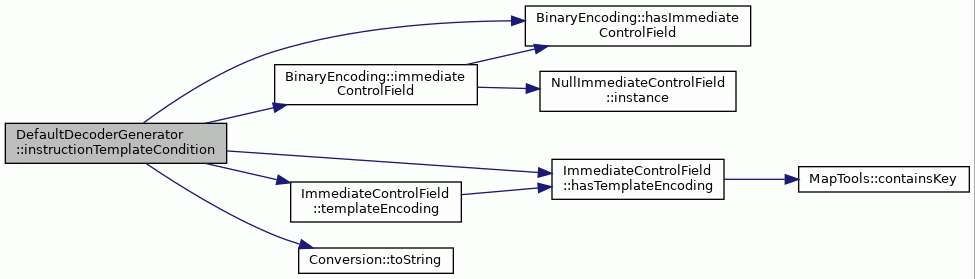

std::string	instructionTemplateCondition (const ProGe::HDL language, const std::string &iTempName) const

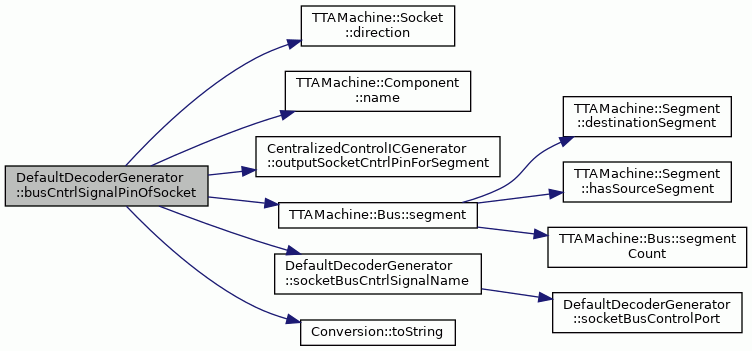

std::string	busCntrlSignalPinOfSocket (const TTAMachine::Socket &socket, const TTAMachine::Bus &bus) const

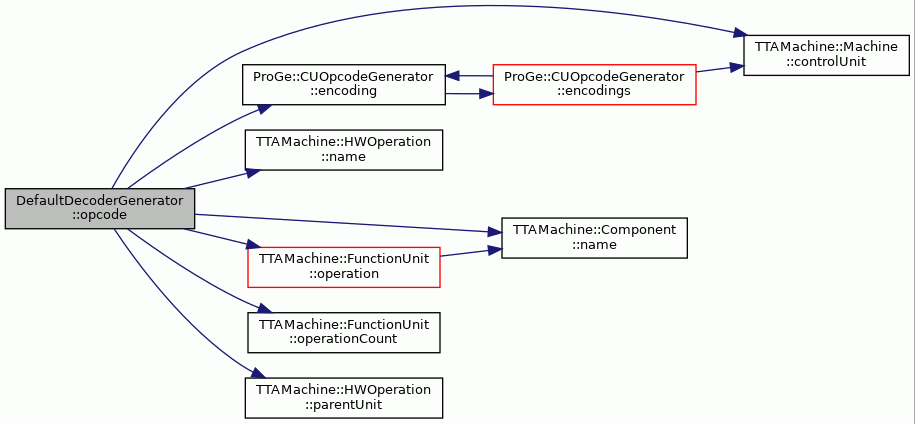

int	opcode (const TTAMachine::HWOperation &operation) const

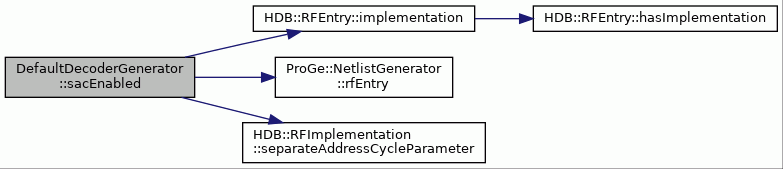

bool	sacEnabled (const std::string &rfName) const

Static Private Member Functions

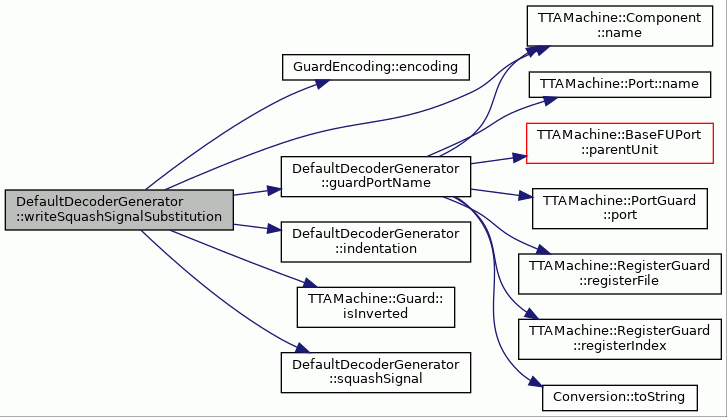

static void	writeSquashSignalSubstitution (const ProGe::HDL language, const TTAMachine::Bus &bus, const GuardEncoding &enc, const TTAMachine::Guard &guard, std::ostream &stream, int indLevel)

static bool	containsSimilarGuard (const std::set< TTAMachine::PortGuard * > &guardSet, const TTAMachine::PortGuard &guard)

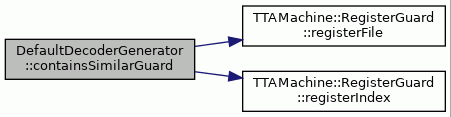

static bool	containsSimilarGuard (const std::set< TTAMachine::RegisterGuard * > &guardSet, const TTAMachine::RegisterGuard &guard)

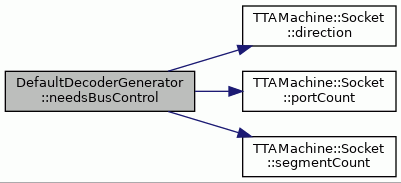

static bool	needsBusControl (const TTAMachine::Socket &socket)

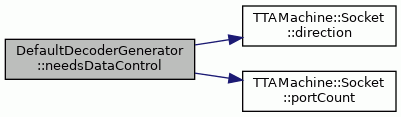

static bool	needsDataControl (const TTAMachine::Socket &socket)

static std::string	simmDataPort (const std::string &busName)

static std::string	simmControlPort (const std::string &busName)

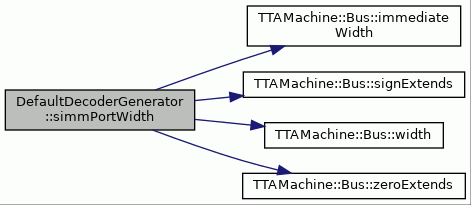

static int	simmPortWidth (const TTAMachine::Bus &bus)

static std::string	simmDataSignalName (const std::string &busName)

static std::string	simmCntrlSignalName (const std::string &busName)

static std::string	fuLoadCntrlPort (const std::string &fuName, const std::string &portName)

static std::string	fuLoadSignalName (const std::string &fuName, const std::string &portName)

static std::string	fuOpcodeCntrlPort (const std::string &fu)

static std::string	fuOpcodeSignalName (const std::string &fu)

static std::string	rfLoadCntrlPort (const std::string &rfName, const std::string &portName)

static std::string	rfLoadSignalName (const std::string &rfName, const std::string &portName, bool async=false)

static std::string	rfOpcodeSignalName (const std::string &rfName, const std::string &portName, bool async=false)

static std::string	rfOpcodeCntrlPort (const std::string &rfName, const std::string &portName)

static std::string	iuReadOpcodeCntrlPort (const std::string &unitName, const std::string &portName)

static std::string	iuReadOpcodeCntrlSignal (const std::string &unitName, const std::string &portName)

static std::string	iuReadLoadCntrlPort (const std::string &unitName, const std::string &portName)

static std::string	iuReadLoadCntrlSignal (const std::string &unitName, const std::string &portName)

static std::string	iuWritePort (const std::string &iuName)

static std::string	iuWriteSignal (const std::string &iuName)

static std::string	iuWriteOpcodeCntrlPort (const std::string &unitName)

static std::string	iuWriteOpcodeCntrlSignal (const std::string &unitName)

static std::string	iuWriteLoadCntrlPort (const std::string &unitName)

static std::string	iuWriteLoadCntrlSignal (const std::string &unitName)

static std::string	busMuxCntrlSignal (const TTAMachine::Bus &bus)

static std::string	busMuxCntrlRegister (const TTAMachine::Bus &bus)

static std::string	busMuxEnableSignal (const TTAMachine::Bus &bus)

static std::string	busMuxEnableRegister (const TTAMachine::Bus &bus)

static std::string	socketBusControlPort (const std::string &name)

static std::string	socketDataControlPort (const std::string &name)

static std::string	moveFieldSignal (const std::string &busName)

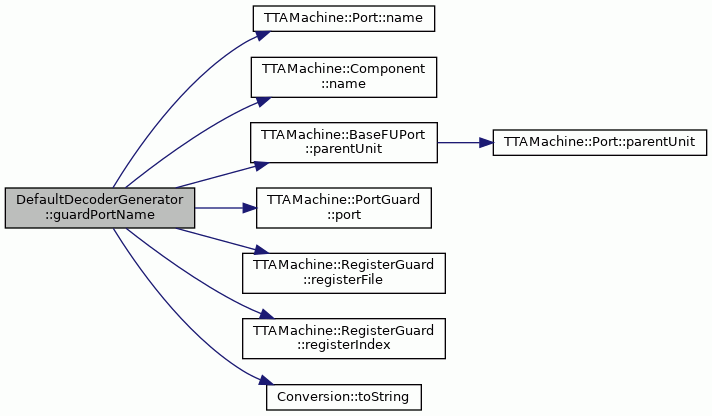

static std::string	guardPortName (const TTAMachine::Guard &guard)

static std::string	srcFieldSignal (const std::string &busName)

static std::string	dstFieldSignal (const std::string &busName)

static std::string	guardFieldSignal (const std::string &busName)

static std::string	immSlotSignal (const std::string &immSlot)

static std::string	squashSignal (const std::string &busName)

static std::string	socketBusCntrlSignalName (const std::string &name)

static std::string	socketDataCntrlSignalName (const std::string &name)

static std::string	gcuDataPort (const std::string &nameInADF)

static int	busControlWidth (const TTAMachine::Socket &socket)

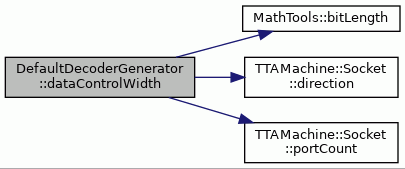

static int	dataControlWidth (const TTAMachine::Socket &socket)

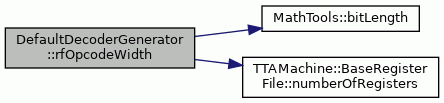

static int	rfOpcodeWidth (const TTAMachine::BaseRegisterFile &rf)

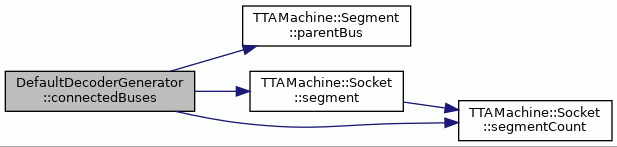

static BusSet	connectedBuses (const TTAMachine::Socket &socket)

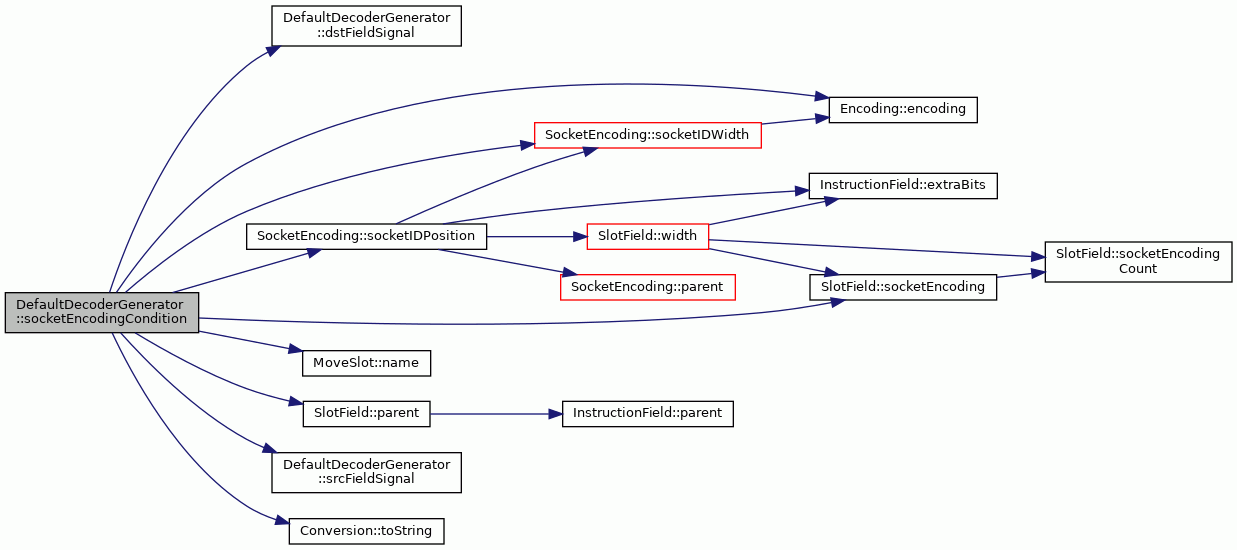

static std::string	socketEncodingCondition (const ProGe::HDL language, const SlotField &srcField, const std::string &socketName)

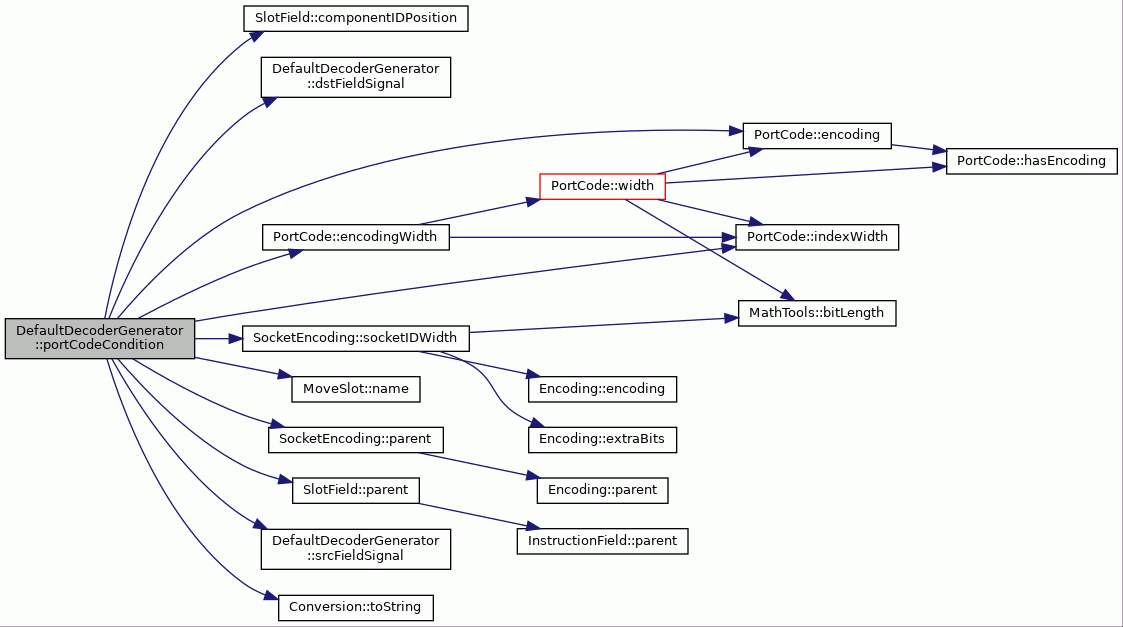

static std::string	portCodeCondition (const ProGe::HDL language, const SocketEncoding &socketEnc, const PortCode &code)

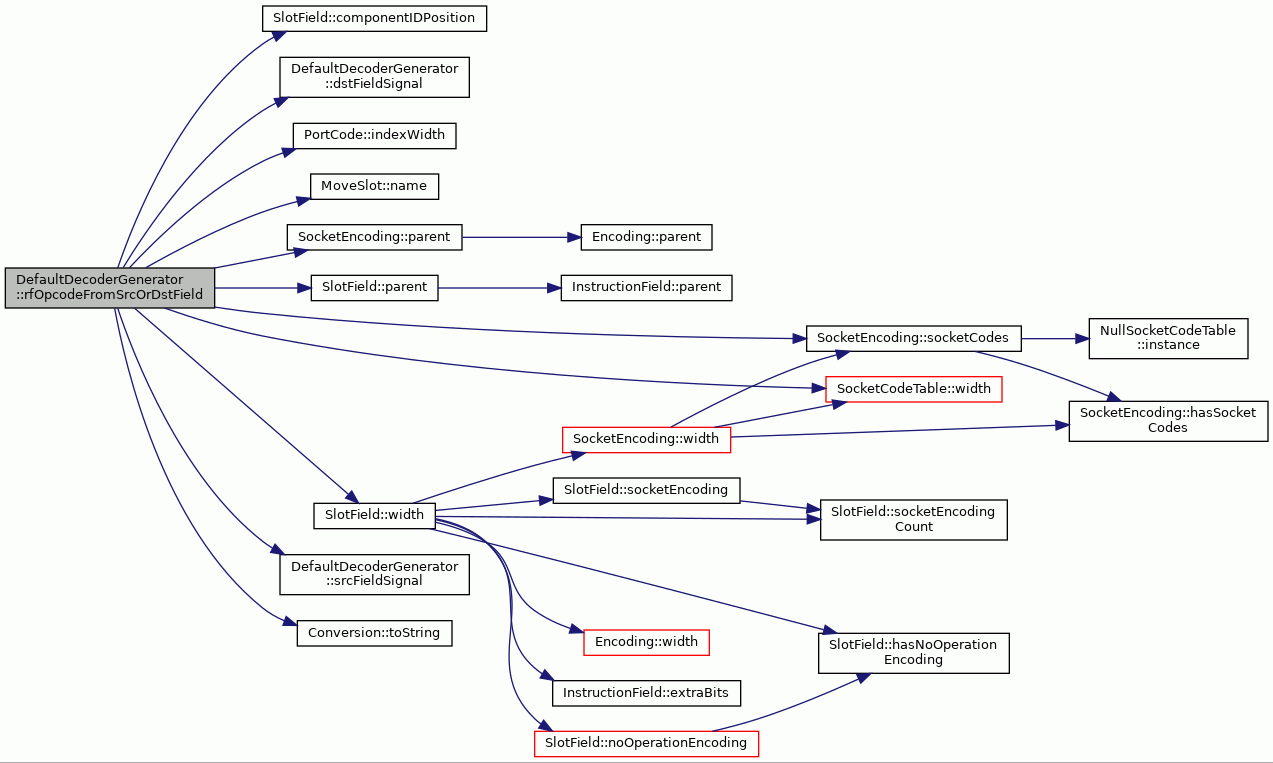

static std::string	rfOpcodeFromSrcOrDstField (const ProGe::HDL language, const SocketEncoding &socketEnc, const PortCode &code)

static std::string	indentation (unsigned int level)

Private Attributes
const TTAMachine::Machine &	machine_
	The machine. More...

const BinaryEncoding &	bem_
	The binary encoding map. More...

const CentralizedControlICGenerator &	icGenerator_
	The IC generator. More...

const ProGe::NetlistGenerator *	nlGenerator_
	The netlist generator. More...

ProGe::NetlistBlock *	decoderBlock_
	The instruction decoder block in the netlist. More...

bool	generateLockTrace_
	Tells whether to generate global lock tracing code. More...

TCEString	entityNameStr_

ProGe::HDL	language_

bool	generateDebugger_
	Generate debugger signals? More...

bool	syncReset_
	Reset synchronously (otherwise asynchronous) More...

bool	generateBusEnable_
	Bus enable signals for bustrace. More...

unsigned int	lockTraceStartingCycle_
	The starting cycle for bus tracing. More...

bool	generateAlternateGlockReqHandling_
	The flag to generate global lock request handling in decoder. False means delegating the lock request towards instruction fetch. More...

UnitGlockBitMapType	unitGlockBitMap_
	Maps connected glock port bits to associated TTA Units. More...

UnitGlockReqBitMapType	unitGlockReqBitMap_
	Maps TTA Units to associated glock request port bits. More...

std::vector< std::string >	registerVectors
	Bookkeeping for reset-needing signals. More...

std::vector< std::string >	registerBits

Detailed Description

Generates the default instruction decoder in VHDL.

Definition at line 86 of file DefaultDecoderGenerator.hh.

Member Typedef Documentation

◆ BusSet

typedef std::set<TTAMachine::Bus*> DefaultDecoderGenerator::BusSet

private

Set type for buses.

Definition at line 121 of file DefaultDecoderGenerator.hh.

◆ GlockBitType

typedef int DefaultDecoderGenerator::GlockBitType

private

Types for mapping global lock and global lock request signals.

Definition at line 123 of file DefaultDecoderGenerator.hh.

◆ GlockReqBitType

typedef int DefaultDecoderGenerator::GlockReqBitType

private

Definition at line 124 of file DefaultDecoderGenerator.hh.

◆ UnitGlockBitMapType

typedef std::map<GlockBitType, const TTAMachine::Unit*> DefaultDecoderGenerator::UnitGlockBitMapType

private

Definition at line 126 of file DefaultDecoderGenerator.hh.

◆ UnitGlockReqBitMapType

typedef std::map<const TTAMachine::Unit*, GlockReqBitType> DefaultDecoderGenerator::UnitGlockReqBitMapType

private

Definition at line 128 of file DefaultDecoderGenerator.hh.

Constructor & Destructor Documentation

◆ DefaultDecoderGenerator()

DefaultDecoderGenerator::DefaultDecoderGenerator	(	const TTAMachine::Machine &	machine,
		const BinaryEncoding &	bem,
		const CentralizedControlICGenerator &	icGenerator
	)

The constructor.

Parameters

machine	The machine.
bem	The binary encoding map.
icGenerator	The IC generator.

Definition at line 155 of file DefaultDecoderGenerator.cc.

     : machine_(machine),
       bem_(bem),
       icGenerator_(icGenerator),
       nlGenerator_(NULL),
       decoderBlock_(NULL),
       generateLockTrace_(false),
       language_(VHDL),
       generateDebugger_(false),
       lockTraceStartingCycle_(1),
       generateAlternateGlockReqHandling_(false),
       unitGlockBitMap_(),
       unitGlockReqBitMap_() {}

◆ ~DefaultDecoderGenerator()

DefaultDecoderGenerator::~DefaultDecoderGenerator ( )

virtual

The destructor.

Definition at line 211 of file DefaultDecoderGenerator.cc.

211 {

212 }

Member Function Documentation

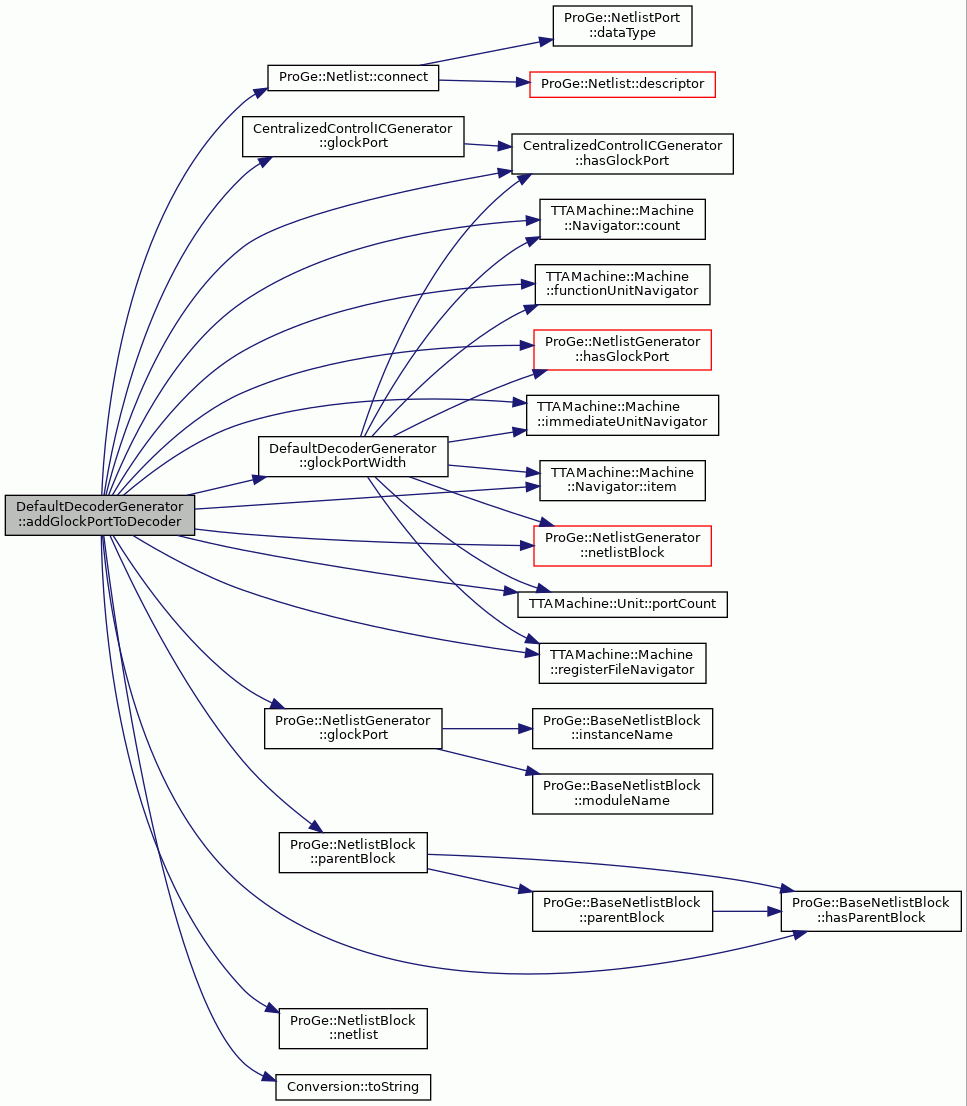

◆ addGlockPortToDecoder()

void DefaultDecoderGenerator::addGlockPortToDecoder ( )

private

Adds the global lock port to decoder and connects it to the glock ports of units.

Precondition: addLockReqPortToDecoder() must be called before this.

Definition at line 508 of file DefaultDecoderGenerator.cc.

                                                {
     int glockWidth = glockPortWidth();

     if (glockWidth == 0) {
         return;
     }
     int bitToConnect = 0;

     assert(decoderBlock_->hasParentBlock());
     Netlist& netlist = decoderBlock_->parentBlock().netlist();
     NetlistPort* decGlockPort = new NetlistPort(
         GLOCK_PORT_NAME, Conversion::toString(glockWidth), glockWidth,
         ProGe::BIT_VECTOR, ProGe::OUT, *decoderBlock_);

     Machine::FunctionUnitNavigator fuNav = machine_.functionUnitNavigator();
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         if (fu->portCount() == 0) {
             continue;
         }
         const NetlistBlock& fuBlock = nlGenerator_->netlistBlock(*fu);
         if (nlGenerator_->hasGlockPort(fuBlock)) {
             NetlistPort& glockPort = nlGenerator_->glockPort(fuBlock);
             assert(bitToConnect < glockWidth);
             netlist.connect(*decGlockPort, glockPort, bitToConnect, 0, 1);
             unitGlockBitMap_[bitToConnect] = fu;
             bitToConnect++;
         }
     }

     Machine::RegisterFileNavigator rfNav = machine_.registerFileNavigator();
     for (int i = 0; i < rfNav.count(); i++) {
         RegisterFile* rf = rfNav.item(i);
         if (rf->portCount() == 0) {
             continue;
         }
         const NetlistBlock& rfBlock = nlGenerator_->netlistBlock(*rf);
         if (nlGenerator_->hasGlockPort(rfBlock)) {
             NetlistPort& glockPort = nlGenerator_->glockPort(rfBlock);
             assert(bitToConnect < glockWidth);
             netlist.connect(*decGlockPort, glockPort, bitToConnect, 0, 1);
             unitGlockBitMap_[bitToConnect] = rf;
             bitToConnect++;
         }
     }

     Machine::ImmediateUnitNavigator iuNav = machine_.immediateUnitNavigator();
     for (int i = 0; i < iuNav.count(); i++) {
         ImmediateUnit* iu = iuNav.item(i);
         if (iu->portCount() == 0) {
             continue;
         }
         const NetlistBlock& iuBlock = nlGenerator_->netlistBlock(*iu);
         if (nlGenerator_->hasGlockPort(iuBlock)) {
             NetlistPort& glockPort = nlGenerator_->glockPort(iuBlock);
             assert(bitToConnect < glockWidth);
             netlist.connect(*decGlockPort, glockPort, bitToConnect, 0, 1);
             unitGlockBitMap_[bitToConnect] = iu;
             bitToConnect++;
         }
     }

     // If IC requests glock port.
     if (icGenerator_.hasGlockPort()) {
         netlist.connect(
             *decGlockPort, icGenerator_.glockPort(), bitToConnect, 0, 1);
         bitToConnect++;
     }
 }

References assert, ProGe::BIT_VECTOR, ProGe::Netlist::connect(), TTAMachine::Machine::Navigator< ComponentType >::count(), decoderBlock_, TTAMachine::Machine::functionUnitNavigator(), GLOCK_PORT_NAME, CentralizedControlICGenerator::glockPort(), ProGe::NetlistGenerator::glockPort(), glockPortWidth(), CentralizedControlICGenerator::hasGlockPort(), ProGe::NetlistGenerator::hasGlockPort(), ProGe::BaseNetlistBlock::hasParentBlock(), icGenerator_, TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, ProGe::NetlistBlock::netlist(), ProGe::NetlistGenerator::netlistBlock(), nlGenerator_, ProGe::OUT, ProGe::NetlistBlock::parentBlock(), TTAMachine::Unit::portCount(), TTAMachine::Machine::registerFileNavigator(), Conversion::toString(), and unitGlockBitMap_.

Referenced by completeDecoderBlock().

Here is the call graph for this function:

◆ addLockReqPortToDecoder()

void DefaultDecoderGenerator::addLockReqPortToDecoder ( )

private

Adds the lock request input port to decoder and connects the global lock request ports of FU's to it.

Definition at line 468 of file DefaultDecoderGenerator.cc.

                                                  {

     int lockReqWidth = glockRequestWidth();

     if (lockReqWidth == 0) {
         return;
     }

     Machine::FunctionUnitNavigator fuNav = machine_.functionUnitNavigator();
     Netlist& netlist = decoderBlock_->parentBlock().netlist();

     // add lock request port to decoder
     NetlistPort* lockReqPort = new NetlistPort(
         LOCK_REQ_PORT_NAME, Conversion::toString(lockReqWidth), lockReqWidth,
         ProGe::BIT_VECTOR, ProGe::IN, *decoderBlock_);

     // connect the glock request ports of FUs to the lock request port
     int bitToConnect(0);
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         if (fu->portCount() == 0) {
             continue;
         }
         const NetlistBlock& fuBlock = nlGenerator_->netlistBlock(*fu);
         if (nlGenerator_->hasGlockReqPort(fuBlock)) {
             NetlistPort& glockReqPort = nlGenerator_->glockReqPort(fuBlock);
             netlist.connect(*lockReqPort, glockReqPort, bitToConnect, 0, 1);
             unitGlockReqBitMap_[fu] = bitToConnect;
             bitToConnect++;
         }
     }
 }

References ProGe::BIT_VECTOR, ProGe::Netlist::connect(), TTAMachine::Machine::Navigator< ComponentType >::count(), decoderBlock_, TTAMachine::Machine::functionUnitNavigator(), ProGe::NetlistGenerator::glockReqPort(), glockRequestWidth(), ProGe::NetlistGenerator::hasGlockReqPort(), ProGe::IN, TTAMachine::Machine::Navigator< ComponentType >::item(), LOCK_REQ_PORT_NAME, machine_, ProGe::NetlistBlock::netlist(), ProGe::NetlistGenerator::netlistBlock(), nlGenerator_, ProGe::NetlistBlock::parentBlock(), TTAMachine::Unit::portCount(), Conversion::toString(), and unitGlockReqBitMap_.

Referenced by completeDecoderBlock().

Here is the call graph for this function:

◆ busCntrlSignalPinOfSocket()

std::string DefaultDecoderGenerator::busCntrlSignalPinOfSocket	(	const TTAMachine::Socket &	socket,
		const TTAMachine::Bus &	bus
	)		const

private

Returns the signal pin that controls the bus of the given output socket.

Parameters

socket	The socket.
bus	The bus.

Returns: The signal pin.

Definition at line 4885 of file DefaultDecoderGenerator.cc.

                                     {

     assert(socket.direction() == Socket::OUTPUT);
     int pin = icGenerator_.outputSocketCntrlPinForSegment(
         socket, *bus.segment(0));
     return socketBusCntrlSignalName(socket.name())
         + ((language_==VHDL)?"(":"[")
         + Conversion::toString(pin)
         + ((language_==VHDL)?")":"]");
 }

References assert, TTAMachine::Socket::direction(), icGenerator_, language_, TTAMachine::Component::name(), CentralizedControlICGenerator::outputSocketCntrlPinForSegment(), TTAMachine::Bus::segment(), socketBusCntrlSignalName(), Conversion::toString(), and ProGe::VHDL.

Referenced by writeBusControlRulesOfOutputSocket().

Here is the call graph for this function:

◆ busControlWidth()

int DefaultDecoderGenerator::busControlWidth ( const TTAMachine::Socket & socket )

staticprivate

Returns the number of bits required to control the bus connections of the given socket.

Parameters

socket The socket.

Returns: The control width.

Definition at line 4663 of file DefaultDecoderGenerator.cc.

                                                                        {
     if (socket.direction() == Socket::INPUT) {
         return MathTools::bitLength(socket.segmentCount() - 1);
     } else {
         return socket.segmentCount();
     }
 }

References MathTools::bitLength(), TTAMachine::Socket::direction(), and TTAMachine::Socket::segmentCount().

Referenced by completeDecoderBlock(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ busMuxCntrlRegister()

std::string DefaultDecoderGenerator::busMuxCntrlRegister ( const TTAMachine::Bus & bus )

staticprivate

Definition at line 4463 of file DefaultDecoderGenerator.cc.

                                                                      {
     return busMuxCntrlSignal(bus) + "_reg";
 }

References busMuxCntrlSignal().

Here is the call graph for this function:

◆ busMuxCntrlSignal()

std::string DefaultDecoderGenerator::busMuxCntrlSignal ( const TTAMachine::Bus & bus )

staticprivate

Definition at line 4458 of file DefaultDecoderGenerator.cc.

                                                                    {
     return bus.name() + "_src_sel";
 }

References TTAMachine::Component::name().

Referenced by busMuxCntrlRegister().

Here is the call graph for this function:

◆ busMuxEnableRegister()

std::string DefaultDecoderGenerator::busMuxEnableRegister ( const TTAMachine::Bus & bus )

staticprivate

Definition at line 4473 of file DefaultDecoderGenerator.cc.

                                                                       {
     return busMuxEnableSignal(bus) + "_reg";
 }

References busMuxEnableSignal().

Referenced by writeSocketCntrlSignals().

Here is the call graph for this function:

◆ busMuxEnableSignal()

std::string DefaultDecoderGenerator::busMuxEnableSignal ( const TTAMachine::Bus & bus )

staticprivate

Definition at line 4468 of file DefaultDecoderGenerator.cc.

                                                                     {
     return bus.name() + "_src_ena";
 }

References TTAMachine::Component::name().

Referenced by busMuxEnableRegister().

Here is the call graph for this function:

◆ completeDecoderBlock()

void DefaultDecoderGenerator::completeDecoderBlock	(	const ProGe::NetlistGenerator &	nlGenerator,
		ProGe::NetlistBlock &	coreBlock
	)

Completes the decoder block in the given netlist block representing the TTA core by adding the IC-interface and connecting the decoder to the interconnection network and machine building units.

Parameters

nlGenerator	The netlist generator that generated the netlist.
coreBlock	The netlist block that contains the decoder.

Definition at line 223 of file DefaultDecoderGenerator.cc.

                                   {
     nlGenerator_ = &nlGenerator;
     NetlistBlock& decoder = nlGenerator.instructionDecoder();
     decoderBlock_ = &decoder;

     entityNameStr_ = coreBlock.moduleName();

     // add ports for short immediates to decoder and connect them to IC
     Machine::BusNavigator busNav = machine_.busNavigator();
     for (int i = 0; i < busNav.count(); i++) {
         Bus* bus = busNav.item(i);
         if (bus->immediateWidth() > 0) {
             NetlistPort& icSimmPort = icGenerator_.simmDataPort(
                 bus->name());
             NetlistPort& icSimmCntrlPort = icGenerator_.
                 simmCntrlPort(bus->name());
             NetlistPort* decSimmPort = new NetlistPort(
                 simmDataPort(bus->name()),
                 Conversion::toString(simmPortWidth(*bus)),
                 simmPortWidth(*bus), ProGe::BIT_VECTOR, ProGe::OUT, decoder);
             coreBlock.netlist().connect(*decSimmPort, icSimmPort);
             NetlistPort* decSimmCntrlPort = new NetlistPort(
                 simmControlPort(bus->name()), "1", 1, ProGe::BIT_VECTOR,
                 ProGe::OUT, decoder);
             coreBlock.netlist().connect(*decSimmCntrlPort, icSimmCntrlPort);
         }
     }

     // add socket control ports to decoder and connect them to IC
     Machine::SocketNavigator socketNav = machine_.socketNavigator();
     for (int i = 0; i < socketNav.count(); i++) {
         Socket* socket = socketNav.item(i);
         if ((socket->portCount() == 0 || socket->segmentCount() == 0) &&
             (socket->direction() == Socket::OUTPUT)) {
             continue;
         }
         if (needsBusControl(*socket)) {
             NetlistPort* busCntrlPort = new NetlistPort(
                 socketBusControlPort(socket->name()),
                 Conversion::toString(busControlWidth(*socket)),
                 busControlWidth(*socket), ProGe::BIT_VECTOR, ProGe::OUT,
                 decoder);
             NetlistPort& icBusCntrlPort = icGenerator_.busCntrlPortOfSocket(
                 socket->name());
             coreBlock.netlist().connect(icBusCntrlPort, *busCntrlPort);
         }
         if (needsDataControl(*socket)) {
             NetlistPort* dataCntrlPort = new NetlistPort(
                 socketDataControlPort(socket->name()),
                 Conversion::toString(dataControlWidth(*socket)),
                 dataControlWidth(*socket), ProGe::BIT_VECTOR, ProGe::OUT,
                 decoder);
             NetlistPort& icDataCntrlPort =
                 icGenerator_.dataCntrlPortOfSocket(socket->name());
             coreBlock.netlist().connect(icDataCntrlPort, *dataCntrlPort);
         }
     }

     // add FU control ports to decoder and connect them to the FUs
     Machine::FunctionUnitNavigator fuNav =
         machine_.functionUnitNavigator();
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         for (int i = 0; i < fu->portCount(); i++) {
             BaseFUPort* port = fu->port(i);
             NetlistPort& nlPort = nlGenerator.netlistPort(*port);
             if (nlPort.direction() == ProGe::IN) {
                 NetlistPort& loadPort = nlGenerator.loadPort(nlPort);
                 NetlistPort* loadCntrlPort = new NetlistPort(
                     fuLoadCntrlPort(fu->name(), port->name()), "1", 1,
                     ProGe::BIT, ProGe::OUT, decoder);
                 coreBlock.netlist().connect(*loadCntrlPort, loadPort);
             }
         }

         if (opcodeWidth(*fu) > 0) {
             const NetlistBlock& fuBlock = nlGenerator.netlistBlock(*fu);
             NetlistPort& opcodePort = nlGenerator.fuOpcodePort(fuBlock);
             NetlistPort* opcodeCntrlPort = new NetlistPort(
                 fuOpcodeCntrlPort(fu->name()),
                 Conversion::toString(opcodeWidth(*fu)), opcodeWidth(*fu),
                 ProGe::BIT_VECTOR, ProGe::OUT, decoder);
             coreBlock.netlist().connect(opcodePort, *opcodeCntrlPort);
         }
     }
     // Add GCU control ports for operand ports (other than RA ports).
     ControlUnit* gcu = machine_.controlUnit();
     for (int i = 0; i < gcu->portCount(); i++) {
         BaseFUPort* port = gcu->port(i);
         if (!port->isInput() ||
             port->name() == gcu->returnAddressPort()->name() ||
             port->isTriggering()) {
             continue;
         }
         NetlistPort& nlPort = nlGenerator.netlistPort(*port);
         NetlistPort& loadPort = nlGenerator.loadPort(nlPort);
         NetlistPort* loadCntrlPort = new NetlistPort(
             fuLoadCntrlPort(gcu->name(), port->name()), "1", 1, ProGe::BIT,
             ProGe::OUT, decoder);
         coreBlock.netlist().connect(*loadCntrlPort, loadPort);
     }

     // add RF control ports to decoder and connect them to the RFs
     Machine::RegisterFileNavigator rfNav =
         machine_.registerFileNavigator();
     for (int i = 0; i < rfNav.count(); i++) {
         RegisterFile* rf = rfNav.item(i);
         for (int i = 0; i < rf->portCount(); i++) {
             RFPort* port = rf->port(i);
             NetlistPort& nlPort = nlGenerator.netlistPort(*port);
             NetlistPort& loadPort = nlGenerator.loadPort(nlPort);

             NetlistPort* loadCntrlPort = new NetlistPort(
                 rfLoadCntrlPort(rf->name(), port->name()),
                 loadPort.widthFormula(), 1, ProGe::BIT, ProGe::OUT, decoder);

             coreBlock.netlist().connect(loadPort, *loadCntrlPort);

             int opcodeWidth = rfOpcodeWidth(*rf);
             assert(!(!nlGenerator.hasOpcodePort(nlPort) &&
                 opcodeWidth > 1));
             if (nlGenerator.hasOpcodePort(nlPort) && opcodeWidth >= 0) {
                 NetlistPort& opcodePort = nlGenerator.rfOpcodePort(nlPort);
                 NetlistPort* opcodeCntrlPort = new NetlistPort(
                     rfOpcodeCntrlPort(rf->name(), port->name()),
                     Conversion::toString(opcodeWidth), opcodeWidth,
                     ProGe::BIT_VECTOR, ProGe::OUT, decoder);
                 coreBlock.netlist().connect(opcodePort, *opcodeCntrlPort);
             }
         }
     }

     // add IU control ports to decoder and connect them to the IU's
     Machine::ImmediateUnitNavigator iuNav =
         machine_.immediateUnitNavigator();
     for (int i = 0; i < iuNav.count(); i++) {
         ImmediateUnit* iu = iuNav.item(i);

         // add control ports for read ports
         for (int i = 0; i < iu->portCount(); i++) {
             RFPort* port = iu->port(i);
             NetlistPort& iuDataPort = nlGenerator.netlistPort(*port);
             NetlistPort& loadPort = nlGenerator.loadPort(iuDataPort);
             std::string portName =
                 iuReadLoadCntrlPort(iu->name(), port->name());
             NetlistPort* loadCntrlPort = new NetlistPort(
                 portName, "1", 1, ProGe::BIT, ProGe::OUT, decoder);
             coreBlock.netlist().connect(loadPort, *loadCntrlPort);

             int opcodeWidth = rfOpcodeWidth(*iu);
             assert(!(!nlGenerator.hasOpcodePort(iuDataPort) &&
                 opcodeWidth > 1));
             if (nlGenerator.hasOpcodePort(iuDataPort) && opcodeWidth >= 0) {
                 NetlistPort& opcodePort = nlGenerator.rfOpcodePort(
                     iuDataPort);
                 portName = iuReadOpcodeCntrlPort(iu->name(), port->name());
                 NetlistPort* opcodeCntrlPort = new NetlistPort(
                     portName, Conversion::toString(opcodeWidth), opcodeWidth,
                     ProGe::BIT_VECTOR, ProGe::OUT, decoder);
                 coreBlock.netlist().connect(opcodePort, *opcodeCntrlPort);
             }
         }

         // add IU data write port and control ports
         NetlistPort& iuDataPort = nlGenerator.immediateUnitWritePort(*iu);
         NetlistPort* decIUDataPort = new NetlistPort(
             iuWritePort(iu->name()), Conversion::toString(iu->width()),
             iu->width(), ProGe::BIT_VECTOR, ProGe::OUT, decoder);
         coreBlock.netlist().connect(iuDataPort, *decIUDataPort);
         NetlistPort& loadPort = nlGenerator.loadPort(iuDataPort);
         NetlistPort* loadCntrlPort = new NetlistPort(
             iuWriteLoadCntrlPort(iu->name()), "1", 1, ProGe::BIT, ProGe::OUT,
             decoder);
         coreBlock.netlist().connect(loadPort, *loadCntrlPort);

         int opcodeWidth = rfOpcodeWidth(*iu);
         if (nlGenerator.hasOpcodePort(iuDataPort) && opcodeWidth >= 0) {
             NetlistPort& opcodePort = nlGenerator.rfOpcodePort(iuDataPort);
             NetlistPort* opcodeCntrlPort = new NetlistPort(
                 iuWriteOpcodeCntrlPort(iu->name()),
                 Conversion::toString(opcodeWidth), opcodeWidth,
                 ProGe::BIT_VECTOR, ProGe::OUT, decoder);
             coreBlock.netlist().connect(opcodePort, *opcodeCntrlPort);
         }
     }

     // add guard ports to decoder and connect them to RF's and FU's
     std::set<PortGuard*> generatedPortGuards;
     std::set<RegisterGuard*> generatedRegGuards;
     for (int i = 0; i < busNav.count(); i++) {
         Bus* bus = busNav.item(i);
         for (int i = 0; i < bus->guardCount(); i++) {
             Guard* guard = bus->guard(i);
             PortGuard* portGuard = dynamic_cast<PortGuard*>(guard);
             RegisterGuard* regGuard = dynamic_cast<RegisterGuard*>(guard);
             if (portGuard != NULL) {
                 if (containsSimilarGuard(
                         generatedPortGuards, *portGuard)) {
                     continue;
                 }
                 FUPort* port = portGuard->port();
                 NetlistPort& nlPort = nlGenerator.netlistPort(*port);
                 NetlistPort& nlGuardPort = nlGenerator.fuGuardPort(
                     nlPort);
                 NetlistPort* decGuardPort = new NetlistPort(
                     guardPortName(*guard), "1", 1, ProGe::BIT, ProGe::IN,
                     decoder);
                 coreBlock.netlist().connect(nlGuardPort, *decGuardPort);
                 generatedPortGuards.insert(portGuard);
             } else if (regGuard != NULL) {
                 if (containsSimilarGuard(
                         generatedRegGuards, *regGuard)) {
                     continue;
                 }
                 const RegisterFile* rf = regGuard->registerFile();
                 assert(rf->portCount() > 0);
                 const NetlistBlock& nlRf = nlGenerator.netlistBlock(*rf);
                 NetlistPort& nlGuardPort = nlGenerator.rfGuardPort(nlRf);
                 NetlistPort* decGuardPort = new NetlistPort(
                     guardPortName(*guard), "1", 1, ProGe::BIT, ProGe::IN,
                     decoder);
                 coreBlock.netlist().connect(
                     nlGuardPort, *decGuardPort, regGuard->registerIndex(), 0,
                     1);
                 generatedRegGuards.insert(regGuard);
             }
         }
     }

     addLockReqPortToDecoder();
     addGlockPortToDecoder();

     if (generateDebugger_) {
         /*NetlistPort* dbgResetPort = */ new NetlistPort(
             "db_tta_nreset", "1", 1, ProGe::BIT, ProGe::IN, decoder);
     }
 }

◆ connectedBuses()

DefaultDecoderGenerator::BusSet DefaultDecoderGenerator::connectedBuses ( const TTAMachine::Socket & socket )

staticprivate

Returns a set of buses connected to the given socket.

Parameters

socket The socket.

Returns: The bus set.

Definition at line 4708 of file DefaultDecoderGenerator.cc.

                                                                       {
     BusSet set;
     int segmentCount = socket.segmentCount();
     for (int i = 0; i < segmentCount; i++) {
         set.insert(socket.segment(i)->parentBus());
     }
     return set;
 }

References TTAMachine::Segment::parentBus(), TTAMachine::Socket::segment(), and TTAMachine::Socket::segmentCount().

Referenced by writeBusControlRulesOfOutputSocket(), writeControlRulesOfFUInputPort(), writeControlRulesOfFUOutputPort(), writeControlRulesOfRFReadPort(), writeControlRulesOfRFWritePort(), and writeRFSRAMDecodingProcess().

Here is the call graph for this function:

◆ containsSimilarGuard() [1/2]

bool DefaultDecoderGenerator::containsSimilarGuard	(	const std::set< TTAMachine::PortGuard * > &	guardSet,
		const TTAMachine::PortGuard &	guard
	)

staticprivate

Tells whether the given guard set contains similar guard to the given one. Similar means the guard refers to the same FU port.

Parameters

guardSet	The guard set.
guard	The guard.

Returns: True if the set contains similar guard, otherwise false.

Definition at line 3970 of file DefaultDecoderGenerator.cc.

                                       {

     for (std::set<PortGuard*>::const_iterator iter = guardSet.begin();
          iter != guardSet.end(); iter++) {
         PortGuard* containedGuard = *iter;
         if (containedGuard->port() == guard.port()) {
             return true;
         }
     }

     return false;
 }

References TTAMachine::PortGuard::port().

Referenced by completeDecoderBlock().

Here is the call graph for this function:

◆ containsSimilarGuard() [2/2]

bool DefaultDecoderGenerator::containsSimilarGuard	(	const std::set< TTAMachine::RegisterGuard * > &	guardSet,
		const TTAMachine::RegisterGuard &	guard
	)

staticprivate

Tells whether the given guard set contains similar guard to the given one. Similar means the guard refers to the same register.

Parameters

guardSet	The guard set.
guard	The guard.

Returns: True if the set contains similar guard, otherwise false.

Definition at line 3995 of file DefaultDecoderGenerator.cc.

                                           {

     for (std::set<RegisterGuard*>::const_iterator iter = guardSet.begin();
          iter != guardSet.end(); iter++) {
         RegisterGuard* containedGuard = *iter;
         if (containedGuard->registerFile() == guard.registerFile() &&
             containedGuard->registerIndex() == guard.registerIndex()) {
             return true;
         }
     }

     return false;
 }

References TTAMachine::RegisterGuard::registerFile(), and TTAMachine::RegisterGuard::registerIndex().

Here is the call graph for this function:

◆ dataControlWidth()

int DefaultDecoderGenerator::dataControlWidth ( const TTAMachine::Socket & socket )

staticprivate

Returns the number of bits required to control from which port the data is written to the bus.

Parameters

socket The socket.

Returns: The control width.

Definition at line 4680 of file DefaultDecoderGenerator.cc.

                                                                         {
     if (socket.direction() == Socket::OUTPUT) {
         return MathTools::bitLength(socket.portCount() - 1);
     } else {
         return 0;
     }
 }

References MathTools::bitLength(), TTAMachine::Socket::direction(), and TTAMachine::Socket::portCount().

Referenced by completeDecoderBlock(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ dstFieldSignal()

std::string DefaultDecoderGenerator::dstFieldSignal ( const std::string & busName )

staticprivate

Returns the name of the signal for the destination field of the given bus.

Parameters

busName Name of the bus.

Returns: The name of the signal.

Definition at line 4555 of file DefaultDecoderGenerator.cc.

                                                                 {
     return "dst_" + busName;
 }

Referenced by portCodeCondition(), rfOpcodeFromSrcOrDstField(), socketEncodingCondition(), writeControlRulesOfFUInputPort(), writeInstructionDismembering(), and writeMoveFieldSignals().

◆ findGuard() [1/2]

TTAMachine::PortGuard & DefaultDecoderGenerator::findGuard ( const FUGuardEncoding & encoding ) const

private

Finds the guard that is referred to by the given port guard encoding.

Parameters

encoding The encoding.

Returns: The guard.

Definition at line 4086 of file DefaultDecoderGenerator.cc.

                                                                         {

     GuardField* parent = encoding.parent();
     string busName = parent->parent()->name();

     Machine::BusNavigator busNav = machine_.busNavigator();
     Bus* bus = busNav.item(busName);
     for (int i = 0; i < bus->guardCount(); i++) {
         Guard* guard = bus->guard(i);
         PortGuard* portGuard = dynamic_cast<PortGuard*>(guard);
         if (portGuard != NULL) {
             if (encoding.functionUnit() ==
                 portGuard->port()->parentUnit()->name() &&
                 encoding.port() == portGuard->port()->name() &&
                 encoding.isGuardInverted() == portGuard->isInverted()) {
                 return *portGuard;
             }
         }
     }

     assert(false);
 }

References assert, TTAMachine::Machine::busNavigator(), FUGuardEncoding::functionUnit(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), GuardEncoding::isGuardInverted(), TTAMachine::Guard::isInverted(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, TTAMachine::Port::name(), MoveSlot::name(), TTAMachine::Component::name(), GuardEncoding::parent(), GuardField::parent(), TTAMachine::BaseFUPort::parentUnit(), FUGuardEncoding::port(), and TTAMachine::PortGuard::port().

Here is the call graph for this function:

◆ findGuard() [2/2]

TTAMachine::RegisterGuard & DefaultDecoderGenerator::findGuard ( const GPRGuardEncoding & encoding ) const

private

Finds the guard that is referred to by the given register guard encoding.

Parameters

encoding The encoding.

Returns: The guard.

Definition at line 4056 of file DefaultDecoderGenerator.cc.

                                                                          {

     GuardField* parent = encoding.parent();
     string busName = parent->parent()->name();

     Machine::BusNavigator busNav = machine_.busNavigator();
     Bus* bus = busNav.item(busName);
     for (int i = 0; i < bus->guardCount(); i++) {
         Guard* guard = bus->guard(i);
         RegisterGuard* regGuard = dynamic_cast<RegisterGuard*>(guard);
         if (regGuard != NULL) {
             if (encoding.registerFile() == regGuard->registerFile()->name()
                 && encoding.registerIndex() == regGuard->registerIndex() &&
                 encoding.isGuardInverted() == regGuard->isInverted()) {
                 return *regGuard;
             }
         }
     }

     assert(false);
 }

References assert, TTAMachine::Machine::busNavigator(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), GuardEncoding::isGuardInverted(), TTAMachine::Guard::isInverted(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, MoveSlot::name(), TTAMachine::Component::name(), GuardEncoding::parent(), GuardField::parent(), GPRGuardEncoding::registerFile(), TTAMachine::RegisterGuard::registerFile(), GPRGuardEncoding::registerIndex(), and TTAMachine::RegisterGuard::registerIndex().

Referenced by writeSquashSignalGenerationProcess().

Here is the call graph for this function:

◆ fuLoadCntrlPort()

std::string DefaultDecoderGenerator::fuLoadCntrlPort	(	const std::string &	fuName,
		const std::string &	portName
	)

staticprivate

Returns the name of the load control port for the given FU port.

Parameters

fuName	Name of the FU.
portName	Name of the FU data port.

Returns: The name of the load control port in decoder.

Definition at line 4186 of file DefaultDecoderGenerator.cc.

                                {

     return "fu_" + fuName + "_" + portName + "_load";
 }

Referenced by completeDecoderBlock(), fuLoadSignalName(), and writeControlRegisterMappings().

◆ fuLoadSignalName()

std::string DefaultDecoderGenerator::fuLoadSignalName	(	const std::string &	fuName,
		const std::string &	portName
	)

staticprivate

Returns the name for the signal of load control port of the given FU port.

Parameters

fuName	Name of the FU.
portName	Name of the FU data port.

Returns: The name of the signal.

Definition at line 4203 of file DefaultDecoderGenerator.cc.

                                {

     return fuLoadCntrlPort(fuName, portName) + "_reg";
 }

References fuLoadCntrlPort().

Referenced by writeControlRegisterMappings(), writeControlRulesOfFUInputPort(), and writeFUCntrlSignals().

Here is the call graph for this function:

◆ fuOpcodeCntrlPort()

std::string DefaultDecoderGenerator::fuOpcodeCntrlPort ( const std::string & fu )

staticprivate

Returns the name of the opcode control port for the given FU.

Parameters

fu	Name of the FU.

Returns: The name of the opcode control port in decoder.

Definition at line 4218 of file DefaultDecoderGenerator.cc.

                                                               {
     return "fu_" + fu + "_opc";
 }

Referenced by completeDecoderBlock(), fuOpcodeSignalName(), and writeControlRegisterMappings().

◆ fuOpcodeSignalName()

std::string DefaultDecoderGenerator::fuOpcodeSignalName ( const std::string & fu )

staticprivate

Returns the name for the signal of opcode control port of the given FU.

Parameters

fu	Name of the FU.

Returns: The name of the opcode control signal.

Definition at line 4230 of file DefaultDecoderGenerator.cc.

                                                                {
     return fuOpcodeCntrlPort(fu) + "_reg";
 }

References fuOpcodeCntrlPort().

Referenced by writeControlRegisterMappings(), writeControlRulesOfFUInputPort(), and writeFUCntrlSignals().

Here is the call graph for this function:

◆ gcuDataPort()

std::string DefaultDecoderGenerator::gcuDataPort ( const std::string & nameInADF )

staticprivate

Returns the real name of the GCU data port that has the given name in ADF.

Parameters

nameInADF Name of the port in ADF.

Definition at line 4628 of file DefaultDecoderGenerator.cc.

                                                                {
     return nameInADF;
 }

◆ generateInstructionDecoder()

void DefaultDecoderGenerator::generateInstructionDecoder	(	const ProGe::NetlistGenerator &	nlGenerator,
		const std::string &	dstDirectory
	)

Writes the instruction decoder to the given destination directory.

Parameters

dstDirectory The destination directory.

Exceptions

IOException If an IO error occurs.

Definition at line 666 of file DefaultDecoderGenerator.cc.

                                    {
     nlGenerator_ = &nlGenerator;

     string iDecoderFile = dstDirectory
             + FileSystem::DIRECTORY_SEPARATOR
             + ((language_==Verilog)?"decoder.v":"decoder.vhdl");
     bool decCreated = FileSystem::createFile(iDecoderFile);
     if (!decCreated) {
         string errorMsg = "Unable to create file " + iDecoderFile;
         throw IOException(__FILE__, __LINE__, __func__, errorMsg);
     }
     std::ofstream decoderStream(
         iDecoderFile.c_str(), std::ofstream::out);
     writeInstructionDecoder(decoderStream);
     decoderStream.close();
 }

References __func__, FileSystem::createFile(), FileSystem::DIRECTORY_SEPARATOR, language_, nlGenerator_, ProGe::Verilog, and writeInstructionDecoder().

Here is the call graph for this function:

◆ glockPortWidth()

int DefaultDecoderGenerator::glockPortWidth ( ) const

Returns the width of the global lock port.

Returns: The bit width.

Definition at line 613 of file DefaultDecoderGenerator.cc.

                                               {
     int glockWidth = 0;

     Machine::FunctionUnitNavigator fuNav = machine_.functionUnitNavigator();
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         if (fu->portCount() == 0) {
             continue;
         }
         const NetlistBlock& fuBlock = nlGenerator_->netlistBlock(*fu);
         if (nlGenerator_->hasGlockPort(fuBlock)) {
             glockWidth++;
         }
     }

     Machine::RegisterFileNavigator rfNav = machine_.registerFileNavigator();
     for (int i = 0; i < rfNav.count(); i++) {
         RegisterFile* rf = rfNav.item(i);
         if (rf->portCount() == 0) {
             continue;
         }
         const NetlistBlock& rfBlock = nlGenerator_->netlistBlock(*rf);
         if (nlGenerator_->hasGlockPort(rfBlock)) {
             glockWidth++;
         }
     }

     Machine::ImmediateUnitNavigator iuNav = machine_.immediateUnitNavigator();
     for (int i = 0; i < iuNav.count(); i++) {
         ImmediateUnit* iu = iuNav.item(i);
         if (iu->portCount() == 0) {
             continue;
         }
         const NetlistBlock& iuBlock = nlGenerator_->netlistBlock(*iu);
         if (nlGenerator_->hasGlockPort(iuBlock)) {
             glockWidth++;
         }
     }

     if (icGenerator_.hasGlockPort()) {
         glockWidth++;
     }

     return glockWidth;
 }

References TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), CentralizedControlICGenerator::hasGlockPort(), ProGe::NetlistGenerator::hasGlockPort(), icGenerator_, TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, ProGe::NetlistGenerator::netlistBlock(), nlGenerator_, TTAMachine::Unit::portCount(), and TTAMachine::Machine::registerFileNavigator().

Referenced by addGlockPortToDecoder(), writeGlockMapping(), and writeInstructionDecoder().

Here is the call graph for this function:

◆ glockRequestWidth()

int DefaultDecoderGenerator::glockRequestWidth ( ) const

Returns the width of the global lock request port.

Returns: The bit width.

Definition at line 585 of file DefaultDecoderGenerator.cc.

                                                  {

     Machine::FunctionUnitNavigator fuNav = machine_.functionUnitNavigator();

     int lockReqWidth(0);
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         if (fu->portCount() == 0) {
             continue;
         }
         const NetlistBlock& fuBlock = nlGenerator_->netlistBlock(*fu);
         if (nlGenerator_->hasGlockReqPort(fuBlock)) {
             lockReqWidth++;
         }
     }
     if (generateDebugger_) {
         lockReqWidth++;
     }

     return lockReqWidth;
 }

References TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), generateDebugger_, ProGe::NetlistGenerator::hasGlockReqPort(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, ProGe::NetlistGenerator::netlistBlock(), nlGenerator_, and TTAMachine::Unit::portCount().

Referenced by addLockReqPortToDecoder(), writeGlockMapping(), and writeInstructionDecoder().

Here is the call graph for this function:

◆ guardFieldSignal()

std::string DefaultDecoderGenerator::guardFieldSignal ( const std::string & busName )

staticprivate

Returns the name of the signal for the guard field of the given bus.

Parameters

busName Name of the bus.

Returns: The name of the signal.

Definition at line 4567 of file DefaultDecoderGenerator.cc.

                                                                   {
     return "grd_" + busName;
 }

Referenced by writeInstructionDismembering(), writeMoveFieldSignals(), and writeSquashSignalGenerationProcess().

◆ guardPortName()

std::string DefaultDecoderGenerator::guardPortName ( const TTAMachine::Guard & guard )

staticprivate

Returns the name of the guard port in decoder for the given guard.

Parameters

guard The guard.

Returns: The name of the port.

Definition at line 4492 of file DefaultDecoderGenerator.cc.

                                                                    {
     const PortGuard* portGuard = dynamic_cast<const PortGuard*>(&guard);
     const RegisterGuard* regGuard = dynamic_cast<const RegisterGuard*>(
         &guard);
     if (portGuard != NULL) {
         FUPort* port = portGuard->port();
         FunctionUnit* fu = port->parentUnit();
         return "fu_guard_" + fu->name() + "_" + port->name();
     } else if (regGuard != NULL) {
         const RegisterFile* rf = regGuard->registerFile();
         return "rf_guard_" + rf->name() + "_" +
             Conversion::toString(regGuard->registerIndex());
     } else {
         return "";
     }
 }

References TTAMachine::Port::name(), TTAMachine::Component::name(), TTAMachine::BaseFUPort::parentUnit(), TTAMachine::PortGuard::port(), TTAMachine::RegisterGuard::registerFile(), TTAMachine::RegisterGuard::registerIndex(), and Conversion::toString().

Referenced by completeDecoderBlock(), writeSquashSignalGenerationProcess(), and writeSquashSignalSubstitution().

Here is the call graph for this function:

◆ immSlotSignal()

std::string DefaultDecoderGenerator::immSlotSignal ( const std::string & immSlot )

staticprivate

Returns the name of the signal for the given immediate slot.

Parameters

immSlot Name of the immediate slot.

Returns: The name of the signal.

Definition at line 4579 of file DefaultDecoderGenerator.cc.

                                                                {
     return "limmslot_" + immSlot;
 }

Referenced by writeImmediateSlotSignals(), and writeInstructionDismembering().

◆ indentation()

std::string DefaultDecoderGenerator::indentation ( unsigned int level )

staticprivate

Generates an indentation of the given level.

Parameters

level The level.

Definition at line 4937 of file DefaultDecoderGenerator.cc.

                                                        {
     string indentation("");
     for (unsigned int i = 0; i < level; i++) {
         indentation += "  ";
     }
     return indentation;
 }

Referenced by writeBusControlRulesOfOutputSocket(), writeBusControlRulesOfSImmSocketOfBus(), writeComment(), writeControlRegisterMappings(), writeControlRulesOfFUInputPort(), writeControlRulesOfFUOutputPort(), writeControlRulesOfRFReadPort(), writeControlRulesOfRFWritePort(), writeGlockMapping(), writeInstructionDecoder(), writeInstructionDismembering(), writeInstructionTemplateProcedures(), writeLockDumpCode(), writeLongImmediateWriteProcess(), writeMainDecodingProcess(), writePipelineFillProcess(), writeResettingOfControlRegisters(), writeRFCntrlSignals(), writeRFSRAMDecodingProcess(), writeRulesForSourceControlSignals(), writeSignalDeclaration(), writeSimmDataSignal(), writeSquashSignalGenerationProcess(), writeSquashSignals(), and writeSquashSignalSubstitution().

◆ instructionTemplateCondition()

std::string DefaultDecoderGenerator::instructionTemplateCondition	(	const ProGe::HDL	language,
		const std::string &	iTempName
	)		const

private

Returns the condition when the instruction is of the given template.

Parameters

iTempName Name of the instruction template.

Returns: The condition.

Definition at line 4822 of file DefaultDecoderGenerator.cc.

                                       {

     assert(bem_.hasImmediateControlField());
     ImmediateControlField& field = bem_.immediateControlField();
     assert(field.hasTemplateEncoding(iTempName));
     if(language==VHDL)
         return "conv_integer(unsigned(" + LIMM_TAG_SIGNAL + ")) = "
             + Conversion::toString(field.templateEncoding(iTempName));
     else
         return LIMM_TAG_SIGNAL + " == "
             + Conversion::toString(field.templateEncoding(iTempName));
 }

References assert, bem_, BinaryEncoding::hasImmediateControlField(), ImmediateControlField::hasTemplateEncoding(), BinaryEncoding::immediateControlField(), LIMM_TAG_SIGNAL, ImmediateControlField::templateEncoding(), Conversion::toString(), and ProGe::VHDL.

Referenced by writeLongImmediateWriteProcess().

Here is the call graph for this function:

◆ iuReadLoadCntrlPort()

std::string DefaultDecoderGenerator::iuReadLoadCntrlPort	(	const std::string &	unitName,
		const std::string &	portName
	)

staticprivate

Returns the name of the load control port of the given IU read port in in decoder.

Parameters

unitName	Name of the IU.
portName	Name of the read port.

Returns: The name of the load control port.

Definition at line 4356 of file DefaultDecoderGenerator.cc.

                                {

     return "iu_" + unitName + "_" + portName + "_read_load";
 }

Referenced by completeDecoderBlock(), iuReadLoadCntrlSignal(), writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), and writeRFCntrlSignals().

◆ iuReadLoadCntrlSignal()

std::string DefaultDecoderGenerator::iuReadLoadCntrlSignal	(	const std::string &	unitName,
		const std::string &	portName
	)

staticprivate

Returns the name of the load control signal of the given IU read port in in decoder.

Parameters

unitName	Name of the IU.
portName	Name of the read port.

Returns: The name of the load control port.

Definition at line 4373 of file DefaultDecoderGenerator.cc.

                                {

     return iuReadLoadCntrlPort(unitName, portName) + "_reg";
 }

References iuReadLoadCntrlPort().

Referenced by writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), and writeRFCntrlSignals().

Here is the call graph for this function:

◆ iuReadOpcodeCntrlPort()

std::string DefaultDecoderGenerator::iuReadOpcodeCntrlPort	(	const std::string &	unitName,
		const std::string &	portName
	)

staticprivate

Returns the name of the opcode control port of the given IU read port in decoder.

Parameters

unitName	Name of the IU.
portName	Name of the read port.

Returns: The name of the opcode control port.

Definition at line 4322 of file DefaultDecoderGenerator.cc.

                                {

     return "iu_" + unitName + "_" + portName + "_read_opc";
 }

Referenced by completeDecoderBlock(), iuReadOpcodeCntrlSignal(), writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), and writeRFCntrlSignals().

◆ iuReadOpcodeCntrlSignal()

std::string DefaultDecoderGenerator::iuReadOpcodeCntrlSignal	(	const std::string &	unitName,
		const std::string &	portName
	)

staticprivate

Returns the name of the opcode control signal of the given IU read port in decoder.

Parameters

unitName	Name of the IU.
portName	Name of the read port.

Returns: The name of the opcode control port.

Definition at line 4339 of file DefaultDecoderGenerator.cc.

                                {

     return iuReadOpcodeCntrlPort(unitName, portName) + "_reg";
 }

References iuReadOpcodeCntrlPort().

Referenced by writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), and writeRFCntrlSignals().

Here is the call graph for this function:

◆ iuWriteLoadCntrlPort()

std::string DefaultDecoderGenerator::iuWriteLoadCntrlPort ( const std::string & unitName )

staticprivate

Returns the name of the load control port of the write port of the given IU in decoder.

Parameters

unitName Name of the IU.

Returns: The name of the load control port.

Definition at line 4440 of file DefaultDecoderGenerator.cc.

                                                                        {
     return iuWritePort(unitName) + "_load";
 }

References iuWritePort().

Referenced by completeDecoderBlock(), iuWriteLoadCntrlSignal(), writeControlRegisterMappings(), writeInstructionTemplateProcedures(), and writeLongImmediateWriteProcess().

Here is the call graph for this function:

◆ iuWriteLoadCntrlSignal()

std::string DefaultDecoderGenerator::iuWriteLoadCntrlSignal ( const std::string & unitName )

staticprivate

Returns the name of the load control Signal of the write port of the given IU in decoder.

Parameters

unitName Name of the IU.

Returns: The name of the load control port.

Definition at line 4453 of file DefaultDecoderGenerator.cc.

                                                                          {
     return iuWriteLoadCntrlPort(unitName) + "_reg";
 }

References iuWriteLoadCntrlPort().

Referenced by writeControlRegisterMappings(), writeInstructionTemplateProcedures(), writeLongImmediateWriteProcess(), and writeRFCntrlSignals().

Here is the call graph for this function:

◆ iuWriteOpcodeCntrlPort()

std::string DefaultDecoderGenerator::iuWriteOpcodeCntrlPort ( const std::string & unitName )

staticprivate

Returns the name of the opcode control port of the write port of the given IU in decoder.

Parameters

unitName Name of the IU.

Returns: The name of the opcode control port.

Definition at line 4413 of file DefaultDecoderGenerator.cc.

                                                                          {
     return iuWritePort(unitName) + "_opc";
 }

References iuWritePort().

Referenced by completeDecoderBlock(), iuWriteOpcodeCntrlSignal(), writeControlRegisterMappings(), writeInstructionTemplateProcedures(), and writeLongImmediateWriteProcess().

Here is the call graph for this function:

◆ iuWriteOpcodeCntrlSignal()

std::string DefaultDecoderGenerator::iuWriteOpcodeCntrlSignal ( const std::string & unitName )

staticprivate

Returns the name of the opcode control signal of the write port of the given IU in decoder.

Parameters

unitName Name of the IU.

Returns: The name of the opcode control port.

Definition at line 4426 of file DefaultDecoderGenerator.cc.

                                {
     return iuWriteOpcodeCntrlPort(unitName) + "_reg";
 }

References iuWriteOpcodeCntrlPort().

Referenced by writeControlRegisterMappings(), writeInstructionTemplateProcedures(), writeLongImmediateWriteProcess(), and writeRFCntrlSignals().

Here is the call graph for this function:

◆ iuWritePort()

std::string DefaultDecoderGenerator::iuWritePort ( const std::string & iuName )

staticprivate

Returns the name of the IU write port of the given IU in decoder.

Parameters

iuName Name of the IU.

Returns: The name of the port.

Definition at line 4388 of file DefaultDecoderGenerator.cc.

                                                             {
     return "iu_" + iuName + "_write";
 }

Referenced by completeDecoderBlock(), iuWriteLoadCntrlPort(), iuWriteOpcodeCntrlPort(), iuWriteSignal(), writeControlRegisterMappings(), writeInstructionTemplateProcedures(), and writeLongImmediateWriteProcess().

◆ iuWriteSignal()

std::string DefaultDecoderGenerator::iuWriteSignal ( const std::string & iuName )

staticprivate

Returns the name of the IU write signal of the given IU in decoder.

Parameters

iuName Name of the IU.

Returns: The name of the port.

Definition at line 4400 of file DefaultDecoderGenerator.cc.

                                                               {
     return iuWritePort(iuName) + "_reg";
 }

References iuWritePort().

Referenced by writeControlRegisterMappings(), writeInstructionTemplateProcedures(), writeLongImmediateWriteProcess(), and writeRFCntrlSignals().

Here is the call graph for this function:

◆ moveFieldSignal()

std::string DefaultDecoderGenerator::moveFieldSignal ( const std::string & busName )

staticprivate

Returns the name of the signal for the move field of the given bus.

Definition at line 4481 of file DefaultDecoderGenerator.cc.

                                                                  {
     return "move_" + busName;
 }

Referenced by writeInstructionDismembering(), and writeMoveFieldSignals().

◆ needsBusControl()

bool DefaultDecoderGenerator::needsBusControl ( const TTAMachine::Socket & socket )

staticprivate

Tells whether the given socket needs controlling from which bus data is read or to which it is written.

Parameters

socket The socket.

Returns: True if the socket needs controlling, otherwise false.

Definition at line 4020 of file DefaultDecoderGenerator.cc.

                                                                        {
     if (socket.segmentCount() == 0 || socket.portCount() == 0) {
         return false;
     }
     if (socket.segmentCount() > 1 ||
         (socket.segmentCount() == 1 &&
          socket.direction() == Socket::OUTPUT)) {
         return true;
     } else {
         return false;
     }
 }

References TTAMachine::Socket::direction(), TTAMachine::Socket::portCount(), and TTAMachine::Socket::segmentCount().

Referenced by completeDecoderBlock(), writeControlRegisterMappings(), writeControlRulesOfFUInputPort(), writeControlRulesOfRFWritePort(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ needsDataControl()

bool DefaultDecoderGenerator::needsDataControl ( const TTAMachine::Socket & socket )

staticprivate

Tells whether the given output socket needs controlling from which port the data should be written to a bus.

Definition at line 4039 of file DefaultDecoderGenerator.cc.

                                                                         {
     if (socket.direction() == Socket::OUTPUT && socket.portCount() > 1) {
         return true;
     } else {
         return false;
     }
 }

References TTAMachine::Socket::direction(), and TTAMachine::Socket::portCount().

Referenced by completeDecoderBlock(), writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ opcode()

int DefaultDecoderGenerator::opcode ( const TTAMachine::HWOperation & operation ) const

private

Returns the opcode of the given operation.

Parameters

operation The operation.

Returns: The opcode.

Definition at line 4906 of file DefaultDecoderGenerator.cc.

                                                   {

     string fuName = operation.parentUnit()->name();
     if (fuName == machine_.controlUnit()->name()) {
         return CUOpcodeGenerator(machine_).encoding(operation.name());
     } else {
         // This will make all opcodes based on their alphabetical order!
         FunctionUnit* fu =
             dynamic_cast<FunctionUnit*>(operation.parentUnit());
         std::vector<std::string> operations;
         for (int i = 0; i < fu->operationCount(); ++i) {
             operations.emplace_back(fu->operation(i)->name());
         }
         std::sort(operations.begin(), operations.end());
         for (size_t i = 0; i < operations.size(); ++i) {
             if (operations[i] == operation.name()) {
                 return i;
             }
         }
     }
     assert(false && "should not get here");
     return -1; //
 }

References assert, TTAMachine::Machine::controlUnit(), ProGe::CUOpcodeGenerator::encoding(), machine_, TTAMachine::HWOperation::name(), TTAMachine::Component::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), and TTAMachine::HWOperation::parentUnit().

Referenced by writeControlRulesOfFUInputPort().

Here is the call graph for this function:

◆ opcodeWidth()

int DefaultDecoderGenerator::opcodeWidth ( const TTAMachine::FunctionUnit & fu ) const

private

Returns the width of the opcode of the given FU.

Parameters

fu The FU.

Returns: The width of the operation code.

Definition at line 4640 of file DefaultDecoderGenerator.cc.

                                             {

     if (&fu == machine_.controlUnit()) {
         // Derive port width initially set by NetlistGenerator
         const NetlistBlock& gcuBlock = nlGenerator_->instructionDecoder();
         return gcuBlock.port(NetlistGenerator::DECODER_PC_OPCODE_PORT)
             ->realWidth();
     } else {
         int ops = fu.operationCount();
         return ops > 1 ? static_cast<int>(std::ceil(std::log2(ops))) : 0;
     }
 }

References TTAMachine::Machine::controlUnit(), ProGe::NetlistGenerator::instructionDecoder(), machine_, nlGenerator_, TTAMachine::FunctionUnit::operationCount(), ProGe::NetlistBlock::port(), and ProGe::NetlistPort::realWidth().

Referenced by completeDecoderBlock(), and writeFUCntrlSignals().

Here is the call graph for this function:

◆ portCodeCondition()

std::string DefaultDecoderGenerator::portCodeCondition	(	const ProGe::HDL	language,
		const SocketEncoding &	socketEnc,
		const PortCode &	code
	)

staticprivate

Returns the condition when given port code of the given socket encoding is true.

Parameters

socketEnc	The socket encoding;
code	The RF port code.

Returns: The condition.

Definition at line 4772 of file DefaultDecoderGenerator.cc.

                           {

     // empty encoding is always true
     if (!code.encodingWidth()) {
         if (language==VHDL) {
             return "true";
         } else {
             return "1";
         }
     }
     SlotField* parent = socketEnc.parent();
     string signalName;
     if (dynamic_cast<SourceField*>(parent) != NULL) {
         signalName = srcFieldSignal(parent->parent()->name());
     } else {
         signalName = dstFieldSignal(parent->parent()->name());
     }

     int codeStart;
     if (parent->componentIDPosition() == BinaryEncoding::RIGHT) {
         codeStart = socketEnc.socketIDWidth() + code.indexWidth();
     } else {
         codeStart = code.indexWidth();
     }
     int codeEnd = codeStart + code.encodingWidth() - 1;
     assert(codeEnd >= codeStart);

     if(language==VHDL)
         return "conv_integer(unsigned(" + signalName + "(" +
             Conversion::toString(codeEnd) + " downto " +
             Conversion::toString(codeStart) + "))) = " +
             Conversion::toString(code.encoding());
     else
     return signalName + "[" +
         Conversion::toString(codeEnd) + " : " +
         Conversion::toString(codeStart) + "] == " +
         Conversion::toString(code.encoding());
 }

References assert, SlotField::componentIDPosition(), dstFieldSignal(), PortCode::encoding(), PortCode::encodingWidth(), PortCode::indexWidth(), MoveSlot::name(), SocketEncoding::parent(), SlotField::parent(), BinaryEncoding::RIGHT, SocketEncoding::socketIDWidth(), srcFieldSignal(), Conversion::toString(), and ProGe::VHDL.

Referenced by writeControlRulesOfFUInputPort(), writeControlRulesOfFUOutputPort(), writeControlRulesOfRFReadPort(), and writeControlRulesOfRFWritePort().

Here is the call graph for this function:

◆ requiredRFLatencies()

std::set< int > DefaultDecoderGenerator::requiredRFLatencies ( const TTAMachine::ImmediateUnit & iu ) const

Returns the set of acceptable latencies of the hardware implementation of the given immediate unit.

Parameters

iu	The immediate unit.

Definition at line 692 of file DefaultDecoderGenerator.cc.

                                             {
     int acceptableLatencies[] = {0, 1};
     return std::set<int>(acceptableLatencies, acceptableLatencies + 2);
 }

◆ rfLoadCntrlPort()

std::string DefaultDecoderGenerator::rfLoadCntrlPort	(	const std::string &	rfName,
		const std::string &	portName
	)

staticprivate

Returns the name of the load control port of the given RF data port.

Parameters

rfName	Name of the RF.
portName	Name of the RF data port.

Returns: The name of the load control port in decoder.

Definition at line 4243 of file DefaultDecoderGenerator.cc.

                                {

     return "rf_" + rfName + "_" + portName + "_load";
 }

Referenced by completeDecoderBlock(), rfLoadSignalName(), and writeControlRegisterMappings().

◆ rfLoadSignalName()

std::string DefaultDecoderGenerator::rfLoadSignalName	(	const std::string &	rfName,
		const std::string &	portName,
		bool	async = `false`
	)

staticprivate

Returns the name for the load control signal for the given RF port.

Parameters

rfName	Name of the RF.
portName	Name of the RF data port.
async	Flag to generate name for asynchronous signal. Default value is false.

Returns: The name of the signal.

Definition at line 4261 of file DefaultDecoderGenerator.cc.

                 {

     if (async) {
         return rfLoadCntrlPort(rfName, portName) + "_wire";
     } else {
         return rfLoadCntrlPort(rfName, portName) + "_reg";
     }
 }

References rfLoadCntrlPort().

Referenced by writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), writeControlRulesOfRFWritePort(), writeRFCntrlSignals(), and writeRFSRAMDecodingProcess().

Here is the call graph for this function:

◆ rfOpcodeCntrlPort()

std::string DefaultDecoderGenerator::rfOpcodeCntrlPort	(	const std::string &	rfName,
		const std::string &	portName
	)

staticprivate

Returns the name of the opcode control port of the given RF port.

Parameters

rfName	Name of the RF.
portName	Name of the RF data port.

Returns: The opcode control port in decoder.

Definition at line 4305 of file DefaultDecoderGenerator.cc.

                                {

     return "rf_" + rfName + "_" + portName + "_opc";
 }

Referenced by completeDecoderBlock(), rfOpcodeSignalName(), and writeControlRegisterMappings().

◆ rfOpcodeFromSrcOrDstField()

std::string DefaultDecoderGenerator::rfOpcodeFromSrcOrDstField	(	const ProGe::HDL	language,
		const SocketEncoding &	socketEnc,
		const PortCode &	code
	)

staticprivate

Returns the part of the source or destination field signal that contains the opcode of the given RF port code.

Parameters

socketEnc	The socket encoding.
code	The RF port code.

Returns: The part of the source or destination field signal.

Definition at line 4847 of file DefaultDecoderGenerator.cc.

                           {

     SlotField* slotField = socketEnc.parent();
     string signalName;
     if (dynamic_cast<SourceField*>(slotField) != NULL) {
         signalName = srcFieldSignal(slotField->parent()->name());
     } else {
         signalName = dstFieldSignal(slotField->parent()->name());
     }

     int opcStart;
     SocketCodeTable& table = socketEnc.socketCodes();
     if (slotField->componentIDPosition() == BinaryEncoding::RIGHT) {
         opcStart = slotField->width() - table.width();
     } else {
         opcStart = 0;
     }
     int opcEnd = opcStart + code.indexWidth() - 1;
     if(language==VHDL)
         return signalName + "(" + Conversion::toString(opcEnd) + " downto " +
             Conversion::toString(opcStart) + ")";
     else
         return signalName + "[" + Conversion::toString(opcEnd) + " : " +
             Conversion::toString(opcStart) + "]";
 }

References SlotField::componentIDPosition(), dstFieldSignal(), PortCode::indexWidth(), MoveSlot::name(), SocketEncoding::parent(), SlotField::parent(), BinaryEncoding::RIGHT, SocketEncoding::socketCodes(), srcFieldSignal(), Conversion::toString(), ProGe::VHDL, SlotField::width(), and SocketCodeTable::width().

Referenced by writeControlRulesOfRFReadPort(), and writeControlRulesOfRFWritePort().

Here is the call graph for this function:

◆ rfOpcodeSignalName()

std::string DefaultDecoderGenerator::rfOpcodeSignalName	(	const std::string &	rfName,
		const std::string &	portName,
		bool	async = `false`
	)

staticprivate

Returns the name for the signal of opcode control port of the given RF port.

Parameters

rfName	Name of the register file.
portName	Name of the RF data port.
async	Flag to generate name for asynchronous signal. Default value is false.

Returns: The name of the signal.

Definition at line 4285 of file DefaultDecoderGenerator.cc.

                 {

     if (async) {
         return rfOpcodeCntrlPort(rfName, portName) + "_wire";
     } else {
         return rfOpcodeCntrlPort(rfName, portName) + "_reg";
     }
 }

References rfOpcodeCntrlPort().

Referenced by writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), writeControlRulesOfRFWritePort(), writeRFCntrlSignals(), and writeRFSRAMDecodingProcess().

Here is the call graph for this function:

◆ rfOpcodeWidth()

int DefaultDecoderGenerator::rfOpcodeWidth ( const TTAMachine::BaseRegisterFile & rf )

staticprivate

Returns the width of the opcode port in the given RF.

Parameters

rf	The register file.

Returns: The bit width of the opcode port.

Definition at line 4696 of file DefaultDecoderGenerator.cc.

                                                                            {
     return MathTools::bitLength(rf.numberOfRegisters() - 1);
 }

References MathTools::bitLength(), and TTAMachine::BaseRegisterFile::numberOfRegisters().

Referenced by completeDecoderBlock(), writeControlRegisterMappings(), writeInstructionTemplateProcedures(), writeLongImmediateWriteProcess(), writeRFCntrlSignals(), and writeRFSRAMDecodingProcess().

Here is the call graph for this function:

◆ sacEnabled()

bool DefaultDecoderGenerator::sacEnabled ( const std::string & rfName ) const

private

Queries if given register file by name has separate address cycle (SAC) flag enabled.

Parameters

rfName Name of register file in ADF.

Returns: Status of the SAC flag.

Definition at line 4953 of file DefaultDecoderGenerator.cc.

 {
     assert(nlGenerator_ != NULL);
     const RFEntry& rfEntry = nlGenerator_->rfEntry(rfName);
     return rfEntry.implementation().separateAddressCycleParameter();
 }

References assert, HDB::RFEntry::implementation(), nlGenerator_, ProGe::NetlistGenerator::rfEntry(), and HDB::RFImplementation::separateAddressCycleParameter().

Referenced by writeControlRegisterMappings(), writeControlRulesOfRFReadPort(), writeRFCntrlSignals(), writeRFSRAMDecodingProcess(), and writeRulesForSourceControlSignals().

Here is the call graph for this function:

◆ setGenerateBusEnable()

void DefaultDecoderGenerator::setGenerateBusEnable ( bool value )

Definition at line 192 of file DefaultDecoderGenerator.cc.

                                                         {
     generateBusEnable_ = value;
 }

References generateBusEnable_.

◆ setGenerateDebugger()

void DefaultDecoderGenerator::setGenerateDebugger ( bool generate )

Definition at line 182 of file DefaultDecoderGenerator.cc.

                                                           {
     generateDebugger_ = generate;
 }

References generateDebugger_.

◆ setGenerateLockTrace()

void DefaultDecoderGenerator::setGenerateLockTrace ( bool generate )

Controls whenever global lock trace dump process will be generated.

Parameters

generate Generate lock trace process if true.

Definition at line 759 of file DefaultDecoderGenerator.cc.

                                                            {
     generateLockTrace_ = generate;
 }

References generateLockTrace_.

◆ setGenerateNoLoopbackGlock()

void DefaultDecoderGenerator::setGenerateNoLoopbackGlock ( bool generate )

Generates alternate global lock wiring where FU will not receive global lock back if the FU did request the lock unless there are other FUs requesting global lock.

Parameters

generate Set to true enables the feature.

Definition at line 204 of file DefaultDecoderGenerator.cc.

                                                                  {
     generateAlternateGlockReqHandling_ = generate;
 }

References generateAlternateGlockReqHandling_.

◆ SetHDL()

void DefaultDecoderGenerator::SetHDL ( ProGe::HDL language )

SetHDL.

Parameters

language The HDL language.

Definition at line 177 of file DefaultDecoderGenerator.cc.

                                                 {
     language_=language;
 }

References language_.

◆ setLockTraceStartingCycle()

void DefaultDecoderGenerator::setLockTraceStartingCycle ( unsigned int startCycle )

Sets starting cycle to begin global lock tracing.

Parameters

startCycle nth cycle to begin tracing.

Definition at line 769 of file DefaultDecoderGenerator.cc.

                                                                           {
     lockTraceStartingCycle_ = startCycle;
 }

References lockTraceStartingCycle_.

◆ setSyncReset()

void DefaultDecoderGenerator::setSyncReset ( bool value )

Definition at line 187 of file DefaultDecoderGenerator.cc.

                                                 {
     syncReset_ = value;
 }

References syncReset_.

◆ simmCntrlSignalName()

std::string DefaultDecoderGenerator::simmCntrlSignalName ( const std::string & busName )

staticprivate

Returns the name of the short immediate control signal of the given bus.

Parameters

busName Name of the bus.

Returns: The name of the signal.

Definition at line 4173 of file DefaultDecoderGenerator.cc.

                                                                      {
     return "simm_cntrl_" + busName + "_reg";
 }

Referenced by writeBusControlRulesOfSImmSocketOfBus(), writeControlRegisterMappings(), and writeSocketCntrlSignals().

◆ simmControlPort()

std::string DefaultDecoderGenerator::simmControlPort ( const std::string & busName )

staticprivate

Returns the name of the control port for short immediate of the given bus.

Parameters

busName Name of the bus.

Returns: The name of the port.

Definition at line 4130 of file DefaultDecoderGenerator.cc.

                                                                  {
     return "simm_cntrl_" + busName;
 }

Referenced by completeDecoderBlock(), and writeControlRegisterMappings().

◆ simmDataPort()

std::string DefaultDecoderGenerator::simmDataPort ( const std::string & busName )

staticprivate

Returns the name of the data port for short immediate of the given bus.

Parameters

busName Name of the bus.

Returns: The name of the port.

Definition at line 4117 of file DefaultDecoderGenerator.cc.

                                                               {
     return "simm_" + busName;
 }

Referenced by completeDecoderBlock(), and writeControlRegisterMappings().

◆ simmDataSignalName()

std::string DefaultDecoderGenerator::simmDataSignalName ( const std::string & busName )

staticprivate

Returns the name of the short immediate data signal.

Parameters

busName Name of the bus that transports the short immediate.

Returns: The name of the signal.

Definition at line 4161 of file DefaultDecoderGenerator.cc.

                                                                     {
     return "simm_" + busName + "_reg";
 }

Referenced by writeBusControlRulesOfSImmSocketOfBus(), writeControlRegisterMappings(), writeSimmDataSignal(), and writeSocketCntrlSignals().

◆ simmPortWidth()

int DefaultDecoderGenerator::simmPortWidth ( const TTAMachine::Bus & bus )

staticprivate

Returns the required width of the short immediate port of the given bus.

Parameters

bus The bus.

Returns: The width of the port.

Definition at line 4142 of file DefaultDecoderGenerator.cc.

                                                                {
     if (bus.signExtends()) {
         return bus.width();
     } else if (bus.zeroExtends()) {
         return bus.immediateWidth();
     } else {
         assert(false && "Unknown extension policy.");
         return -1;
     }
 }

References assert, TTAMachine::Bus::immediateWidth(), TTAMachine::Bus::signExtends(), TTAMachine::Bus::width(), and TTAMachine::Bus::zeroExtends().

Referenced by completeDecoderBlock(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ socketBusCntrlSignalName()

std::string DefaultDecoderGenerator::socketBusCntrlSignalName ( const std::string & name )

staticprivate

Returns the name of the bus connection control signal for the socket of the given name.

Parameters

name	Name of the socket.

Returns: The name of the control signal.

Definition at line 4604 of file DefaultDecoderGenerator.cc.

                                                                        {
     return socketBusControlPort(name) + "_reg";
 }

References socketBusControlPort().

Referenced by busCntrlSignalPinOfSocket(), writeControlRegisterMappings(), writeControlRulesOfFUInputPort(), writeControlRulesOfRFWritePort(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ socketBusControlPort()

std::string DefaultDecoderGenerator::socketBusControlPort ( const std::string & name )

staticprivate

Returns the name of the bus connection control port of the given socket.

Parameters

name	Name of the socket.

Returns: The name of the control port.

Definition at line 4518 of file DefaultDecoderGenerator.cc.

                                                                    {
     return "socket_" + name + "_bus_cntrl";
 }

Referenced by completeDecoderBlock(), socketBusCntrlSignalName(), and writeControlRegisterMappings().

◆ socketDataCntrlSignalName()

std::string DefaultDecoderGenerator::socketDataCntrlSignalName ( const std::string & name )

staticprivate

Returns the name of the data control signal for the socket of the given name.

Parameters

name	Name of the socket.

Returns: The name of the control signal.

Definition at line 4617 of file DefaultDecoderGenerator.cc.

                                                                         {
     return socketDataControlPort(name) + "_reg";
 }

References socketDataControlPort().

Referenced by writeControlRegisterMappings(), writeControlRulesOfFUOutputPort(), writeControlRulesOfRFReadPort(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ socketDataControlPort()

std::string DefaultDecoderGenerator::socketDataControlPort ( const std::string & name )

staticprivate

Returns the name of the data control port of the given socket.

Parameters

name	Name of the socket.

Returns: The name of the control port.

Definition at line 4530 of file DefaultDecoderGenerator.cc.

                                                                     {
     return "socket_" + name + "_data_cntrl";
 }

Referenced by completeDecoderBlock(), socketDataCntrlSignalName(), and writeControlRegisterMappings().

◆ socketEncodingCondition()

std::string DefaultDecoderGenerator::socketEncodingCondition	(	const ProGe::HDL	language,
		const SlotField &	slotField,
		const std::string &	socketName
	)

staticprivate

Returns the condition when data is transferred by the given socket in the given source field.

Parameters

srcField	The source field.
socketName	Name of the socket.

Returns: The conditional clause.

Definition at line 4727 of file DefaultDecoderGenerator.cc.

                                  {

     string signalName;
     if (dynamic_cast<const SourceField*>(&slotField) != NULL) {
         signalName = srcFieldSignal(slotField.parent()->name());
     } else {
         signalName = dstFieldSignal(slotField.parent()->name());
     }
     SocketEncoding& enc = slotField.socketEncoding(socketName);
     int start = enc.socketIDPosition();
     int end = start + enc.socketIDWidth() - 1;
     if (language == VHDL) {
         if (enc.socketIDWidth() == 0) {
             return "true";
         } else {
             return "conv_integer(unsigned(" + signalName + "("
                 + Conversion::toString(end) + " downto "
                 + Conversion::toString(start)
                 + "))) = " + Conversion::toString(enc.encoding());
         }
     } else {
         if (enc.socketIDWidth() == 0) {
             return "1";
         } else {
             return signalName + "["
                 + Conversion::toString(end) + " : "
                 + Conversion::toString(start)
                 + "] == " + Conversion::toString(enc.encoding());
         }
     }
 }

References dstFieldSignal(), Encoding::encoding(), MoveSlot::name(), SlotField::parent(), SlotField::socketEncoding(), SocketEncoding::socketIDPosition(), SocketEncoding::socketIDWidth(), srcFieldSignal(), Conversion::toString(), and ProGe::VHDL.

Referenced by writeBusControlRulesOfOutputSocket(), writeControlRulesOfFUInputPort(), writeControlRulesOfFUOutputPort(), writeControlRulesOfRFReadPort(), and writeControlRulesOfRFWritePort().

Here is the call graph for this function:

◆ squashSignal()

std::string DefaultDecoderGenerator::squashSignal ( const std::string & busName )

staticprivate

Returns the name of the squash signal for the given bus.

Parameters

busName Name of the bus.

Returns: The name of the signal.

Definition at line 4591 of file DefaultDecoderGenerator.cc.

                                                               {
     return "squash_" + busName;
 }

Referenced by writeBusControlRulesOfOutputSocket(), writeBusControlRulesOfSImmSocketOfBus(), writeControlRulesOfFUInputPort(), writeControlRulesOfFUOutputPort(), writeControlRulesOfRFReadPort(), writeControlRulesOfRFWritePort(), writeRFSRAMDecodingProcess(), writeSquashSignalGenerationProcess(), writeSquashSignals(), and writeSquashSignalSubstitution().

◆ srcFieldSignal()

std::string DefaultDecoderGenerator::srcFieldSignal ( const std::string & busName )

staticprivate

Returns the name of the signal for the source field of the given bus.

Parameters

busName Name of the bus.

Returns: The name of the signal.

Definition at line 4542 of file DefaultDecoderGenerator.cc.

                                                                 {
     return "src_" + busName;
 }

Referenced by portCodeCondition(), rfOpcodeFromSrcOrDstField(), socketEncodingCondition(), writeBusControlRulesOfSImmSocketOfBus(), writeControlRulesOfFUInputPort(), writeInstructionDismembering(), writeMoveFieldSignals(), writeRFSRAMDecodingProcess(), and writeSimmDataSignal().

◆ verifyCompatibility()

void DefaultDecoderGenerator::verifyCompatibility ( ) const

Verifies that the decoder generator is compatible with the machine.

Exceptions

InvalidData If the decoder generator is incompatible.

Definition at line 704 of file DefaultDecoderGenerator.cc.

                                                    {
     // check that the GCU does not have other operations than the ones
     // specified below.
     ControlUnit* cu = machine_.controlUnit();
     assert(cu != NULL);
     MachineInfo::OperationSet cuOps = MachineInfo::getOpset(*cu);
     MachineInfo::OperationSet supportedOps{JUMP, CALL};
     MachineInfo::OperationSet riscvOps{CALLA, BEQR, BNER, BLTR,
     BLTUR, BGER, BGEUR, APC, CALLR};
     MachineInfo::OperationSet unsupportedOps;
     if (machine_.isRISCVMachine()) {
         supportedOps.insert(riscvOps.begin(), riscvOps.end());
     }
     std::set_difference(
         cuOps.begin(), cuOps.end(), supportedOps.begin(), supportedOps.end(),
         std::inserter(unsupportedOps, unsupportedOps.begin()));
     if (!unsupportedOps.empty()) {
         format errorMsg(
             "Decoder generator does not support operation %1% in CU.");
         errorMsg % TCEString::makeString(unsupportedOps, ", ");
         THROW_EXCEPTION(InvalidData, errorMsg.str());
     }

     if (machine_.hasOperation(APC) &&
         machine_.controlUnit()->outputPortCount() < 1) {
         string errorMsg =
             TCEString("APC operation requires an output port in the GCU");
         throw InvalidData(__FILE__, __LINE__, __func__, errorMsg);
     }
     // check that there are 3 delay slots in the transport pipeline
     // RISC-V supports 2 "delay slots"
     if (cu->delaySlots() != 3 &&
         (!(cu->delaySlots() == 2 && machine_.isRISCVMachine()))) {
         throw InvalidData(
             __FILE__, __LINE__, __func__,
             TCEString("Decoder generator supports only 4-stage transport ") +
                 "pipeline of CU. Given machine has " +
                 Conversion::toString(cu->delaySlots() + 1) + " stages");
     }

     // check that global guard latency is 1
     if (!(cu->globalGuardLatency() == 0 || (cu->globalGuardLatency() == 1))) {
         string errorMsg = TCEString("Decoder generator supports only ") +
                           "global guard latency of 1. Given machine has " +
                           Conversion::toString(cu->globalGuardLatency());
         throw InvalidData(__FILE__, __LINE__, __func__, errorMsg);
     }
 }

References __func__, APC, assert, BEQR, BGER, BGEUR, BLTR, BLTUR, BNER, CALL, CALLA, CALLR, TTAMachine::Machine::controlUnit(), TTAMachine::ControlUnit::delaySlots(), MachineInfo::getOpset(), TTAMachine::ControlUnit::globalGuardLatency(), TTAMachine::Machine::hasOperation(), TTAMachine::Machine::isRISCVMachine(), JUMP, machine_, TCEString::makeString(), TTAMachine::Unit::outputPortCount(), THROW_EXCEPTION, and Conversion::toString().

Here is the call graph for this function:

◆ writeBusControlRulesOfOutputSocket()

void DefaultDecoderGenerator::writeBusControlRulesOfOutputSocket	(	const TTAMachine::Socket &	socket,
		std::ostream &	stream
	)		const

private

Writes the control signal rules of the given output socket.

Parameters

socket	The socket.
stream	The stream to write.

Definition at line 2731 of file DefaultDecoderGenerator.cc.

                               {

     assert(socket.direction() == Socket::OUTPUT);
     if(language_==VHDL){
         int indent;
         indent = 4;
         // collect to a set all the buses the socket is connected to
         BusSet connectedBuses = DefaultDecoderGenerator::connectedBuses(socket);
         for (BusSet::const_iterator iter = connectedBuses.begin();
              iter != connectedBuses.end(); iter++) {
             Bus* bus = *iter;
             MoveSlot& slot = bem_.moveSlot(bus->name());
             SourceField& srcField = slot.sourceField();
             stream << indentation(indent) << "if ("
                    << squashSignal(bus->name()) << " = '0' and ";
             stream << socketEncodingCondition(VHDL, srcField, socket.name());
             stream << ") then" << endl;
             string busCntrlPin = busCntrlSignalPinOfSocket(socket, *bus);
             stream << indentation(indent + 1) << busCntrlPin << " <= '1';"
                    << endl;

             stream << indentation(indent) << "else" << endl;
             stream << indentation(indent + 1) << busCntrlPin << " <= '0';"
                    << endl;
             stream << indentation(indent) << "end if;" << endl;
         }
     } else{
         // collect to a set all the buses the socket is connected to
         BusSet connectedBuses = DefaultDecoderGenerator::connectedBuses(socket);
         for (BusSet::const_iterator iter = connectedBuses.begin();
              iter != connectedBuses.end(); iter++) {
             Bus* bus = *iter;
             MoveSlot& slot = bem_.moveSlot(bus->name());
             SourceField& srcField = slot.sourceField();
             stream << indentation(4) << "if ("
                    << squashSignal(bus->name()) << " == 0 && "
                    << socketEncodingCondition(Verilog, srcField, socket.name()) << ")"
                    << endl;
             string busCntrlPin = busCntrlSignalPinOfSocket(socket, *bus);
             stream << indentation(5) << busCntrlPin << " <= 1'b1;" << endl
                    << indentation(4) << "else" << endl
                    << indentation(5) << busCntrlPin << " <= 1'b0;" << endl << endl;
         }
     }
 }

References assert, bem_, busCntrlSignalPinOfSocket(), connectedBuses(), TTAMachine::Socket::direction(), indentation(), language_, BinaryEncoding::moveSlot(), TTAMachine::Component::name(), socketEncodingCondition(), MoveSlot::sourceField(), squashSignal(), ProGe::Verilog, and ProGe::VHDL.

Referenced by writeRulesForSourceControlSignals().

Here is the call graph for this function:

◆ writeBusControlRulesOfSImmSocketOfBus()

void DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus	(	const TTAMachine::Bus &	bus,
		std::ostream &	stream
	)		const

private

Writes the control signal rules for the socket that transports the short immediate to the given bus.

Parameters

bus	The bus.
stream	The stream to write.

Definition at line 2806 of file DefaultDecoderGenerator.cc.

                               {

     assert(bus.immediateWidth() > 0);
     MoveSlot& slot = bem_.moveSlot(bus.name());
     SourceField& srcField = slot.sourceField();
     assert(srcField.hasImmediateEncoding());
     ImmediateEncoding& enc = srcField.immediateEncoding();

     if(language_==VHDL){
         int indent = 4;
         stream << indentation(indent) << "if (" << squashSignal(bus.name())
                << " = '0'";
         if (enc.encodingWidth() > 0) {
             stream << " and ";
             stream << "conv_integer(unsigned(" << srcFieldSignal(bus.name())
                    << "(" << enc.encodingPosition() + enc.encodingWidth() - 1
                    << " downto " << enc.encodingPosition()
                    << "))) = " << enc.encoding();
         }

         stream << ") then" << endl;
         stream << indentation(indent + 1) << simmCntrlSignalName(bus.name())
                << "(0) <= '1';" << endl;
         writeSimmDataSignal(bus, stream);
         stream << indentation(indent) << "else" << endl;
         stream << indentation(indent + 1) << simmCntrlSignalName(bus.name())
                << "(0) <= '0';" << endl;
         stream << indentation(4) << "end if;" << endl;
     } else {
         stream << indentation(4) << "if ("
                << squashSignal(bus.name()) << " == 0";
         if (enc.encodingWidth() > 0) {
             stream << " && "
                 << srcFieldSignal(bus.name()) << "["
                 << enc.encodingPosition() + enc.encodingWidth() - 1 << " : "
                 << enc.encodingPosition() << "] == " << enc.encoding();
         }
         stream << ")" << endl << indentation(4) << "begin" << endl;
         stream << indentation(5) << simmCntrlSignalName(bus.name())
                << "[0] <= 1'b1;" << endl;
         stream << indentation(5) << simmDataSignalName(bus.name()) << " <= ";

         if (bus.signExtends()) {
             stream << "$signed(";
         } else {
             stream << "$unsigned(";
         }
         stream << srcFieldSignal(bus.name()) << "["
                << enc.immediatePosition() + enc.immediateWidth() - 1
                << " : " << enc.immediatePosition() << "]);" << endl
                << indentation(4) << "end"   << endl
                << indentation(4) << "else"  << endl
                << indentation(4) << "begin" << endl
                << indentation(5) << simmCntrlSignalName(bus.name())
                << "[0] <= 1'b0;" << endl
                << indentation(4) << "end" << endl;
     }
 }

References assert, bem_, Encoding::encoding(), ImmediateEncoding::encodingPosition(), ImmediateEncoding::encodingWidth(), SourceField::hasImmediateEncoding(), SourceField::immediateEncoding(), ImmediateEncoding::immediatePosition(), ImmediateEncoding::immediateWidth(), TTAMachine::Bus::immediateWidth(), indentation(), language_, BinaryEncoding::moveSlot(), TTAMachine::Component::name(), TTAMachine::Bus::signExtends(), simmCntrlSignalName(), simmDataSignalName(), MoveSlot::sourceField(), squashSignal(), srcFieldSignal(), ProGe::VHDL, and writeSimmDataSignal().

Referenced by writeRulesForSourceControlSignals().

Here is the call graph for this function:

◆ writeBusMuxControlLogic()

void DefaultDecoderGenerator::writeBusMuxControlLogic	(	const TTAMachine::Bus &	bus,
		const std::set< TTAMachine::Socket * >	outputSockets,
		std::ostream &	stream
	)		const

private

◆ writeComment()

void DefaultDecoderGenerator::writeComment	(	std::ostream &	stream,
		int	indent,
		std::string	comment
	)		const

private

Definition at line 795 of file DefaultDecoderGenerator.cc.

                                                              {
     std::string delim = language_ == VHDL ? "-- " : "// ";
     stream << indentation(indent) << delim << comment << endl;
 }

References indentation(), language_, and ProGe::VHDL.

Referenced by writeFUCntrlSignals(), writeImmediateSlotSignals(), writeLongImmediateTagSignal(), writeMoveFieldSignals(), writeRFCntrlSignals(), writeRulesForDestinationControlSignals(), writeRulesForSourceControlSignals(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ writeControlRegisterMappings()

void DefaultDecoderGenerator::writeControlRegisterMappings ( std::ostream & stream ) const

private

Writes the mappings of control registers to control ports to the given stream.

Parameters

stream The stream.

Definition at line 3547 of file DefaultDecoderGenerator.cc.

                               {
     if(language_==VHDL){
         stream << indentation(1) << "-- map control registers to outputs"
                << endl;

         // map FU control signals
         Machine::FunctionUnitNavigator fuNav = machine_.
             functionUnitNavigator();
         for (int i = 0; i < fuNav.count(); i++) {
             FunctionUnit* fu = fuNav.item(i);
             for (int i = 0; i < fu->portCount(); i++) {
                 BaseFUPort* port = fu->port(i);
                 if (port->inputSocket() != NULL) {
                     // map load signal
                     stream << indentation(1)
                            << fuLoadCntrlPort(fu->name(), port->name())
                            << " <= "
                            << fuLoadSignalName(fu->name(), port->name())
                            << ";" << endl;
                 }
             }

             // map opcode signal
             if (fu->operationCount() > 1) {
                 stream << indentation(1) << fuOpcodeCntrlPort(fu->name())
                        << " <= " << fuOpcodeSignalName(fu->name()) << ";"
                        << endl;
             }
             stream << endl;
         }

         // map pc_load and ra_load signals
         ControlUnit* gcu = machine_.controlUnit();
         if (gcu->hasReturnAddressPort()) {
             SpecialRegisterPort* raPort = gcu->returnAddressPort();
             stream << indentation(1) << NetlistGenerator::DECODER_RA_LOAD_PORT
                    << " <= " << fuLoadSignalName(gcu->name(), raPort->name())
                    << ";" << endl;
         }

         // find the PC port
         BaseFUPort* pcPort = gcu->triggerPort();
         if (pcPort != NULL) {
             stream << indentation(1) << NetlistGenerator::DECODER_PC_LOAD_PORT
                    << " <= " << fuLoadSignalName(gcu->name(), pcPort->name())
                    << ";" << endl;
         }

         // map pc_opcode signal
         if (gcu->hasOperation(JUMP) || gcu->hasOperation(CALL)) {
             stream << indentation(1)
                    << NetlistGenerator::DECODER_PC_OPCODE_PORT
                    << " <= " << fuOpcodeSignalName(gcu->name()) << ";"
                    << endl;
         }

         // map other GCU's load signals
         for (int i = 0; i < gcu->portCount(); i++) {
             BaseFUPort* port = gcu->port(i);
             if (!port->isInput() ||
                 port->name() == gcu->returnAddressPort()->name() ||
                 port->isTriggering()) {
                 continue;
             }
             stream << indentation(1)
                    << fuLoadCntrlPort(gcu->name(), port->name())
                    << " <= " << fuLoadSignalName(gcu->name(), port->name())
                    << ";" << endl;
         }

         // map other GCU's load signals
         for (int i = 0; i < gcu->portCount(); i++) {
             BaseFUPort* port = gcu->port(i);
             if (!port->isInput() ||
                 port->name() == gcu->returnAddressPort()->name() ||
                 port->isTriggering()) {
                 continue;
             }
             stream << indentation(1)
                    << fuLoadCntrlPort(gcu->name(), port->name())
                    << " <= " << fuLoadSignalName(gcu->name(), port->name())
                    << ";" << endl;
         }

         // map RF control signals
         Machine::RegisterFileNavigator rfNav = machine_.
             registerFileNavigator();
         for (int i = 0; i < rfNav.count(); i++) {
             RegisterFile* rf = rfNav.item(i);

             for (int i = 0; i < rf->portCount(); i++) {
                 RFPort* port = rf->port(i);
                 bool async_signal = sacEnabled(rf->name())
                                 && port->outputSocket() != NULL;

                 // map load signal
                 stream << indentation(1)
                        << rfLoadCntrlPort(rf->name(), port->name()) << " <= "
                        << rfLoadSignalName(rf->name(), port->name(),
                            async_signal) << ";"
                        << endl;

                 // map opcode signal
                 bool OpcodePortExists = decoderBlock_->port(
                     rfOpcodeCntrlPort(rf->name(), port->name()));
                 if (OpcodePortExists) {
                     stream << indentation(1)
                            << rfOpcodeCntrlPort(rf->name(), port->name())
                            << " <= "
                            << (rfOpcodeWidth(*rf) == 0 ? "\"0\"" :
                                rfOpcodeSignalName(rf->name(), port->name(),
                                                   async_signal))
                            << ";"
                            << endl;
                 }
             }
         }

         // map IU write/read opcode signals (only 0 downto 0) to 0
         // TODO: mapping of these ports should probably be elsewhere
         Machine::ImmediateUnitNavigator iuNav =
             machine_.immediateUnitNavigator();
         for (int i = 0; i < iuNav.count(); i++) {
             ImmediateUnit* iu = iuNav.item(i);
             for (int i = 0; i < iu->portCount(); i++) {
                 RFPort* port = iu->port(i);
                 bool readOpcodePortExists = decoderBlock_->port(
                     iuReadOpcodeCntrlPort(iu->name(), port->name()));
                 bool writeOpcodePortExists =
                     decoderBlock_->port(iuWriteOpcodeCntrlPort(iu->name()));
                 assert(readOpcodePortExists == writeOpcodePortExists);
                 if (rfOpcodeWidth(*iu) == 0 and readOpcodePortExists and
                     writeOpcodePortExists) {

                     stream << indentation(1)
                            << iuReadOpcodeCntrlPort(iu->name(), port->name())
                            << " <= \"0\";"
                            << endl;

                     stream << indentation(1)
                            << iuWriteOpcodeCntrlPort(iu->name())
                            << " <= \"0\";"
                            << endl;
                 }
             }
         }


         // map socket control signals
         Machine::SocketNavigator socketNav = machine_.socketNavigator();
         for (int i = 0; i < socketNav.count(); i++) {
             Socket* socket = socketNav.item(i);
             if (socket->portCount() == 0 || socket->segmentCount() == 0) {
                 continue;
             }

             if (needsBusControl(*socket)) {
                 stream << indentation(1) << socketBusControlPort(socket->name())
                        << " <= " << socketBusCntrlSignalName(socket->name())
                        << ";" << endl;
             }
             if (needsDataControl(*socket)) {
                 stream << indentation(1) << socketDataControlPort(socket->name())
                        << " <= " << socketDataCntrlSignalName(socket->name())
                        << ";" << endl;
             }
         }
         // map short immediate signals
         Machine::BusNavigator busNav = machine_.busNavigator();
         for (int i = 0; i < busNav.count(); i++) {
             Bus* bus = busNav.item(i);
             if (bus->immediateWidth() > 0) {
                 stream << indentation(1) << simmControlPort(bus->name())
                        << " <= " << simmCntrlSignalName(bus->name()) << ";"
                        << endl;
                 if (!machine_.isRISCVMachine()) {
                     stream << indentation(1) << simmDataPort(bus->name())
                            << " <= " << simmDataSignalName(bus->name()) << ";"
                            << endl;
                 } else {
                     stream << indentation(1) << simmDataPort(bus->name())
                            << " <= " << RISCV_SIMM_PORT_IN_NAME << ";"
                            << endl;
                 }
             }
         }
     } else {
         stream << indentation(1) << "// map control registers to outputs"
                << endl;

         // map FU control signals
         Machine::FunctionUnitNavigator fuNav = machine_.
             functionUnitNavigator();
         for (int i = 0; i < fuNav.count(); i++) {
             FunctionUnit* fu = fuNav.item(i);
             for (int i = 0; i < fu->portCount(); i++) {
                 BaseFUPort* port = fu->port(i);
                 if (port->inputSocket() != NULL) {
                     // map load signal
                     stream << indentation(1)
                            << "assign "
                            << fuLoadCntrlPort(fu->name(), port->name())
                            << " = "
                            << fuLoadSignalName(fu->name(), port->name())
                            << ";" << endl;
                 }
             }

             // map opcode signal
             if (fu->operationCount() > 1) {
                 stream << indentation(1)
                        << "assign "
                        << fuOpcodeCntrlPort(fu->name())
                        << " = " << fuOpcodeSignalName(fu->name()) << ";"
                        << endl;
             }
             stream << endl;
         }

         // map pc_load and ra_load signals
         ControlUnit* gcu = machine_.controlUnit();
         if (gcu->hasReturnAddressPort()) {
             SpecialRegisterPort* raPort = gcu->returnAddressPort();
             stream << indentation(1)
                    << "assign "
                    << NetlistGenerator::DECODER_RA_LOAD_PORT
                    << " = " << fuLoadSignalName(gcu->name(), raPort->name())
                    << ";" << endl;
         }

         // find the PC port
         FUPort* pcPort = NULL;
         if (gcu->hasOperation(CALL)) {
             HWOperation* callOp = gcu->operation(CALL);
             pcPort = callOp->port(1);
         } else if (gcu->hasOperation(JUMP)) {
             HWOperation* jumpOp = gcu->operation(JUMP);
             pcPort = jumpOp->port(1);
         }
         if (pcPort != NULL) {
             stream << indentation(1)
                    << "assign "
                    << NetlistGenerator::DECODER_PC_LOAD_PORT
                    << " = " << fuLoadSignalName(gcu->name(), pcPort->name())
                    << ";" << endl;
         }

         // map pc_opcode signal
         if (gcu->hasOperation(JUMP) || gcu->hasOperation(CALL)) {
             stream << indentation(1)
                    << "assign "
                    << NetlistGenerator::DECODER_PC_OPCODE_PORT
                    << " = " << fuOpcodeSignalName(gcu->name()) << ";" << endl;
         }

         // map RF control signals
         Machine::RegisterFileNavigator rfNav = machine_.
             registerFileNavigator();
         for (int i = 0; i < rfNav.count(); i++) {
             RegisterFile* rf = rfNav.item(i);
             for (int i = 0; i < rf->portCount(); i++) {
                 RFPort* port = rf->port(i);
                 bool async_signal = sacEnabled(rf->name())
                                 && port->outputSocket() != NULL;

                 // map load signal
                 stream << indentation(1)
                        << "assign "
                        << rfLoadCntrlPort(rf->name(), port->name()) << " = "
                        << rfLoadSignalName(rf->name(), port->name(),
                            async_signal) << ";"
                        << endl;
                 // map opcode signal
                 stream << indentation(1)
                        << "assign "
                        << rfOpcodeCntrlPort(rf->name(), port->name())
                        << " = "
                        << (rfOpcodeWidth(*rf) == 0 ? "\"0\"" :
                             rfOpcodeSignalName(rf->name(), port->name(),
                                 async_signal))
                        << ";"
                        << endl;
             }
         }

         Machine::ImmediateUnitNavigator iuNav =
             machine_.immediateUnitNavigator();
         for (int i = 0; i < iuNav.count(); i++) {
             ImmediateUnit* iu = iuNav.item(i);
             for (int i = 0; i < iu->portCount(); i++) {
                 RFPort* port = iu->port(i);

                 stream << indentation(1) << "assign "
                        << iuReadLoadCntrlPort(iu->name(), port->name())
                        << " = "
                        << iuReadLoadCntrlSignal(iu->name(), port->name())
                        << ";" << endl;
                 if (rfOpcodeWidth(*iu) == 0) {
                     stream << indentation(1) << "assign "
                            << iuReadOpcodeCntrlPort(iu->name(), port->name())
                            << " = 1'b0;"
                            << endl;

                 } else {
                     stream << indentation(1) << "assign "
                            << iuReadOpcodeCntrlPort(iu->name(), port->name())
                            << " = "
                            << iuReadOpcodeCntrlSignal(iu->name(), port->name())
                            << ";" << endl;

                 }
             } // Loop for IU ports
             stream << indentation(1) << "assign "
                    << iuWritePort(iu->name()) << " = "
                    << iuWriteSignal(iu->name()) << ";" << endl;
             stream << indentation(1) << "assign "
                    << iuWriteLoadCntrlPort(iu->name()) << " = "
                    << iuWriteLoadCntrlSignal(iu->name()) << ";" << endl;
             if (rfOpcodeWidth(*iu) == 0) {
                 stream << indentation(1) << "assign "
                        << iuWriteOpcodeCntrlPort(iu->name())
                        << " = 1'b0;" << endl;
             } else {
                 stream << indentation(1) << "assign "
                        << iuWriteOpcodeCntrlPort(iu->name())
                        << " = "
                        << iuWriteOpcodeCntrlSignal(iu->name())
                        << ";" << endl;
             }
         } // Loop for IUs


         // map socket control signals
         Machine::SocketNavigator socketNav = machine_.socketNavigator();
         for (int i = 0; i < socketNav.count(); i++) {
             Socket* socket = socketNav.item(i);
             if (socket->portCount() == 0 || socket->segmentCount() == 0) {
                 continue;
             }

             if (needsBusControl(*socket)) {
                 stream << indentation(1)
                        << "assign "
                        << socketBusControlPort(socket->name())
                        << " = " << socketBusCntrlSignalName(socket->name())
                        << ";" << endl;
             }
             if (needsDataControl(*socket)) {
                 stream << indentation(1)
                        << "assign "
                        << socketDataControlPort(socket->name())
                        << " = " << socketDataCntrlSignalName(socket->name())
                        << ";" << endl;
             }
         }

         // map short immediate signals
         Machine::BusNavigator busNav = machine_.busNavigator();
         for (int i = 0; i < busNav.count(); i++) {
             Bus* bus = busNav.item(i);
             if (bus->immediateWidth() > 0) {
                 stream << indentation(1)
                        << "assign "
                        << simmControlPort(bus->name())
                        << " = " << simmCntrlSignalName(bus->name()) << ";"
                        << endl
                        << indentation(1)
                        << "assign "
                        << simmDataPort(bus->name()) << " = "
                        << simmDataSignalName(bus->name()) << ";" << endl;
             }
         }
     }
 }

References assert, TTAMachine::Machine::busNavigator(), CALL, TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), decoderBlock_, fuLoadCntrlPort(), fuLoadSignalName(), fuOpcodeCntrlPort(), fuOpcodeSignalName(), TTAMachine::FunctionUnit::hasOperation(), TTAMachine::ControlUnit::hasReturnAddressPort(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Bus::immediateWidth(), indentation(), TTAMachine::Port::inputSocket(), TTAMachine::Port::isInput(), TTAMachine::Machine::isRISCVMachine(), TTAMachine::BaseFUPort::isTriggering(), TTAMachine::Machine::Navigator< ComponentType >::item(), iuReadLoadCntrlPort(), iuReadLoadCntrlSignal(), iuReadOpcodeCntrlPort(), iuReadOpcodeCntrlSignal(), iuWriteLoadCntrlPort(), iuWriteLoadCntrlSignal(), iuWriteOpcodeCntrlPort(), iuWriteOpcodeCntrlSignal(), iuWritePort(), iuWriteSignal(), JUMP, language_, machine_, TTAMachine::Port::name(), TTAMachine::Component::name(), needsBusControl(), needsDataControl(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::FunctionUnit::port(), TTAMachine::HWOperation::port(), ProGe::NetlistBlock::port(), TTAMachine::Unit::portCount(), TTAMachine::Socket::portCount(), TTAMachine::ControlUnit::returnAddressPort(), rfLoadCntrlPort(), rfLoadSignalName(), rfOpcodeCntrlPort(), rfOpcodeSignalName(), rfOpcodeWidth(), RISCV_SIMM_PORT_IN_NAME, sacEnabled(), TTAMachine::Socket::segmentCount(), simmCntrlSignalName(), simmControlPort(), simmDataPort(), simmDataSignalName(), socketBusCntrlSignalName(), socketBusControlPort(), socketDataCntrlSignalName(), socketDataControlPort(), TTAMachine::Machine::socketNavigator(), TTAMachine::FunctionUnit::triggerPort(), and ProGe::VHDL.

Referenced by writeInstructionDecoder().

◆ writeControlRulesOfFUInputPort()

void DefaultDecoderGenerator::writeControlRulesOfFUInputPort	(	const TTAMachine::BaseFUPort &	port,
		std::ostream &	stream
	)		const

private

Writes the rules for control signals related to the given FU input port.

Parameters

port	The port.
stream	The stream to write.

Definition at line 3138 of file DefaultDecoderGenerator.cc.

                               {
     int indent = 4;
     FunctionUnit* fu = port.parentUnit();
     Socket* socket = port.inputSocket();
     assert(socket != NULL);
     BusSet buses = connectedBuses(*socket);
     stream << indentation(indent) << "if (";
     if(language_==VHDL){
         string opcodeAssignString = "";
         string cntrlSignalString = "";
         for (BusSet::const_iterator iter = buses.begin(); iter != buses.end();
              iter++) {
             Bus* bus = *iter;
             MoveSlot& moveSlot = bem_.moveSlot(bus->name());
             DestinationField& dstField = moveSlot.destinationField();
             SocketEncoding& enc = dstField.socketEncoding(socket->name());
             stream << squashSignal(bus->name()) << " = '0' and ";
             stream << socketEncodingCondition(VHDL, dstField, socket->name());
             if (enc.hasSocketCodes()) {
                 SocketCodeTable& scTable = enc.socketCodes();
                 if (port.isOpcodeSetting()) {
                     stream << ") then" << endl;

                     ControlUnit* gcu = dynamic_cast<ControlUnit*>(fu);

                     // Check
                     bool ordered=true;
                     for (int i = 0; i < fu->operationCount(); i++) {
                         HWOperation* operation = fu->operation(i);
                         FUPortCode& code = scTable.fuPortCode(
                             fu->name(), port.name(), operation->name());
                         if ((int)(code.encoding()) != (int)(opcode(*operation))) {
                             ordered=false;
                             break;
                         }
                     }
                     if (!ordered) {
                         stream << indentation(indent + 1) << "if (";
                         for (int i = 0; i < fu->operationCount(); i++) {
                             HWOperation* operation = fu->operation(i);
                             FUPortCode& code = scTable.fuPortCode(
                                 fu->name(), port.name(), operation->name());
                             stream << portCodeCondition(VHDL, enc, code) << ") then"
                                    << endl;
                             stream
                                 << indentation(indent + 2)
                                 << fuLoadSignalName(fu->name(), port.name())
                                 << " <= '1';" << endl;
                             if (gcu != nullptr) {
                                 if (operation->name() == JUMP) {
                                     stream << indentation(indent + 2)
                                            << fuOpcodeSignalName(fu->name())
                                            << " <= "
                                               "std_logic_vector(conv_"
                                               "unsigned(IFE_JUMP, "
                                            << fuOpcodeSignalName(fu->name())
                                            << "'length));" << endl;
                                 } else if (operation->name() == CALL) {
                                     stream << indentation(indent + 2)
                                            << fuOpcodeSignalName(fu->name())
                                            << " <= "
                                               "std_logic_vector(conv_"
                                               "unsigned(IFE_CALL, "
                                            << fuOpcodeSignalName(fu->name())
                                            << "'length));" << endl;
                                 }
                             } else {
                                 stream << indentation(indent + 2)
                                        << fuOpcodeSignalName(fu->name())
                                        << " <= conv_std_logic_vector("
                                        << opcode(*operation) << ", "
                                        << fuOpcodeSignalName(fu->name())
                                        << "'length);" << endl;
                             }
                             if (i+1 < fu->operationCount()) {
                                 stream << indentation(indent + 1)
                                        << "elsif (";
                             }
                         }
                         stream << indentation(indent + 1) << "else" << endl;
                         stream << indentation(indent + 2)
                                << fuLoadSignalName(fu->name(), port.name())
                                << " <= '0';" << endl;
                         stream << indentation(indent + 1) << "end if;"
                                << endl;
                     } else {
                         FUPortCode& code = scTable.fuPortCode(
                             fu->name(), port.name(), fu->operation(0)->name());
                         SlotField* parent = enc.parent();
                         string signalName;
                         if (dynamic_cast<SourceField*>(parent) != NULL) {
                             signalName = srcFieldSignal(parent->parent()->name());
                         } else {
                             signalName = dstFieldSignal(parent->parent()->name());
                         }

                         int codeStart;
                         if (parent->componentIDPosition() == BinaryEncoding::RIGHT) {
                             codeStart = enc.socketIDWidth() + code.indexWidth();
                         } else {
                             codeStart = code.indexWidth();
                         }
                         int codeEnd = codeStart + code.encodingWidth() - 1;
                         assert(codeEnd >= codeStart);
                         stream << indentation(indent + 1)
                                << fuLoadSignalName(fu->name(), port.name())
                                << " <= '1';" << endl;
                         opcodeAssignString =
                             indentation(indent + 1) +
                             fuOpcodeSignalName(fu->name()) +
                             " <= " + signalName + "(" +
                             Conversion::toString(codeEnd) + " downto " +
                             Conversion::toString(codeStart) + ")" + ";";
                         stream << opcodeAssignString << endl;
                     }
                 } else {
                     FUPortCode& code = scTable.fuPortCode(
                         fu->name(), port.name());
                     stream << " and " << portCodeCondition(VHDL, enc, code) << ") then"
                            << endl;
                     stream << indentation(indent + 1)
                            << fuLoadSignalName(fu->name(), port.name())
                            << " <= '1';" << endl;
                 }

             } else {
                 stream << ") then" << endl;
                 stream << indentation(indent + 1)
                        << fuLoadSignalName(fu->name(), port.name())
                        << " <= '1';" << endl;
             }
             if (needsBusControl(*socket)) {
                 cntrlSignalString =
                     indentation(indent + 1) +
                     socketBusCntrlSignalName(socket->name()) +
                     " <= conv_std_logic_vector(" +
                     Conversion::toString(icGenerator_.inputSocketControlValue(
                         *socket, *bus->segment(0))) +
                     ", " + socketBusCntrlSignalName(socket->name()) +
                     "'length);";
                 stream << cntrlSignalString << endl;
             }

             BusSet::const_iterator nextIter = iter;
             nextIter++;
             if (nextIter != buses.end()) {
                 stream << indentation(indent) << "elsif (";
             };
         }

         stream << indentation(indent) << "else" << endl;
         stream << indentation(indent + 1)
                << fuLoadSignalName(fu->name(), port.name()) << " <= '0';"
                << endl;
         stream << indentation(indent) << "end if;" << endl;
     } else {  // language == Verilog
         for (BusSet::const_iterator iter = buses.begin(); iter != buses.end();
              iter++) {
             Bus* bus = *iter;
             MoveSlot& moveSlot = bem_.moveSlot(bus->name());
             DestinationField& dstField = moveSlot.destinationField();
             SocketEncoding& enc = dstField.socketEncoding(socket->name());
             stream << squashSignal(bus->name()) << " == 0 && "
                    << socketEncodingCondition(Verilog, dstField, socket->name());
             if (enc.hasSocketCodes()) {
                 SocketCodeTable& scTable = enc.socketCodes();
                 if (port.isOpcodeSetting()) {
                     stream << ")" << endl
                            << indentation(4) << "begin" << endl
                            << indentation(5) << "if (";
                     for (int i = 0; i < fu->operationCount(); i++) {
                         HWOperation* operation = fu->operation(i);
                         FUPortCode& code = scTable.fuPortCode(
                             fu->name(), port.name(), operation->name());
                         stream << portCodeCondition(Verilog, enc, code) << ")"
                                << endl
                                << indentation(5) << "begin" << endl
                                << indentation(6)
                                << fuLoadSignalName(fu->name(), port.name())
                                << " <= 1'b1;" << endl;
                         ControlUnit* gcu = dynamic_cast<ControlUnit*>(fu);
                         if (gcu != NULL) {
                             if (operation->name() == JUMP) {
                                 stream << indentation(5)
                                        << fuOpcodeSignalName(fu->name())
                                        << " <= IFE_JUMP;" << endl;
                             } else if (operation->name() == CALL) {
                                 stream << indentation(5)
                                        << fuOpcodeSignalName(fu->name())
                                        << " <= IFE_CALL;" << endl;
                             }
                         } else {
                             stream << indentation(6)
                                    << fuOpcodeSignalName(fu->name())
                                    << " <= "
                                    << opcode(*operation)
                                    << ";"
                                    << endl;
                         }
                         if (i+1 < fu->operationCount()) {
                             stream << indentation(5) << "end" << endl
                                    << indentation(5) << "else if (";
                         }
                     }
                     stream << indentation(5) << "end"   << endl
                            << indentation(5) << "else"  << endl
                            << indentation(6)
                            << fuLoadSignalName(fu->name(), port.name())
                            << " <= 1'b0;"
                            << endl;
                 } else {
                     FUPortCode& code = scTable.fuPortCode(
                         fu->name(), port.name());
                     stream << " && " << portCodeCondition(Verilog, enc, code) << ")"
                            << endl
                            << indentation(4) << "begin" << endl
                            << indentation(5)
                            << fuLoadSignalName(fu->name(), port.name())
                            << " <= 1'b1;" << endl;
                 }
             } else {
                 stream << ")" << endl
                        << indentation(4) << "begin" << endl
                        << indentation(5)
                        << fuLoadSignalName(fu->name(), port.name()) << " <= 1'b1;"
                        << endl;
                 ControlUnit* gcu = dynamic_cast<ControlUnit*>(fu);
                 if (gcu != NULL) {
                     if (gcu->hasOperation(JUMP)) {
                         HWOperation* jumpOp = gcu->operation(JUMP);
                         if (&port == jumpOp->port(1)) {
                             stream << indentation(5)
                                    << fuOpcodeSignalName(fu->name())
                                    << " <= IFE_JUMP;" << endl;
                         }
                     }
                     if (gcu->hasOperation(CALL)) {
                         HWOperation* callOp = gcu->operation(CALL);
                         if (&port == callOp->port(1)) {
                             stream << indentation(5)
                                    << fuOpcodeSignalName(fu->name())
                                    << " <= IFE_CALL;" << endl;
                         }
                     }
                 }
             }
             if (needsBusControl(*socket)) {
                 stream << indentation(5)
                        << socketBusCntrlSignalName(socket->name())
                        << " <= "
                        << icGenerator_.inputSocketControlValue(
                            *socket, *bus->segment(0)) << ";"
                        << endl;
             }

             BusSet::const_iterator nextIter = iter;
             nextIter++;
             stream << indentation(4) << "end" << endl;
             if (nextIter != buses.end()) {
                 stream << indentation(4) << "else if(";
             };
         }

         stream << indentation(4) << "else" << endl;
         stream << indentation(5) << fuLoadSignalName(fu->name(), port.name())
                << " <= 1'b0;" << endl;
     }
 }

References assert, bem_, CALL, SlotField::componentIDPosition(), connectedBuses(), MoveSlot::destinationField(), dstFieldSignal(), PortCode::encoding(), PortCode::encodingWidth(), fuLoadSignalName(), fuOpcodeSignalName(), SocketCodeTable::fuPortCode(), TTAMachine::FunctionUnit::hasOperation(), SocketEncoding::hasSocketCodes(), icGenerator_, indentation(), PortCode::indexWidth(), TTAMachine::Port::inputSocket(), CentralizedControlICGenerator::inputSocketControlValue(), TTAMachine::BaseFUPort::isOpcodeSetting(), JUMP, language_, BinaryEncoding::moveSlot(), TTAMachine::HWOperation::name(), TTAMachine::Port::name(), MoveSlot::name(), TTAMachine::Component::name(), needsBusControl(), opcode(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), SocketEncoding::parent(), SlotField::parent(), TTAMachine::BaseFUPort::parentUnit(), TTAMachine::HWOperation::port(), portCodeCondition(), BinaryEncoding::RIGHT, TTAMachine::Bus::segment(), socketBusCntrlSignalName(), SocketEncoding::socketCodes(), SlotField::socketEncoding(), socketEncodingCondition(), SocketEncoding::socketIDWidth(), squashSignal(), srcFieldSignal(), Conversion::toString(), ProGe::Verilog, and ProGe::VHDL.

Referenced by writeRulesForDestinationControlSignals().

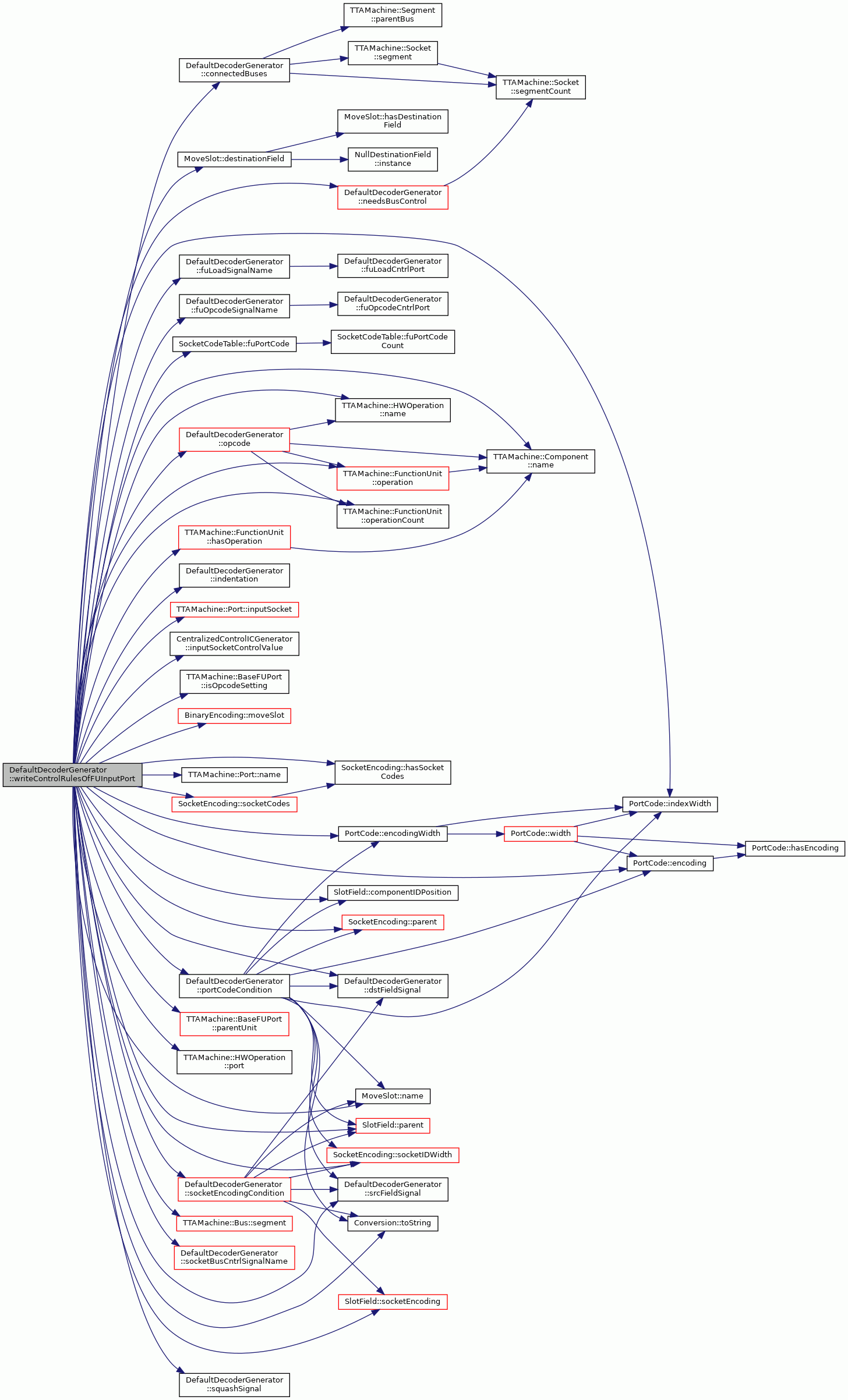

Here is the call graph for this function:

◆ writeControlRulesOfFUOutputPort()

void DefaultDecoderGenerator::writeControlRulesOfFUOutputPort	(	const TTAMachine::BaseFUPort &	port,
		std::ostream &	stream
	)		const

private

Writes the data control signal rules of the socket connected to the given FU output port.

Parameters

port	The port.
stream	The stream to write.

Definition at line 2876 of file DefaultDecoderGenerator.cc.

                               {
     int indent = 4;

     Socket* socket = port.outputSocket();
     assert(socket != NULL);
     BusSet connectedBuses = DefaultDecoderGenerator::connectedBuses(*socket);
     if(language_==VHDL){
         for (BusSet::const_iterator iter = connectedBuses.begin();
              iter != connectedBuses.end(); iter++) {
             Bus* bus = *iter;
             MoveSlot& slot = bem_.moveSlot(bus->name());
             SourceField& srcField = slot.sourceField();
             SocketEncoding& enc = srcField.socketEncoding(socket->name());
             stream << indentation(indent) << "if ("
                    << squashSignal(bus->name()) << " = '0' and ";
             stream << socketEncodingCondition(VHDL, srcField, socket->name());
             if (enc.hasSocketCodes()) {
                 SocketCodeTable& scTable = enc.socketCodes();
                 FUPortCode& code = scTable.fuPortCode(
                     port.parentUnit()->name(), port.name());
                 stream << " and " << portCodeCondition(VHDL, enc, code)
                        << ") then" << endl;
             } else {
                 stream << ") then" << endl;
             }
             stream << indentation(indent + 1)
                    << socketDataCntrlSignalName(socket->name()) << " <= "
                    << "conv_std_logic_vector("
                    << icGenerator_.outputSocketDataControlValue(*socket, port)
                    << ", " << socketDataCntrlSignalName(socket->name())
                    << "'length);" << endl;
             stream << indentation(indent) << "end if;" << endl;
         }
     } else {
         for (BusSet::const_iterator iter = connectedBuses.begin();
              iter != connectedBuses.end(); iter++) {
             Bus* bus = *iter;
             MoveSlot& slot = bem_.moveSlot(bus->name());
             SourceField& srcField = slot.sourceField();
             SocketEncoding& enc = srcField.socketEncoding(socket->name());
             stream << indentation(indent) << "if ("
                    << squashSignal(bus->name()) << " == 0 && "
                    << socketEncodingCondition(
                           Verilog, srcField, socket->name());
             if (enc.hasSocketCodes()) {
                 SocketCodeTable& scTable = enc.socketCodes();
                 FUPortCode& code = scTable.fuPortCode(
                     port.parentUnit()->name(), port.name());
                 stream << " && " << portCodeCondition(Verilog, enc, code) << ")"
                        << endl;
             } else {
                 stream << ")" << endl;
             }
             stream << indentation(indent)
                    << socketDataCntrlSignalName(socket->name()) << " <= "
                    << icGenerator_.outputSocketDataControlValue(*socket, port)
                    << ";" << endl;
         }
     }
 }

References assert, bem_, connectedBuses(), SocketCodeTable::fuPortCode(), SocketEncoding::hasSocketCodes(), icGenerator_, indentation(), language_, BinaryEncoding::moveSlot(), TTAMachine::Port::name(), TTAMachine::Component::name(), TTAMachine::Port::outputSocket(), CentralizedControlICGenerator::outputSocketDataControlValue(), TTAMachine::BaseFUPort::parentUnit(), portCodeCondition(), SocketEncoding::socketCodes(), socketDataCntrlSignalName(), SlotField::socketEncoding(), socketEncodingCondition(), MoveSlot::sourceField(), squashSignal(), ProGe::Verilog, and ProGe::VHDL.

Referenced by writeRulesForSourceControlSignals().

Here is the call graph for this function:

◆ writeControlRulesOfRFReadPort()

void DefaultDecoderGenerator::writeControlRulesOfRFReadPort	(	const TTAMachine::RFPort &	port,
		std::ostream &	stream
	)		const

private

Writes the control signal rules related to the given RF read port.

Parameters

port	The RF read port.
stream	The stream to write.

Definition at line 2947 of file DefaultDecoderGenerator.cc.

                               {
     int indent = 4;
     assert(port.outputSocket() != NULL);

     // Do not write load signal when port is bidirectional
     // (where load = write enable)
     bool writeLoadSignal = true;
     if (port.inputSocket() != NULL) {
         writeLoadSignal = false;
     }

     Socket* socket = port.outputSocket();
     BaseRegisterFile* rf = port.parentUnit();
     bool async_signal = sacEnabled(rf->name());

     // collect to a set all the buses the socket is connected to
     BusSet connectedBuses = DefaultDecoderGenerator::connectedBuses(*socket);
     string opcodeString = "";
     if (language_ == VHDL) {
         for (BusSet::const_iterator iter = connectedBuses.begin();
              iter != connectedBuses.end();iter++) {
             BusSet::const_iterator nextIter = iter;
             nextIter++;
             if (iter == connectedBuses.begin()) {
                 stream << indentation(indent) << "if (";
             } else {
                 stream << indentation(indent) << "elsif (";
             }

             Bus* bus = *iter;
             MoveSlot& slot = bem_.moveSlot(bus->name());
             SourceField& srcField = slot.sourceField();
             SocketEncoding& enc = srcField.socketEncoding(socket->name());
             SocketCodeTable* scTable = NULL;
             if (enc.hasSocketCodes()) {
                 scTable = &enc.socketCodes();
             }

             PortCode* code = NULL;
             if (scTable != NULL) {
                 if (dynamic_cast<ImmediateUnit*>(rf) != NULL) {
                     code = &scTable->iuPortCode(rf->name());
                 } else {
                     code = &scTable->rfPortCode(rf->name());
                 }
             }
             stream << squashSignal(bus->name()) << " = '0' and ";
             stream << socketEncodingCondition(VHDL, srcField, socket->name());
             if (code != NULL && code->hasEncoding()) {
                 stream << " and " << portCodeCondition(VHDL, enc, *code);
             }
             stream << ") then" << endl;

             string loadSignalName;
             string opcodeSignalName;
             if (dynamic_cast<ImmediateUnit*>(rf) != NULL) {
                 loadSignalName =
                     iuReadLoadCntrlPort(rf->name(), port.name());
                 opcodeSignalName =
                     iuReadOpcodeCntrlPort(rf->name(), port.name());
             } else {
                 loadSignalName = rfLoadSignalName(rf->name(), port.name(),
                     async_signal);
                 opcodeSignalName = rfOpcodeSignalName(rf->name(), port.name(),
                     async_signal);
             }
             if (writeLoadSignal) {
                 stream << indentation(indent + 1) << loadSignalName
                        << " <= '1';" << endl;
             }
             if (code != NULL) {
                 opcodeString = indentation(indent + 1) + opcodeSignalName +
                                " <= tce_ext(" +
                                rfOpcodeFromSrcOrDstField(VHDL, enc, *code) +
                                ", " + opcodeSignalName + "'length);";
                 stream << opcodeString << endl;
             }

             if (needsDataControl(*socket)) {
                 stream << indentation(indent)
                        << socketDataCntrlSignalName(socket->name())
                        << " <= conv_std_logic_vector("
                        << icGenerator_.outputSocketDataControlValue(
                               *socket, port)
                        << ", " << socketDataCntrlSignalName(socket->name())
                        << "'length);" << endl;
             }
         }

         if (writeLoadSignal) {
             stream << indentation(indent) << "else" << endl;
             stream << indentation(indent + 1);
             if (dynamic_cast<ImmediateUnit*>(rf) != NULL) {
                 stream << iuReadLoadCntrlPort(rf->name(), port.name());
             } else {
                 stream << rfLoadSignalName(
                     rf->name(), port.name(), async_signal);
             }
             stream << " <= '0';" << endl;
         }
         stream << indentation(indent) << "end if;" << endl;
     } else { // language_ == Verilog
         for (BusSet::const_iterator iter = connectedBuses.begin();
              iter != connectedBuses.end();iter++) {
             BusSet::const_iterator nextIter = iter;
             nextIter++;
             if (iter == connectedBuses.begin()) {
                 stream << indentation(4) << "if (";
             } else {
                 stream << indentation(4) << "else if(";
             }

             Bus* bus = *iter;
             MoveSlot& slot = bem_.moveSlot(bus->name());
             SourceField& srcField = slot.sourceField();
             SocketEncoding& enc = srcField.socketEncoding(socket->name());
             SocketCodeTable* scTable = NULL;
             if (enc.hasSocketCodes()) {
                 scTable = &enc.socketCodes();
             }

             PortCode* code = NULL;
             if (scTable != NULL) {
                 if (dynamic_cast<ImmediateUnit*>(rf) != NULL) {
                     code = &scTable->iuPortCode(rf->name());
                 } else {
                     code = &scTable->rfPortCode(rf->name());
                 }
             }
             stream << squashSignal(bus->name()) << " == 0 && "
                    << socketEncodingCondition(Verilog, srcField, socket->name());
             if (code != NULL && code->hasEncoding()) {
                 stream << " && " << portCodeCondition(Verilog, enc, *code);
             }
             stream << ")" << endl
                    << indentation(4) << "begin" << endl;

             string loadSignalName;
             string opcodeSignalName;
             if (dynamic_cast<ImmediateUnit*>(rf) != NULL) {
                 loadSignalName =
                     iuReadLoadCntrlSignal(rf->name(), port.name());
                 opcodeSignalName =
                     iuReadOpcodeCntrlSignal(rf->name(), port.name());
             } else {
                 loadSignalName = rfLoadSignalName(rf->name(), port.name(),
                     async_signal);
                 opcodeSignalName = rfOpcodeSignalName(rf->name(), port.name(),
                     async_signal);
             }

             stream << indentation(5) << loadSignalName << " <= 1'b1;" << endl;
             if (code != NULL) {
                 stream << indentation(5) << opcodeSignalName
                        << " <= $unsigned("
                        << rfOpcodeFromSrcOrDstField(Verilog, enc, *code)
                        << ");" << endl;
             }

             if (needsDataControl(*socket)) {
                 stream << indentation(5)
                        << socketDataCntrlSignalName(socket->name())
                        << " <= "
                        << icGenerator_.outputSocketDataControlValue(*socket, port)
                        << ";" << endl;
             }
             stream << indentation(4) << "end" << endl;
         }
         stream << indentation(4) << "else"  << endl
                << indentation(4) << "begin" << endl
                << indentation(5);
         if (dynamic_cast<ImmediateUnit*>(rf) != NULL) {
             stream << iuReadLoadCntrlSignal(rf->name(), port.name());
         } else {
             stream << rfLoadSignalName(rf->name(), port.name(), async_signal);
         }
         stream << " <= 1'b0;" << endl
                << indentation(4) << "end" << endl;
     }
 }

References assert, bem_, connectedBuses(), PortCode::hasEncoding(), SocketEncoding::hasSocketCodes(), icGenerator_, indentation(), TTAMachine::Port::inputSocket(), SocketCodeTable::iuPortCode(), iuReadLoadCntrlPort(), iuReadLoadCntrlSignal(), iuReadOpcodeCntrlPort(), iuReadOpcodeCntrlSignal(), language_, BinaryEncoding::moveSlot(), TTAMachine::Port::name(), TTAMachine::Component::name(), needsDataControl(), TTAMachine::Port::outputSocket(), CentralizedControlICGenerator::outputSocketDataControlValue(), TTAMachine::RFPort::parentUnit(), portCodeCondition(), rfLoadSignalName(), rfOpcodeFromSrcOrDstField(), rfOpcodeSignalName(), SocketCodeTable::rfPortCode(), sacEnabled(), SocketEncoding::socketCodes(), socketDataCntrlSignalName(), SlotField::socketEncoding(), socketEncodingCondition(), MoveSlot::sourceField(), squashSignal(), ProGe::Verilog, and ProGe::VHDL.

Referenced by writeRFSRAMDecodingProcess(), and writeRulesForSourceControlSignals().

Here is the call graph for this function:

◆ writeControlRulesOfRFWritePort()

void DefaultDecoderGenerator::writeControlRulesOfRFWritePort	(	const TTAMachine::RFPort &	port,
		std::ostream &	stream
	)		const

private

Writes the rules for control signals related to the given RF write port.

Parameters

port	The port.
stream	The stream to write.

Definition at line 3417 of file DefaultDecoderGenerator.cc.

                               {
     int indent = 4;
     BaseRegisterFile* rf = port.parentUnit();
     Socket* socket = port.inputSocket();
     assert(socket != NULL);
     BusSet buses = connectedBuses(*socket);
     stream << indentation(indent) << "if (";
     if(language_==VHDL){
         string opcodeSignalString = "";
         string controlSignalString = "";
         for (BusSet::const_iterator iter = buses.begin(); iter != buses.end();
              iter++) {
             Bus* bus = *iter;
             MoveSlot& moveSlot = bem_.moveSlot(bus->name());
             DestinationField& dstField = moveSlot.destinationField();
             SocketEncoding& enc = dstField.socketEncoding(socket->name());
             stream << squashSignal(bus->name()) << " = '0' and ";
             stream << socketEncodingCondition(VHDL, dstField, socket->name());
             if (enc.hasSocketCodes()) {
                 SocketCodeTable& scTable = enc.socketCodes();
                 RFPortCode& code = scTable.rfPortCode(rf->name());
                 if (code.hasEncoding()) {
                     stream << " and " << portCodeCondition(VHDL, enc, code);

                 }
                 stream << ") then" << endl;
                 stream << indentation(indent + 1)
                        << rfLoadSignalName(rf->name(), port.name())
                        << " <= '1';" << endl;
                 opcodeSignalString =
                     indentation(indent + 1) +
                     rfOpcodeSignalName(rf->name(), port.name()) +
                     " <= " + rfOpcodeFromSrcOrDstField(VHDL, enc, code) + ";";
                 stream << opcodeSignalString << endl;

             } else {
                 stream << ") then" << endl;
                 stream << indentation(indent + 1)
                        << rfLoadSignalName(rf->name(), port.name())
                        << " <= '1';" << endl;
             }

             if (needsBusControl(*socket)) {
                 controlSignalString =
                     indentation(indent + 1) +
                     socketBusCntrlSignalName(socket->name()) +
                     " <= conv_std_logic_vector(" +
                     Conversion::toString(icGenerator_.inputSocketControlValue(
                         *socket, *bus->segment(0))) +
                     ", " + socketBusCntrlSignalName(socket->name()) +
                     "'length);";

                 stream << controlSignalString << endl;
             }

             BusSet::const_iterator nextIter = iter;
             nextIter++;
             if (nextIter != buses.end()) {
                 stream << indentation(indent) << "elsif (";
             }
         }
         stream << indentation(indent) << "else" << endl;
         stream << indentation(indent + 1)
                << rfLoadSignalName(rf->name(), port.name()) << " <= '0';"
                << endl;
         stream << indentation(indent) << "end if;" << endl;
     } else {
         for (BusSet::const_iterator iter = buses.begin(); iter != buses.end();
              iter++) {
             Bus* bus = *iter;
             MoveSlot& moveSlot = bem_.moveSlot(bus->name());
             DestinationField& dstField = moveSlot.destinationField();
             SocketEncoding& enc = dstField.socketEncoding(socket->name());
             stream << squashSignal(bus->name()) << " == 0 && "
                    << socketEncodingCondition(Verilog, dstField, socket->name());
             if (enc.hasSocketCodes()) {
                 SocketCodeTable& scTable = enc.socketCodes();
                 RFPortCode& code = scTable.rfPortCode(rf->name());
                 if (code.hasEncoding()) {
                     stream << " && " << portCodeCondition(Verilog, enc, code);

                 }
                 stream << ")" << endl
                        << indentation(4) << "begin" << endl
                        << indentation(5)
                        << rfLoadSignalName(rf->name(), port.name()) << " <= 1'b1;"
                        << endl
                        << indentation(5)
                        << rfOpcodeSignalName(rf->name(), port.name()) << " <= "
                        << rfOpcodeFromSrcOrDstField(Verilog, enc, code) << ";" << endl;
             } else {
                 stream << ")" << endl
                        << indentation(4) << "begin" << endl
                        << indentation(5)
                        << rfLoadSignalName(rf->name(), port.name()) << " <= 1'b1;"
                        << endl;
             }

             if (needsBusControl(*socket)) {
                 stream << indentation(5)
                        << socketBusCntrlSignalName(socket->name())
                        << " <= "
                        << icGenerator_.inputSocketControlValue(
                            *socket, *bus->segment(0)) << ";"
                        << endl;
             }

             BusSet::const_iterator nextIter = iter;
             nextIter++;
             stream << indentation(4) << "end" << endl;
             if (nextIter != buses.end()) {
                 stream << indentation(4) << "else if (";
             }
         }
         stream << indentation(4) << "else" << endl
                << indentation(5) << rfLoadSignalName(rf->name(), port.name())
                << " <= 1'b0;" << endl;
     }
 }

References assert, bem_, connectedBuses(), MoveSlot::destinationField(), PortCode::hasEncoding(), SocketEncoding::hasSocketCodes(), icGenerator_, indentation(), TTAMachine::Port::inputSocket(), CentralizedControlICGenerator::inputSocketControlValue(), language_, BinaryEncoding::moveSlot(), TTAMachine::Port::name(), TTAMachine::Component::name(), needsBusControl(), TTAMachine::RFPort::parentUnit(), portCodeCondition(), rfLoadSignalName(), rfOpcodeFromSrcOrDstField(), rfOpcodeSignalName(), SocketCodeTable::rfPortCode(), TTAMachine::Bus::segment(), socketBusCntrlSignalName(), SocketEncoding::socketCodes(), SlotField::socketEncoding(), socketEncodingCondition(), squashSignal(), Conversion::toString(), ProGe::Verilog, and ProGe::VHDL.

Referenced by writeRulesForDestinationControlSignals().

Here is the call graph for this function:

◆ writeDismemberingAndITDecompression()

void DefaultDecoderGenerator::writeDismemberingAndITDecompression ( std::ostream & stream ) const

private

◆ writeFUCntrlSignals() [1/2]

void DefaultDecoderGenerator::writeFUCntrlSignals	(	const TTAMachine::FunctionUnit &	fu,
		std::ostream &	stream
	)

private

Writes the control signals of the given FU to the given stream.

Parameters

fu	The FU.
stream	The stream to write.

Definition at line 1279 of file DefaultDecoderGenerator.cc.

                                                           {
     for (int i = 0; i < fu.portCount(); i++) {
         BaseFUPort* port = fu.port(i);

         if (port->inputSocket() != NULL) {
             // if input port
             std::string sigName = fuLoadSignalName(fu.name(), port->name());
             writeSignalDeclaration(stream, ProGe::BIT, sigName, 1);
             registerBits.push_back(sigName);
         }
     }

     // write opcode signal if the FU needs opcode
     int opcWidth = opcodeWidth(fu);
     if (opcWidth > 0) {
         std::string sigName = fuOpcodeSignalName(fu.name());
         writeSignalDeclaration(stream, ProGe::BIT_VECTOR, sigName, opcWidth);
         registerVectors.push_back(sigName);
     }
 }

References ProGe::BIT, ProGe::BIT_VECTOR, fuLoadSignalName(), fuOpcodeSignalName(), TTAMachine::Port::inputSocket(), TTAMachine::Port::name(), TTAMachine::Component::name(), opcodeWidth(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), registerBits, registerVectors, and writeSignalDeclaration().

Here is the call graph for this function:

◆ writeFUCntrlSignals() [2/2]

void DefaultDecoderGenerator::writeFUCntrlSignals ( std::ostream & stream )

private

Writes the FU control signals to the given stream.

Parameters

stream The stream.

Definition at line 1256 of file DefaultDecoderGenerator.cc.

                                                                {
     writeComment(stream, 1, "FU control signals");

     Machine::FunctionUnitNavigator fuNav = machine_.
         functionUnitNavigator();
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         writeFUCntrlSignals(*fu, stream);
     }

     if (machine_.controlUnit() != NULL) {
         ControlUnit* gcu = machine_.controlUnit();
         writeFUCntrlSignals(*gcu, stream);
     }
 }

References TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, and writeComment().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeFullNOPConstant()

void DefaultDecoderGenerator::writeFullNOPConstant ( std::ostream & stream ) const

private

◆ writeGlockHandlingSignals()

void DefaultDecoderGenerator::writeGlockHandlingSignals ( std::ostream & stream ) const

private

Definition at line 1386 of file DefaultDecoderGenerator.cc.

                               {
     assert(language_ == VHDL && "Support for other HDL not yet implemented.");
     writeSignalDeclaration(
         stream, ProGe::BIT, INTERNAL_MERGED_GLOCK_REQ_SIGNAL, 1);
     writeSignalDeclaration(
         stream, ProGe::BIT, PRE_DECODE_MERGED_GLOCK_SIGNAL, 1);
     writeSignalDeclaration(
         stream, ProGe::BIT, POST_DECODE_MERGED_GLOCK_SIGNAL, 1);
     writeSignalDeclaration(
         stream, ProGe::BIT, POST_DECODE_MERGED_GLOCK_OUTREG, 1);
 }

References assert, ProGe::BIT, INTERNAL_MERGED_GLOCK_REQ_SIGNAL, language_, POST_DECODE_MERGED_GLOCK_OUTREG, POST_DECODE_MERGED_GLOCK_SIGNAL, PRE_DECODE_MERGED_GLOCK_SIGNAL, ProGe::VHDL, and writeSignalDeclaration().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeGlockMapping()

void DefaultDecoderGenerator::writeGlockMapping ( std::ostream & stream ) const

private

Generates global lock and lock request wiring.

Definition at line 2404 of file DefaultDecoderGenerator.cc.

                                                                    {
     assert(
         language_ == VHDL &&
         "writeGlockMapping() is not yet implemented "
         "for other HDLs.");

     // Generate output register for core lock status signal //
     string propagateGlock(
         POST_DECODE_MERGED_GLOCK_OUTREG +
         " <= " + POST_DECODE_MERGED_GLOCK_SIGNAL + ";");
     string assertGlock(POST_DECODE_MERGED_GLOCK_OUTREG + " <= '1'" + ";");
     if (syncReset_) {
         stream << "  lock_reg_proc : process (clk)\n"
                << "  begin\n"
                << "    if (clk'event and clk = '1') then\n"
                << "      if (rstx = '0') then\n"
                << "      -- Locked during active reset"
                << "        " << assertGlock << "\n"
                << "      else\n"
                << "        " << propagateGlock << "\n"
                << "      end if;\n"
                << "    end if;\n"
                << "  end process lock_reg_proc;\n\n";
     } else {
         stream << "  lock_reg_proc : process (clk, rstx)\n"
                << "  begin\n"
                << "    if (rstx = '0') then\n"
                << "      -- Locked during active reset"
                << "      " << assertGlock << "\n"
                << "    elsif (clk'event and clk = '1') then\n"
                << "      " << propagateGlock << "\n"
                << "    end if;\n"
                << "  end process lock_reg_proc;\n\n";
     }

     // Generate global lock request wiring //
     int lockReqWidth = glockRequestWidth();
     stream << indentation(1) << NetlistGenerator::DECODER_LOCK_REQ_OUT_PORT
            << " <= " << INTERNAL_MERGED_GLOCK_REQ_SIGNAL << ";" << endl;
     stream << indentation(1) << INTERNAL_MERGED_GLOCK_REQ_SIGNAL << " <= ";
     if (lockReqWidth > 0) {
         for (int i = 0; i < lockReqWidth; i++) {
             stream << LOCK_REQ_PORT_NAME << "(" << i << ")";
             if (i + 1 < lockReqWidth) {
                 stream << " or ";
             }
         }
         stream << ";" << endl;
     } else {
         stream << "'0';" << endl;
     }

     stream << indentation(1) << PRE_DECODE_MERGED_GLOCK_SIGNAL
            << " <= " << NetlistGenerator::DECODER_LOCK_REQ_IN_PORT;
     if (lockReqWidth > 0) {
         stream << " or " << INTERNAL_MERGED_GLOCK_REQ_SIGNAL << ";" << endl;
     } else {
         stream << ";" << endl;
     }
     stream << indentation(1) << POST_DECODE_MERGED_GLOCK_SIGNAL
            << " <= " << PRE_DECODE_MERGED_GLOCK_SIGNAL << " or "
            << PIPELINE_FILL_LOCK_SIGNAL << ";" << endl;
     stream << indentation(1) << NetlistGenerator::DECODER_LOCK_STATUS_PORT
            << " <= " << POST_DECODE_MERGED_GLOCK_OUTREG << ";" << endl;

     // Generate global lock wiring //
     const int glockWidth = glockPortWidth();
     for (GlockBitType glockBitToConnect = 0; glockBitToConnect < glockWidth;
          glockBitToConnect++) {
         stream << indentation(1) << GLOCK_PORT_NAME << "("
                << Conversion::toString(glockBitToConnect) << ") <= ";

         // If the feature for alternate glock wiring is enabled and current
         // glock signal to be wired for the TTA Unit has glock request port.
         if (generateAlternateGlockReqHandling_ &&
             MapTools::containsKey(unitGlockBitMap_, glockBitToConnect) &&
             MapTools::containsKey(
                 unitGlockReqBitMap_,
                 unitGlockBitMap_.find(glockBitToConnect)->second)) {
             // Specialized global lock port map to avoid self-locking of FU.
             // Each FU that has global lock request will not receive
             // global lock signal unless another FU request global lock.
             const Unit* associatedToGlockReq =
                 unitGlockBitMap_.find(glockBitToConnect)->second;
             UnitGlockReqBitMapType::const_iterator gr_it;
             for (gr_it = unitGlockReqBitMap_.begin();
                  gr_it != unitGlockReqBitMap_.end(); gr_it++) {
                 if (gr_it->first == associatedToGlockReq) {
                     continue;
                 }
                 GlockReqBitType glockReqBitToConnect = gr_it->second;
                 stream << LOCK_REQ_PORT_NAME << "("
                        << Conversion::toString(glockReqBitToConnect)
                        << ") or ";
             }
             stream << NetlistGenerator::DECODER_LOCK_REQ_IN_PORT << ";";
         } else {
             // Regular global lock port map.
             stream << POST_DECODE_MERGED_GLOCK_SIGNAL << ";";
         }
         if (MapTools::containsKey(unitGlockBitMap_, glockBitToConnect)) {
             stream
                 << " -- to "
                 << unitGlockBitMap_.find(glockBitToConnect)->second->name();
         }
         stream << endl;
     }
 }

References assert, MapTools::containsKey(), generateAlternateGlockReqHandling_, GLOCK_PORT_NAME, glockPortWidth(), glockRequestWidth(), indentation(), INTERNAL_MERGED_GLOCK_REQ_SIGNAL, language_, LOCK_REQ_PORT_NAME, PIPELINE_FILL_LOCK_SIGNAL, POST_DECODE_MERGED_GLOCK_OUTREG, POST_DECODE_MERGED_GLOCK_SIGNAL, PRE_DECODE_MERGED_GLOCK_SIGNAL, syncReset_, Conversion::toString(), unitGlockBitMap_, unitGlockReqBitMap_, and ProGe::VHDL.

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeImmediateSlotSignals()

void DefaultDecoderGenerator::writeImmediateSlotSignals ( std::ostream & stream ) const

private

Writes the signals for dedicated immediate slots to the given stream.

Parameters

stream The stream.

Definition at line 1135 of file DefaultDecoderGenerator.cc.

                               {
     writeComment(stream, 1, "signals for dedicated immediate slots");
     for (int i = 0; i < bem_.immediateSlotCount(); i++) {
         ImmediateSlotField& slot = bem_.immediateSlot(i);
         writeSignalDeclaration(
             stream, ProGe::BIT_VECTOR, immSlotSignal(slot.name()),
             slot.width());
     }
 }

References bem_, ProGe::BIT_VECTOR, BinaryEncoding::immediateSlot(), BinaryEncoding::immediateSlotCount(), immSlotSignal(), ImmediateSlotField::name(), ImmediateSlotField::width(), writeComment(), and writeSignalDeclaration().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeInstructionDecoder()

void DefaultDecoderGenerator::writeInstructionDecoder ( std::ostream & stream )

private

Writes the instruction decoder to the given stream.

Parameters

stream The stream.

Definition at line 807 of file DefaultDecoderGenerator.cc.

                                                                    {
     if (language_ == VHDL) {
         stream << "library IEEE;" << endl;
         stream << "use IEEE.std_logic_1164.all;" << endl;
         stream << "use IEEE.std_logic_arith.all;" << endl;
         if (generateLockTrace_) {
             stream << "use STD.textio.all;" << endl;
         }
         stream << "use work." << entityNameStr_ << "_globals.all;" << endl;
         stream << "use work." << entityNameStr_ << "_gcu_opcodes.all;"
                << endl;
         stream << "use work.tce_util.all;" << endl << endl;

         string entityName = entityNameStr_ + "_decoder";
         stream << "entity " << entityName << " is" << endl << endl;

         // create generic and port declarations
         VHDLNetlistWriter::writeGenericDeclaration(
             *decoderBlock_, 1, indentation(1), stream);
         VHDLNetlistWriter::writePortDeclaration(
             *decoderBlock_, 1, indentation(1), stream);

         stream << endl;
         stream << "end " << entityName << ";" << endl << endl;
         string architectureName = "rtl_andor";
         stream << "architecture " << architectureName << " of " << entityName
                << " is" << endl << endl;

         writeMoveFieldSignals(stream);
         stream << endl;
         writeImmediateSlotSignals(stream);
         stream << endl;
         writeLongImmediateTagSignal(stream);
         stream << endl;
         writeSquashSignals(stream);
         stream << endl;
         writeSocketCntrlSignals(stream);
         stream << endl;
         writeFUCntrlSignals(stream);
         stream << endl;
         writeRFCntrlSignals(stream);
         stream << endl;
         writeGlockHandlingSignals(stream);
         stream << endl;
         writePipelineFillSignals(stream);

         stream << "begin" << endl << endl;

         if (generateLockTrace_) {
             writeLockDumpCode(stream);
             stream << endl;
         }

         writeInstructionDismembering(stream);
         stream << endl;
         writeControlRegisterMappings(stream);
         stream << endl;
         writeSquashSignalGenerationProcesses(stream);
         stream << endl;
         writeLongImmediateWriteProcess(stream);
         stream << endl;
         writeRFSRAMDecodingProcess(stream);
         stream << endl;
         writeMainDecodingProcess(stream);
         stream << endl;
         writeGlockMapping(stream);
         stream << endl;
         writePipelineFillProcess(stream);

         stream << endl << "end " << architectureName << ";" << endl;
     } else { //language_ == Verilog
         const std::string DS = FileSystem::DIRECTORY_SEPARATOR;
         string entityName = entityNameStr_ + "_decoder";
         stream << "`timescale 1ns/1ns" << endl
                << "module " << entityName << endl
                << "#(" << endl
                << "`include \""
                << entityNameStr_ << "_globals_pkg.vh\"" << endl
                << "," << endl
                << "`include \""  << "gcu_opcodes_pkg.vh\"" << endl
                << ")" << endl;

         VerilogNetlistWriter::writePortDeclaration(
             *decoderBlock_, 1, indentation(1), stream);

         // create generic and port declarations
         VerilogNetlistWriter::writeGenericDeclaration(
             *decoderBlock_, 1, indentation(1), stream);

         stream << endl;

         writeMoveFieldSignals(stream);
         stream << endl;
         writeImmediateSlotSignals(stream);
         stream << endl;
         writeLongImmediateTagSignal(stream);
         stream << endl;
         writeSquashSignals(stream);
         stream << endl;
         writeSocketCntrlSignals(stream);
         stream << endl;
         writeFUCntrlSignals(stream);
         stream << endl;
         writeRFCntrlSignals(stream);
         stream << endl;

         if (generateLockTrace_) {
             writeLockDumpCode(stream);
             stream << endl;
         }

         writeInstructionDismembering(stream);
         stream << endl;
         writeControlRegisterMappings(stream);
         stream << endl;
         writeSquashSignalGenerationProcesses(stream);
         stream << endl;
         writeLongImmediateWriteProcess(stream);
         stream << endl;
         writeRFSRAMDecodingProcess(stream);
         stream << endl;
         writeMainDecodingProcess(stream);
         stream << endl;

         int lockReqWidth = glockRequestWidth();
         stream << indentation(1) << "assign "
                << NetlistGenerator::DECODER_LOCK_REQ_OUT_PORT << "=";
         if (lockReqWidth > 0) {
             for (int i = 0; i < lockReqWidth; i++) {
                 stream << LOCK_REQ_PORT_NAME << "[" << i << "]";
                 if (i+1 < lockReqWidth) {
                     stream << " | ";
                 }
             }
             stream << ";" << endl;
         } else {
           stream << "1'b0;" << endl;
         }

         const int glockWidth = glockPortWidth();
         stream << indentation(1) << "assign " << GLOCK_PORT_NAME << " = {"
                << Conversion::toString(glockWidth) << "{"
                << NetlistGenerator::DECODER_LOCK_REQ_IN_PORT << "}};" << endl
                << endl;
         stream << endl << "endmodule" << endl;
     }
 }

References decoderBlock_, FileSystem::DIRECTORY_SEPARATOR, DS, entityNameStr_, generateLockTrace_, GLOCK_PORT_NAME, glockPortWidth(), glockRequestWidth(), indentation(), language_, LOCK_REQ_PORT_NAME, Conversion::toString(), ProGe::VHDL, writeControlRegisterMappings(), writeFUCntrlSignals(), writeGlockHandlingSignals(), writeGlockMapping(), writeImmediateSlotSignals(), writeInstructionDismembering(), writeLockDumpCode(), writeLongImmediateTagSignal(), writeLongImmediateWriteProcess(), writeMainDecodingProcess(), writeMoveFieldSignals(), writePipelineFillProcess(), writePipelineFillSignals(), writeRFCntrlSignals(), writeRFSRAMDecodingProcess(), writeSocketCntrlSignals(), writeSquashSignalGenerationProcesses(), and writeSquashSignals().

Referenced by generateInstructionDecoder().

Here is the call graph for this function:

◆ writeInstructionDecoding()

void DefaultDecoderGenerator::writeInstructionDecoding ( std::ostream & stream ) const

private

Writes the instruction decoding section to the main process in decoder.

Parameters

stream The stream to write.

Definition at line 2583 of file DefaultDecoderGenerator.cc.

                               {

     writeRulesForSourceControlSignals(stream);
     stream << endl;
     writeRulesForDestinationControlSignals(stream);
 }

References writeRulesForDestinationControlSignals(), and writeRulesForSourceControlSignals().

Referenced by writeMainDecodingProcess().

Here is the call graph for this function:

◆ writeInstructionDismembering()

void DefaultDecoderGenerator::writeInstructionDismembering ( std::ostream & stream ) const

private

Writes dismembering of instruction word to signals to the given stream.

Parameters

stream The stream.

Definition at line 1414 of file DefaultDecoderGenerator.cc.

                               {
     std::string instructionPort = NetlistGenerator::DECODER_INSTR_WORD_PORT;

     if (language_ == VHDL) {
         stream << indentation(1) << "-- dismembering of instruction" << endl;
         stream << indentation(1) << "process (" << instructionPort << ")"
                << endl;
         stream << indentation(1) << "begin --process" << endl;

         for (int i = 0; i < bem_.moveSlotCount(); i++) {
             MoveSlot& slot = bem_.moveSlot(i);
             int slotPosition = slot.bitPosition();

             if (slot.width() > 0) {
                 stream << indentation(2) << moveFieldSignal(slot.name())
                        << " <= " << instructionPort << "("
                        << slotPosition + slot.width() << "-1 downto "
                        << slotPosition << ");" << endl;
             }
             if (slot.hasSourceField() && slot.sourceField().width() != 0) {
                 SourceField& srcField = slot.sourceField();
                 stream << indentation(2) << srcFieldSignal(slot.name())
                        << " <= " << instructionPort << "("
                        << slotPosition + srcField.bitPosition() +
                               srcField.width() - 1
                        << " downto " << slotPosition + srcField.bitPosition()
                        << ");" << endl;
             }
             if (slot.hasDestinationField() &&
                 slot.destinationField().width() != 0) {
                 DestinationField& dstField = slot.destinationField();
                 stream << indentation(2) << dstFieldSignal(slot.name())
                        << " <= " << instructionPort << "("
                        << slotPosition + dstField.bitPosition() +
                               dstField.width() - 1
                        << " downto " << slotPosition + dstField.bitPosition()
                        << ");" << endl;
             }
             if (slot.hasGuardField()) {
                 GuardField& grdField = slot.guardField();
                 stream << indentation(2) << guardFieldSignal(slot.name())
                        << " <= " << instructionPort << "("
                        << slotPosition + grdField.bitPosition() +
                               grdField.width() - 1
                        << " downto " << slotPosition + grdField.bitPosition()
                        << ");" << endl;
             }
         }
         stream << endl;
         for (int i = 0; i < bem_.immediateSlotCount(); i++) {
             ImmediateSlotField& slot = bem_.immediateSlot(i);
             stream << indentation(2) << immSlotSignal(slot.name())
                    << " <= " << instructionPort << "("
                    << slot.bitPosition() + slot.width() - 1 << " downto "
                    << slot.bitPosition() << ");" << endl;
         }
         if (bem_.hasImmediateControlField()) {
             ImmediateControlField& icField = bem_.immediateControlField();
             stream << indentation(2) << LIMM_TAG_SIGNAL
                    << " <= " << instructionPort << "("
                    << icField.bitPosition() + icField.width() - 1
                    << " downto " << icField.bitPosition() << ");" << endl;
         }
         stream << indentation(1) << "end process;" << endl;
     } else {  // language == Verilog
         stream << indentation(1) << "// dismembering of instruction" << endl;
         stream << indentation(1) << "always@(*)" << endl;
         stream << indentation(1) << "begin //process" << endl;

         for (int i = 0; i < bem_.moveSlotCount(); i++) {
             MoveSlot& slot = bem_.moveSlot(i);
             int slotPosition = slot.bitPosition();

             if (slot.width() > 0) {
                 stream << indentation(2) << moveFieldSignal(slot.name())
                        << " = " << instructionPort << "["
                        << slotPosition + slot.width() - 1 << " : "
                        << slotPosition << "];" << endl;
             }
             if (slot.hasSourceField() && slot.sourceField().width() != 0) {
                 SourceField& srcField = slot.sourceField();
                 stream << indentation(2) << srcFieldSignal(slot.name())
                        << " = " << instructionPort << "["
                        << slotPosition + srcField.bitPosition() +
                               srcField.width() - 1
                        << " : " << slotPosition + srcField.bitPosition()
                        << "];" << endl;
             }
             if (slot.hasDestinationField() &&
                 slot.destinationField().width() != 0) {
                 DestinationField& dstField = slot.destinationField();
                 stream << indentation(2) << dstFieldSignal(slot.name())
                        << " = " << instructionPort << "["
                        << slotPosition + dstField.bitPosition() +
                               dstField.width() - 1
                        << " : " << slotPosition + dstField.bitPosition()
                        << "];" << endl;
             }
             if (slot.hasGuardField()) {
                 GuardField& grdField = slot.guardField();
                 stream << indentation(2) << guardFieldSignal(slot.name())
                        << " = " << instructionPort << "["
                        << slotPosition + grdField.bitPosition() +
                               grdField.width() - 1
                        << " : " << slotPosition + grdField.bitPosition()
                        << "];" << endl;
             }
         }
         stream << endl;
         for (int i = 0; i < bem_.immediateSlotCount(); i++) {
             ImmediateSlotField& slot = bem_.immediateSlot(i);
             stream << indentation(2) << immSlotSignal(slot.name()) << " = "
                    << instructionPort << "["
                    << slot.bitPosition() + slot.width() - 1 << " : "
                    << slot.bitPosition() << "];" << endl;
         }
         if (bem_.hasImmediateControlField()) {
             ImmediateControlField& icField = bem_.immediateControlField();
             stream << indentation(2) << LIMM_TAG_SIGNAL << " = "
                    << instructionPort << "["
                    << icField.bitPosition() + icField.width() - 1 << " : "
                    << icField.bitPosition() << "];" << endl;
         }
         stream << indentation(1) << "end" << endl;
     }
 }

References bem_, InstructionField::bitPosition(), MoveSlot::destinationField(), dstFieldSignal(), MoveSlot::guardField(), guardFieldSignal(), MoveSlot::hasDestinationField(), MoveSlot::hasGuardField(), BinaryEncoding::hasImmediateControlField(), MoveSlot::hasSourceField(), BinaryEncoding::immediateControlField(), BinaryEncoding::immediateSlot(), BinaryEncoding::immediateSlotCount(), immSlotSignal(), indentation(), language_, LIMM_TAG_SIGNAL, moveFieldSignal(), BinaryEncoding::moveSlot(), BinaryEncoding::moveSlotCount(), ImmediateSlotField::name(), MoveSlot::name(), MoveSlot::sourceField(), srcFieldSignal(), ProGe::VHDL, ImmediateSlotField::width(), SourceField::width(), ImmediateControlField::width(), SlotField::width(), MoveSlot::width(), and GuardField::width().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeInstructionTemplateProcedures()

void DefaultDecoderGenerator::writeInstructionTemplateProcedures	(	const ProGe::HDL	language,
		const TTAMachine::InstructionTemplate &	iTemp,
		int	indLevel,
		std::ostream &	stream
	)		const

private

Writes the procedures required if the instruction is of the given instruction template.

Parameters

iTemp	The instruction template.
indLevel	The indentation level.
stream	The stream to write.

Definition at line 1955 of file DefaultDecoderGenerator.cc.

                               {

     Machine::ImmediateUnitNavigator iuNav =
         machine_.immediateUnitNavigator();
     if (language == VHDL) {
         if (iTemp.slotCount() == 0) {
             for (int i = 0; i < iuNav.count(); i++) {
                 ImmediateUnit* iu = iuNav.item(i);
                 stream << indentation(indLevel)
                        << iuWriteLoadCntrlPort(iu->name()) << " <= '0';"
                        << endl;

                 stream << indentation(indLevel) << iuWritePort(iu->name())
                        << "(" << (iu->width() - 1) << " downto 0"
                        << ") <= tce_sxt(\"0\", " << iu->width() << ");"
                        << endl;
             }
         } else {
             for (int i = 0; i < iuNav.count(); i++) {
                 ImmediateUnit* iu = iuNav.item(i);
                 if (iTemp.isOneOfDestinations(*iu)) {
                     int msb = iu->width() - 1;
                     int lsb = iTemp.supportedWidth(*iu) -
                         iTemp.supportedWidth(iTemp.slotOfDestination(*iu, 0));
                     for (int j = 0; j < iTemp.numberOfSlots(*iu); j++) {
                         string slot = iTemp.slotOfDestination(*iu, j);
                         if (j != 0) {
                             msb = lsb-1;
                             lsb = msb - iTemp.supportedWidth(slot) + 1;
                         }

                         int immPartWidth = msb - lsb + 1;
                         stream << indentation(indLevel)
                                << iuWritePort(iu->name())
                                << "(" << msb << " downto " << lsb << ") <= ";
                         if (j == 0) {
                             if (iu->extensionMode() == Machine::SIGN) {
                                 stream << "tce_sxt(";
                             } else {
                                 stream << "tce_ext(";
                             }
                         }

                         if (machine_.busNavigator().hasItem(slot)) {
                             MoveSlot& mSlot = bem_.moveSlot(slot);
                             stream << NetlistGenerator::DECODER_INSTR_WORD_PORT
                                    << "(" << mSlot.bitPosition() +
                                 iTemp.supportedWidth(slot) - 1
                                    << " downto " << mSlot.bitPosition() << ")";
                         } else {
                             ImmediateSlotField& iSlot =
                                 bem_.immediateSlot(slot);
                             stream << NetlistGenerator::DECODER_INSTR_WORD_PORT
                                    << "(" << iSlot.bitPosition() +
                                 iTemp.supportedWidth(slot) - 1
                                    << " downto " << iSlot.bitPosition() << ")";
                         }

                         if (j == 0) {
                             stream << ", " << immPartWidth << ");" << endl;
                         } else {
                             stream << ";" << endl;
                         }

                     }
                     if (iu->numberOfRegisters() > 1) {
                         LImmDstRegisterField& field =
                             bem_.longImmDstRegisterField(
                             iTemp.name(), iu->name());
                         stream << indentation(indLevel)
                                << iuWriteOpcodeCntrlPort(iu->name()) << " <= "
                                << "tce_ext("
                                << NetlistGenerator::DECODER_INSTR_WORD_PORT
                                << "("
                                << field.bitPosition() + rfOpcodeWidth(*iu) - 1
                                << " downto " << field.bitPosition() << "), "
                                << iuWriteOpcodeCntrlPort(iu->name())
                                << "'length);" << endl;
                     }
                     stream << indentation(indLevel)
                            << iuWriteLoadCntrlPort(iu->name()) << " <= '1';"
                            << endl;
                 } else {
                     stream << indentation(indLevel)
                            << iuWriteLoadCntrlPort(iu->name()) << " <= '0';"
                            << endl;
                 }
             }
         }
     } else { // language == Verilog
         if (iTemp.slotCount() == 0) {
             for (int i = 0; i < iuNav.count(); i++) {
                 ImmediateUnit* iu = iuNav.item(i);
                 stream << indentation(indLevel)
                        << iuWriteLoadCntrlSignal(iu->name())
                        << " <= 1'b0;" << endl;

                 stream << indentation(indLevel)
                        << iuWriteSignal(iu->name())
                        << "[" << (iu->width() - 1) << " : 0"
                        << "] <= {" << iu->width() <<"{1'b0}};" << endl;
             }
         } else {
             for (int i = 0; i < iuNav.count(); i++) {
                 ImmediateUnit* iu = iuNav.item(i);
                 if (iTemp.isOneOfDestinations(*iu)) {
                     int msb = iu->width() - 1;
                     int lsb = iTemp.supportedWidth(*iu) -
                         iTemp.supportedWidth(iTemp.slotOfDestination(*iu, 0));
                     for (int j = 0; j < iTemp.numberOfSlots(*iu); j++) {
                         string slot = iTemp.slotOfDestination(*iu, j);
                         if (j != 0) {
                             msb = lsb-1;
                             lsb = msb - iTemp.supportedWidth(slot) + 1;
                         }

                         stream << indentation(indLevel)
                                << iuWriteSignal(iu->name())
                                << "[" << msb << " : " << lsb << "] <= ";
                         if (j == 0) {
                             if (iu->extensionMode() == Machine::SIGN) {
                                 stream << "$signed(";
                             } else {
                                 stream << "$unsigned(";
                             }
                         }

                         if (machine_.busNavigator().hasItem(slot)) {
                             MoveSlot& mSlot = bem_.moveSlot(slot);
                             stream << NetlistGenerator::DECODER_INSTR_WORD_PORT
                                    << "[" << mSlot.bitPosition() +
                                 iTemp.supportedWidth(slot) - 1
                                    << " : " << mSlot.bitPosition() << "]";
                         } else {
                             ImmediateSlotField& iSlot =
                                 bem_.immediateSlot(slot);
                             stream << NetlistGenerator::DECODER_INSTR_WORD_PORT
                                    << "[" << iSlot.bitPosition() +
                                 iTemp.supportedWidth(slot) - 1
                                    << " : " << iSlot.bitPosition() << "]";
                         }

                         if (j == 0) {
                             stream << ");" << endl;
                         } else {
                             stream << ";" << endl;
                         }
                     }
                     if (iu->numberOfRegisters() > 1) {
                         LImmDstRegisterField& field =
                             bem_.longImmDstRegisterField(
                             iTemp.name(), iu->name());
                         stream << indentation(indLevel)
                                << iuWriteOpcodeCntrlSignal(iu->name())
                                << " <= " << "$unsigned("
                                << NetlistGenerator::DECODER_INSTR_WORD_PORT
                                << "["
                                << field.bitPosition() + rfOpcodeWidth(*iu) - 1
                                << " : " << field.bitPosition() << "]);"
                                << endl;
                     }
                     stream << indentation(indLevel)
                            << iuWriteLoadCntrlSignal(iu->name()) << " <= 1'b1;"
                            << endl;
                 } else {
                     stream << indentation(indLevel)
                            << iuWriteLoadCntrlSignal(iu->name()) << " <= 1'b0;"
                            << endl;
                 }
             }
         }
     }
 }

References bem_, InstructionField::bitPosition(), TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::ImmediateUnit::extensionMode(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), BinaryEncoding::immediateSlot(), TTAMachine::Machine::immediateUnitNavigator(), indentation(), TTAMachine::InstructionTemplate::isOneOfDestinations(), TTAMachine::Machine::Navigator< ComponentType >::item(), iuWriteLoadCntrlPort(), iuWriteLoadCntrlSignal(), iuWriteOpcodeCntrlPort(), iuWriteOpcodeCntrlSignal(), iuWritePort(), iuWriteSignal(), BinaryEncoding::longImmDstRegisterField(), machine_, BinaryEncoding::moveSlot(), TTAMachine::Component::name(), TTAMachine::BaseRegisterFile::numberOfRegisters(), TTAMachine::InstructionTemplate::numberOfSlots(), rfOpcodeWidth(), TTAMachine::InstructionTemplate::slotCount(), TTAMachine::InstructionTemplate::slotOfDestination(), TTAMachine::InstructionTemplate::supportedWidth(), ProGe::VHDL, and TTAMachine::BaseRegisterFile::width().

Referenced by writeLongImmediateWriteProcess().

Here is the call graph for this function:

◆ writeLockDumpCode()

void DefaultDecoderGenerator::writeLockDumpCode ( std::ostream & stream ) const

private

void writeDecompressSignalsVHDL(std::ostream& stream) const; TBR

Writes process that captures state of global lock per clock cycle.

The captured contents are dumped into an output file.

Parameters

stream The stream to write.

Definition at line 963 of file DefaultDecoderGenerator.cc.

                                                                    {
     if (language_==VHDL){
         stream << indentation(1)
                << "-- Dump the status of global lock into a file once "
                   "in clock cycle"
                << endl
                << indentation(1)
                << "-- setting DUMP false will disable dumping"
                << endl << endl;

         stream << indentation(1)
                << "-- Do not synthesize this process!"
                << endl
                << indentation(1)
                << "-- pragma synthesis_off"
                << endl << endl;

         stream << indentation(1)
                << "file_output : process" << endl;
         stream << indentation(2)
                << "file fileout : text;" << endl << endl
                << indentation(2)
                << "variable lineout : line;" << endl
                << indentation(2)
                << "variable start : boolean := true;" << endl
                << indentation(2)
                << "variable count : integer := 0;" << endl
                << indentation(2)
                << "constant SEPARATOR : string := \" | \";" << endl
                << indentation(2)
                << "constant DUMP : boolean := true;" << endl
                << indentation(2)
                << "constant DUMPFILE : string := \"lock.dump\";" << endl;

         stream << indentation(1)
                << "begin" << endl;

         stream << indentation(2)
                << "if DUMP = true then" << endl;

         stream << indentation(3)
                << "if start = true then" << endl;

         stream << indentation(4)
                << "file_open(fileout, DUMPFILE, write_mode);" << endl
                << indentation(4)
                << "start := false;" << endl;

         stream << indentation(3)
                << "end if;" << endl;

         stream << indentation(3)
                << "wait on clk until clk = '1' and clk'last_value = '0';"
                << endl;

         stream << indentation(3)
                << "if count > " << (lockTraceStartingCycle_ - 1)
                << " then" << endl;

         stream << indentation(4) << "write(lineout, count-"
                << lockTraceStartingCycle_ << ", right, 12);" << endl
                << indentation(4) << "write(lineout, SEPARATOR);" << endl
                << indentation(4)
                << "write(lineout, conv_integer(unsigned'(\"\" & "
                << POST_DECODE_MERGED_GLOCK_SIGNAL << ")), right, 12);" << endl
                << indentation(4) << "write(lineout, SEPARATOR);" << endl
                << indentation(4) << "writeline(fileout, lineout);" << endl;

         stream << indentation(3)
                << "end if;" << endl;
         stream << indentation(3)
                << "count := count + 1;" << endl;

         stream << indentation(2)
                << "end if;" << endl;

         stream << indentation(1)
                << "end process file_output;" << endl;

         stream << indentation(1)
                << "-- pragma synthesis_on"
                << endl;

     } else { // language_==Verilog
         stream << indentation(1)
                << "// Dump the status of global lock into a file once "
                << "in clock cycle"
                << endl
                << indentation(1)
                << "// setting DUMP false will disable dumping"
                << endl << endl
                << indentation(1) << "// Do not synthesize!" << endl
                << indentation(1) << "//synthesis translate_off" << endl
                << indentation(1) << "integer fileout;" << endl << endl
                << indentation(1) << "integer count=0;" << endl << endl
                << indentation(1) << "`define DUMPFILE \"lock.dump\""
                << endl << endl

                << indentation(1) << "initial" << endl
                << indentation(1) << "begin" << endl
                << indentation(2) << "fileout = $fopen(`DUMPFILE,\"w\");"
                << endl
                << indentation(2) << "$fclose(fileout);" << endl
                << indentation(2) << "forever" << endl
                << indentation(2) << "begin" << endl
                << indentation(3) << "#PERIOD;" << endl
                << indentation(3) << "if ( count > "
                << (lockTraceStartingCycle_ - 1) << ")" << endl;

         stream << indentation(3) << "begin" << endl
                << indentation(4) << "fileout = $fopen(`DUMPFILE,\"a\");"
                << endl
                << indentation(4) << "$fwrite(fileout," << "\""
                << " %11d |  %11d | \\n\"" << ", count - "
                << lockTraceStartingCycle_ << ", "
                << NetlistGenerator::DECODER_LOCK_REQ_IN_PORT << ");"
                << endl
                << indentation(4) << "$fclose(fileout);" << endl
                << indentation(3) << "end" << endl
                << indentation(3) << "count = count + 1;" << endl
                << indentation(2) << "end" << endl
                << indentation(1) << "end" << endl
                << indentation(1) << "//synthesis translate_on" << endl;
     }
 }

References indentation(), language_, lockTraceStartingCycle_, POST_DECODE_MERGED_GLOCK_SIGNAL, and ProGe::VHDL.

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeLongImmediateTagSignal()

void DefaultDecoderGenerator::writeLongImmediateTagSignal ( std::ostream & stream ) const

private

Writes the signal for long immediate tag to the given stream.

Parameters

stream The stream.

Definition at line 1152 of file DefaultDecoderGenerator.cc.

                               {
     if (bem_.hasImmediateControlField()) {
         writeComment(stream, 1, "signal for long immediate tag");

         writeSignalDeclaration(
             stream, ProGe::BIT_VECTOR, LIMM_TAG_SIGNAL,
             bem_.immediateControlField().width());
     }
 }

References bem_, ProGe::BIT_VECTOR, BinaryEncoding::hasImmediateControlField(), BinaryEncoding::immediateControlField(), LIMM_TAG_SIGNAL, ImmediateControlField::width(), writeComment(), and writeSignalDeclaration().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeLongImmediateWriteProcess()

void DefaultDecoderGenerator::writeLongImmediateWriteProcess ( std::ostream & stream ) const

private

Writes the process that writes long immediates to immediate units.

Parameters

stream The stream to write.

Definition at line 1801 of file DefaultDecoderGenerator.cc.

                               {

     Machine::InstructionTemplateNavigator itNav =
         machine_.instructionTemplateNavigator();
     if (itNav.count() == 0 || (itNav.count() == 1 &&
         itNav.item(0)->isEmpty())) {
         return;
     }

     string resetPort = NetlistGenerator::DECODER_RESET_PORT;
     string clockPort = NetlistGenerator::DECODER_CLOCK_PORT;
     // If bypass decoder registers, implement combinatorial process
     string listStr;
     if (language_ == VHDL) {
         int indentLevel = 1;
         stream << indentation(indentLevel) << "--long immediate write process"
                << endl;
         stream << indentation(indentLevel) << "process (";
         stream << clockPort;
         if (!syncReset_) {
             stream << ", " << resetPort;
         }
         stream << ")" << endl;
         stream << indentation(indentLevel) << "begin --process" << endl;
         // reset
         indentLevel += 1;
         if (syncReset_) {
             stream << indentation(indentLevel)
                    << "if (clk'event and clk = '1') then" << endl;
             indentLevel += 1;
         }
         stream << indentation(indentLevel) << "if (" << resetPort
                << " = '0') then" << endl;
         indentLevel += 1;
         Machine::ImmediateUnitNavigator iuNav =
             machine_.immediateUnitNavigator();

         for (int i = 0; i < iuNav.count(); i++) {
             ImmediateUnit* iu = iuNav.item(i);
             stream << indentation(indentLevel)
                    << iuWriteLoadCntrlPort(iu->name()) << " <= '0';" << endl;
             stream << indentation(indentLevel) << iuWritePort(iu->name())
                    << " <= (others => '0');" << endl;
             if (rfOpcodeWidth(*iu) != 0)
                 stream << indentation(indentLevel)
                        << iuWriteOpcodeCntrlPort(iu->name())
                        << " <= (others => '0');" << endl;
         }
         // else
         stream << indentation(indentLevel - 1) << "elsif ";
         if (!syncReset_) {
             stream << "(clk'event and clk = '1') then" << endl
                    << indentation(indentLevel) << "if ";
             indentLevel += 1;
         }
         // global lock test
         stream << PRE_DECODE_MERGED_GLOCK_SIGNAL << " = '0' then" << endl;
         for (int i = 0; i < itNav.count(); i++) {
             InstructionTemplate* iTemp = itNav.item(i);
             if (bem_.hasImmediateControlField()) {
                 if (i == 0) {
                     stream << indentation(indentLevel) << "if ("
                            << instructionTemplateCondition(
                                   VHDL, iTemp->name())
                            << ") then" << endl;
                 } else if (i+1 < itNav.count()) {
                     stream << indentation(indentLevel) << "elsif ("
                            << instructionTemplateCondition(
                                   VHDL, iTemp->name())
                            << ") then" << endl;
                 } else {
                     stream << indentation(indentLevel) << "else" << endl;
                 }
             }
             writeInstructionTemplateProcedures(
                 VHDL, *iTemp, indentLevel + 1, stream);
         }

         if (bem_.hasImmediateControlField()) {
             stream << indentation(indentLevel) << "end if;" << endl;
         }
         // global lock test endif
         stream << indentation(3) << "end if;" << endl;
         // reset (async) or clk edge (sync) endif
         stream << indentation(2) << "end if;" << endl;
         stream << indentation(1) << "end process;" << endl;
     } else { // language_ == Verilog
         stream << indentation(1) << "//long immediate write process" << endl
                << indentation(1) << "always@(posedge "
                << clockPort << " or negedge "  << resetPort << ")" << endl
                 // reset
                << indentation(2) << "if (" << resetPort << " == 0)"
                << endl
                << indentation(2) << "begin" << endl;
         Machine::ImmediateUnitNavigator iuNav =
             machine_.immediateUnitNavigator();

         for (int i = 0; i < iuNav.count(); i++) {
             ImmediateUnit* iu = iuNav.item(i);
             stream << indentation(3) << iuWriteLoadCntrlSignal(iu->name())
                    << " <= 1'b0;" << endl
                    << indentation(3) << iuWriteSignal(iu->name())
                    << " <= 0;" << endl;
             if (rfOpcodeWidth(*iu) != 0)
             stream << indentation(3) << iuWriteOpcodeCntrlSignal(iu->name())
                    << " <= 0;" << endl;
         }
         stream << indentation(2) << "end" << endl
                << indentation(2) << "else" << endl
                << indentation(2) << "begin" << endl
                << indentation(3) << "if ("
                << NetlistGenerator::DECODER_LOCK_REQ_IN_PORT << " == 0)"
                << endl
                << indentation(3) << "begin" << endl;
         for (int i = 0; i < itNav.count(); i++) {
             InstructionTemplate* iTemp = itNav.item(i);
             int indLevel = 4;
             if (bem_.hasImmediateControlField()) {
                 indLevel = 5;
                 if (i == 0) {
                     stream << indentation(4) << "if ("
                            << instructionTemplateCondition(
                                Verilog, iTemp->name())
                            << ")" << endl;
                 } else if (i+1 < itNav.count()) {
                     stream << indentation(4) << "else if ("
                            << instructionTemplateCondition(
                                Verilog, iTemp->name())
                            << ")" << endl;
                 } else {
                     stream << indentation(4) << "else" << endl;
                 }
             }
             stream << indentation(4) << "begin" << endl;
             writeInstructionTemplateProcedures(
                 Verilog, *iTemp, indLevel, stream);
             stream << indentation(4) << "end" << endl;
         }
         stream << indentation(3) << "end" << endl
                << indentation(2) << "end" << endl;
     }
 }

References bem_, TTAMachine::Machine::Navigator< ComponentType >::count(), BinaryEncoding::hasImmediateControlField(), TTAMachine::Machine::immediateUnitNavigator(), indentation(), instructionTemplateCondition(), TTAMachine::Machine::instructionTemplateNavigator(), TTAMachine::Machine::Navigator< ComponentType >::item(), iuWriteLoadCntrlPort(), iuWriteLoadCntrlSignal(), iuWriteOpcodeCntrlPort(), iuWriteOpcodeCntrlSignal(), iuWritePort(), iuWriteSignal(), language_, machine_, TTAMachine::Component::name(), PRE_DECODE_MERGED_GLOCK_SIGNAL, rfOpcodeWidth(), syncReset_, ProGe::Verilog, ProGe::VHDL, and writeInstructionTemplateProcedures().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeMainDecodingProcess()

void DefaultDecoderGenerator::writeMainDecodingProcess ( std::ostream & stream ) const

private

Writes the main decoding process to the given stream.

Parameters

stream The stream to write.

Definition at line 2323 of file DefaultDecoderGenerator.cc.

                               {
     if(language_==VHDL){
         string resetPort = NetlistGenerator::DECODER_RESET_PORT;
         string clockPort = NetlistGenerator::DECODER_CLOCK_PORT;

         stream << indentation(1) << "-- main decoding process" << endl;
         string listStr;
         stream << indentation(1) << "process (";
         stream << clockPort;
         if (!syncReset_) {
             stream << ", " << resetPort;
         }
         stream << ")" << endl;
         stream << indentation(1) << "begin" << endl;

         // if reset is active
         if (syncReset_) {
             stream << indentation(2) << "if (clk'event and clk = '1') then"
                    << endl
                    << indentation(2) << "if (" << resetPort << " = '0') then"
                    << endl;
             writeResettingOfControlRegisters(stream);
             stream << endl << indentation(2) << "else" << endl;
         } else {
             stream << indentation(2) << "if (" << resetPort << " = '0') then"
                    << endl;
             writeResettingOfControlRegisters(stream);
             stream << endl
                    << indentation(2)
                    << "elsif (clk'event and clk = '1') then "
                    << "-- rising clock edge" << endl;
         }
         if (generateDebugger_) {
             string softResetPort = "db_tta_nreset";
             stream << indentation(3) << "if (" << softResetPort
                    << " = '0') then"
                    << endl;
             writeResettingOfControlRegisters(stream);
             stream << indentation(3) << "elsif ("
                    << PRE_DECODE_MERGED_GLOCK_SIGNAL << " = '0') then" << endl
                    << endl;
         } else {
             stream << indentation(2) << "if ("
                    << PRE_DECODE_MERGED_GLOCK_SIGNAL;
             stream << " = '0')";
             stream << " then" << endl << endl;
         }

         writeInstructionDecoding(stream);
         stream << indentation(3) << "end if;" << endl;
         stream << indentation(2) << "end if;" << endl;
         stream << indentation(1) << "end process;" << endl;
     } else {
         string resetPort = NetlistGenerator::DECODER_RESET_PORT;
         string clockPort = NetlistGenerator::DECODER_CLOCK_PORT;

         stream << indentation(1) << "// main decoding process" << endl
                << indentation(1) << "always@(posedge " << clockPort
                << " or negedge " << resetPort << ")" << endl
                 // if reset is active
                << indentation(2) << "if (" << resetPort << " == 0)" << endl
                << indentation(2) <<"begin" << endl;
         writeResettingOfControlRegisters(stream);
         stream << indentation(2) << "end"  << endl
                << indentation(2) << "else" << endl
                << indentation(3) << "begin"<< endl
                << indentation(3) << "if ("
                << NetlistGenerator::DECODER_LOCK_REQ_IN_PORT
                << " == 0)" << endl << endl
                << indentation(3) << "begin"<< endl;
         writeInstructionDecoding(stream);
         stream << indentation(3) << "end" << endl
                << indentation(2) << "end" << endl;
     }
 }

References generateDebugger_, indentation(), language_, PRE_DECODE_MERGED_GLOCK_SIGNAL, syncReset_, ProGe::VHDL, writeInstructionDecoding(), and writeResettingOfControlRegisters().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeMoveFieldSignals()

void DefaultDecoderGenerator::writeMoveFieldSignals ( std::ostream & stream ) const

private

Writes the signals for source, destination and guard fields to the given stream.

Parameters

stream The stream.

Definition at line 1096 of file DefaultDecoderGenerator.cc.

                                                                        {
     writeComment(
         stream, 1, "signals for source, destination and guard fields");

     for (int i = 0; i < bem_.moveSlotCount(); i++) {
         MoveSlot& slot = bem_.moveSlot(i);
         if (slot.width() > 0) {
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, moveFieldSignal(slot.name()),
                 slot.width());
         }
         if (slot.hasSourceField() && slot.sourceField().width() != 0) {
             SourceField& srcField = slot.sourceField();
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, srcFieldSignal(slot.name()),
                 srcField.width());
         }
         if (slot.hasDestinationField() &&
             slot.destinationField().width() != 0) {
             DestinationField& dstField = slot.destinationField();
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, dstFieldSignal(slot.name()),
                 dstField.width());
         }
         if (slot.hasGuardField()) {
             GuardField& grdField = slot.guardField();
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, guardFieldSignal(slot.name()),
                 grdField.width());
         }
     }
 }

References bem_, ProGe::BIT_VECTOR, MoveSlot::destinationField(), dstFieldSignal(), MoveSlot::guardField(), guardFieldSignal(), MoveSlot::hasDestinationField(), MoveSlot::hasGuardField(), MoveSlot::hasSourceField(), moveFieldSignal(), BinaryEncoding::moveSlot(), BinaryEncoding::moveSlotCount(), MoveSlot::name(), MoveSlot::sourceField(), srcFieldSignal(), SourceField::width(), SlotField::width(), MoveSlot::width(), GuardField::width(), writeComment(), and writeSignalDeclaration().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeNOPEncodingVHDL()

std::string DefaultDecoderGenerator::writeNOPEncodingVHDL ( ) const

private

◆ writePipelineFillProcess()

void DefaultDecoderGenerator::writePipelineFillProcess ( std::ostream & stream ) const

private

Writes process that keeps machine locked until first decoded instruction is available.

Definition at line 2518 of file DefaultDecoderGenerator.cc.

                               {
     auto indstream = [&](unsigned level) -> std::ostream& {
         stream << indentation(level);
         return stream;
     };
     if (language_ == VHDL) {
         if (syncReset_) {
             indstream(1) << "decode_pipeline_fill_lock: process (clk)"
                          << endl;
             indstream(1) << "begin" << endl;
             indstream(2) << "if clk'event and clk = '1' then" << endl;
             indstream(3) << "if rstx = '0' then" << endl;
             indstream(4) << PIPELINE_FILL_LOCK_SIGNAL << " <= '1';" << endl;
             indstream(3) << "elsif lock = '0' then" << endl;
         } else {
             indstream(1) << "decode_pipeline_fill_lock: process (clk, rstx)"
                          << endl;
             indstream(1) << "begin" << endl;
             indstream(2) << "if rstx = '0' then" << endl;
             indstream(3) << PIPELINE_FILL_LOCK_SIGNAL << " <= '1';" << endl;
             indstream(2) << "elsif clk'event and clk = '1' then" << endl;
             indstream(3) << "if lock = '0' then" << endl;
         }
         indstream(4) << "decode_fill_lock_reg <= '0';" << endl;
         indstream(3) << "end if;" << endl;
         indstream(2) << "end if;" << endl;
         indstream(1) << "end process decode_pipeline_fill_lock;" << endl;

     } else {  // language_ == Verilog
         // todo
     }
 }

References indentation(), language_, PIPELINE_FILL_LOCK_SIGNAL, syncReset_, and ProGe::VHDL.

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writePipelineFillSignals()

void DefaultDecoderGenerator::writePipelineFillSignals ( std::ostream & stream ) const

private

Writes signals used in decode pipeline fill process.

Definition at line 1403 of file DefaultDecoderGenerator.cc.

                               {
     writeSignalDeclaration(stream, ProGe::BIT, PIPELINE_FILL_LOCK_SIGNAL, 1);
 }

References ProGe::BIT, PIPELINE_FILL_LOCK_SIGNAL, and writeSignalDeclaration().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeResettingOfControlRegisters()

void DefaultDecoderGenerator::writeResettingOfControlRegisters ( std::ostream & stream ) const

private

Writes resetting of all the control registers to the given stream.

Parameters

stream The stream.

Definition at line 2558 of file DefaultDecoderGenerator.cc.

                               {
     std::string vector_reset = " <= (others => '0');";
     std::string bit_reset = " <= '0';";
     if (language_ == Verilog) {
         vector_reset = " <= 0;";
         bit_reset = " <= 1'b0;";
     }

     for (auto const& signal : registerVectors) {
         stream << indentation(3) << signal << vector_reset << endl;
     }
     stream << endl;
     for (auto const& signal : registerBits) {
         stream << indentation(3) << signal << bit_reset << endl;
     }
     stream << endl;
 }

References indentation(), language_, registerBits, registerVectors, and ProGe::Verilog.

Referenced by writeMainDecodingProcess().

Here is the call graph for this function:

◆ writeRFCntrlSignals()

void DefaultDecoderGenerator::writeRFCntrlSignals ( std::ostream & stream )

private

Writes the RF control signals to the given stream.

Parameters

stream The stream.

Definition at line 1307 of file DefaultDecoderGenerator.cc.

                                                                {
     writeComment(stream, 1, "RF control signals");

     Machine::RegisterFileNavigator rfNav = machine_.
         registerFileNavigator();
     for (int i = 0; i < rfNav.count(); i++) {
         RegisterFile* rf = rfNav.item(i);

         for (int i = 0; i < rf->portCount(); i++) {
             RFPort* port = rf->port(i);
             bool async_signal = sacEnabled(rf->name())
                             && port->outputSocket() != NULL;

             // load signal
             std::string sigName =
                 rfLoadSignalName(rf->name(), port->name(), async_signal);
             writeSignalDeclaration(stream, ProGe::BIT, sigName, 1);
             if (!async_signal) registerBits.push_back(sigName);

             // opcode signal
             if (0 < rfOpcodeWidth(*rf)) {
                 std::string sigName = rfOpcodeSignalName(
                     rf->name(), port->name(), async_signal);
                 writeSignalDeclaration(
                     stream, ProGe::BIT_VECTOR, sigName, rfOpcodeWidth(*rf));

                 if (!async_signal) registerVectors.push_back(sigName);
             }
         }
     }

     Machine::ImmediateUnitNavigator iuNav = machine_.immediateUnitNavigator();
     for (int i = 0; i < iuNav.count(); i++) {
         ImmediateUnit* iu = iuNav.item(i);
         for (int i = 0; i < iu->portCount(); i++) {
             RFPort* port = iu->port(i);
             if (port->isOutput()) {
                 if (language_ == VHDL) {
                     registerBits.push_back(
                         iuReadLoadCntrlPort(iu->name(), port->name()));
                     if (0 < rfOpcodeWidth(*iu)) {
                         registerVectors.push_back(
                             iuReadOpcodeCntrlPort(iu->name(), port->name()));
                     }
                 } else {
                     std::string sigName =
                         iuReadLoadCntrlSignal(iu->name(), port->name());
                     writeSignalDeclaration(stream, ProGe::BIT, sigName, 1);
                     registerBits.push_back(sigName);

                     if (0 < rfOpcodeWidth(*iu)) {
                         sigName =
                             iuReadOpcodeCntrlSignal(iu->name(), port->name());
                         writeSignalDeclaration(
                             stream, ProGe::BIT_VECTOR, sigName,
                             rfOpcodeWidth(*iu));
                         registerVectors.push_back(sigName);
                     }
                 }
             }
         }
         if (language_ == Verilog) {
             stream << indentation(1) << "reg[" << iu->width()-1 << ":0] "
                    << iuWriteSignal(iu->name())
                    << ";" << endl;
             stream << indentation(1) << "reg "
                    << iuWriteLoadCntrlSignal(iu->name())
                    << ";" << endl;
             if (0 < rfOpcodeWidth(*iu)) {
                 stream << indentation(1) << "reg["
                        << rfOpcodeWidth(*iu) - 1 << ":0] "
                        << iuWriteOpcodeCntrlSignal(iu->name())
                        << ";" << endl;
             }
         }
     }
 }

References ProGe::BIT, ProGe::BIT_VECTOR, TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::immediateUnitNavigator(), indentation(), TTAMachine::Port::isOutput(), TTAMachine::Machine::Navigator< ComponentType >::item(), iuReadLoadCntrlPort(), iuReadLoadCntrlSignal(), iuReadOpcodeCntrlPort(), iuReadOpcodeCntrlSignal(), iuWriteLoadCntrlSignal(), iuWriteOpcodeCntrlSignal(), iuWriteSignal(), language_, machine_, TTAMachine::Port::name(), TTAMachine::Component::name(), TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), registerBits, registerVectors, rfLoadSignalName(), rfOpcodeSignalName(), rfOpcodeWidth(), sacEnabled(), ProGe::Verilog, ProGe::VHDL, TTAMachine::BaseRegisterFile::width(), writeComment(), and writeSignalDeclaration().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeRFSRAMDecodingProcess()

void DefaultDecoderGenerator::writeRFSRAMDecodingProcess ( std::ostream & stream ) const

private

Writes separate combinational decoding process for SRAM register files.

Parameters

stream The stream to write.

Definition at line 2139 of file DefaultDecoderGenerator.cc.

       {

     set<const RegisterFile*> sramRFset;
     set<const RegisterFile*>::const_iterator sramrf_it;

     // Write only when there is SRAM RFs.
     bool hasSramRFs = false;
     const Machine::RegisterFileNavigator& rfNav =
                     machine_.registerFileNavigator();
     for (int i = 0; i < rfNav.count(); i++) {
         if(sacEnabled(rfNav.item(i)->name())) {
             hasSramRFs = true;
             sramRFset.insert(rfNav.item(i));
         }
     }

     if(!hasSramRFs) {
         return;
     }

     if (language_ == VHDL) {
         string resetPort = NetlistGenerator::DECODER_RESET_PORT;

         // Begin process //
         stream << indentation(1)
                << "-- separate SRAM RF read decoding process" << endl;
         stream << indentation(1) << "process (" << resetPort;

         // Sensitivity list //
         BusSet connectedToSramRFs;
         for (sramrf_it = sramRFset.begin(); sramrf_it != sramRFset.end();
                         sramrf_it++) {
             const RegisterFile& rf = **sramrf_it;
             assert(sacEnabled(rf.name()));
             for (int ip = 0; ip < rf.portCount(); ip++) {
                 const RFPort& port = *rf.port(ip);
                 if (port.outputSocket() != NULL) {
                     BusSet tmp = connectedBuses(*port.outputSocket());
                     connectedToSramRFs.insert(tmp.begin(), tmp.end());
                 }
             }
         }

         BusSet::const_iterator busSet_it;
         for (busSet_it = connectedToSramRFs.begin();
              busSet_it != connectedToSramRFs.end();
              busSet_it++) {
             string busName = (*busSet_it)->name();
             stream << ", " << srcFieldSignal(busName)
                    << ", " << squashSignal(busName);
         }
         stream << ")" << endl;
         stream << indentation(1) << "begin" << endl;

         // Signal resets //
         stream << indentation(2) << "if (" << resetPort << " = '0') then"
                << endl;
         for (sramrf_it = sramRFset.begin(); sramrf_it != sramRFset.end();
                         sramrf_it++)  {
             const RegisterFile& rf = **sramrf_it;
             assert(sacEnabled(rf.name()));
             for (int i = 0; i < rf.portCount(); i++) {
                 const RFPort& port = *rf.port(i);
                 if (port.outputSocket() == NULL) {
                     continue;
                 }

                 stream << indentation(3)
                        << rfLoadSignalName(rf.name(), port.name(), true)
                        << " <= '0';" << endl;
                 if (0 < rfOpcodeWidth(rf)) {
                     stream << indentation(3)
                            << rfOpcodeSignalName(rf.name(), port.name(), true)
                            << " <= (others => '0');" << endl;
                 }
             }
         }

         // Write decoding rules //
         stream << endl << indentation(2) << "else" << endl;
         for (sramrf_it = sramRFset.begin(); sramrf_it != sramRFset.end();
                                 sramrf_it++)  {
             const RegisterFile& rf = **sramrf_it;
             assert(sacEnabled(rf.name()));
             for(int i = 0; i < rf.portCount(); i++) {
                 const RFPort& port = *rf.port(i);
                 if (port.outputSocket() != NULL) {
                     writeControlRulesOfRFReadPort(port, stream);
                 }
             }
         }
         stream << indentation(2) << "end if;" << endl;

         // End process //
         stream << indentation(1) << "end process;" << endl;

     } else { // language_ == VERILOG
         // Begin process //
         string resetPort = NetlistGenerator::DECODER_RESET_PORT;

         stream << indentation(1)
                << "// separate SRAM RF read decoding process" << endl;
         stream << indentation(1) << "always@(" << resetPort;

         // Sensitivity list //
         BusSet connectedToSramRFs;
         for (sramrf_it = sramRFset.begin(); sramrf_it != sramRFset.end();
                         sramrf_it++) {
             const RegisterFile& rf = **sramrf_it;
             assert(sacEnabled(rf.name()));
             for (int ip = 0; ip < rf.portCount(); ip++) {
                 const RFPort& port = *rf.port(ip);
                 if (port.outputSocket() != NULL) {
                     BusSet tmp = connectedBuses(*port.outputSocket());
                     connectedToSramRFs.insert(tmp.begin(), tmp.end());
                 }
             }
         }

         BusSet::const_iterator busSet_it;
         for (busSet_it = connectedToSramRFs.begin();
              busSet_it != connectedToSramRFs.end();
              busSet_it++) {
             string busName = (*busSet_it)->name();
             stream << ", " << srcFieldSignal(busName)
                    << ", " << squashSignal(busName);
         }
         stream << ")" << endl;
         stream << indentation(1) << "begin" << endl;

         // Signal resets //
         stream << indentation(2) << "if (" << resetPort << " == 0)" << endl
                << indentation(2) << "begin" << endl;

         for (sramrf_it = sramRFset.begin(); sramrf_it != sramRFset.end();
                         sramrf_it++)  {
             const RegisterFile& rf = **sramrf_it;
             assert(sacEnabled(rf.name()));
             for (int i = 0; i < rf.portCount(); i++) {
                 const RFPort& port = *rf.port(i);
                 if (port.outputSocket() == NULL) {
                     continue;
                 }

                 stream << indentation(3)
                        << rfLoadSignalName(rf.name(), port.name(), true)
                        << " <= 1'b0;" << endl;
                 if (0 < rfOpcodeWidth(rf)) {
                     stream << indentation(3)
                            << rfOpcodeSignalName(rf.name(), port.name(), true)
                            << " <= 0;" << endl;
                 }
             }
         }
         stream << indentation(2) << "end" << endl;

         // Decoding rules //
         stream << indentation(2) << "else" << endl;
         stream << indentation(2) << "begin" << endl;
         for (sramrf_it = sramRFset.begin(); sramrf_it != sramRFset.end();
                                 sramrf_it++)  {
             const RegisterFile& rf = **sramrf_it;
             assert(sacEnabled(rf.name()));
             for(int i = 0; i < rf.portCount(); i++) {
                 const RFPort& port = *rf.port(i);
                 if (port.outputSocket() != NULL) {
                     writeControlRulesOfRFReadPort(port, stream);
                 }
             }
         }
         stream << indentation(2) << "end" << endl;

         // End process //
         stream << indentation(1) << "end // process" << endl;
     }
 }

References assert, connectedBuses(), TTAMachine::Machine::Navigator< ComponentType >::count(), indentation(), TTAMachine::Machine::Navigator< ComponentType >::item(), language_, machine_, TTAMachine::Port::name(), TTAMachine::Component::name(), TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), TTAMachine::Machine::registerFileNavigator(), rfLoadSignalName(), rfOpcodeSignalName(), rfOpcodeWidth(), sacEnabled(), squashSignal(), srcFieldSignal(), ProGe::VHDL, and writeControlRulesOfRFReadPort().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeRulesForDestinationControlSignals()

void DefaultDecoderGenerator::writeRulesForDestinationControlSignals ( std::ostream & stream ) const

private

Writes the rules for destination control signals to the instruction decoding section.

Parameters

stream The stream to write.

Definition at line 2689 of file DefaultDecoderGenerator.cc.

                               {
     writeComment(stream, 4, "control signals for FU inputs");
     Machine::FunctionUnitNavigator fuNav = machine_.functionUnitNavigator();
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         for (int i = 0; i < fu->portCount(); i++) {
             BaseFUPort* port = fu->port(i);
             if (port->inputSocket() != NULL) {
                 writeControlRulesOfFUInputPort(*port, stream);
             }
         }
     }

     ControlUnit* gcu = machine_.controlUnit();
     for (int i = 0; i < gcu->portCount(); i++) {
         BaseFUPort* port = gcu->port(i);
         if (port->inputSocket() != NULL) {
             writeControlRulesOfFUInputPort(*port, stream);
         }
     }

     writeComment(stream, 4, "control signals for RF inputs");
     Machine::RegisterFileNavigator rfNav = machine_.registerFileNavigator();
     for (int i = 0; i < rfNav.count(); i++) {
         RegisterFile* rf = rfNav.item(i);
         for (int i = 0; i < rf->portCount(); i++) {
             RFPort* port = rf->port(i);
             if (port->inputSocket() != NULL) {
                 writeControlRulesOfRFWritePort(*port, stream);
             }
         }
     }
 }

References TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Port::inputSocket(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, TTAMachine::BaseRegisterFile::port(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), TTAMachine::Machine::registerFileNavigator(), writeComment(), writeControlRulesOfFUInputPort(), and writeControlRulesOfRFWritePort().

Referenced by writeInstructionDecoding().

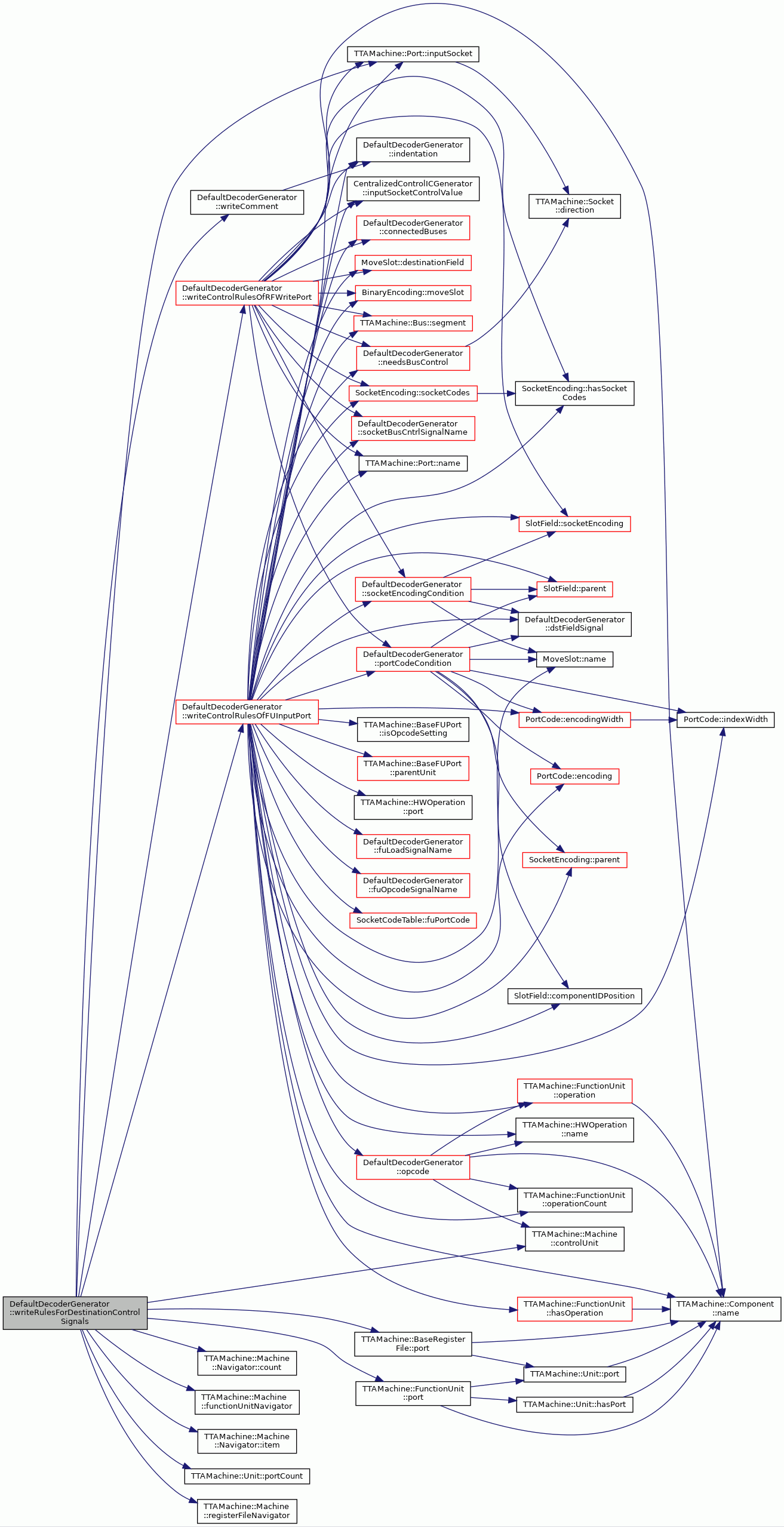

Here is the call graph for this function:

◆ writeRulesForSourceControlSignals()

void DefaultDecoderGenerator::writeRulesForSourceControlSignals ( std::ostream & stream ) const

private

Writes the rules for source control signals to the instruction decoding section.

Parameters

stream The stream to write.

Definition at line 2599 of file DefaultDecoderGenerator.cc.

                               {
     int indent;
     indent = 4;

     Machine::SocketNavigator socketNav = machine_.socketNavigator();
     for (int i = 0; i < socketNav.count(); i++) {
         Socket* socket = socketNav.item(i);
         if (socket->direction() == Socket::OUTPUT &&
             socket->segmentCount() > 0 && socket->portCount() > 0) {
             writeBusControlRulesOfOutputSocket(*socket, stream);
         }

         writeComment(
             stream, indent,
             "bus control signals for short immediate sockets");
         Machine::BusNavigator busNav = machine_.busNavigator();
         for (int i = 0; i < busNav.count(); i++) {
             Bus* bus = busNav.item(i);
             if (bus->immediateWidth() > 0) {
                 writeBusControlRulesOfSImmSocketOfBus(*bus, stream);
             }
         }
     }

     writeComment(
         stream, indent,
         "data control signals for output sockets connected to FUs");
     Machine::FunctionUnitNavigator fuNav = machine_.functionUnitNavigator();
     for (int i = 0; i < fuNav.count(); i++) {
         FunctionUnit* fu = fuNav.item(i);
         for (int i = 0; i < fu->portCount(); i++) {
             BaseFUPort* port = fu->port(i);
             if (port->outputSocket() != NULL &&
                 port->outputSocket()->portCount() > 1) {
                 writeControlRulesOfFUOutputPort(*port, stream);
             }
         }
     }

     ControlUnit* gcu = machine_.controlUnit();
     for (int i = 0; i < gcu->portCount(); i++) {
         BaseFUPort* port = gcu->port(i);
         if (port->outputSocket() != NULL &&
             port->outputSocket()->portCount() > 1) {
             writeControlRulesOfFUOutputPort(*port, stream);
         }
     }

     writeComment(stream, indent, "control signals for RF read ports");
     Machine::RegisterFileNavigator rfNav = machine_.registerFileNavigator();
     for (int i = 0; i < rfNav.count(); i++) {
         RegisterFile* rf = rfNav.item(i);
         // Skip RFs with separate address cycle flag enabled.
         if (sacEnabled(rf->name())) {
             continue;
         }
         for (int i = 0; i < rf->portCount(); i++) {
             RFPort* port = rf->port(i);
             if (port->outputSocket() != NULL) {
                 writeControlRulesOfRFReadPort(*port, stream);
             }
         }
     }

     stream << endl
            << indentation(indent) << ((language_ == VHDL) ? "--" : "//")
            << "control signals for IU read ports" << endl;
     writeComment(stream, indent, "control signals for IU read ports");
     Machine::ImmediateUnitNavigator iuNav =
         machine_.immediateUnitNavigator();
     for (int i = 0; i < iuNav.count(); i++) {
         ImmediateUnit* iu = iuNav.item(i);
         for (int i = 0; i < iu->portCount(); i++) {
             RFPort* port = iu->port(i);
             if (port->outputSocket() != NULL) {
                 writeControlRulesOfRFReadPort(*port, stream);
             }
         }
     }
 }

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Socket::direction(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::Machine::immediateUnitNavigator(), TTAMachine::Bus::immediateWidth(), indentation(), TTAMachine::Machine::Navigator< ComponentType >::item(), language_, machine_, TTAMachine::Component::name(), TTAMachine::Port::outputSocket(), TTAMachine::BaseRegisterFile::port(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), TTAMachine::Socket::portCount(), TTAMachine::Machine::registerFileNavigator(), sacEnabled(), TTAMachine::Socket::segmentCount(), TTAMachine::Machine::socketNavigator(), ProGe::VHDL, writeBusControlRulesOfOutputSocket(), writeBusControlRulesOfSImmSocketOfBus(), writeComment(), writeControlRulesOfFUOutputPort(), and writeControlRulesOfRFReadPort().

Referenced by writeInstructionDecoding().

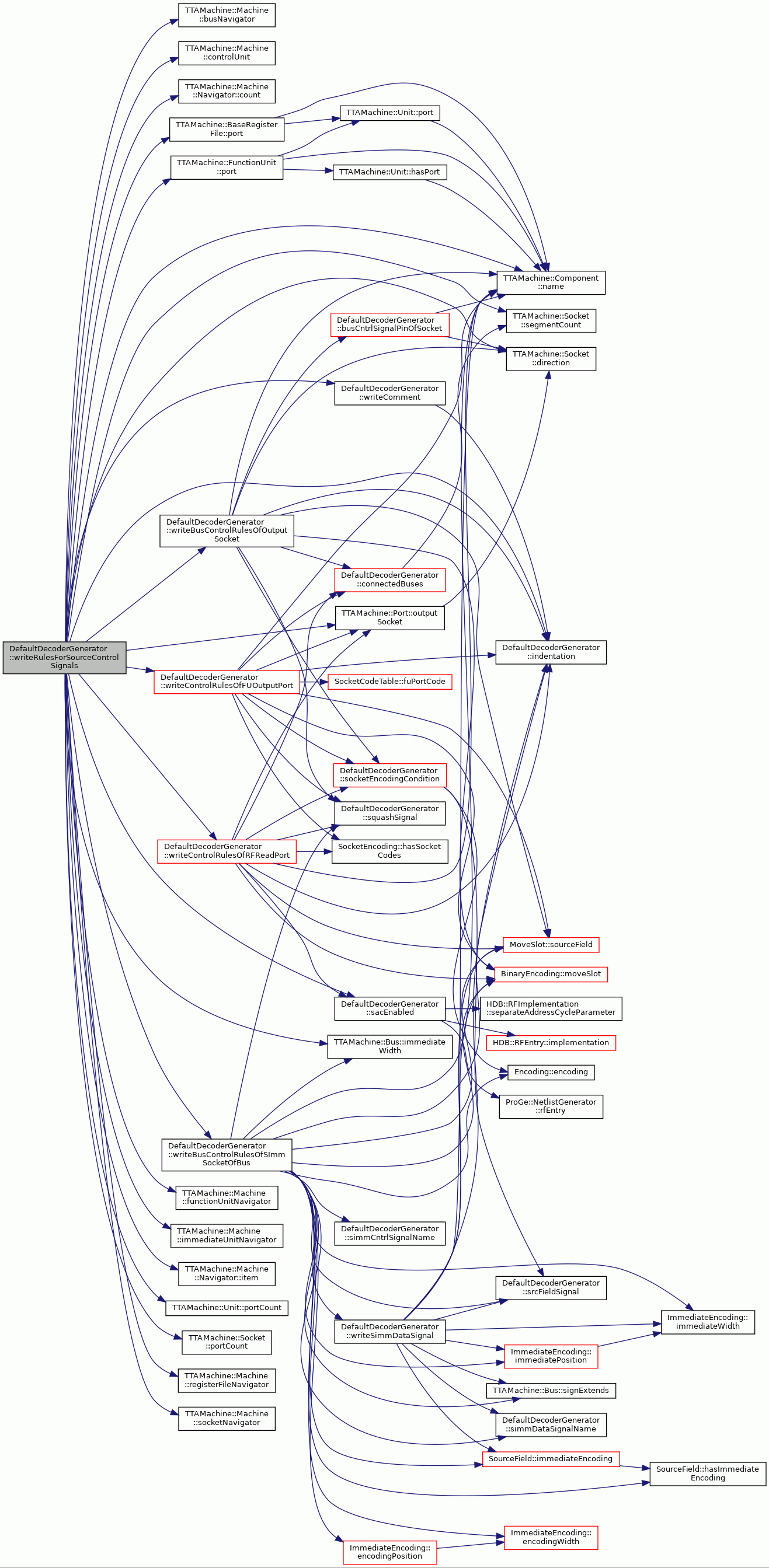

Here is the call graph for this function:

◆ writeSignalDeclaration()

void DefaultDecoderGenerator::writeSignalDeclaration	(	std::ostream &	stream,
		ProGe::DataType	type,
		std::string	sigName,
		int	width
	)		const

private

Definition at line 774 of file DefaultDecoderGenerator.cc.

                      {
     if (language_ == VHDL) {
         stream << indentation(1) << "signal " << sigName;
         if (type == ProGe::BIT_VECTOR) {
             stream << " : std_logic_vector(" << width - 1 << " downto 0);"
                    << endl;
         } else {  // BIT
             stream << " : std_logic;" << endl;
         }
     } else {  // Verilog
         stream << indentation(1) << "reg";
         if (type == ProGe::BIT_VECTOR) {
             stream << "[" << width - 1 << ":0]";
         }
         stream << " " << sigName << ";" << endl;
     }
 }

References ProGe::BIT_VECTOR, indentation(), language_, and ProGe::VHDL.

Referenced by writeFUCntrlSignals(), writeGlockHandlingSignals(), writeImmediateSlotSignals(), writeLongImmediateTagSignal(), writeMoveFieldSignals(), writePipelineFillSignals(), writeRFCntrlSignals(), and writeSocketCntrlSignals().

Here is the call graph for this function:

◆ writeSimmDataSignal()

void DefaultDecoderGenerator::writeSimmDataSignal	(	const TTAMachine::Bus &	bus,
		std::ostream &	stream
	)		const

private

Definition at line 2780 of file DefaultDecoderGenerator.cc.

                                                         {
     int indent;
     indent = 4;
     SourceField& srcField = bem_.moveSlot(bus.name()).sourceField();
     ImmediateEncoding& enc = srcField.immediateEncoding();
     stream << indentation(indent) << simmDataSignalName(bus.name()) << " <= ";
     if (bus.signExtends()) {
         stream << "tce_sxt(";
     } else {
         stream << "tce_ext(";
     }
     stream << srcFieldSignal(bus.name()) << "("
            << enc.immediatePosition() + enc.immediateWidth() - 1 << " downto "
            << enc.immediatePosition() << "), "
            << simmDataSignalName(bus.name()) << "'length);" << endl;
 }

References bem_, SourceField::immediateEncoding(), ImmediateEncoding::immediatePosition(), ImmediateEncoding::immediateWidth(), indentation(), BinaryEncoding::moveSlot(), TTAMachine::Component::name(), TTAMachine::Bus::signExtends(), simmDataSignalName(), MoveSlot::sourceField(), and srcFieldSignal().

Referenced by writeBusControlRulesOfSImmSocketOfBus().

Here is the call graph for this function:

◆ writeSocketCntrlSignals()

void DefaultDecoderGenerator::writeSocketCntrlSignals ( std::ostream & stream )

private

Writes the socket control signals to the given stream.

Parameters

stream The stream to write.

Definition at line 1202 of file DefaultDecoderGenerator.cc.

                                                                    {
     writeComment(stream, 1, "socket control signals");

     Machine::SocketNavigator socketNav = machine_.socketNavigator();
     for (int i = 0; i < socketNav.count(); i++) {
         Socket* socket = socketNav.item(i);
         if (socket->portCount() == 0 || socket->segmentCount() == 0) {
             continue;
         }

         if (needsBusControl(*socket)) {
             std::string sigName = socketBusCntrlSignalName(socket->name());
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, sigName, busControlWidth(*socket));
             registerVectors.push_back(sigName);
         }
         if (needsDataControl(*socket)) {
             std::string sigName = socketDataCntrlSignalName(socket->name());
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, sigName,
                 dataControlWidth(*socket));
             registerVectors.push_back(sigName);
         }
     }

     // write signals for short immediate sockets (not visible in ADF)
     Machine::BusNavigator busNav = machine_.busNavigator();
     for (int i = 0; i < busNav.count(); i++) {
         Bus* bus = busNav.item(i);
         if (bus->immediateWidth() > 0) {
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, simmDataSignalName(bus->name()),
                 simmPortWidth(*bus));
             registerVectors.push_back(simmDataSignalName(bus->name()));
             writeSignalDeclaration(
                 stream, ProGe::BIT_VECTOR, simmCntrlSignalName(bus->name()),
                 1);
             registerVectors.push_back(simmCntrlSignalName(bus->name()));
         }

         if (generateBusEnable_) {
             writeSignalDeclaration(
                 stream, ProGe::BIT, busMuxEnableRegister(*bus), 1);
             registerBits.push_back(busMuxEnableRegister(*bus));
         }
     }
 }

References ProGe::BIT, ProGe::BIT_VECTOR, busControlWidth(), busMuxEnableRegister(), TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), dataControlWidth(), generateBusEnable_, TTAMachine::Bus::immediateWidth(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, TTAMachine::Component::name(), needsBusControl(), needsDataControl(), TTAMachine::Socket::portCount(), registerBits, registerVectors, TTAMachine::Socket::segmentCount(), simmCntrlSignalName(), simmDataSignalName(), simmPortWidth(), socketBusCntrlSignalName(), socketDataCntrlSignalName(), TTAMachine::Machine::socketNavigator(), writeComment(), and writeSignalDeclaration().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeSquashSignalGenerationProcess()

void DefaultDecoderGenerator::writeSquashSignalGenerationProcess	(	const TTAMachine::Bus &	bus,
		std::ostream &	stream
	)		const

private

Writes the generation process of squash signal for the given bus.

Parameters

bus	The bus.
stream	The stream to write.

Definition at line 1566 of file DefaultDecoderGenerator.cc.

                               {
     if(language_==VHDL){
         assert(bem_.hasMoveSlot(bus.name()));
         MoveSlot& slot = bem_.moveSlot(bus.name());
         GuardField* grdField = nullptr;
         std::set<InstructionTemplate*> affectingInstTemplates =
             MachineInfo::templatesUsingSlot(machine_, bus.name());
         bool ifClauseStarted = false;

         if (!slot.hasGuardField() && affectingInstTemplates.size() == 0) {
             // the bus contains always true guard so squash has static value
             // Synthesis software should optimize it away
             string squashName = squashSignal(bus.name());
             stream << indentation(1) << "-- generate signal " << squashName
                    << endl;
             stream << indentation(1) << squashName << " <= '0';" << endl;
             return;
         }

         std::set<string> sensitivyList;
         for (int i = 0; i < bus.guardCount(); i++) {
             sensitivyList.insert(guardPortName(*bus.guard(i)));
         }
         if (slot.hasGuardField()) {
             sensitivyList.insert(guardFieldSignal(slot.name()));
             grdField = &slot.guardField();
         }

         if (affectingInstTemplates.size() > 0) {
             sensitivyList.insert(LIMM_TAG_SIGNAL);
         }

         stream << indentation(1) << "-- generate signal "
                << squashSignal(slot.name()) << endl;
         stream << indentation(1) << "process (";
         string listStr;
         for (const string& signal : sensitivyList) {
             TCEString::appendToNonEmpty(listStr, ", ");
             listStr += signal;
         }
         assert(!listStr.empty());
         stream << listStr << ")" << endl;
         if (slot.hasGuardField()) {
             stream << indentation(2) << "variable sel : integer;" << endl;
         }
         stream << indentation(1) << "begin --process" << endl;
         int indLevel = 2;
         if (affectingInstTemplates.size() > 0) {
             ifClauseStarted = true;
             stream << indentation(indLevel) << "if (";
             for (set<InstructionTemplate*>::const_iterator iter =
                      affectingInstTemplates.begin();
                  iter != affectingInstTemplates.end(); iter++) {
                 if (iter != affectingInstTemplates.begin()) {
                     stream << " or " << endl
                            << indentation(indLevel) << "    ";
                 }
                 ImmediateControlField& icField = bem_.immediateControlField();
                 InstructionTemplate* affectingTemp = *iter;
                 stream << "conv_integer(unsigned(" << LIMM_TAG_SIGNAL
                        << ")) = "
                        << icField.templateEncoding(affectingTemp->name());
                 stream << ") then" << endl;
                 stream << indentation(indLevel+1) << squashSignal(bus.name())
                        << " <= '1';" << endl;
             }
         }

         if (ifClauseStarted) {
             stream << indentation(indLevel) << "else" << endl;
             indLevel += 1;
         }
         if (grdField != nullptr) {
             stream << indentation(indLevel) << "sel := conv_integer(unsigned("
                    << guardFieldSignal(slot.name()) << "));" << endl;
             stream << indentation(indLevel) << "case sel is" << endl;
             indLevel++;
             for (int i = 0; i < grdField->gprGuardEncodingCount(); i++) {
                 GPRGuardEncoding& enc = grdField->gprGuardEncoding(i);
                 RegisterGuard& regGuard = findGuard(enc);
                 writeSquashSignalSubstitution(VHDL,
                     bus, enc, regGuard, stream, indLevel);
             }

             for (int i = 0; i < grdField->fuGuardEncodingCount(); i++) {
                 FUGuardEncoding& enc = grdField->fuGuardEncoding(i);
                 PortGuard& portGuard = findGuard(enc);
                 writeSquashSignalSubstitution(VHDL,
                     bus, enc, portGuard, stream, indLevel);
             }

             if (grdField->hasUnconditionalGuardEncoding(true)) {
                 UnconditionalGuardEncoding& enc =
                     grdField->unconditionalGuardEncoding(true);
                 stream << indentation(indLevel) << "when " << enc.encoding()
                        << " => " << endl;
                 stream << indentation(indLevel + 1)
                        << squashSignal(slot.name()) << " <= '1';" << endl;
             }

             stream << indentation(indLevel) << "when others =>" << endl;
             stream << indentation(indLevel + 1) << squashSignal(slot.name())
                    << " <= '0';" << endl;
             stream << indentation(indLevel-1) << "end case;" << endl;
         } else {
             stream << indentation(indLevel) << squashSignal(slot.name())
                    << " <= '0';" << endl;
         }

         if (ifClauseStarted) {
             ifClauseStarted = false;
             stream << indentation(2) << "end if;" << endl;
             indLevel -= 1;
             assert(indLevel >= 0);
         }
         stream << indentation(1) << "end process;" << endl << endl;
     } else {  // language == Verilog
         std::set<InstructionTemplate*> affectingInstTemplates =
             MachineInfo::templatesUsingSlot(machine_, bus.name());
         bool ifClauseStarted = false;

         assert(bem_.hasMoveSlot(bus.name()));
         MoveSlot& slot = bem_.moveSlot(bus.name());
         if (slot.hasGuardField() || affectingInstTemplates.size() > 0) {
             GuardField& grdField = slot.guardField();

             std::set<string> sensitivyList;
             for (int i = 0; i < bus.guardCount(); i++) {
                 sensitivyList.insert(guardPortName(*bus.guard(i)));
             }
             if (slot.hasGuardField()) {
                 sensitivyList.insert(guardFieldSignal(slot.name()));
             }

             if (affectingInstTemplates.size() > 0) {
                 sensitivyList.insert(LIMM_TAG_SIGNAL);
             }

             stream << indentation(1) << "// generate signal "
                    << squashSignal(slot.name()) << endl;
             stream << indentation(1) << "always@(";
             string listStr;
             for (const string& signal : sensitivyList) {
                 TCEString::appendToNonEmpty(listStr, ", ");
                 listStr += signal;
             }
             assert(!listStr.empty());
             stream << listStr << ")" << endl;
             stream << indentation(1) << "begin" << endl;
             int indLevel = 2;

             if (affectingInstTemplates.size() > 0) {
                 ifClauseStarted = true;
                 stream << indentation(indLevel) << "if (";
                 for (set<InstructionTemplate*>::const_iterator iter =
                          affectingInstTemplates.begin();
                      iter != affectingInstTemplates.end(); iter++) {
                     if (iter != affectingInstTemplates.begin()) {
                         stream << " || ";
                     }
                     ImmediateControlField& icField =
                         bem_.immediateControlField();
                     InstructionTemplate* affectingTemp = *iter;
                     stream <<  LIMM_TAG_SIGNAL
                            << " == "
                            << icField.templateEncoding(affectingTemp->name());
                 }
                 stream << ")" << endl;
                 stream << indentation(indLevel+1) << squashSignal(bus.name())
                        << " <= 1'b1;" << endl;
             }

             if (ifClauseStarted) {
                 stream << indentation(indLevel) << "else" << endl;
                 indLevel++;
             }
             if (slot.hasGuardField()) {
                 stream << indentation(indLevel) << "case("
                        << guardFieldSignal(slot.name()) << ")" << endl;
                 indLevel++;
                 for (int i = 0; i < grdField.gprGuardEncodingCount(); i++) {
                     GPRGuardEncoding& enc = grdField.gprGuardEncoding(i);
                     RegisterGuard& regGuard = findGuard(enc);
                     writeSquashSignalSubstitution(
                         Verilog, bus, enc, regGuard, stream, indLevel);
                 }

                 for (int i = 0; i < grdField.fuGuardEncodingCount(); i++) {
                     FUGuardEncoding& enc = grdField.fuGuardEncoding(i);
                     PortGuard& portGuard = findGuard(enc);
                     writeSquashSignalSubstitution(
                         Verilog, bus, enc, portGuard, stream, indLevel);
                 }

                 if (grdField.hasUnconditionalGuardEncoding(true)) {
                     UnconditionalGuardEncoding& enc =
                         grdField.unconditionalGuardEncoding(true);
                     stream << indentation(indLevel) << enc.encoding() << " :"
                            << endl;
                     stream << indentation(indLevel + 1)
                            << squashSignal(slot.name()) << " <= 1'b1;"
                            << endl;
                 }

                 stream << indentation(indLevel) << "default:" << endl;
                 stream << indentation(indLevel + 1)
                        << squashSignal(slot.name()) << " <= 1'b0;" << endl;
                 stream << indentation(indLevel - 1) << "endcase" << endl;
             } else {
                 string squashName = squashSignal(bus.name());
                 stream << indentation(indLevel) << squashName << " <= 1'b0;"
                        << endl;
             }
             stream << indentation(1) << "end" << endl << endl;
         } else {
             // the bus contains always true guard so squash has static value
             // Synthesis software should optimize it away
             string squashName = squashSignal(bus.name());
             stream << indentation(1) << "// generate signal " << squashName
                    << endl;
             stream << indentation(1) << "assign " << squashName
                    << " = 1'b0;" << endl;
         }
     }
 }

References TCEString::appendToNonEmpty(), assert, bem_, GuardEncoding::encoding(), findGuard(), GuardField::fuGuardEncoding(), GuardField::fuGuardEncodingCount(), GuardField::gprGuardEncoding(), GuardField::gprGuardEncodingCount(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), MoveSlot::guardField(), guardFieldSignal(), guardPortName(), MoveSlot::hasGuardField(), BinaryEncoding::hasMoveSlot(), GuardField::hasUnconditionalGuardEncoding(), BinaryEncoding::immediateControlField(), indentation(), language_, LIMM_TAG_SIGNAL, machine_, BinaryEncoding::moveSlot(), MoveSlot::name(), TTAMachine::Component::name(), squashSignal(), ImmediateControlField::templateEncoding(), MachineInfo::templatesUsingSlot(), GuardField::unconditionalGuardEncoding(), ProGe::Verilog, ProGe::VHDL, and writeSquashSignalSubstitution().

Referenced by writeSquashSignalGenerationProcesses().

Here is the call graph for this function:

◆ writeSquashSignalGenerationProcesses()

void DefaultDecoderGenerator::writeSquashSignalGenerationProcesses ( std::ostream & stream ) const

private

Writes the generation processes of squash signals to the given stream.

Parameters

stream The stream.

Definition at line 1548 of file DefaultDecoderGenerator.cc.

                               {

     Machine::BusNavigator busNav = machine_.busNavigator();
     for (int i = 0; i < busNav.count(); i++) {
         Bus* bus = busNav.item(i);
         writeSquashSignalGenerationProcess(*bus, stream);
     }
 }

References TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, and writeSquashSignalGenerationProcess().

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeSquashSignals()

void DefaultDecoderGenerator::writeSquashSignals ( std::ostream & stream ) const

private

Writes the squash signals of guards to the given stream.

Parameters

stream The stream.

Definition at line 1169 of file DefaultDecoderGenerator.cc.

                               {

     TCEString comment = language_ == VHDL ? "-- " : "// ";
     Machine::BusNavigator busNav = machine_.busNavigator();
     stream << indentation(1) << comment << "squash signals" << endl;
     for (int i = 0; i < busNav.count(); i++) {
         Bus* bus = busNav.item(i);
         stream << indentation(1);
         if (language_ == VHDL) {
             stream << "signal " << squashSignal(bus->name())
                    << " : std_logic;" << endl;
         } else {
             assert(bem_.hasMoveSlot(bus->name()));
             MoveSlot& slot = bem_.moveSlot(bus->name());
             if (slot.hasGuardField()) {
                 stream << "reg ";
             } else {
                 // Declare guard signal as wire for constant assignment
                 stream << "wire ";
             }
             stream << squashSignal(bus->name()) << ";" << endl;
         }
     }
 }

References assert, bem_, TTAMachine::Machine::busNavigator(), TTAMachine::Machine::Navigator< ComponentType >::count(), MoveSlot::hasGuardField(), BinaryEncoding::hasMoveSlot(), indentation(), TTAMachine::Machine::Navigator< ComponentType >::item(), language_, machine_, BinaryEncoding::moveSlot(), TTAMachine::Component::name(), squashSignal(), and ProGe::VHDL.

Referenced by writeInstructionDecoder().

Here is the call graph for this function:

◆ writeSquashSignalSubstitution()

void DefaultDecoderGenerator::writeSquashSignalSubstitution	(	const ProGe::HDL	language,
		const TTAMachine::Bus &	bus,
		const GuardEncoding &	enc,
		const TTAMachine::Guard &	guard,
		std::ostream &	stream,
		int	indLevel
	)

staticprivate

Writes substitution of guard value to the squash signal of the given bus.

Parameters

bus	The bus.
enc	The guard encoding.
guard	The guard.
stream	The stream to write.
indLevel	The indentation level.

Definition at line 3935 of file DefaultDecoderGenerator.cc.

                   {
     if(language==VHDL){
         stream << indentation(indLevel) << "when " << enc.encoding()
                << " =>" << endl;
         stream << indentation(indLevel+1) << squashSignal(bus.name()) << " <= ";
         if (!guard.isInverted()) {
             stream << "not ";
         }
         stream << guardPortName(guard) << ";" << endl;
     } else {
         stream << indentation(indLevel)   << enc.encoding() << " : "
                << squashSignal(bus.name()) << " = ";
         if (!guard.isInverted()) {
             stream << " !";
         }
         stream << guardPortName(guard) << ";" << endl;
     }
 }
