MachineStateBuilder Class Reference

#include <MachineStateBuilder.hh>

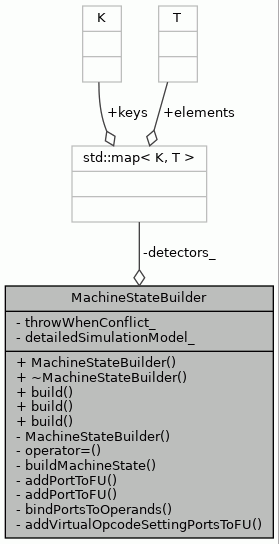

Collaboration diagram for MachineStateBuilder:

Public Member Functions
	MachineStateBuilder (bool detailedSimulationModel=false)
virtual	~MachineStateBuilder ()
MachineState *	build (const TTAMachine::Machine &machine, MemorySystem &memSys)
MachineState *	build (const TTAMachine::Machine &machine, MemorySystem &memSys, FUConflictDetectorIndex &detectors, bool throwWhenConflict=true)
MachineState *	build (const TTAMachine::Machine &machine, MemorySystem &memSys, StateLocator &locator)

Private Member Functions
	MachineStateBuilder (const MachineStateBuilder &)
	Copying not allowed.
MachineStateBuilder &	operator= (const MachineStateBuilder &)
	Assignment not allowed.
MachineState *	buildMachineState (const TTAMachine::Machine &machine, MemorySystem &memSys, StateLocator &locator)
void	addPortToFU (MachineState *machineState, TTAMachine::BaseFUPort *port, FUState *state, TTAMachine::FunctionUnit *fu, StateLocator &locator)
void	addPortToFU (MachineState *machineState, TTAMachine::BaseFUPort *port, FUState *state, TTAMachine::FunctionUnit *fu, StateLocator &locator, SimValue &sharedRegister)
void	bindPortsToOperands (OperationExecutor &executor, TTAMachine::HWOperation &hwOperation, MachineState &machineState, FUState &state, TTAMachine::FunctionUnit &unit)
void	addVirtualOpcodeSettingPortsToFU (MachineState &machineState, FUState &state, TTAMachine::FunctionUnit &unit)

Private Attributes
FUConflictDetectorIndex *	detectors_
	The FU resource conflict detectors. They are needed while building the machine state model.
bool	throwWhenConflict_
	True in case the built model should throw an exception in case of a resource conflict.
bool	detailedSimulationModel_
	Set to true in case should build a detailed model which simulates FU stages, possibly with an external system-level model.

Detailed Description

Builds MachineState from Machine Object Model.

Definition at line 62 of file MachineStateBuilder.hh.

Constructor & Destructor Documentation

MachineStateBuilder() [1/2]

MachineStateBuilder::MachineStateBuilder

(

bool

detailedSimulationModel = false

)

Constructor.

Definition at line 84 of file MachineStateBuilder.cc.

                                                                     :
    throwWhenConflict_(true),
    detailedSimulationModel_(detailedSimulationModel) {
}

~MachineStateBuilder()

MachineStateBuilder::~MachineStateBuilder ( )

virtual

Destructor.

Definition at line 92 of file MachineStateBuilder.cc.

                                          {
}

MachineStateBuilder() [2/2]

MachineStateBuilder::MachineStateBuilder ( const MachineStateBuilder &  )

private

Copying not allowed.

Member Function Documentation

addPortToFU() [1/2]

void MachineStateBuilder::addPortToFU ( MachineState *  machineState, TTAMachine::BaseFUPort *  port, FUState *  state, TTAMachine::FunctionUnit *  fu, StateLocator &  locator  )

private

Adds a port that does not share a register to FU.

Parameters

machineState	Machine state which is built.
port	Port to be added.
state	FUState in which port is added.
fu	FU of which FUState is build from.
locator	StateLocator.

Definition at line 644 of file MachineStateBuilder.cc.

                           {
    addPortToFU(
        machineState, port, state, unit, locator, NullSimValue::instance());
}

References addPortToFU(), and NullSimValue::instance().

Referenced by addPortToFU(), and buildMachineState().

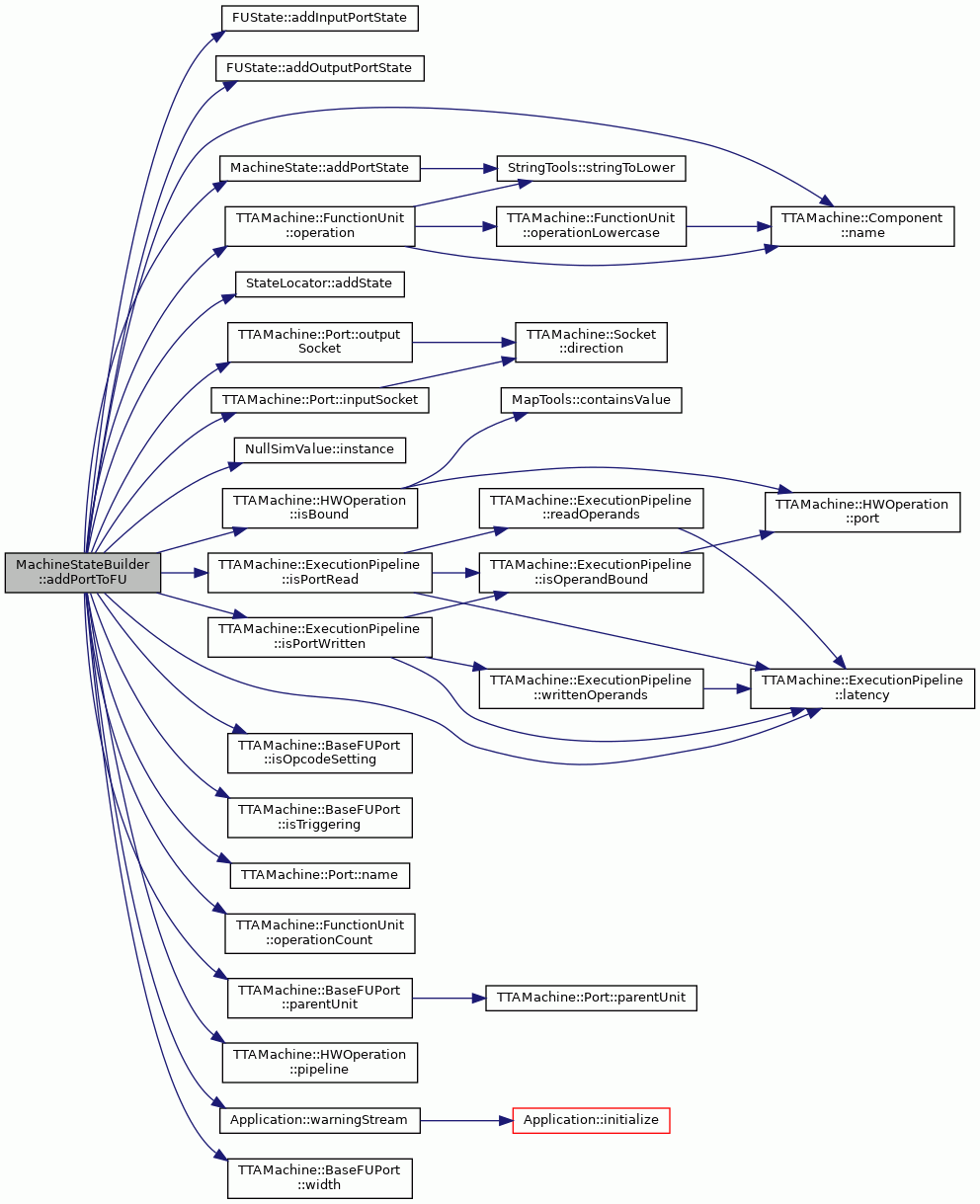

Here is the call graph for this function:

addPortToFU() [2/2]

void MachineStateBuilder::addPortToFU ( MachineState *  machineState, TTAMachine::BaseFUPort *  port, FUState *  state, TTAMachine::FunctionUnit *  fu, StateLocator &  locator, SimValue &  sharedRegister  )

private

Adds a port that shares a register to FU.

Parameters

machineState	Machine state which is built.
port	Port to be added.
state	FUState in which port is added.
fu	FU of which FUState is build from.
locator	StateLocator.
sharedRegister	The register the FUPort shares, if any. If this is set to NullSimValue then a new register (SimValue) is created for the FUPort.

Definition at line 510 of file MachineStateBuilder.cc.

                              {

    bool inputPort = false;
    // a shortcut for figuring whether the port shares a register (in practice,
    // connected to the return address register)
    const bool sharesRegister = (&sharedRegister != &NullSimValue::instance());

    // figure out the direction of the port
    if (port->inputSocket() != NULL) {
        inputPort = true;
    } else if (port->outputSocket() != NULL) {
        inputPort = false;
    } else {
        // Find out the direction of the port using operation<->port
        // connections. This way we can simulate also individual function
        // units which are not connected to any socket.
        const TTAMachine::FunctionUnit& parentFU = *port->parentUnit();

        // find out an operation that is connected to this port
        bool operationBindingFound = false;
        const TTAMachine::FUPort* fuPort =
            dynamic_cast<TTAMachine::FUPort*>(port);
        for (int i = 0; fuPort != NULL && !operationBindingFound &&
                 i < parentFU.operationCount(); ++i) {
            const TTAMachine::HWOperation& operation = *parentFU.operation(i);
            if (!operation.isBound(*fuPort))
                continue;

            const TTAMachine::ExecutionPipeline* pipe = operation.pipeline();

            if (pipe == NULL)
                continue;
            // find out if there's a R/W pipeline component connected to
            // the port
            for (int cycle = 0; cycle < pipe->latency(); ++cycle) {
                if (pipe->isPortRead(*fuPort, cycle)) {
                    inputPort = true;
                    operationBindingFound = true;
                    break;
                } else if (pipe->isPortWritten(*fuPort, cycle)) {
                    inputPort = false;
                    operationBindingFound = true;
                    break;
                } else {
                    // no pipeline connection to this port at this cycle
                    continue;
                }
            }
        }

        if (!operationBindingFound) {
            Application::warningStream()
                << "warning: Cannot determine the direction of port "
                << port->parentUnit()->name() + "." + port->name()
                << ", omitting it from the simulation model."
                << std::endl;
            return;
        }
    }

    if (inputPort) {
        if (port->isOpcodeSetting()) {

            TriggeringInputPortState* triggerPort = NULL;
            if (sharesRegister) {
                triggerPort =
                    new TriggeringInputPortState(*state, sharedRegister);
            } else {
                triggerPort =
                    new TriggeringInputPortState(*state, port->width());
            }

            state->addInputPortState(*triggerPort);
            machineState->addPortState(
                triggerPort, port->name(), port->parentUnit()->name());
            locator.addState(*port, *triggerPort);

        } else if (port->isTriggering()) {

            TriggeringInputPortState* input = NULL;
            if (sharesRegister) {
                input =  new TriggeringInputPortState(*state, sharedRegister);
            } else {
                input =  new TriggeringInputPortState(*state, port->width());
            }

            machineState->addPortState(
                input, port->name(), port->parentUnit()->name());
            state->addInputPortState(*input);
            locator.addState(*port, *input);
        } else {
            InputPortState* input = NULL;
            if (sharesRegister) {
                input =  new InputPortState(*state, sharedRegister);
            } else {
                input =  new InputPortState(*state, port->width());
            }
            machineState->addPortState(
                input, port->name(), port->parentUnit()->name());
            state->addInputPortState(*input);
            locator.addState(*port, *input);
        }
    } else {
        // port is an output port

        OutputPortState* output = NULL;
        if (sharesRegister) {
            output = new OutputPortState(*state, sharedRegister);
        } else {
            output = new OutputPortState(*state, port->width());
        }
        machineState->addPortState(
            output, port->name(), port->parentUnit()->name());
        state->addOutputPortState(*output);
        locator.addState(*port, *output);
    }
}

References FUState::addInputPortState(), FUState::addOutputPortState(), MachineState::addPortState(), StateLocator::addState(), TTAMachine::Port::inputSocket(), NullSimValue::instance(), TTAMachine::HWOperation::isBound(), TTAMachine::BaseFUPort::isOpcodeSetting(), TTAMachine::ExecutionPipeline::isPortRead(), TTAMachine::ExecutionPipeline::isPortWritten(), TTAMachine::BaseFUPort::isTriggering(), TTAMachine::ExecutionPipeline::latency(), TTAMachine::Component::name(), TTAMachine::Port::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::Port::outputSocket(), TTAMachine::BaseFUPort::parentUnit(), TTAMachine::HWOperation::pipeline(), Application::warningStream(), and TTAMachine::BaseFUPort::width().

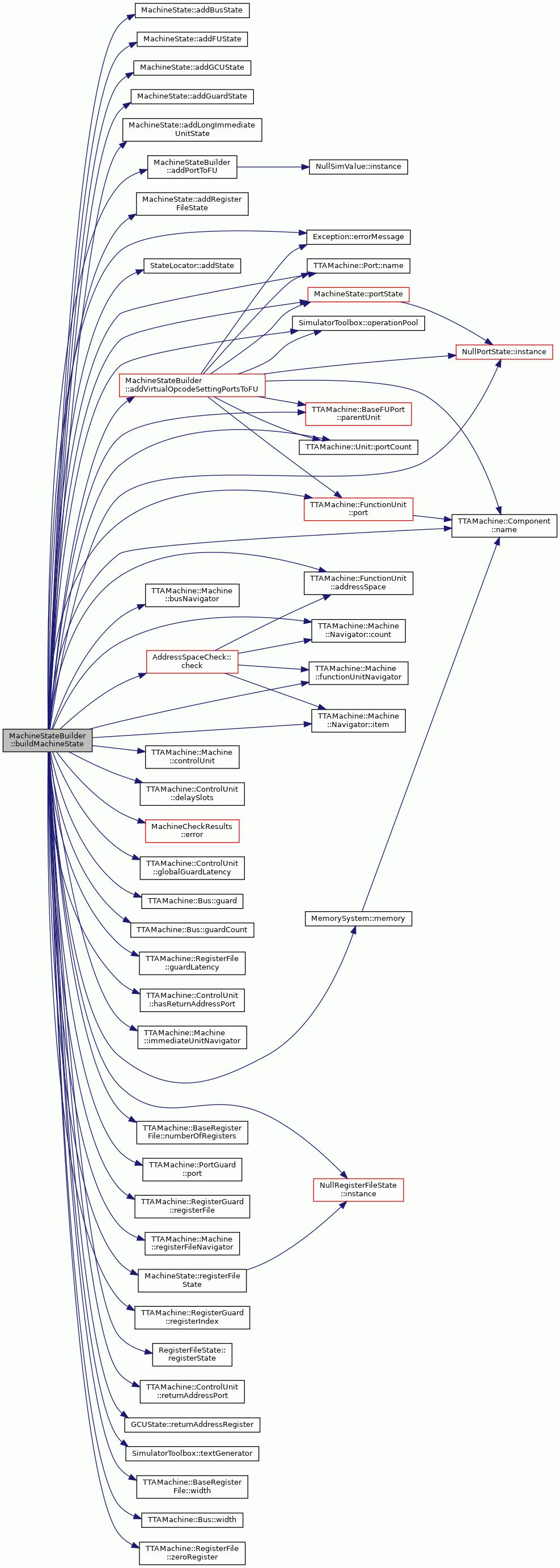

Here is the call graph for this function:

addVirtualOpcodeSettingPortsToFU()

void MachineStateBuilder::addVirtualOpcodeSettingPortsToFU ( MachineState &  machineState, FUState &  state, TTAMachine::FunctionUnit &  unit  )

private

Adds the virtual opcode-setting ports to the FU.

Expects that the FU is otherwise completely built.

Parameters

machineState	The machine state to use.
state	The FUState to add the ports.
unit	The static function unit data from MOM.

Todo:

Improve this and change the naming to alu.add.p1, or save the virtual ports to different index!

Definition at line 368 of file MachineStateBuilder.cc.

                        {
    for (int i = 0; i < unit.portCount(); i++) {
        BaseFUPort& port = *unit.port(i);

        if (port.isOpcodeSetting()) {

            PortState* p = &machineState.portState(port.name(), unit.name());
            assert(p != &NullPortState::instance());

            TriggeringInputPortState* triggerPort =
                dynamic_cast<TriggeringInputPortState*>(p);

            if (triggerPort == NULL) {
                throw IllegalMachine(
                    __FILE__, __LINE__, __func__,
                    std::string("The opcode setting port ") + port.name() +
                    " is not triggering.");
            }

            // create a virtual port for all the opcodes that can be set
            // through the port
            for (int j = 0; j < unit.operationCount(); j++) {

                HWOperation& hwOp = *unit.operation(j);
                OperationPool& pool = SimulatorToolbox::operationPool();
                Operation* operation = NULL;
                try {
                    operation = &pool.operation(hwOp.name().c_str());
                } catch (const DynamicLibraryException& e) {
                    throw IllegalMachine(
                        __FILE__, __LINE__, __func__, e.errorMessage());
                }

                if (operation->isNull()) {
                    throw IllegalMachine(
                        __FILE__, __LINE__, __func__,
                        (boost::format(
                            "Operation '%s' not found in OSAL.") %
                         hwOp.name()).str());
                }

                // add executor for the operation
                OperationExecutor* executor = NULL;
                GCUState* gcu = dynamic_cast<GCUState*>(&state);
                if (gcu != NULL) {
                    executor = new TransportPipeline(*gcu);
                } else {
                    if (hwOp.latency() == 0) {
                        throw IllegalMachine(
                            __FILE__, __LINE__, __func__,
                            std::string("Operation ") + hwOp.name() + " in " +
                            unit.name() + " has latency of 0, which is not " +
                            "supported by TCE.");
                    }

                    bool conflictDetection = false;
                    if (detectors_ != NULL && unit.needsConflictDetection()) {
                        FUConflictDetectorIndex::iterator detectorI =
                            detectors_->find(unit.name());

                        if (detectorI != detectors_->end()) {
                            conflictDetection = true;

                            FUResourceConflictDetector& detector =
                                *(*detectorI).second;
                            // the FU has conflict detection enabled, always
                            // create a new ConflictDetectingOperationExecutor
                            // for all opcodes.
                            executor = new ConflictDetectingOperationExecutor(
                                detector, detector.operationID(hwOp.name()),
                                state, hwOp, throwWhenConflict_);
                        }
                    }

                    if (!conflictDetection) {
                        bool multiLatencyOp = false;
                        const int totalLatency = hwOp.latency();
                        for (int i = operation->numberOfInputs() + 1;
                             i <= operation->numberOfInputs() +
                                 operation->numberOfOutputs(); ++i) {
                            if (hwOp.latency(i) < totalLatency) {
                                multiLatencyOp = true;
                                break;
                            }
                        }

                        if (multiLatencyOp || detailedSimulationModel_) {
                            executor = new MultiLatencyOperationExecutor(
                                state, hwOp);
                        } else if (totalLatency == 1) {
                            executor = new OneCycleOperationExecutor(state);
                        } else {
                            executor =
                                new SimpleOperationExecutor(
                                    totalLatency, state);
                        }
                    }
                }

                bindPortsToOperands(
                    *executor, hwOp, machineState, state, unit);

                state.addOperationExecutor(*executor, *operation);
                machineState.addOperationExecutor(executor);

                // virtual ports are put to the index with names like
                // p1.add
                /// @todo Improve this and change the naming to alu.add.p1,
                /// or save the virtual ports to different index!
                string name =
                    port.name() + "." +
                    StringTools::stringToLower(operation->name());
                OperationExecutor* finalExecutor =
                    state.executor(*operation);
                assert(executor != NULL);
                OpcodeSettingVirtualInputPortState* opcodePort =
                    new OpcodeSettingVirtualInputPortState(
                        *operation, *finalExecutor, state, *triggerPort);
                state.addInputPortState(*opcodePort);
                machineState.addPortState(
                    opcodePort, name, port.parentUnit()->name());
            }
        }
    }
}

References __func__, FUState::addInputPortState(), FUState::addOperationExecutor(), MachineState::addOperationExecutor(), MachineState::addPortState(), assert, bindPortsToOperands(), detailedSimulationModel_, detectors_, Exception::errorMessage(), FUState::executor(), NullPortState::instance(), Operation::isNull(), TTAMachine::BaseFUPort::isOpcodeSetting(), TTAMachine::HWOperation::latency(), TTAMachine::HWOperation::name(), TTAMachine::Component::name(), TTAMachine::Port::name(), Operation::name(), TTAMachine::FunctionUnit::needsConflictDetection(), Operation::numberOfInputs(), Operation::numberOfOutputs(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), FUResourceConflictDetector::operationID(), SimulatorToolbox::operationPool(), TTAMachine::BaseFUPort::parentUnit(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), MachineState::portState(), StringTools::stringToLower(), and throwWhenConflict_.

Referenced by buildMachineState().

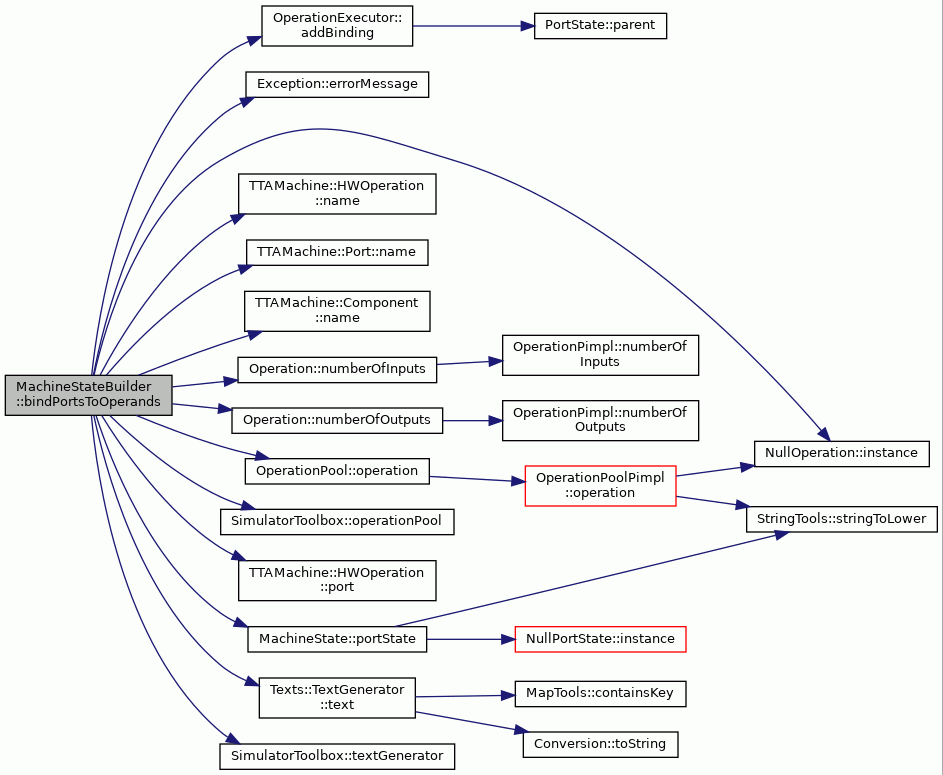

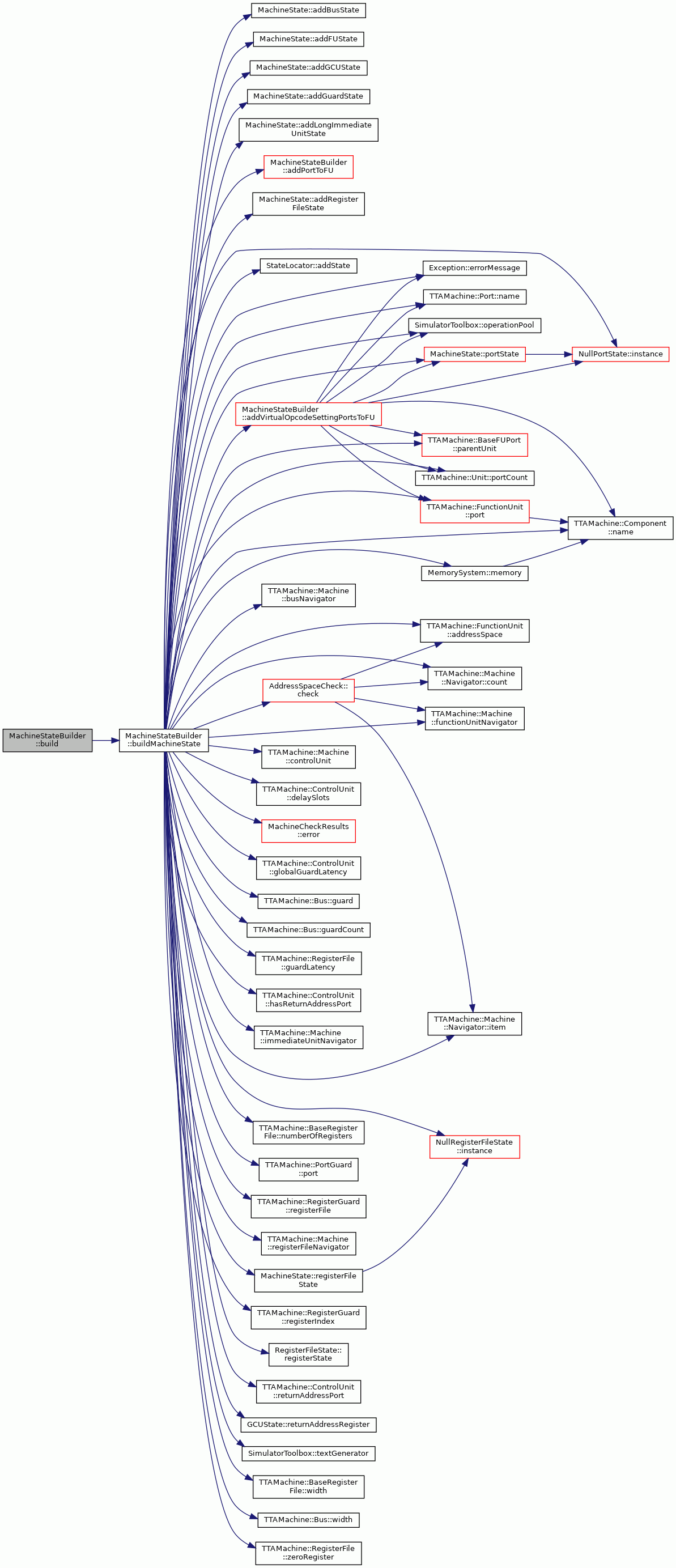

Here is the call graph for this function:

bindPortsToOperands()

void MachineStateBuilder::bindPortsToOperands ( OperationExecutor &  executor, TTAMachine::HWOperation &  hwOperation, MachineState &  machineState, FUState &  state, TTAMachine::FunctionUnit &  unit  )

private

Binds ports to operands.

Operands are bound for OperationExecutor which is not yet inserted to the machine.

Parameters

executor	OperationExecutor to bind the ports for.
machineState	MachineState to be built.
state	FUState of which ports are bound.
unit	FunctionUnit that owns the ports that are bound.

Exceptions

IllegalMachine

If binding fails.

Definition at line 667 of file MachineStateBuilder.cc.

                                                              {
    OperationPool& pool = SimulatorToolbox::operationPool();
    Operation& op = pool.operation(hwOperation.name().c_str());

    if (&op == &NullOperation::instance()) {
        const string msg =
            (SimulatorToolbox::textGenerator().text(
                Texts::TXT_OPERATION_X_NOT_FOUND) % hwOperation.name()).str();
        throw IllegalMachine(__FILE__, __LINE__, __func__, msg);
    }

    const int operandCount = op.numberOfInputs() + op.numberOfOutputs();
    for (int j = 1; j <= operandCount; j++) {

        FUPort* port = hwOperation.port(j);
        if (port == NULL) {
            // unused operand
            continue;
        }
        PortState& portState =
            machineState.portState(port->name(), unit.name());
        try {
            executor.addBinding(j, portState);
        } catch (const Exception& e) {
            string msg = "Problems while building machine state: " +
                e.errorMessage();
            throw IllegalMachine(__FILE__, __LINE__, __func__, msg);
        }
    }
}

References __func__, OperationExecutor::addBinding(), Exception::errorMessage(), NullOperation::instance(), TTAMachine::HWOperation::name(), TTAMachine::Component::name(), TTAMachine::Port::name(), Operation::numberOfInputs(), Operation::numberOfOutputs(), SimulatorToolbox::operationPool(), TTAMachine::HWOperation::port(), MachineState::portState(), Texts::TextGenerator::text(), SimulatorToolbox::textGenerator(), and Texts::TXT_OPERATION_X_NOT_FOUND.

Referenced by addVirtualOpcodeSettingPortsToFU().

Here is the call graph for this function:

build() [1/3]

MachineState * MachineStateBuilder::build	(	const TTAMachine::Machine &	machine,
		MemorySystem &	memSys
	)

Builds machine state from given machine.

Parameters

machine	The machine of which machine state is built from.
memSys	Memory system instance.

Returns

The created machine state.

Exceptions

IllegalMachine

If machine state building fails.

Definition at line 104 of file MachineStateBuilder.cc.

                          {

    StateLocator locator;
    detectors_ = NULL;
    return buildMachineState(machine, memSys, locator);
}

References buildMachineState(), detectors_, and machine.

Referenced by FUTestbenchGenerator::createMachineState(), RFTestbenchGenerator::createMachineState(), and SimulationController::SimulationController().

Here is the call graph for this function:

build() [2/3]

MachineState * MachineStateBuilder::build	(	const TTAMachine::Machine &	machine,
		MemorySystem &	memSys,
		FUConflictDetectorIndex &	detectors,
		bool	throwWhenConflict = true
	)

Builds machine state from given machine.

This method allows giving an index of FU resource conflict detectors to create a model that detects FU resource conflicts.

Parameters

machine	The machine of which machine state is built from.
memSys	Memory system instance.
detectors	The FU resource conflict detectors.
throwWhenConflict	Builds a model that throws an exception in case of resource conflict is detected.

Returns

The created machine state.

Exceptions

IllegalMachine

If machine state building fails.

Definition at line 128 of file MachineStateBuilder.cc.

                            {

    StateLocator locator;
    detectors_ = &detectors;
    throwWhenConflict_ = throwWhenConflict;
    return buildMachineState(machine, memSys, locator);
}

References buildMachineState(), detectors_, machine, and throwWhenConflict_.

Here is the call graph for this function:

build() [3/3]

MachineState * MachineStateBuilder::build	(	const TTAMachine::Machine &	machine,
		MemorySystem &	memSys,
		StateLocator &	locator
	)

Builds machine state from given machine.

Parameters

machine	Machine of which machine state is build from.
memSys	Memory system.
locator	Indexes states with components as keys.

Returns

The created machine state instance.

Exceptions

IllegalMachine

If machine state building fails.

Definition at line 150 of file MachineStateBuilder.cc.

                           {
    detectors_ = NULL;
    return buildMachineState(machine, memSys, locator);
}

References buildMachineState(), detectors_, and machine.

Here is the call graph for this function:

buildMachineState()

MachineState * MachineStateBuilder::buildMachineState ( const TTAMachine::Machine &  machine, MemorySystem &  memSys, StateLocator &  locator  )

private

Builds MachineState from given Machine.

Parameters

machine	Machine.
memSys	Memory system.
locator	State locator.

Returns

The created MachineState.

Exceptions

IllegalMachine

If machine state building fails.

Todo:

This assumes that natural word width of GCU is 4 MAUs!

Definition at line 168 of file MachineStateBuilder.cc.

                           {

    MachineState* machineState = new MachineState();

    int controlUnitGuardLatency = 0;
    if (machine.controlUnit() != NULL) {
        ControlUnit* controlUnit = machine.controlUnit();
        /// @todo This assumes that natural word width of GCU is 4 MAUs!
        int WordWidthInMAUs = 1;

        GCUState* gcu = new GCUState(
            (controlUnit->delaySlots() + 1), 4, controlUnit->delaySlots(),
            WordWidthInMAUs);
        machineState->addGCUState(gcu);
        controlUnitGuardLatency  = controlUnit->globalGuardLatency();

        for (int i = 0; i < controlUnit->portCount(); i++) {
            BaseFUPort* port = controlUnit->port(i);
            if (controlUnit->hasReturnAddressPort() &&
                dynamic_cast<SpecialRegisterPort*>(port) ==
                controlUnit->returnAddressPort()) {
                // return address port shares a register with the RA register
                // which resides inside the GCU
                addPortToFU(
                    machineState, port, gcu, controlUnit, locator,
                    gcu->returnAddressRegister());
            } else {
                addPortToFU(machineState, port, gcu, controlUnit, locator);
            }
        }
        addVirtualOpcodeSettingPortsToFU(*machineState, *gcu, *controlUnit);
    }

    Machine::FunctionUnitNavigator FUs = machine.functionUnitNavigator();

    OperationPool& pool = SimulatorToolbox::operationPool();
    AddressSpaceCheck addressSpaceCheck(pool);
    MachineCheckResults results;
    if (!addressSpaceCheck.check(machine, results)) {
        string msg = "Problems while building machine state: " +
            results.error(0).second;
        throw IllegalMachine(__FILE__, __LINE__, __func__, msg) ;
    }

    for (int i = 0; i < FUs.count(); i++) {
        FunctionUnit* unit = FUs.item(i);
        FUState* state = NULL;
        if (unit->addressSpace() != NULL) {
            try {
                MemorySystem::MemoryPtr memory = memSys.memory(*unit->addressSpace());
                state = new MemoryAccessingFUState(unit->name(), *memory.get());
            } catch (const Exception& i) {
                string msg = "Problems building machine state: " +
                    i.errorMessage();
                throw IllegalMachine(__FILE__, __LINE__, __func__, msg);
            }
        } else {
            state = new FUState(unit->name());
        }
        machineState->addFUState(state, unit->name());

        for (int k = 0; k < unit->portCount(); k++) {
            BaseFUPort* port = unit->port(k);
            addPortToFU(machineState, port, state, unit, locator);
        }

        addVirtualOpcodeSettingPortsToFU(*machineState, *state, *unit);
    }

    Machine::ImmediateUnitNavigator immediateUnits =
        machine.immediateUnitNavigator();
    for (int i = 0; i < immediateUnits.count(); i++) {
        LongImmediateUnitState* state =
            new LongImmediateUnitState(
                immediateUnits.item(i)->numberOfRegisters(),
                immediateUnits.item(i)->latency(),
                immediateUnits.item(i)->name(),
                immediateUnits.item(i)->width(),
                immediateUnits.item(i)->extensionMode() ==
                TTAMachine::Machine::SIGN);

        machineState->addLongImmediateUnitState(
            state, immediateUnits.item(i)->name());
    }

    Machine::RegisterFileNavigator registers = machine.registerFileNavigator();
    for (int i = 0; i < registers.count(); i++) {
        RegisterFile* regFile = registers.item(i);
        RegisterFileState* state = NULL;
        state = new RegisterFileState(
            regFile->numberOfRegisters(), regFile->width(),
            regFile->zeroRegister());
        machineState->addRegisterFileState(state, regFile->name());
    }

    Machine::BusNavigator busses = machine.busNavigator();
    for (int b = 0; b < busses.count(); ++b) {
        Bus* bus = busses.item(b);
        BusState* state = new BusState(bus->width());
        machineState->addBusState(state, bus->name());
        locator.addState(*bus, *state);

        for (int i = 0; i < bus->guardCount(); ++i) {
            const Guard* guard = bus->guard(i);
            assert(guard != NULL);

            const PortGuard* portGuard =
                dynamic_cast<const PortGuard*>(guard);
            const RegisterGuard* registerGuard =
                dynamic_cast<const RegisterGuard*>(guard);
            const UnconditionalGuard* uncondGuard =
                dynamic_cast<const UnconditionalGuard*>(guard);

            int guardLatency = controlUnitGuardLatency;
            ReadableState* targetRegister = NULL;
            if (portGuard != NULL) {

                const BaseFUPort* thePort =
                    dynamic_cast<const BaseFUPort*>(portGuard->port());

                assert(thePort != NULL);

                PortState& port =
                    machineState->portState(
                        thePort->name(), thePort->parentUnit()->name());

                if (&port == &NullPortState::instance()) {
                    throw IllegalMachine(
                        __FILE__, __LINE__, __func__,
                        SimulatorToolbox::textGenerator().text(
                            Texts::TXT_ILLEGAL_PROGRAM_PORT_STATE_NOT_FOUND).
                        str());
                }
                targetRegister = &port;

                // 0-cycle guard latency means reading the value directly
                // from the port.
                if (guardLatency == 0) {
                    GuardState* guardState =
                        new DirectGuardState(*targetRegister);
                    machineState->addGuardState(guardState, *guard);
                    continue;
                }
            } else if (registerGuard != NULL) {

                RegisterFileState& unit =
                    machineState->registerFileState(
                        registerGuard->registerFile()->name());

                if (&unit == &NullRegisterFileState::instance()) {
                    throw IllegalMachine(
                        __FILE__, __LINE__, __func__,
                        SimulatorToolbox::textGenerator().text(
                            Texts::TXT_ILLEGAL_PROGRAM_RF_STATE_NOT_FOUND
                            ).str());
                }
                guardLatency += registerGuard->registerFile()->guardLatency();

                targetRegister =
                    &unit.registerState(registerGuard->registerIndex());

                // Values of registers are written later than guard are evaluated,
                // so in case of 1-cycle register guard, can use direct guard
                // without any pipeline.
                if (guardLatency == 1) {
                    GuardState* guardState =
                        new DirectGuardState(*targetRegister);
                    machineState->addGuardState(guardState, *guard);
                    continue;
                }
            } else if (uncondGuard != NULL) {
                // do not create a state object for unconditional guards,
                // it makes no sense
                continue;
            } else {
                abortWithError("Unknown guard type.");
            }

            GuardState* guardState =
                new GuardState(*targetRegister, guardLatency);
            machineState->addGuardState(guardState, *guard);
        }
    }

    return machineState;
}

References __func__, abortWithError, MachineState::addBusState(), MachineState::addFUState(), MachineState::addGCUState(), MachineState::addGuardState(), MachineState::addLongImmediateUnitState(), addPortToFU(), MachineState::addRegisterFileState(), TTAMachine::FunctionUnit::addressSpace(), StateLocator::addState(), addVirtualOpcodeSettingPortsToFU(), assert, TTAMachine::Machine::busNavigator(), AddressSpaceCheck::check(), TTAMachine::Machine::controlUnit(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::ControlUnit::delaySlots(), MachineCheckResults::error(), Exception::errorMessage(), TTAMachine::Machine::functionUnitNavigator(), TTAMachine::ControlUnit::globalGuardLatency(), TTAMachine::Bus::guard(), TTAMachine::Bus::guardCount(), TTAMachine::RegisterFile::guardLatency(), TTAMachine::ControlUnit::hasReturnAddressPort(), TTAMachine::Machine::immediateUnitNavigator(), NullPortState::instance(), NullRegisterFileState::instance(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine, MemorySystem::memory(), TTAMachine::Component::name(), TTAMachine::Port::name(), TTAMachine::BaseRegisterFile::numberOfRegisters(), SimulatorToolbox::operationPool(), TTAMachine::BaseFUPort::parentUnit(), TTAMachine::PortGuard::port(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), MachineState::portState(), TTAMachine::RegisterGuard::registerFile(), TTAMachine::Machine::registerFileNavigator(), MachineState::registerFileState(), TTAMachine::RegisterGuard::registerIndex(), RegisterFileState::registerState(), TTAMachine::ControlUnit::returnAddressPort(), GCUState::returnAddressRegister(), TTAMachine::Machine::SIGN, SimulatorToolbox::textGenerator(), Texts::TXT_ILLEGAL_PROGRAM_PORT_STATE_NOT_FOUND, Texts::TXT_ILLEGAL_PROGRAM_RF_STATE_NOT_FOUND, TTAMachine::BaseRegisterFile::width(), TTAMachine::Bus::width(), and TTAMachine::RegisterFile::zeroRegister().

Referenced by build(), build(), and build().

Here is the call graph for this function:

operator=()

MachineStateBuilder & MachineStateBuilder::operator= ( const MachineStateBuilder &  )

private

Assignment not allowed.

Member Data Documentation

detailedSimulationModel_

bool MachineStateBuilder::detailedSimulationModel_

private

Set to true in case should build a detailed model which simulates FU stages, possibly with an external system-level model.

Definition at line 128 of file MachineStateBuilder.hh.

Referenced by addVirtualOpcodeSettingPortsToFU().

detectors_

FUConflictDetectorIndex* MachineStateBuilder::detectors_

private

The FU resource conflict detectors. They are needed while building the machine state model.

Definition at line 120 of file MachineStateBuilder.hh.

Referenced by addVirtualOpcodeSettingPortsToFU(), build(), build(), and build().

throwWhenConflict_

bool MachineStateBuilder::throwWhenConflict_

private

True in case the built model should throw an exception in case of a resource conflict.

Definition at line 124 of file MachineStateBuilder.hh.

Referenced by addVirtualOpcodeSettingPortsToFU(), and build().

---

The documentation for this class was generated from the following files:

• MachineStateBuilder.hh
• MachineStateBuilder.cc
